Openbeam Printer

di xsmarty

File stampabili (20)

  • stl

    608zz_top_xy_nema17.stl

    60 Ko · 1 902 download

    Scarica
  • stl

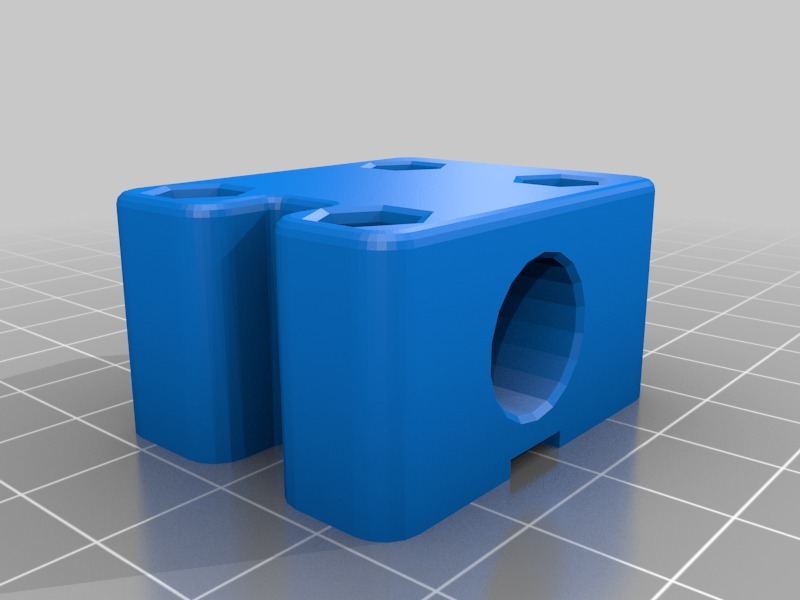

    xy_block.stl

    63 Ko · 1 949 download

    Scarica
  • stl

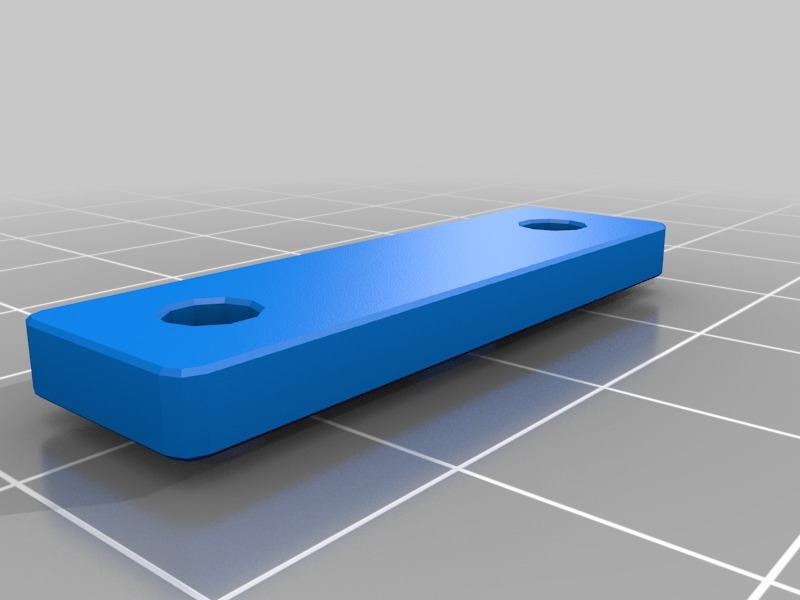

    xy_block_belt_strap5.stl

    86 Ko · 1 858 download

    Scarica

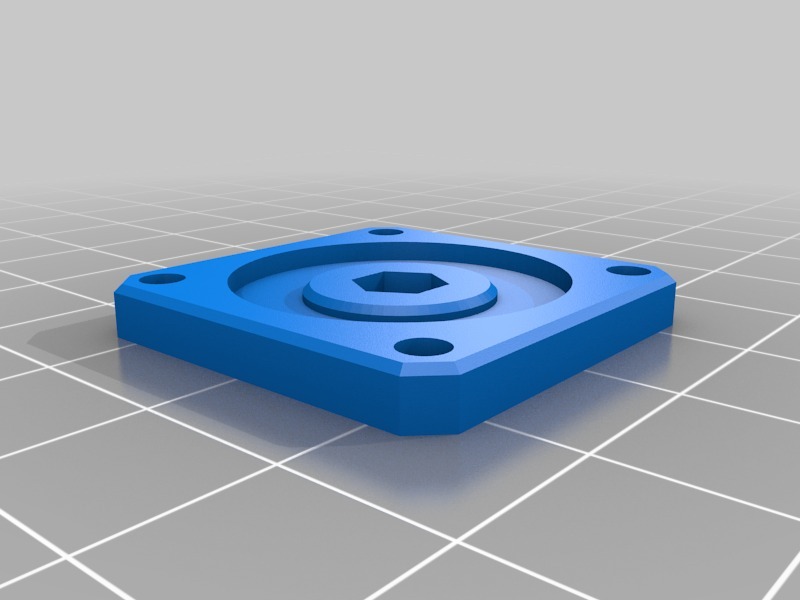

  • stl

    V2_xy_pillow_block_cap.stl

    65 Ko · 1 871 download

    Scarica

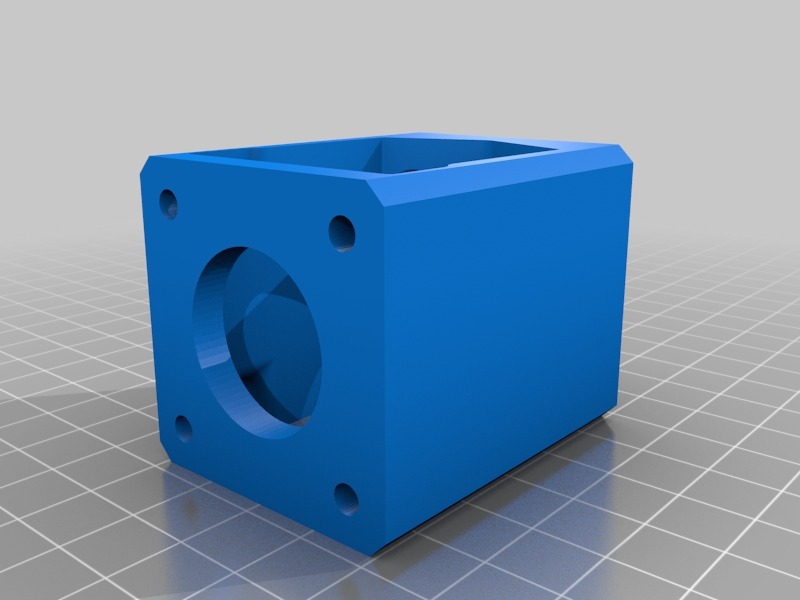

  • stl

    V2_xy_motor_mount.stl

    590 Ko · 1 920 download

    Scarica
  • stl

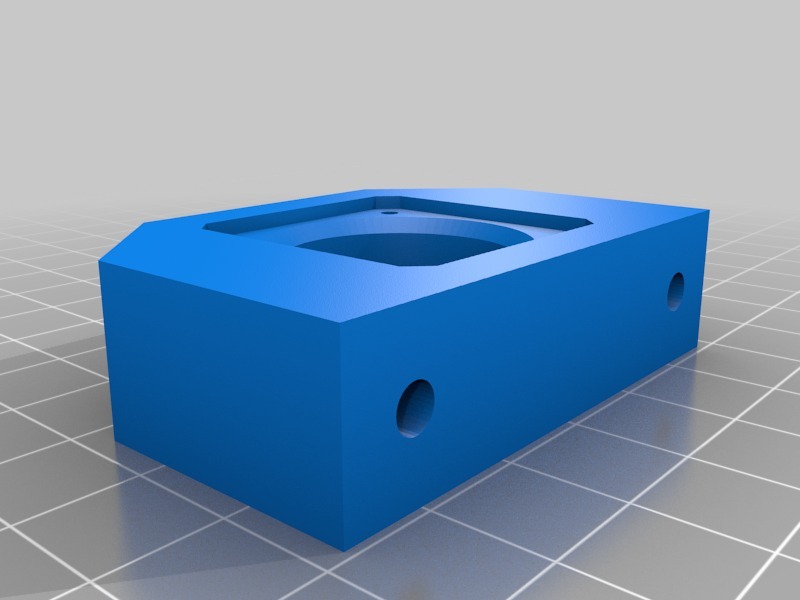

    V2_xy_pillow_block.stl

    1.1 Mo · 1 881 download

    Scarica

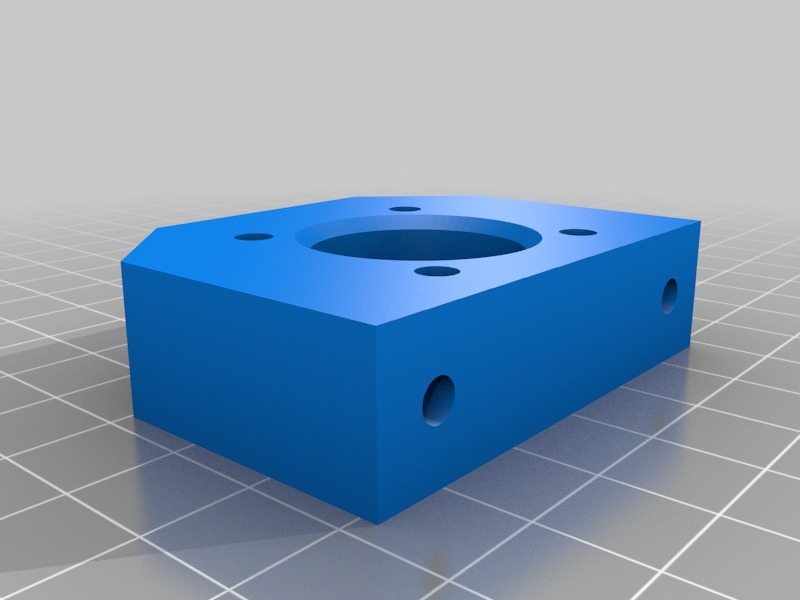

  • stl

    V2_xy_motor_block.stl

    1.1 Mo · 1 863 download

    Scarica
  • stl

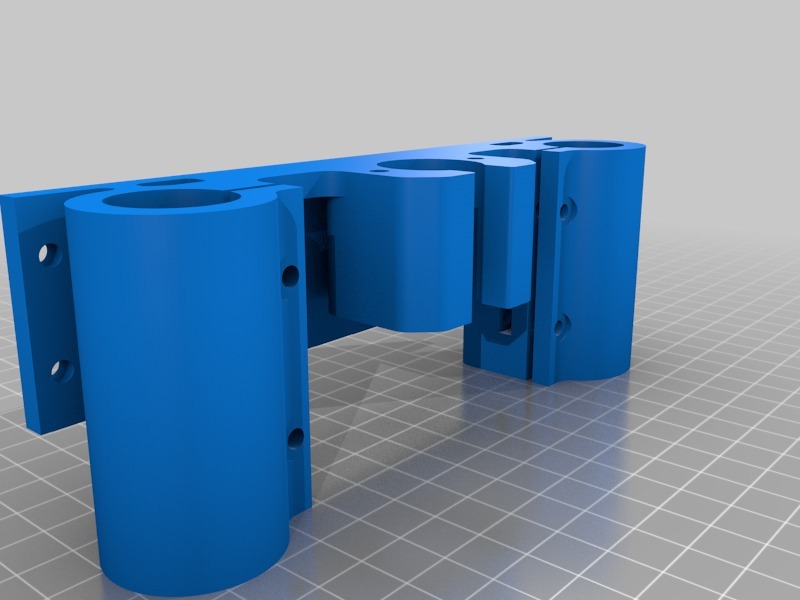

    Z_frame.stl

    2 Mo · 1 928 download

    Scarica

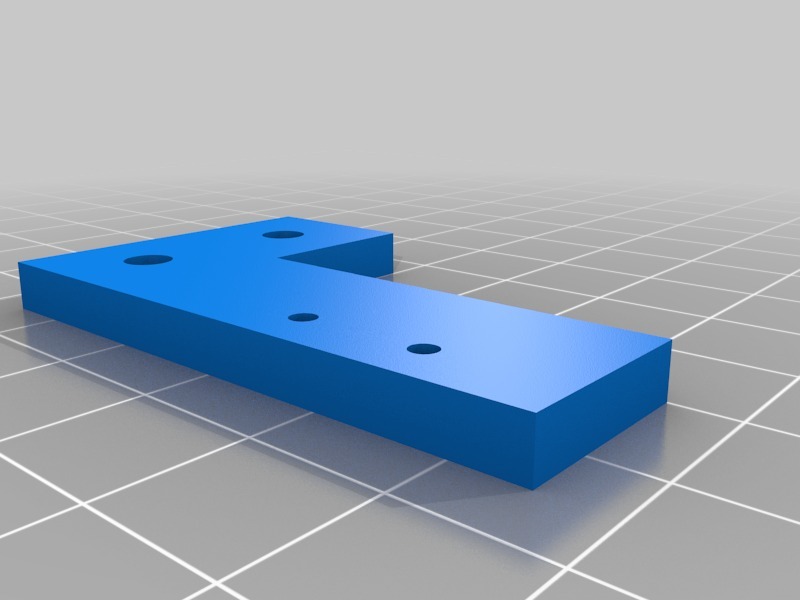

  • stl

    xy_endstop.stl

    96 Ko · 1 846 download

    Scarica

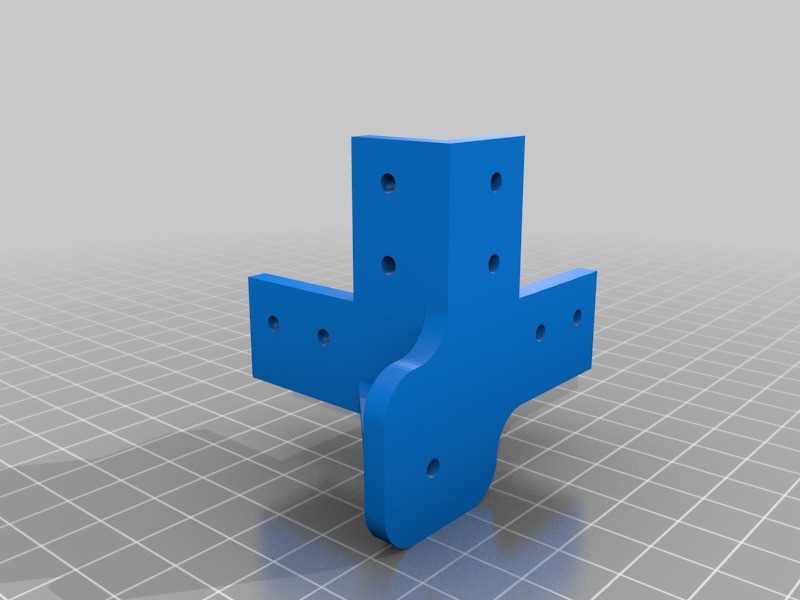

  • stl

    Foot_Corner_Open_beam.stl

    545 Ko · 1 851 download

    Scarica

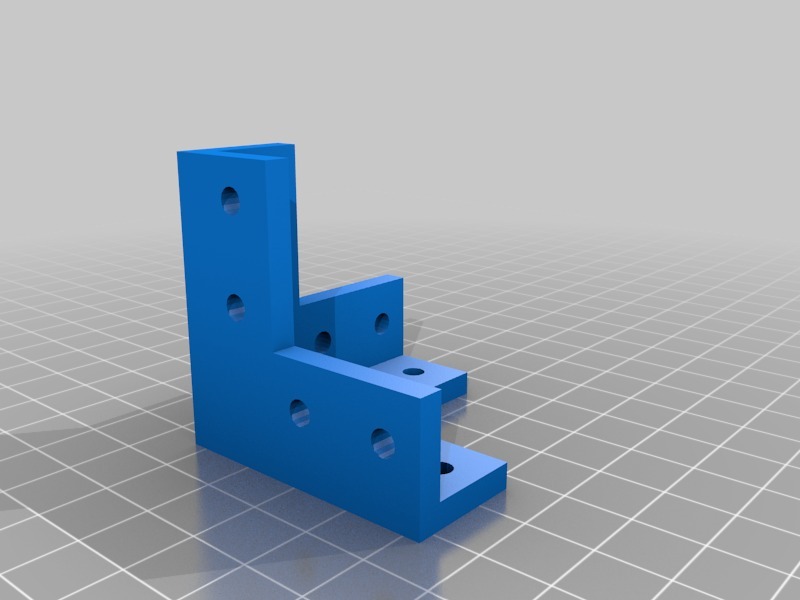

  • stl

    Top_Corner_Open_beam.stl

    42 Ko · 1 872 download

    Scarica
  • stl

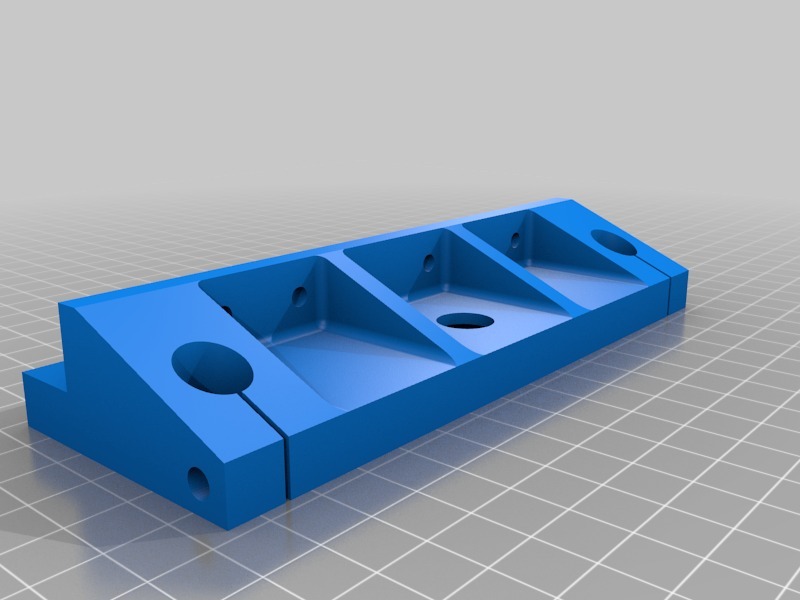

    v2_z_top_bottom.stl

    1.8 Mo · 1 911 download

    Scarica
  • stl

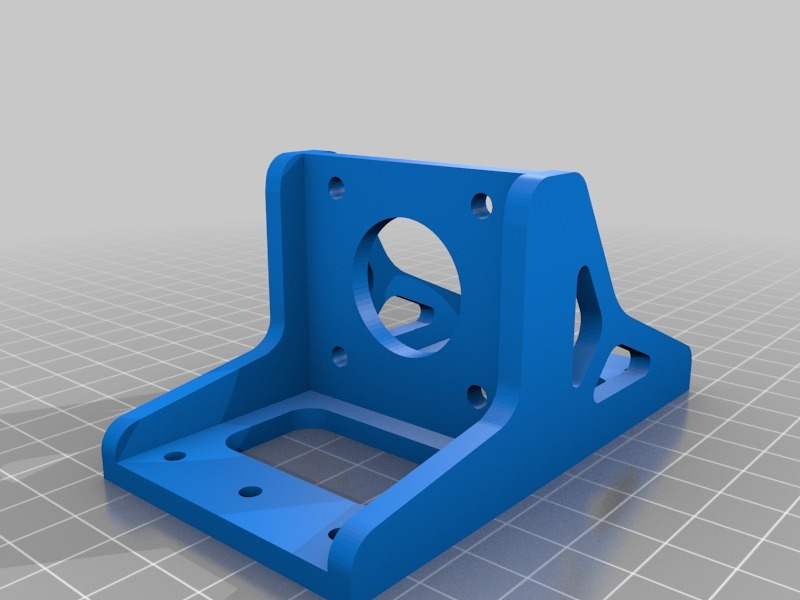

    z_motor_bracket.stl

    781 Ko · 1 880 download

    Scarica
  • stl

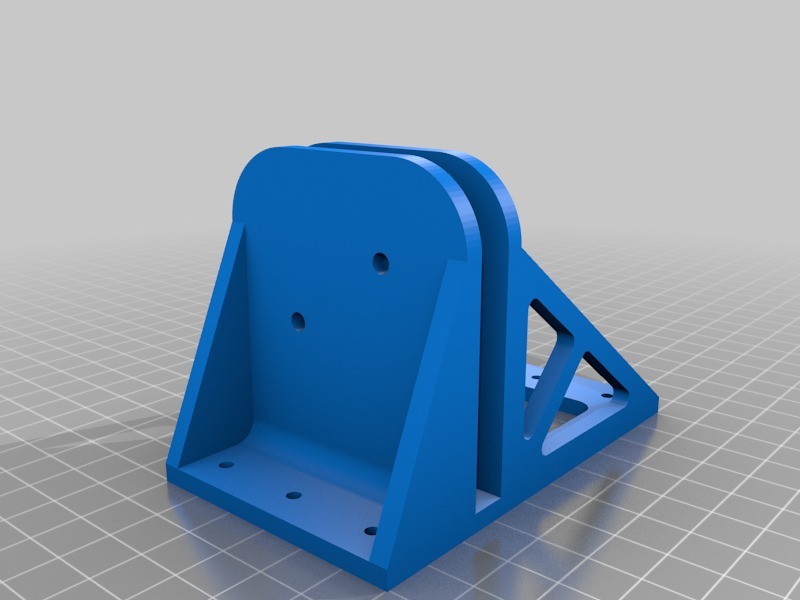

    z_belt_pullys.stl

    594 Ko · 1 847 download

    Scarica
  • stl

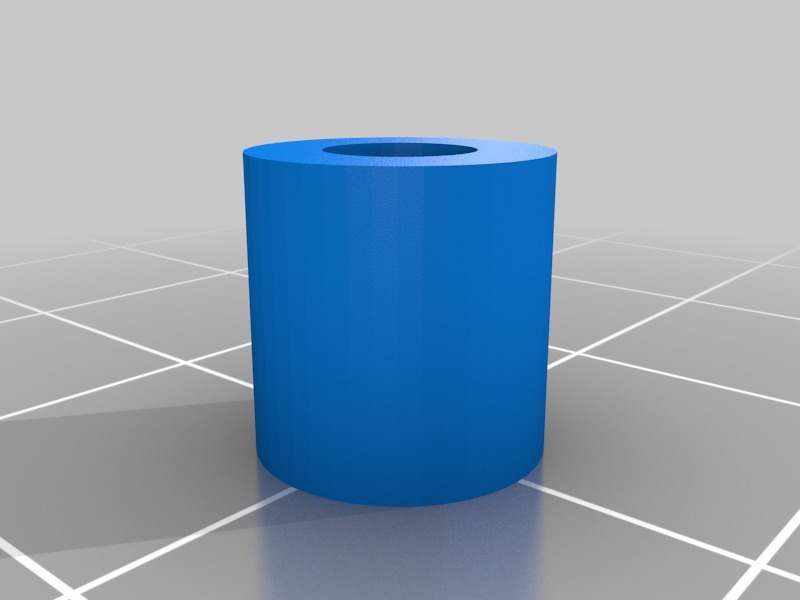

    z_pully_spacer_608zz.stl

    67 Ko · 1 841 download

    Scarica
  • stl

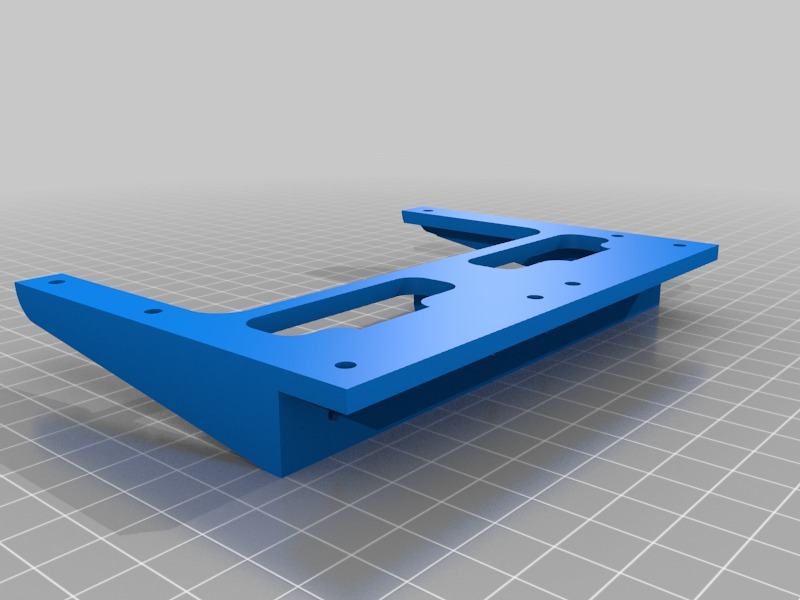

    rumba_mount.stl

    713 Ko · 1 823 download

    Scarica
  • stl

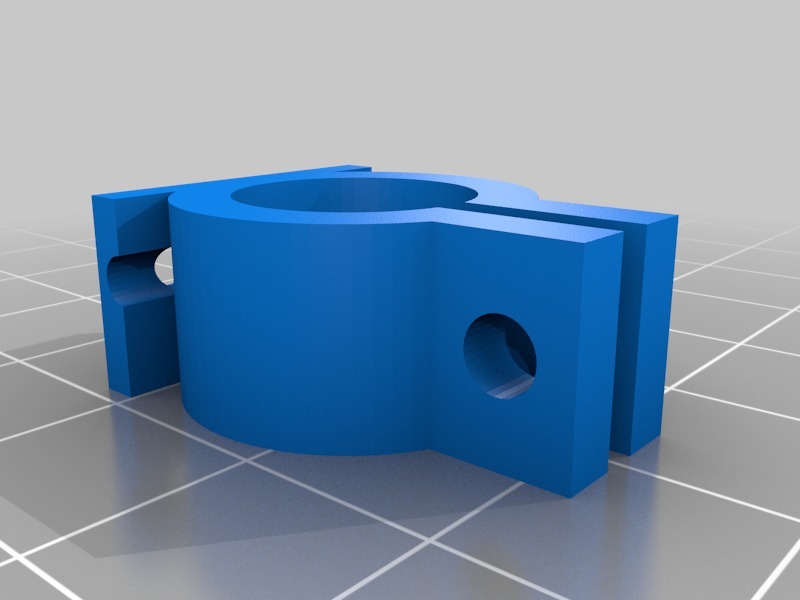

    zstop.stl

    315 Ko · 1 826 download

    Scarica

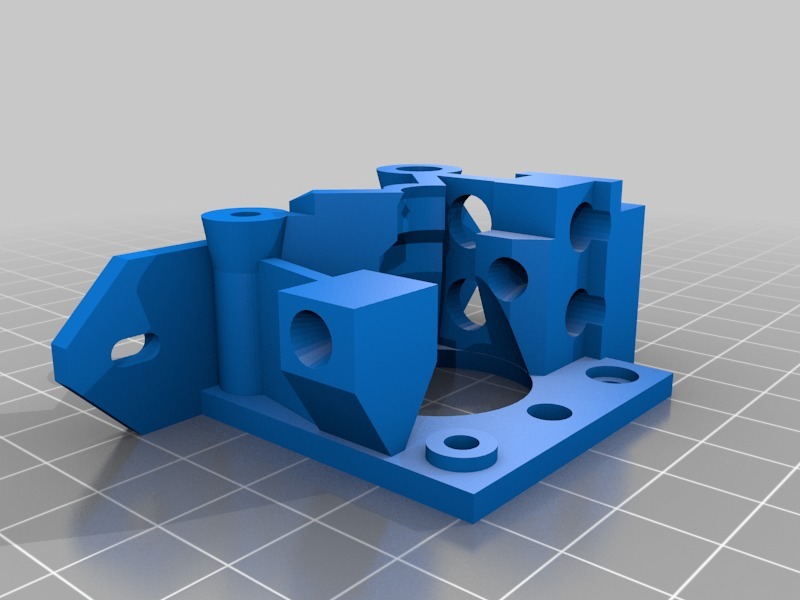

  • stl

    airtripper-for-3mm-pneufit-8mmdrive_gear.stl

    800 Ko · 1 908 download

    Scarica
  • stl

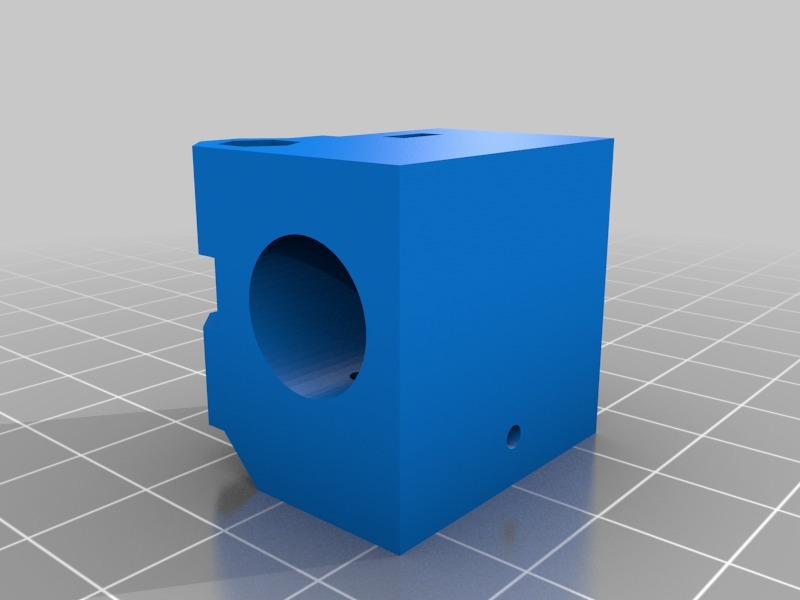

    v2_xy_block.stl

    467 Ko · 1 852 download

    Scarica
  • stl

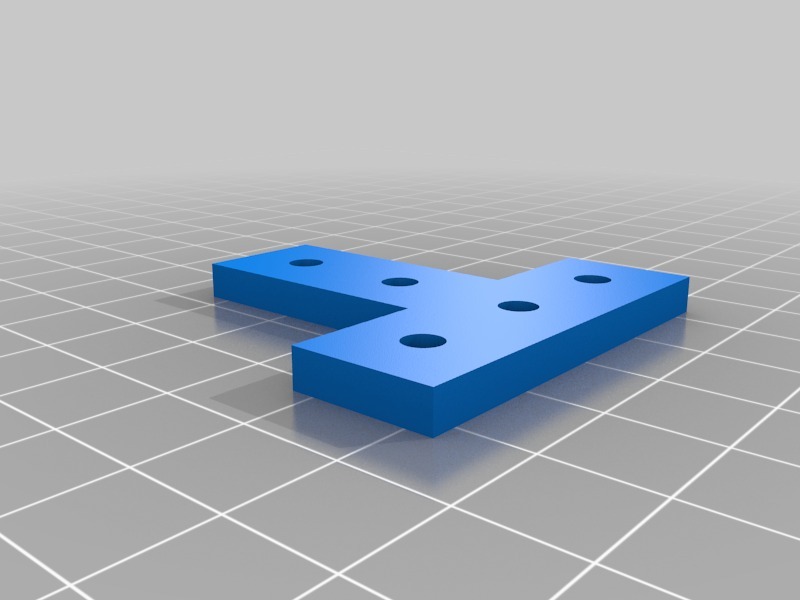

    Ob_T_Bracket.stl

    140 Ko · 1 762 download

    Scarica

Descrizione

Version 2 parts have been uploaded weee

This Open Beam 3d printer is inspired from the ultimaker/corecube/Ingentis
All items have been modeled and printed,
items you will need apart from lots of plastic
Z axis
2x sfu1204 ballscrews
4x 480mm 12mm Smooth Rod
8x lm12uu bearings
6x 608zz ballbearings
1x gt2 1220mm closed belt
2x gt2 pulleys 36tooth 8mm dia http://www.robotdigg.com/product/66/2gt-pulley-36-teeth-8mm-bore
1x gt2 pulley 16tooth 5mm dia http://www.robotdigg.com/product/59/Rostock-16-Teeth-5mm-Bore-GT2-Pulley
XY axis
4x 500mm 8mm smooth rods, you will need to cut to length
2x 450mm 6mm smooth rods, you will need to cut to length
2x lm6luu bearings
sauntered bronze or teflon bushes for the 8mm rods
1x hotend mount like http://www.thingiverse.com/thing:94678
8x 608zz bearings
8x gt2 20tooth 8mm dia pulleys http://www.robotdigg.com/product/23/GT2-Pulley-20-Teeth-8mm-Bore
lots of gt2 belt
feet
4x rubber feet
Additional
4x rattm 78oz steppers
2x Flexible Coupling 5mm Shaft to 8mm Screw
10x 1mtr openbeam Yes I know excessive

Also I am using a 300mmx300mm silicon adhesive heatpad
I hope you enjoy my design
https://www.youtube.com/watch?v=AUOYJMHpzPw

Tag

#3d printer #openbeam
