Inductive proximity sensor holder
di JohnnyTheOne
File stampabili (7)
-
stlNPN_r2.STL
61 Ko · 9 360 download
-
stlNPN_r1.STL
81 Ko · 9 323 download
-
stlSensor_holder_NPN_r4_16mm.STL
56 Ko · 8 780 download
-
stlSensor_holder_NPN_r4_15mm.STL
56 Ko · 7 984 download
-
stlSensor_holder_NPN_r4_18mm.STL
56 Ko · 9 075 download
-
stlSensor_holder_NPN_r4_12mm.STL
56 Ko · 7 990 download
-
stlSensor_holder_BL_Touch.STL
102 Ko · 2 247 download
Descrizione

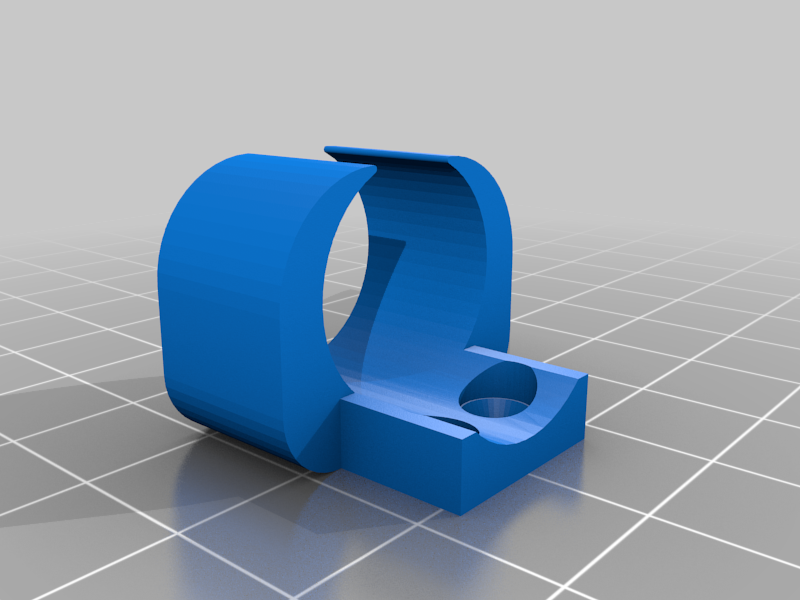

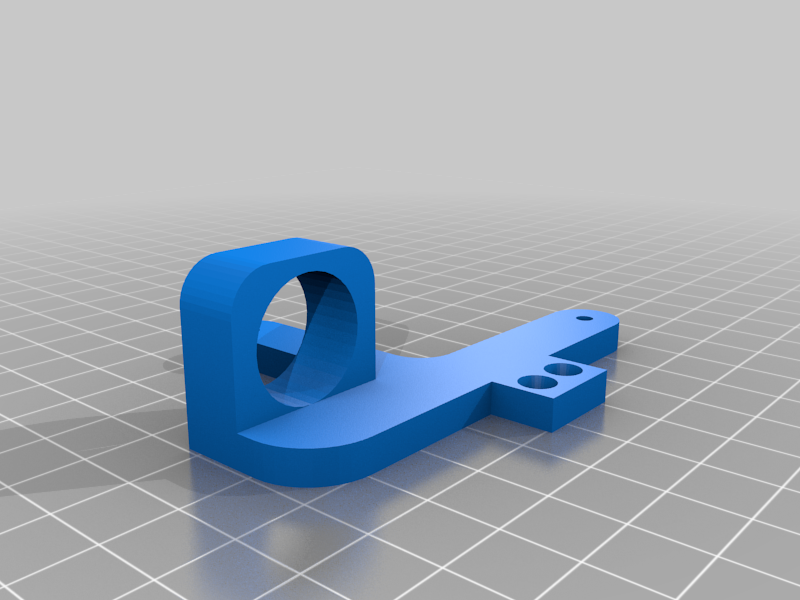

This is simple holder for inductive sensor and fan for auto bed leveling on Anet A6 printer.
I now have this on my printer and almost operational. A few more tweaks and I should be there. When it's done i will publish the .stl files
This is intended for an 18mm sensor: LJC18A3-H-Z/BX Approach Sensor Cylindrical Capacitive Proximity Switch NPN 6-36V
It is somewhat larger than many people use. If you need another dimensions of the 18mm sensor i can add one with the correct hole size.
In some cases keep in mind that you have to make change to the x-axis limit switch
because the sensor holder will hit the left end of the printer before the limit switch does.
22-10-16 Bed leveling on Anet A6 printer it finally works.
Firmware files https://github.com/JohnnyTheOne
05-11-16 Sensor holder NPN r4 18mm.STL Small changes at the back. a place created for hexagon nut

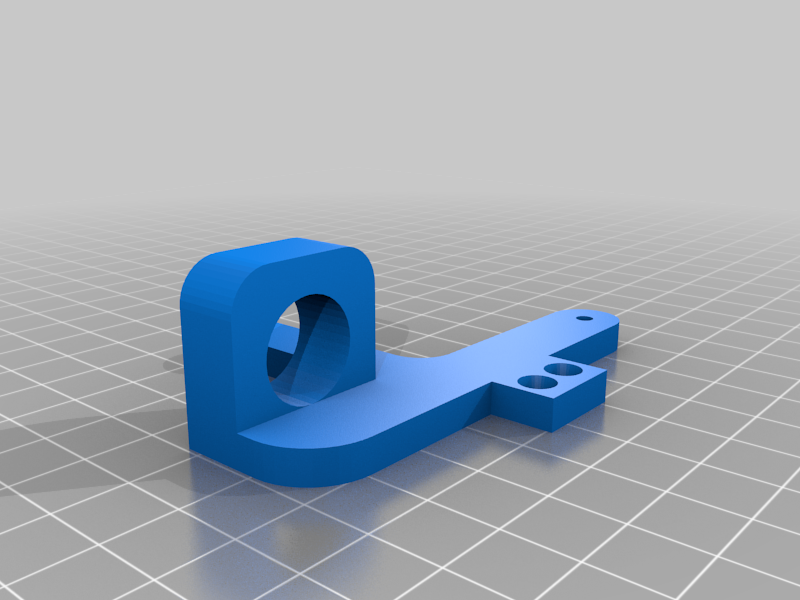

09-03-17 Added Sensor holder NPN r4 16mm
18-01-18 Added Sensor holder NPN r4 15mm

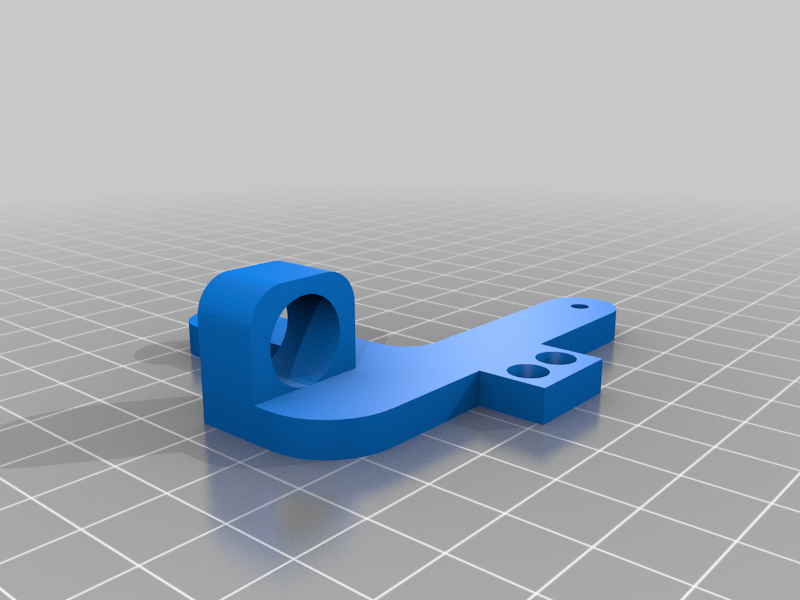

05-02-18 Added Sensor holder NPN r4 12mm

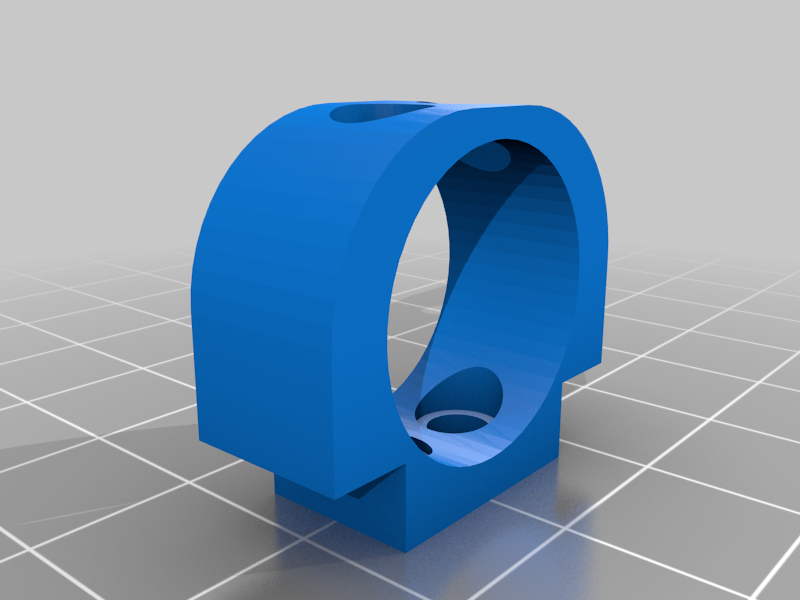

15-09-19 Added Sensor holder BL Touch, 3D Touch
09-03-17 Marlin 1.1.0 RC8 BugFix for Anet A6.
Firmware files https://github.com/JohnnyTheOne/MarlinAnetA6
The only other thing you need to do is to set the z-offset after flashing.
The 18mm sensor position The 16mm sensor position
X offset: -31 mm X offset: -30 mm
Y offset: 20 mm Y offset: 20 mm
