Inductrix Frame Support

di keitht

File stampabili (3)

  • stl

    KeithTFrameSupportV03_65.stl

    1.2 Mo · 1 690 download

    Scarica
  • stl

    KeithTFrameSupportV03_64.stl

    1.2 Mo · 1 644 download

    Scarica
  • stl

    KeithTFrameSupportV04_65.stl

    1.1 Mo · 1 780 download

    Scarica

Descrizione

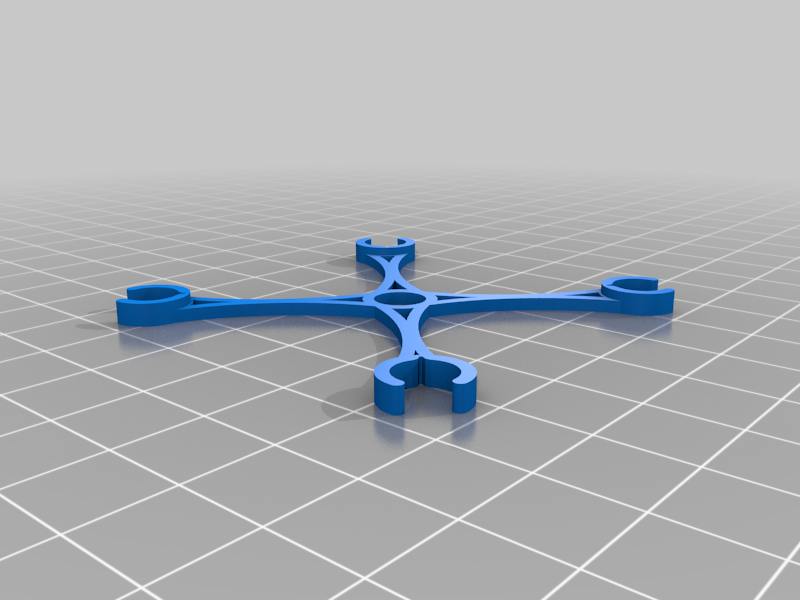

This is my take on the Inductrix frame support. The curves provide rigidity for side by side motors. With PLA, this should weigh approximately 1.6g.

There are 2 version:
FrameSupportV03_64: ~64mm diagonal wingspan
FrameSupportV03_65: ~65mm diagonal wingspan

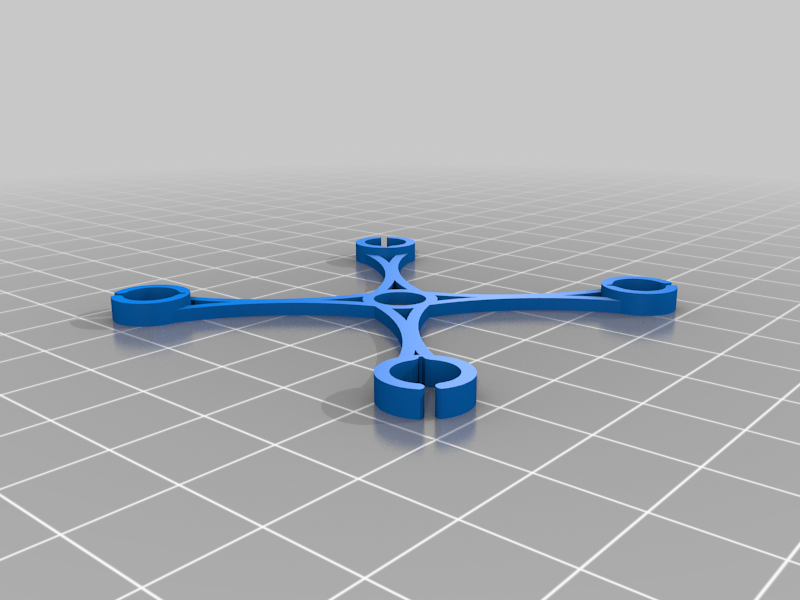

Update Jan/05/2017: Added FrameSupportV04_65

Improved support on the inside of the motor hole and removed some material from the outside to reduce weight

Tag

#Blade Inductrix #drone #drone frame #fpv inductrix #Inductrix #tiny whoop
