PSU mount for Microcube

di ort

File stampabili (3)

  • stl

    psu_front_holder.stl

    177 Ko · 403 download

    Scarica
  • stl

    psu_front_narrow_holder.stl

    176 Ko · 404 download

    Scarica
  • stl

    psu_rear_holder.stl

    176 Ko · 396 download

    Scarica

Descrizione

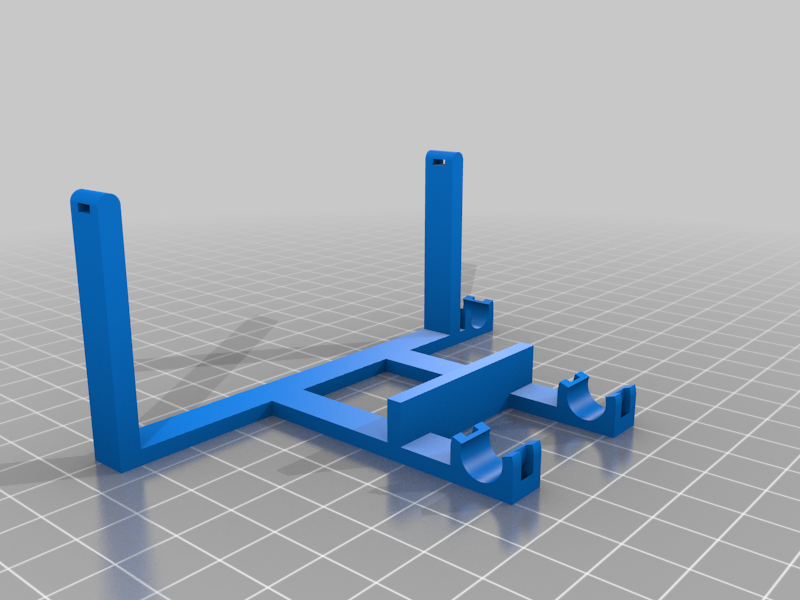

This mount allow to fix the PSU of your microcube inside the printer structure.

STL files are for a PSU of 170x85x40mm (I'm using this one).
But source file (power_supply_holder.scad) is provided if you want to ajust it to different PSU sizes.

There is two STL provided for front holder: one for basic microcube, and another one ("narrow") compatible with a second z axis on the front side of the printer.

Instructions:

  • Print a rear holder and front holder
  • Clip them in the microcube structure
  • Fix the holders with zip ties.
  • Put the PSU
  • Block the PSU using two zip ties on the bottom of each holder

Tag

#holder #microcube #mount #PSU
