Power & USB B Socket

di SteveChief

File stampabili (4)

  • stl

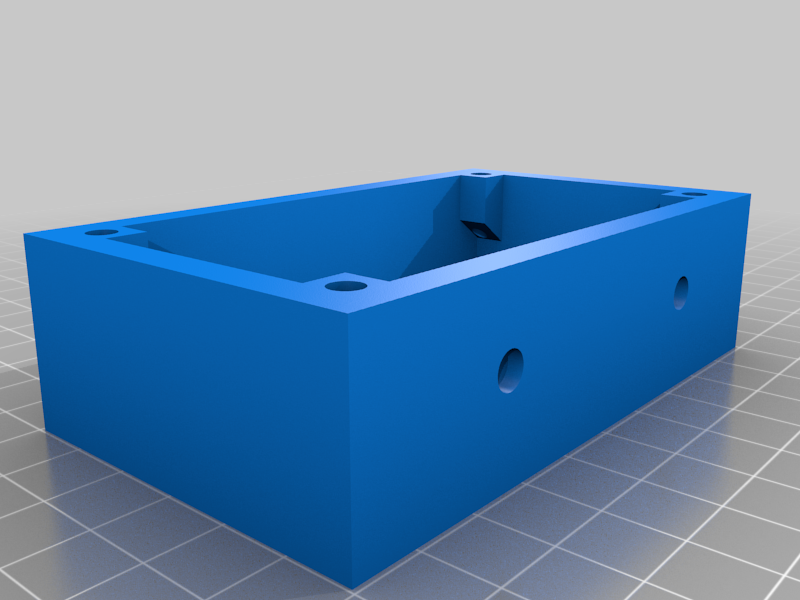

    Power_Socket_Case_2020.stl

    286 Ko · 672 download

    Scarica
  • stl

    Power_Socket_Case_3030.stl

    286 Ko · 647 download

    Scarica
  • stl

    Power_Socket_Case_coaxis.stl

    286 Ko · 646 download

    Scarica
  • stl

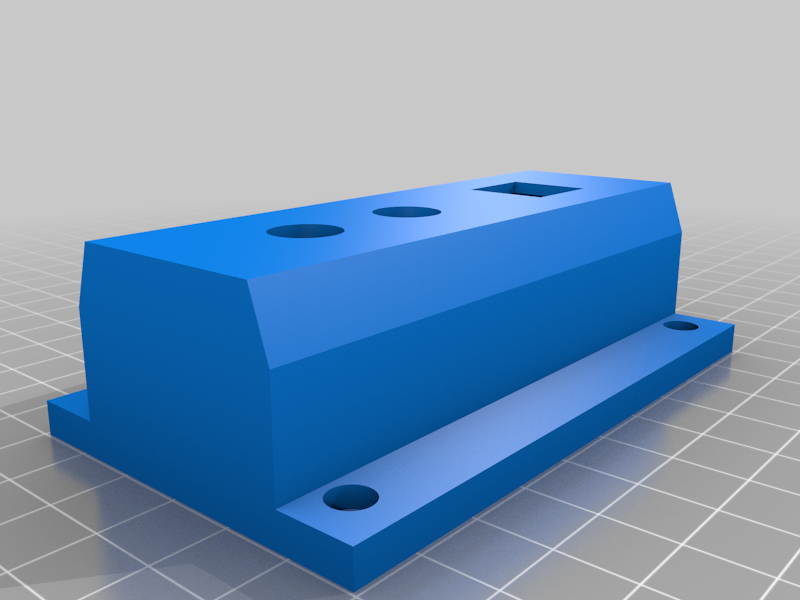

    Power_Socket_Cover.stl

    183 Ko · 681 download

    Scarica

Descrizione

The next part of my 3D printer electronics project.

To prevent the risk of an electric shock. I have made a housing.

Things i use...

Power Socket

Terminal Connector

USB B Socket 30cm
or
USB B Socket 50cm

M3x4 Inserts

Ø 2,5mm wire
2x M5x10
2x Nuts

Cheers
