Surface Pro Mounting Bracket
di yepmeagain
1 / 11
File stampabili (4)
Descrizione
A Surface Pro bracket for my existing iPad brodit mount 511244.

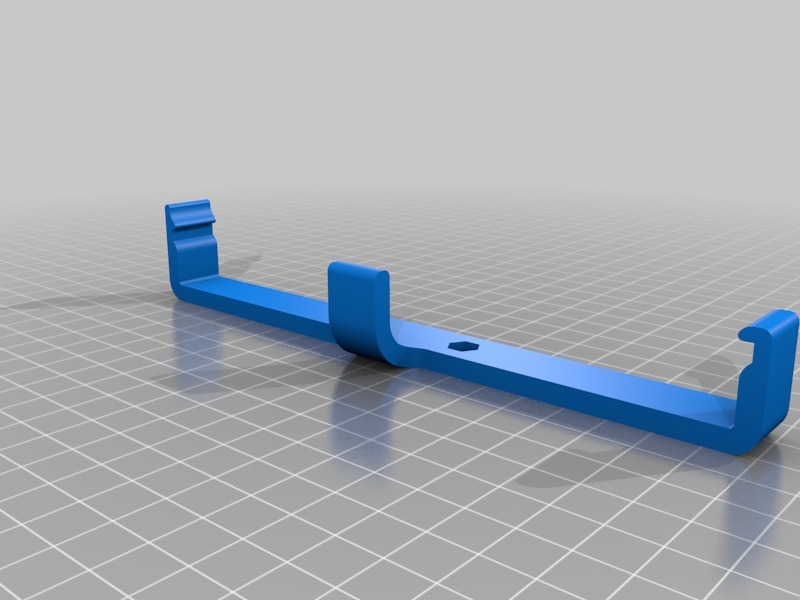

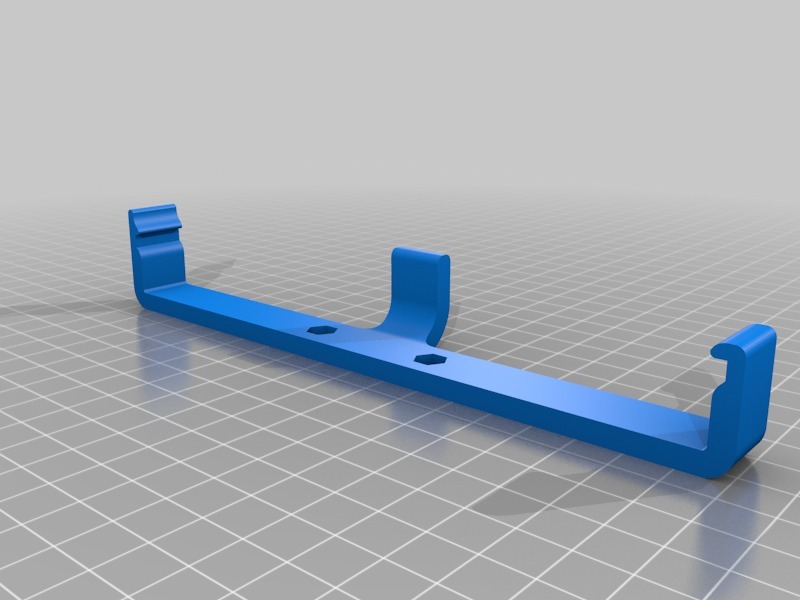

I've printed the brackets like in one of the pictures above so as to optimize them for strength, also used support material for the overhangs.
The brackets are attached to the backplate by means of a total of 4 M4 nuts and 4 buttonhead screws M4x10mm.

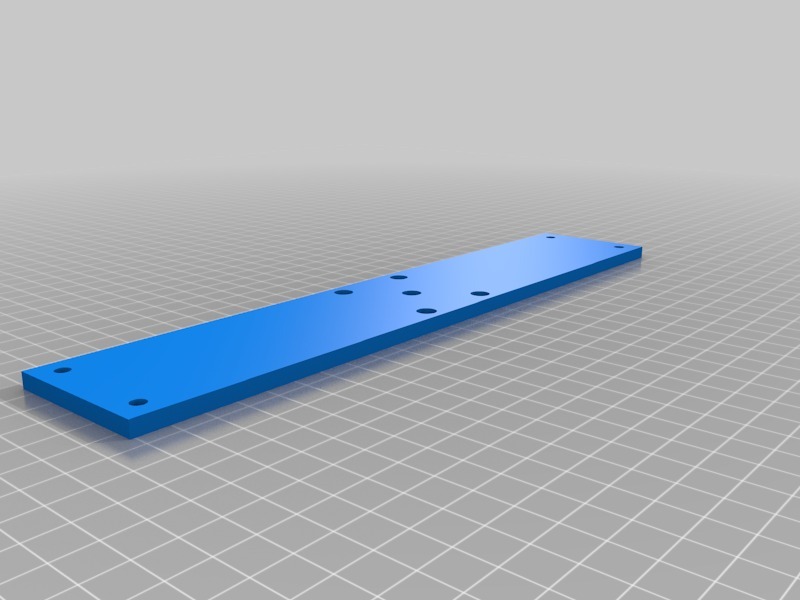

The backplate I made from a piece of ABS I had lying around and could be easily modified for other mounting scenarios.
Surface Pro Model by Andrej P. (https://grabcad.com/library/microsoft-surface-pro--1)
