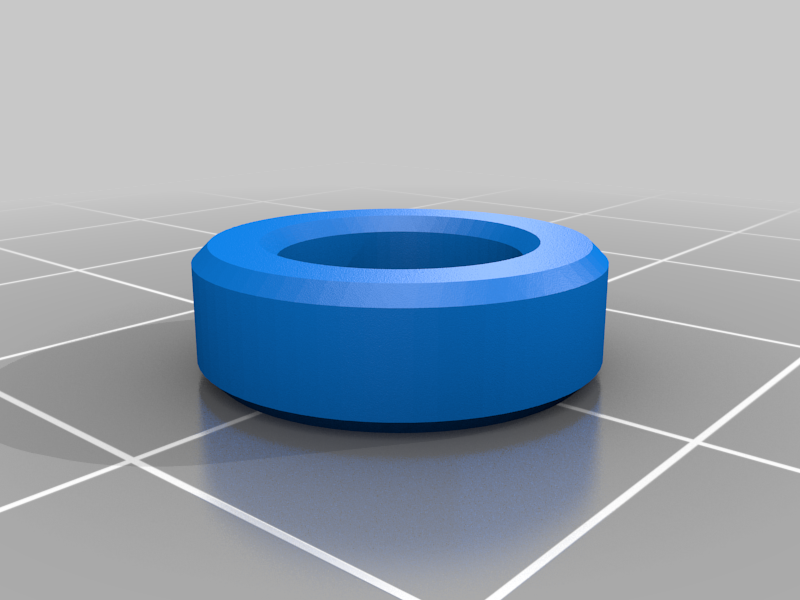

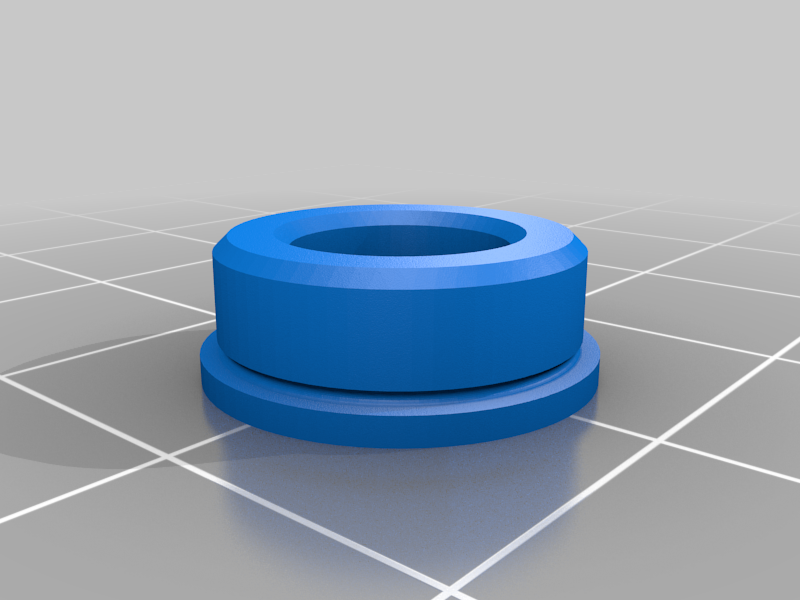

stlDummy-BRG-7mm01.stl
46 Ko · 4 005 download
-

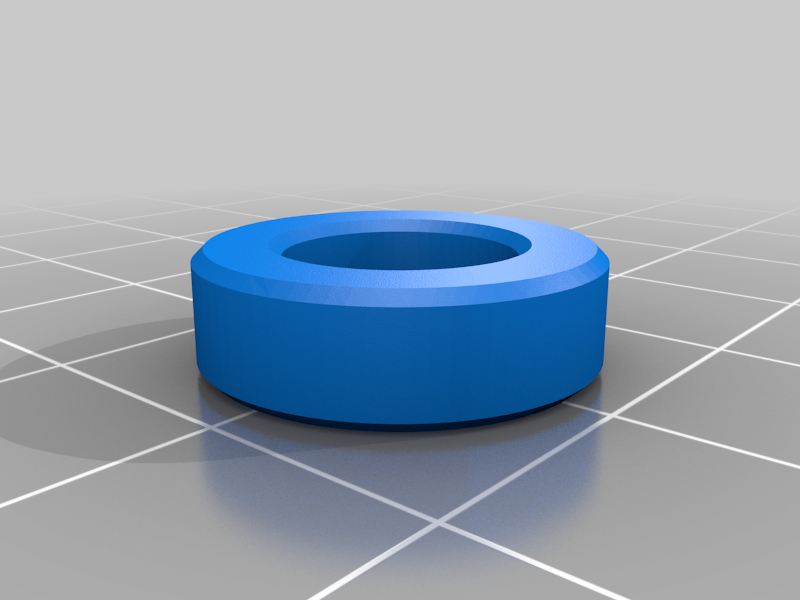

stlDummy-BRG-9mm01.stl
52 Ko · 4 010 download
-

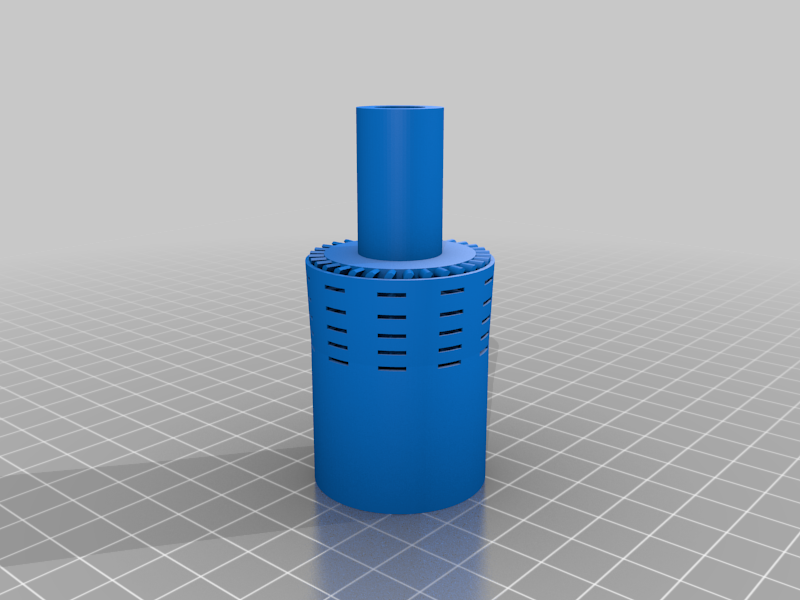

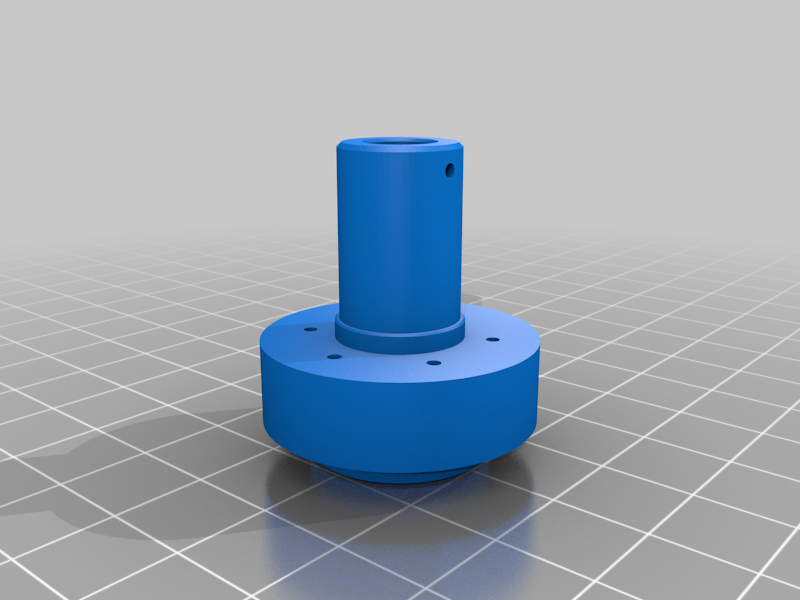

stlFan-LPC-Shaft01.stl
302 Ko · 4 035 download
-

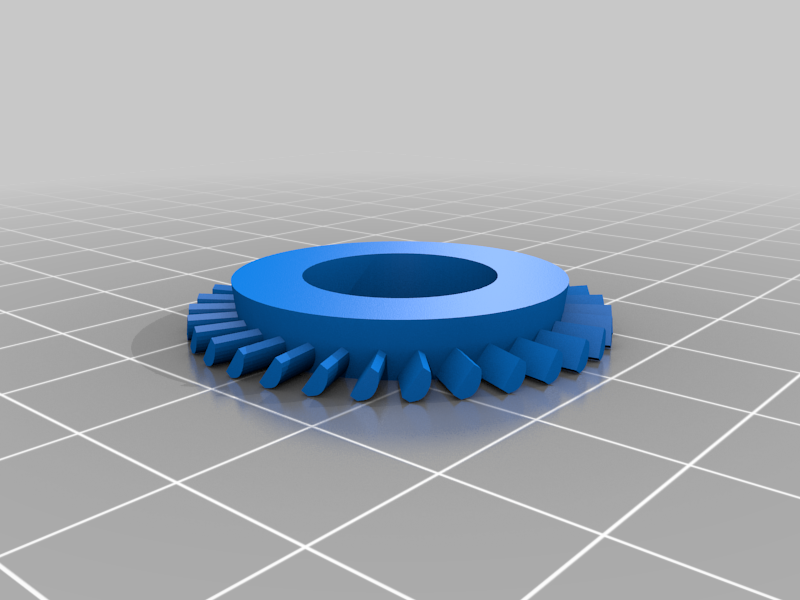

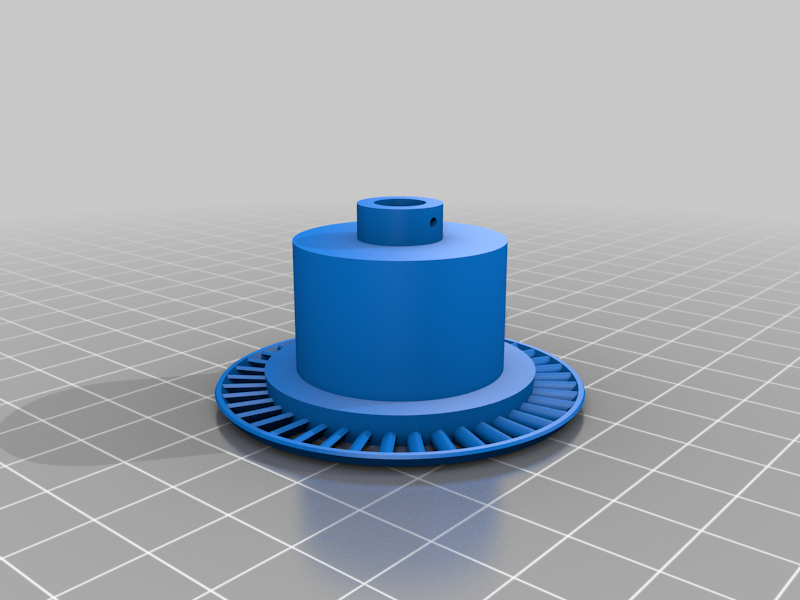

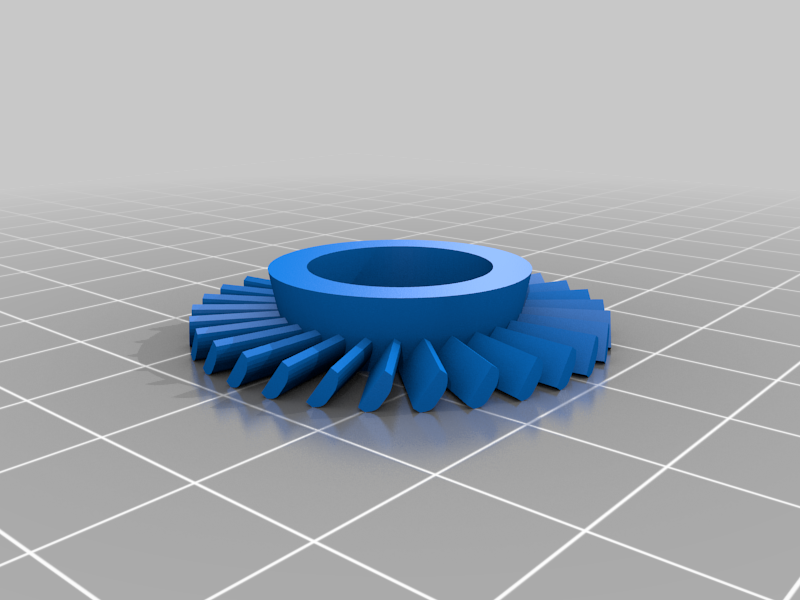

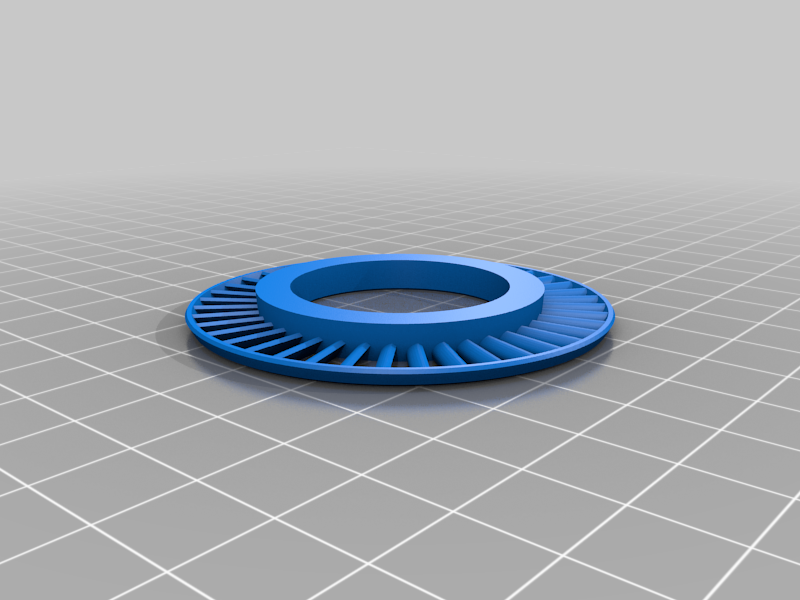

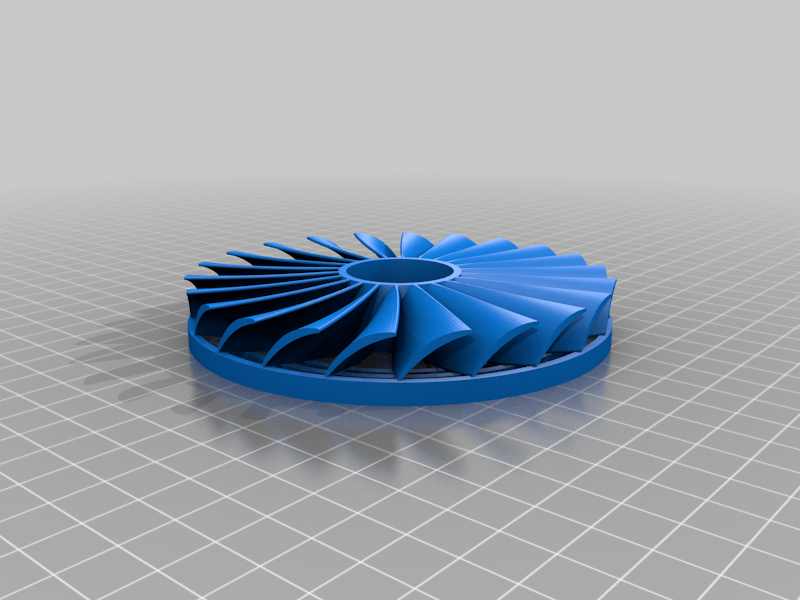

stlLPT-2-Rotor101.stl
368 Ko · 4 030 download
-
stlFan-Duct-Frt-Boss01.stl
9 Ko · 4 031 download
-

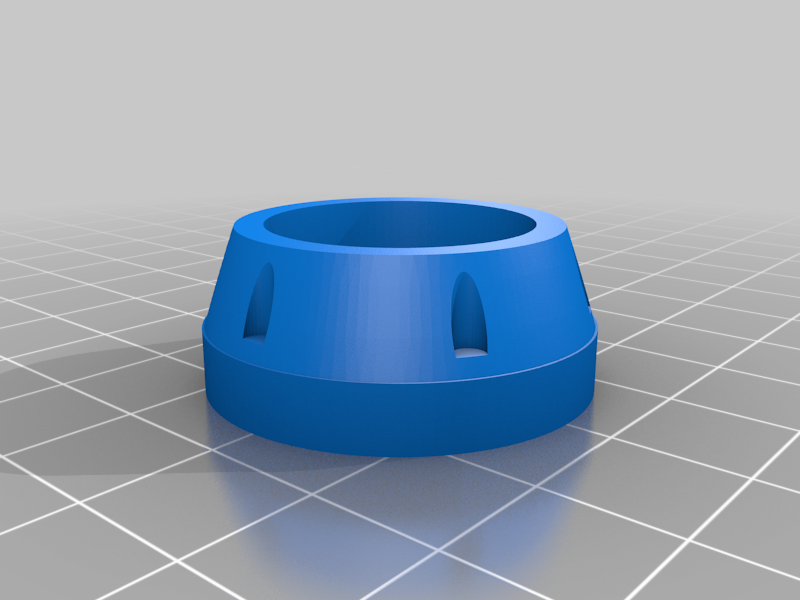

stlDummy-BRG-7mm02.stl
118 Ko · 4 022 download
-
stlEXH-Frame101ws.stl
412 Ko · 4 035 download
-

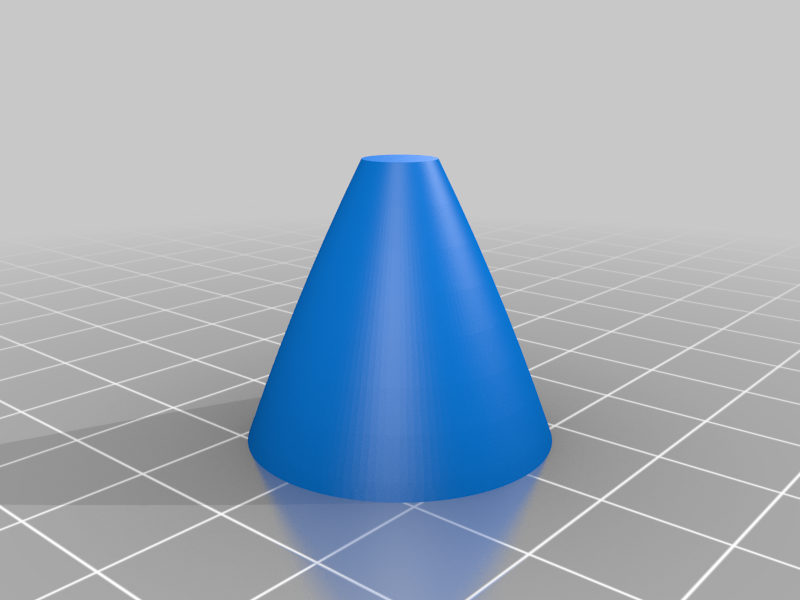

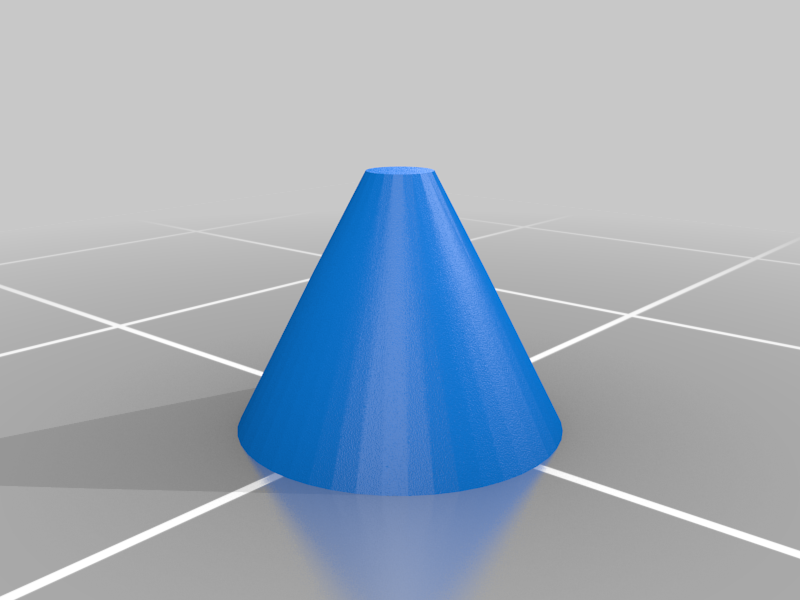

stlFan-Spinner403.stl
20 Ko · 4 018 download
-

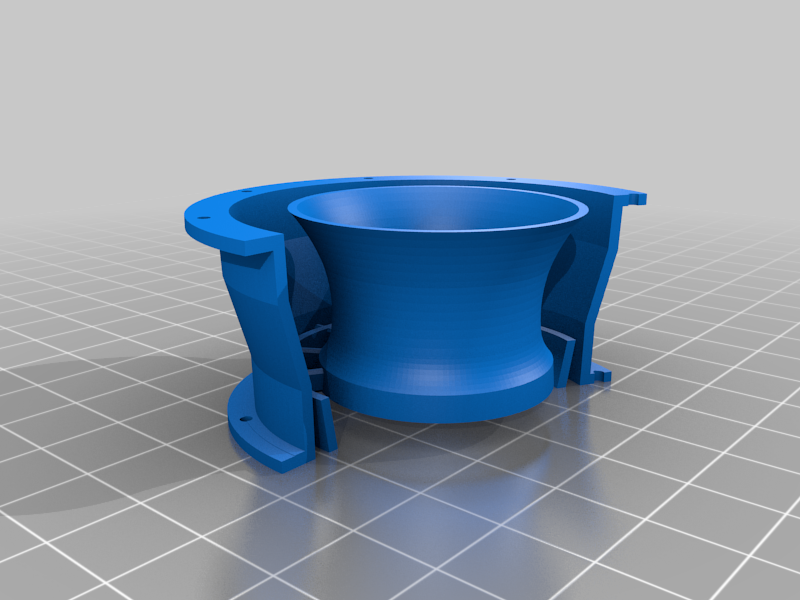

stlCC-Case01.stl
991 Ko · 4 028 download
-

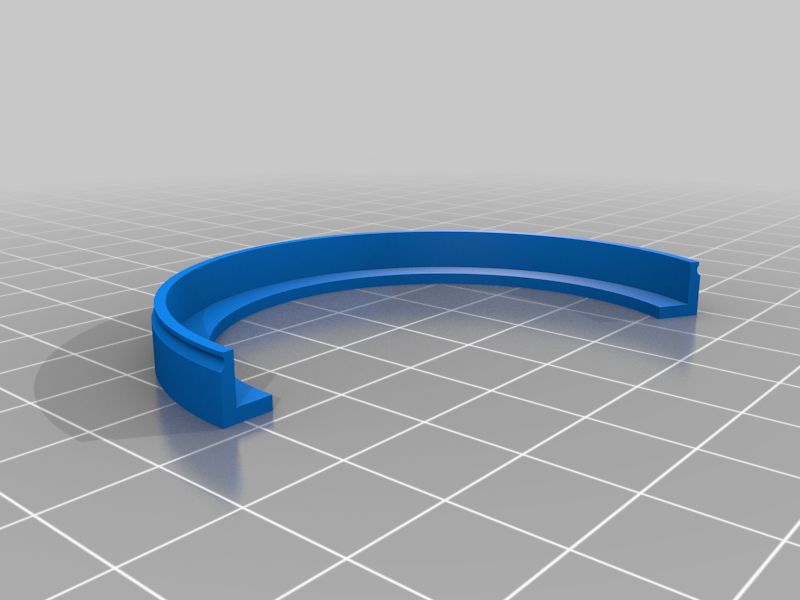

stlFan-Duct-Rr02.stl
135 Ko · 4 026 download
-

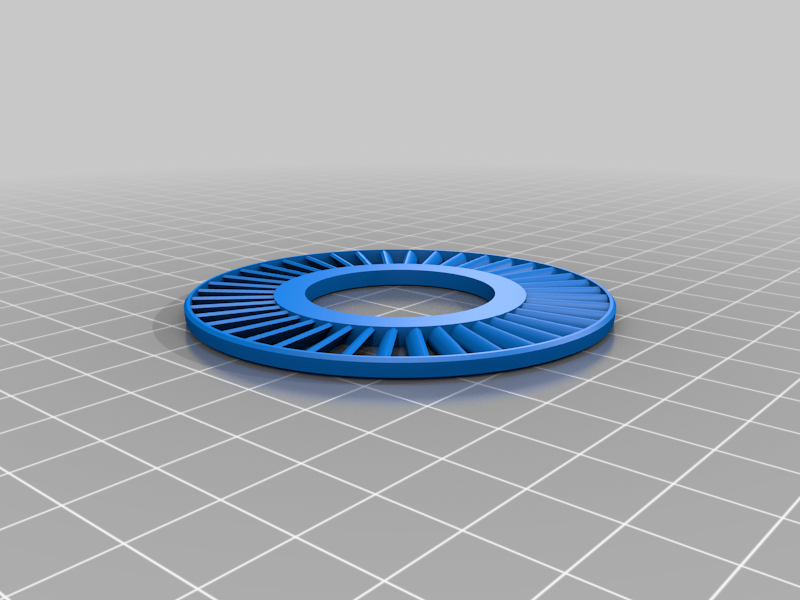

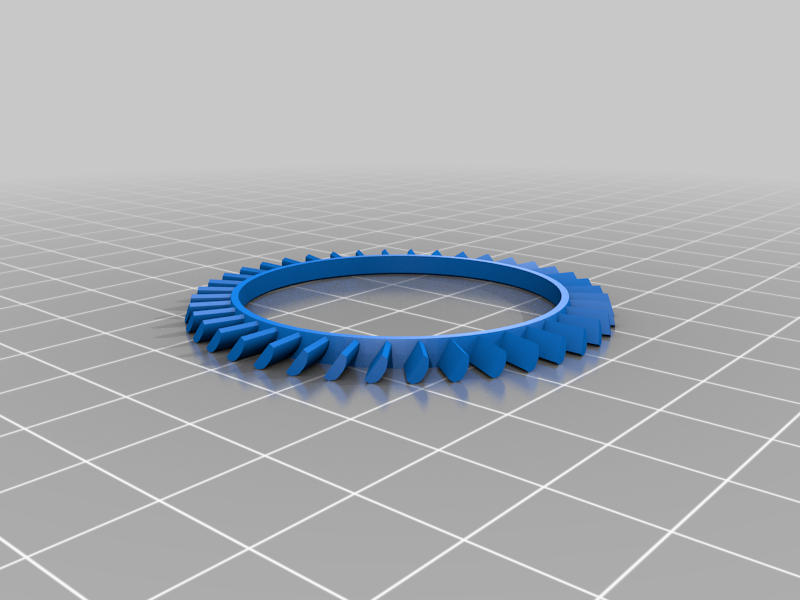

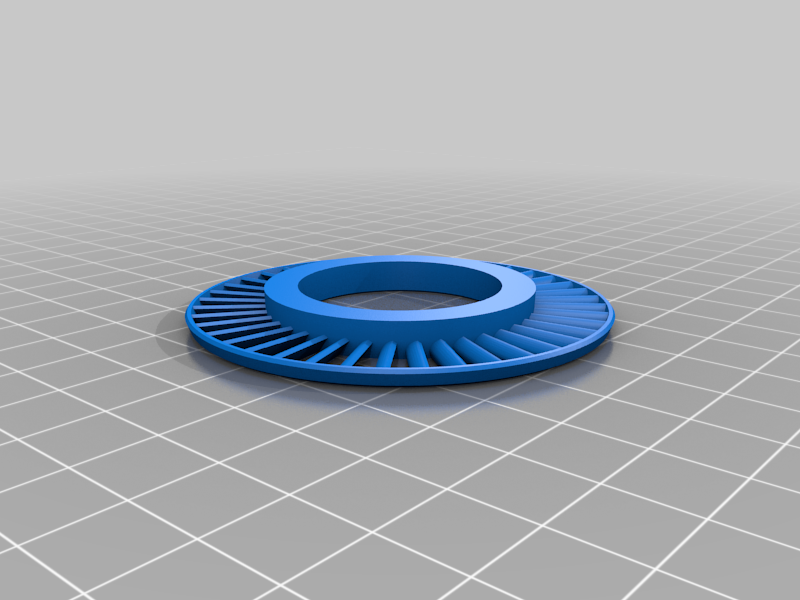

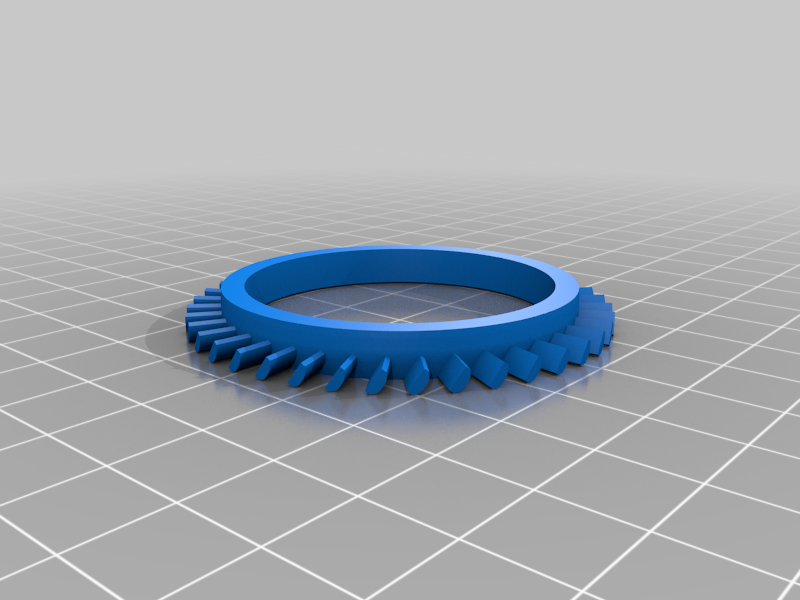

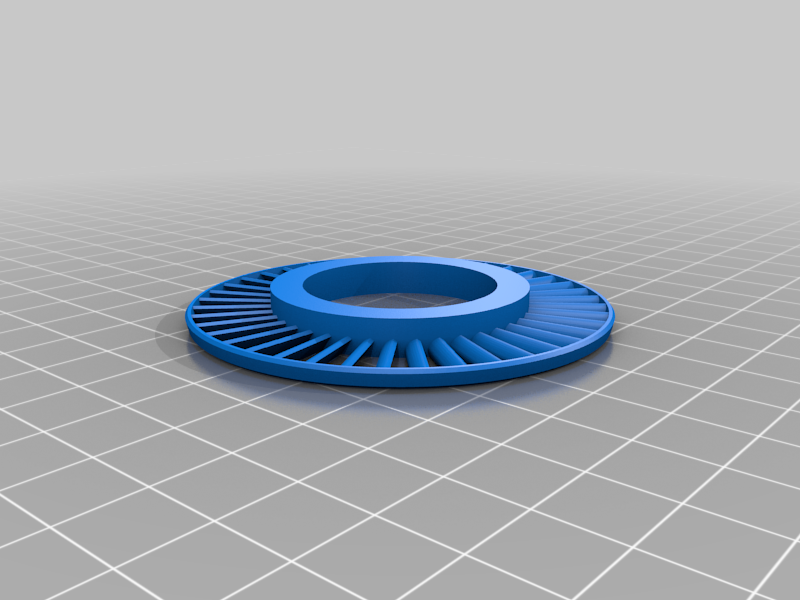

stlHPC-1-Rotor01.stl
185 Ko · 4 043 download
-

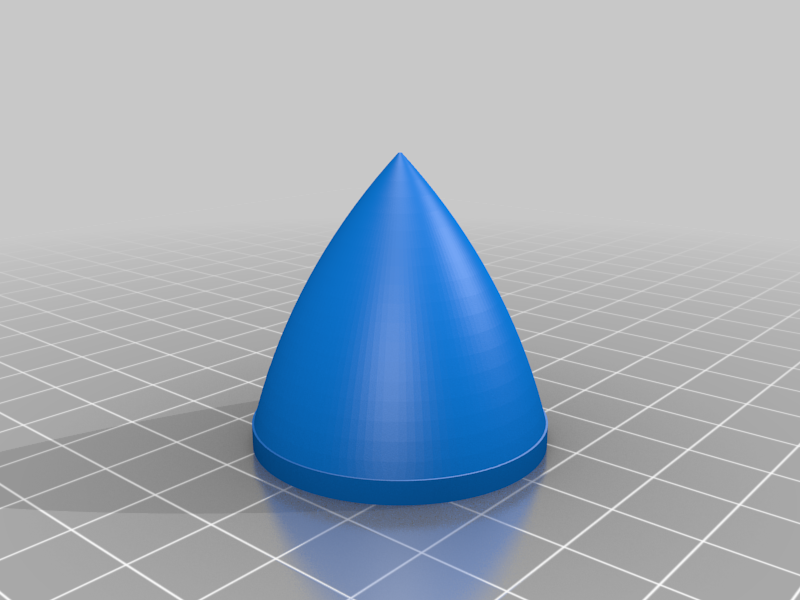

stlFan-Spinner402.stl
212 Ko · 4 021 download
-

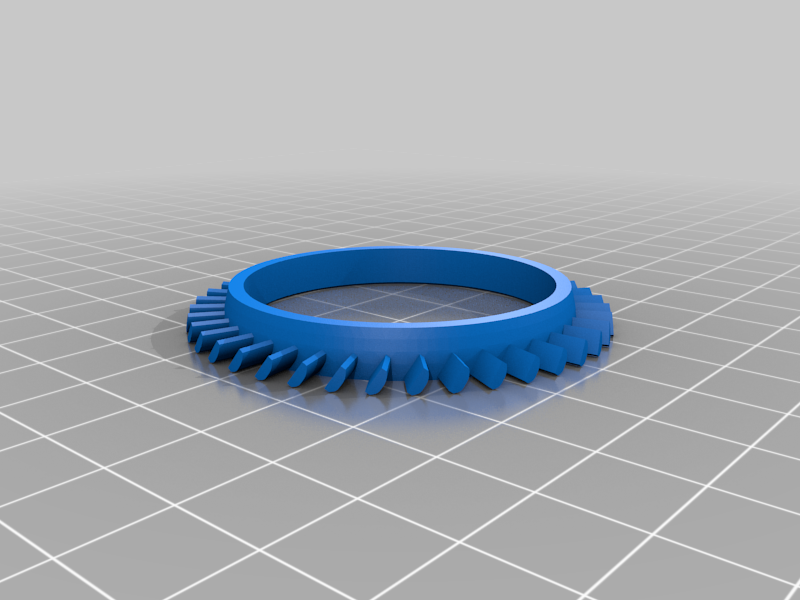

stlHPC-3-Rotor01.stl
164 Ko · 4 024 download
-

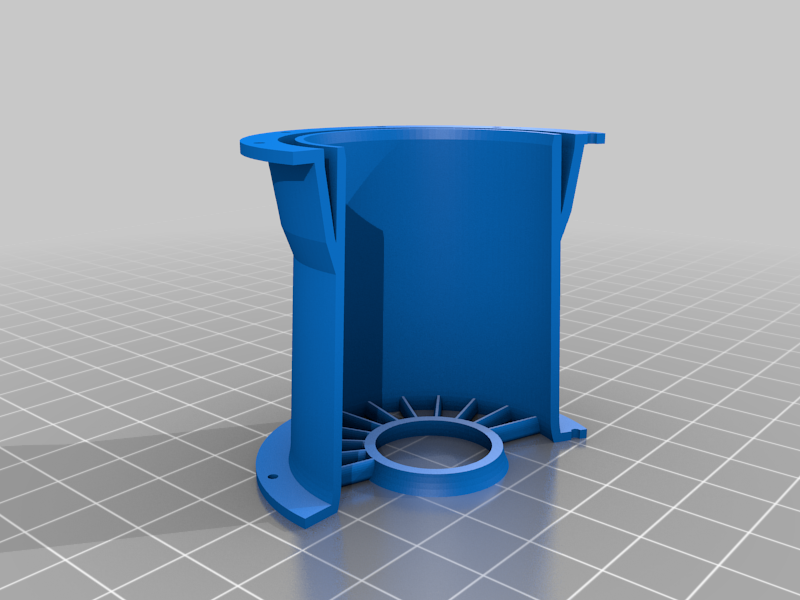

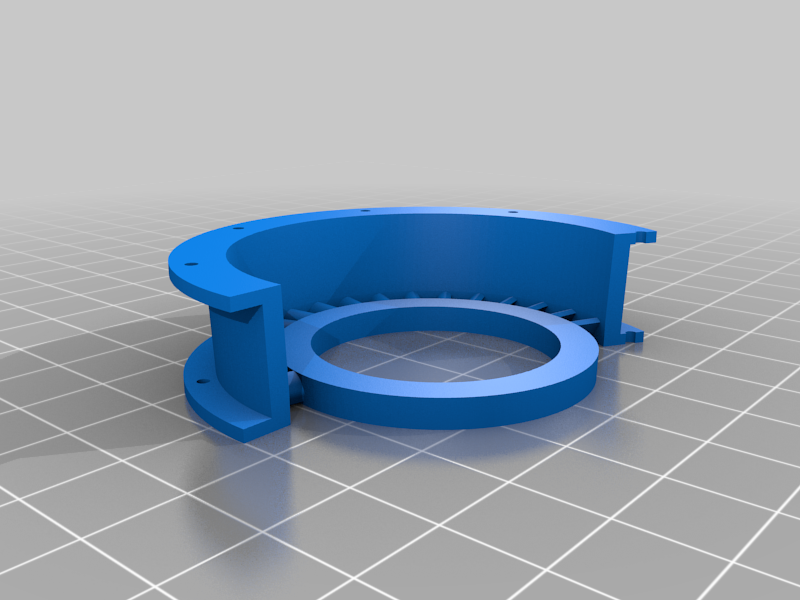

stlHPT-Case01.stl
230 Ko · 4 019 download
-

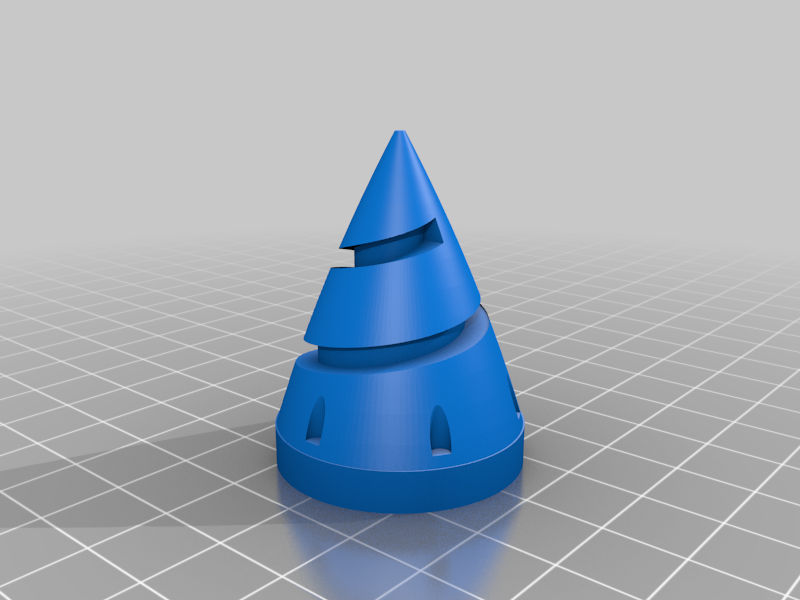

stlFan-Spinner101ws.stl
529 Ko · 4 024 download
-

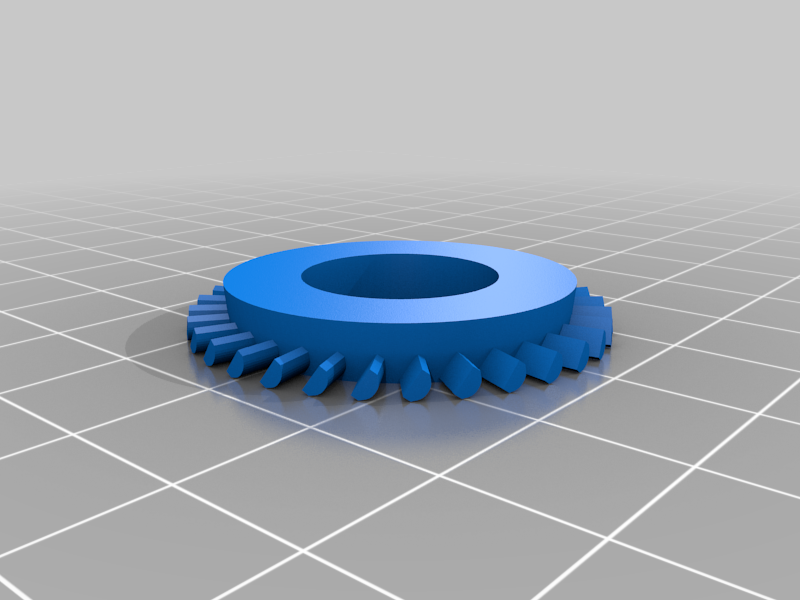

stlHPC-5-Rotor01.stl
135 Ko · 4 016 download
-
stlEXH-Cone01ws.stl
463 Ko · 4 024 download
-

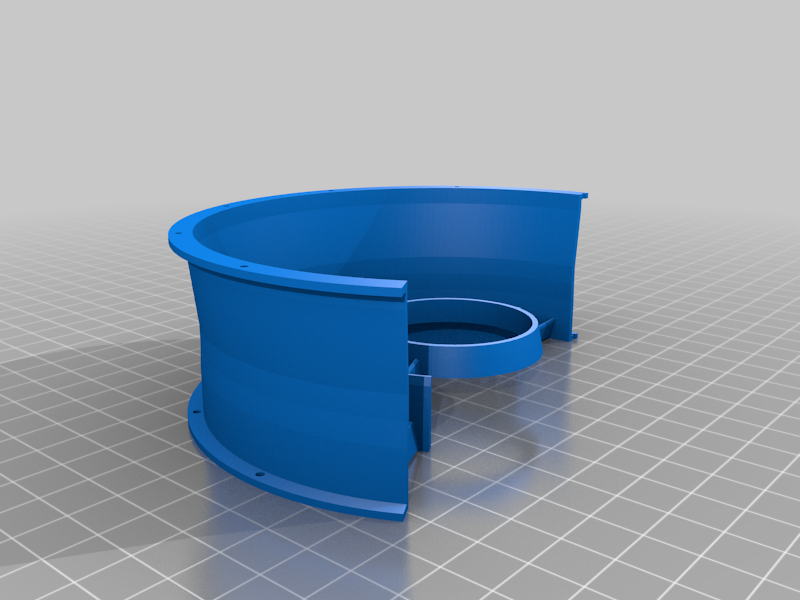

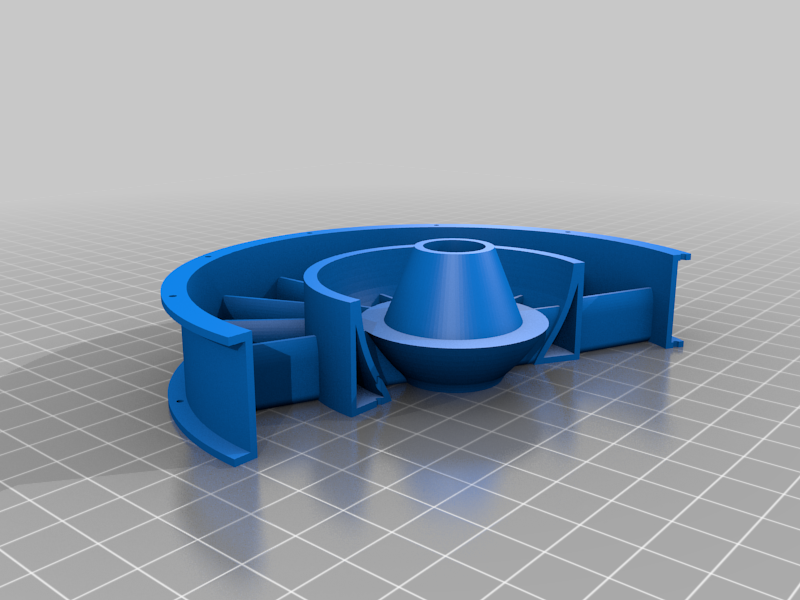

stlFan-Duct-Frt01.stl
726 Ko · 4 026 download
-
stlHPC-4-Rotor01.stl
160 Ko · 4 008 download
-

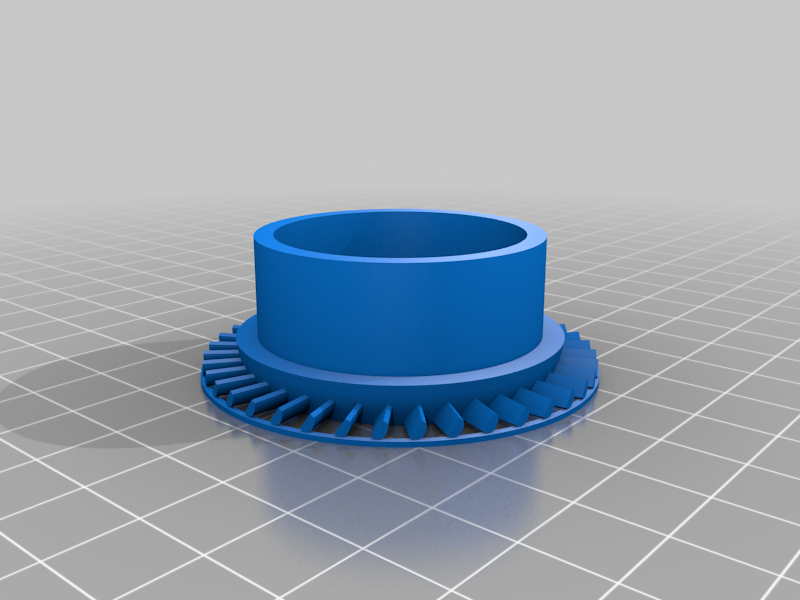

stlLPC-2-Rotor01.stl
263 Ko · 4 010 download
-

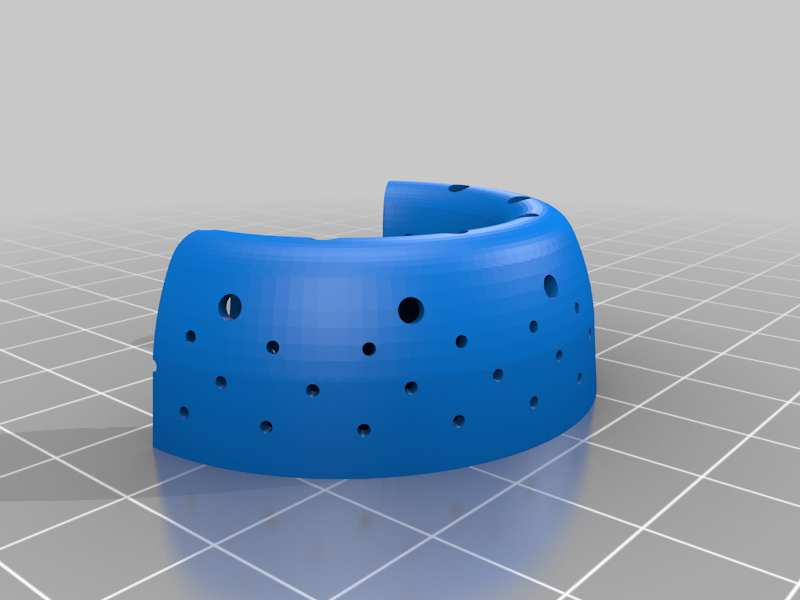

stlC-Chamber01.stl
1.2 Mo · 4 001 download
-

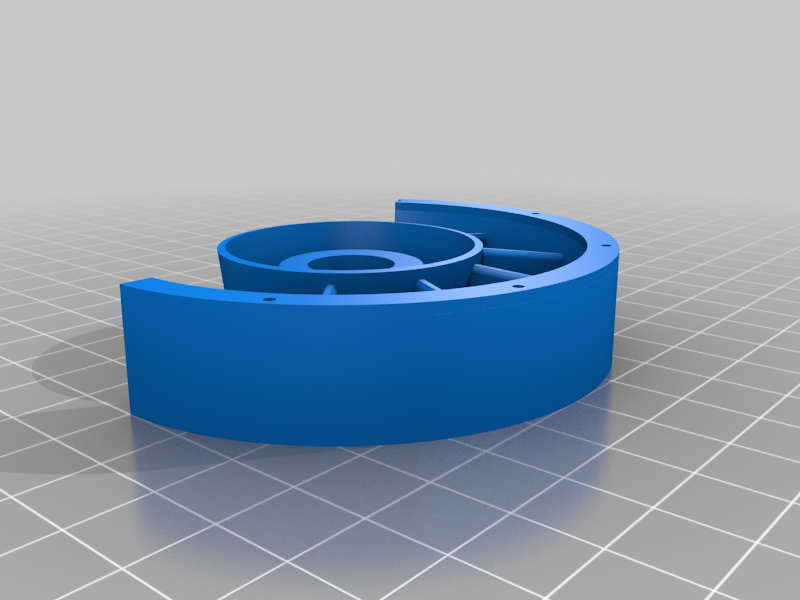

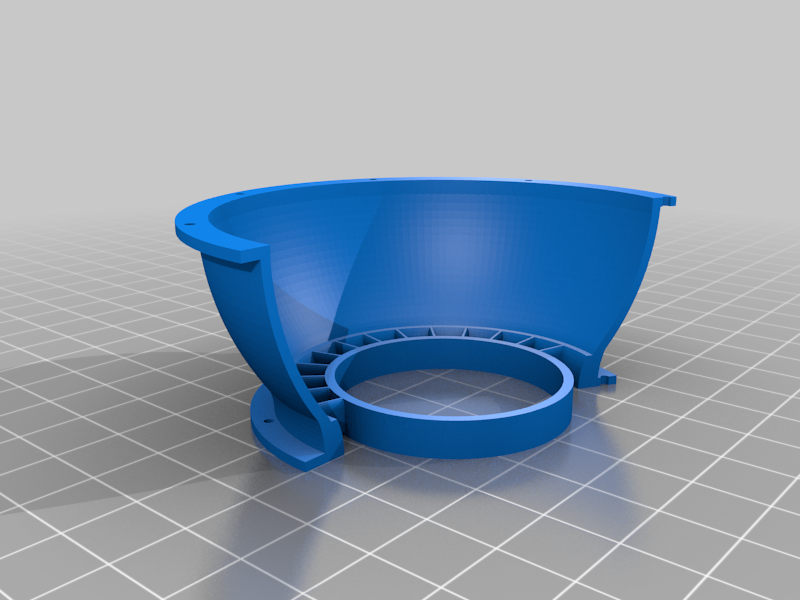

stlFan-Duct-Rr01.stl
953 Ko · 4 011 download
-

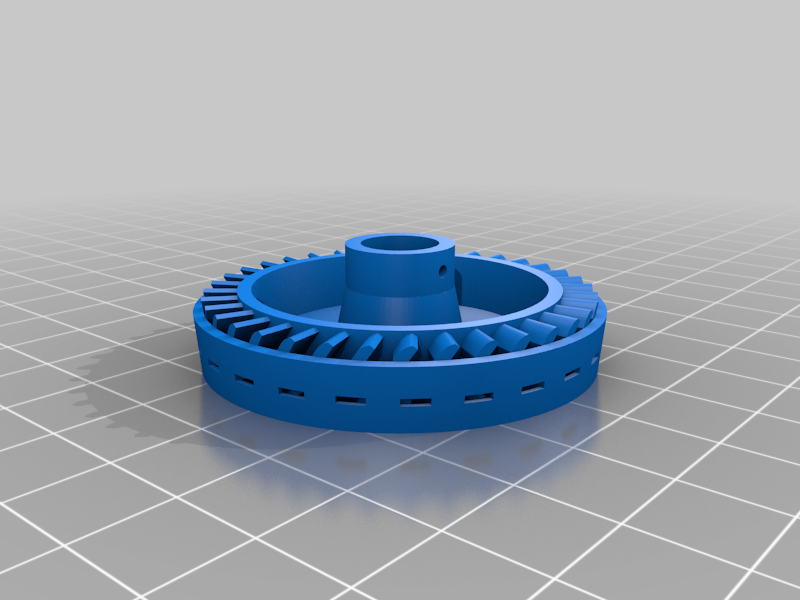

stlHPT-Rotor01ws.stl
551 Ko · 4 010 download
-
stlFan-Spinner502ws.stl
1.3 Mo · 4 012 download
-
stlLPT-Case101.stl
707 Ko · 4 000 download
-
stlLPT-3-Rotor101.stl
395 Ko · 4 000 download
-
stlHPC-Case01.stl
489 Ko · 4 004 download
-
stlLPC-4-Rotor01.stl
287 Ko · 4 010 download
-
stlSpacer-7-10.stl
21 Ko · 4 010 download
-
stlLPC-3-Rotor01.stl
283 Ko · 4 012 download
-
stlLPT-1-Rotor101ws.stl
560 Ko · 4 011 download
-
stlLPT-4-Rotor101.stl
378 Ko · 4 000 download
-
stlLPT-5-Rotor101.stl
405 Ko · 3 996 download
-
stlSpacer-9-50.stl
24 Ko · 3 988 download
-
stlGear-Box101.stl
792 Ko · 3 996 download
-
stlLPC-1-Rotor01.stl
487 Ko · 3 982 download
-
stlHPC-6_10-Rotor01ws.stl
1.4 Mo · 3 996 download
-
stlFan-Blade401ws.stl
4.4 Mo · 4 045 download
-

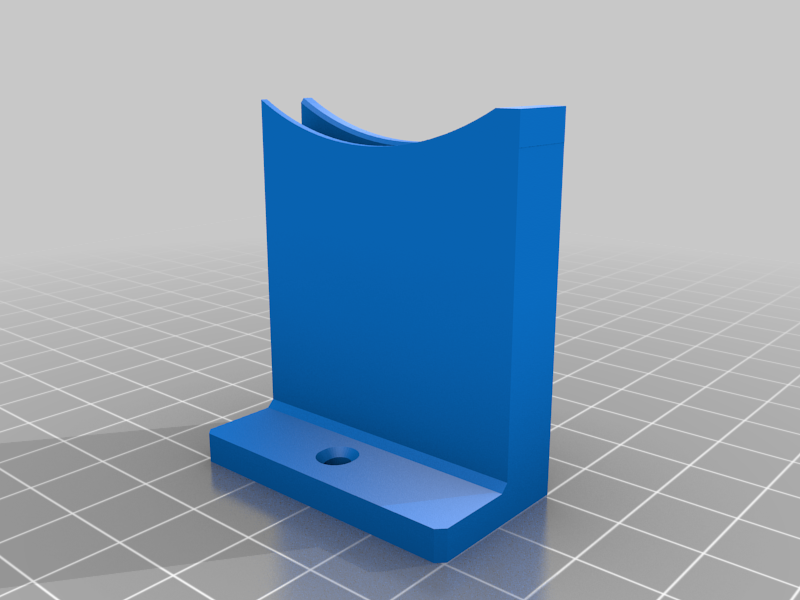

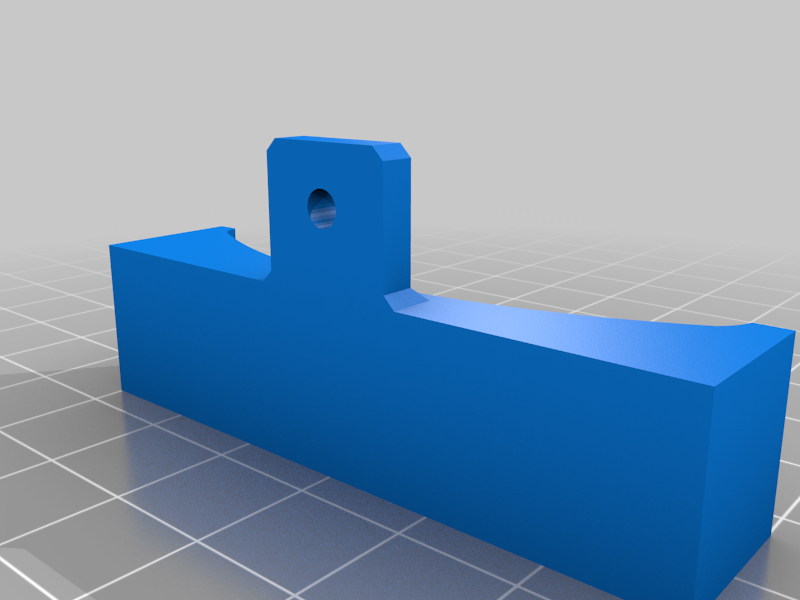

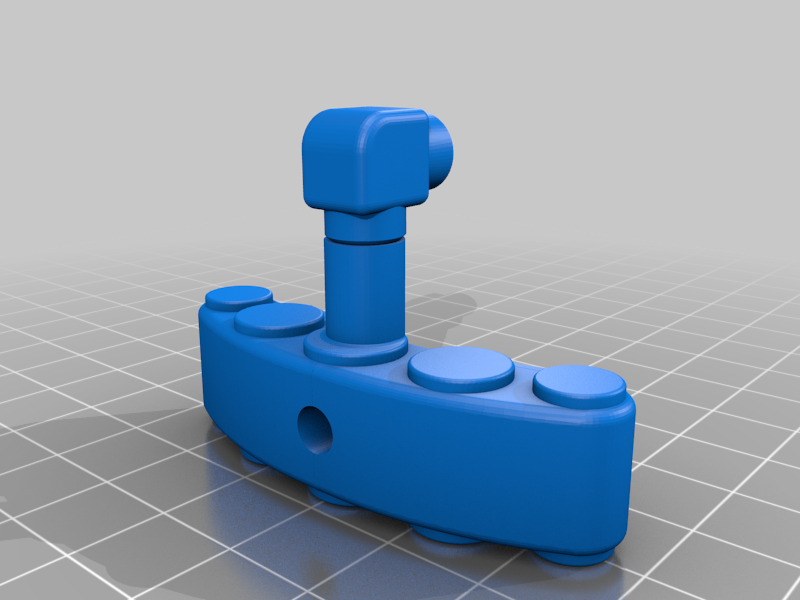

stlStand-Frt01.stl
36 Ko · 3 992 download
-
stlStand-Rr01.stl
36 Ko · 3 985 download
-

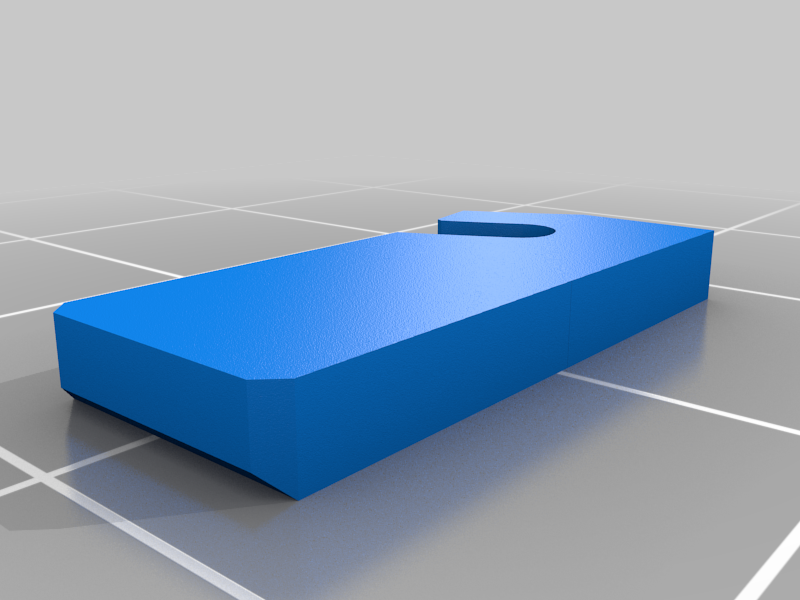

stlStand-Rr02.stl
7 Ko · 3 988 download
Descrizione
Jet Engine; 2-Spool, Current
For the current jet engine for middle class passenger planes, the improved 2-Spool engine is used.
3D model for explaining the different feature comparing to the latest "3-Spool" and "Geared" turbofan engine models was designed and made.
https://www.thingiverse.com/thing:2437217 (3-Spool)
https://www.thingiverse.com/thing:2462343 (GTF)
The points of the design are;
- For the rotation of each spool, the dummy bearing method only is prepared.
- All stator vanes are omitted this time, because of avoiding rub of vanes and blades.

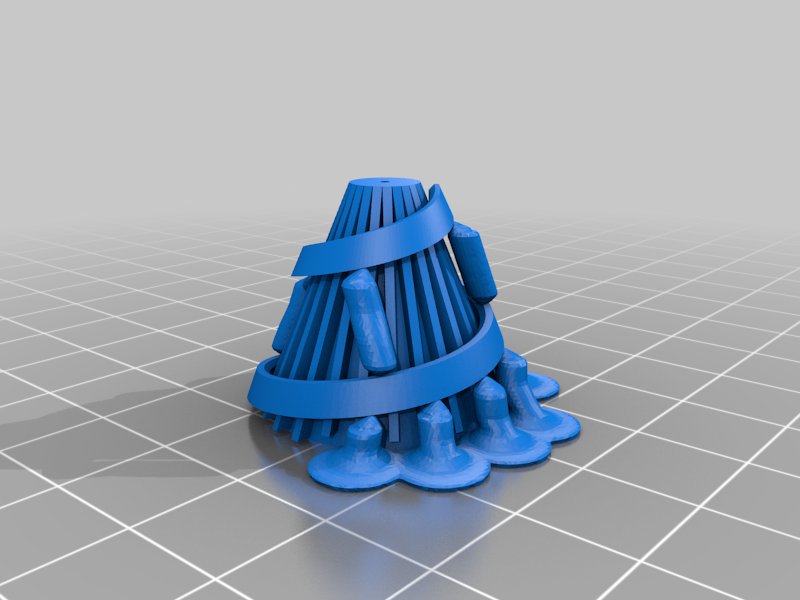

- In addition, some parts that printing is considered difficult without support, are prepared STL file with support. The last of two digits of the file name is identified as "ws".
In order to ease understanding about the contents of each part and the assembly order, parts breakdown and list are prepared.
Download files includes;
-files: STL Files (43 items)
-images: Parts Breakdown for assembly Aid
-Excel File: Parts List
Purchase Parts Information;
-Aluminum Tubes
See Parts List
-Screws
Micro screws M1.4x3.5L - Appox. 40 ea - Direct screw-in to 1 mm dia hole (No nut)
Screws M2 x 6L - 4 ea, See Parts List
Assembly Points
- Standard Skill (such as Drilling, Tapping, Filing, Tightening, Painting and Gluing etc) is needed and perseverance too.
Total Net Print Time: Approx. 52HR
- (Estimated as case of PLA, 0.4mm Nozzle, 0.2mm Layer Height, 40% infill and No raft and support)
Note: When at actual print, each parameter may be adjusted by your experience.
[Update]
Rotor; https://www.thingiverse.com/thing:2835643 - 2018.3.22
