Eachine EV100 Receiver Case Mod
di raab6
File stampabili (2)
Descrizione

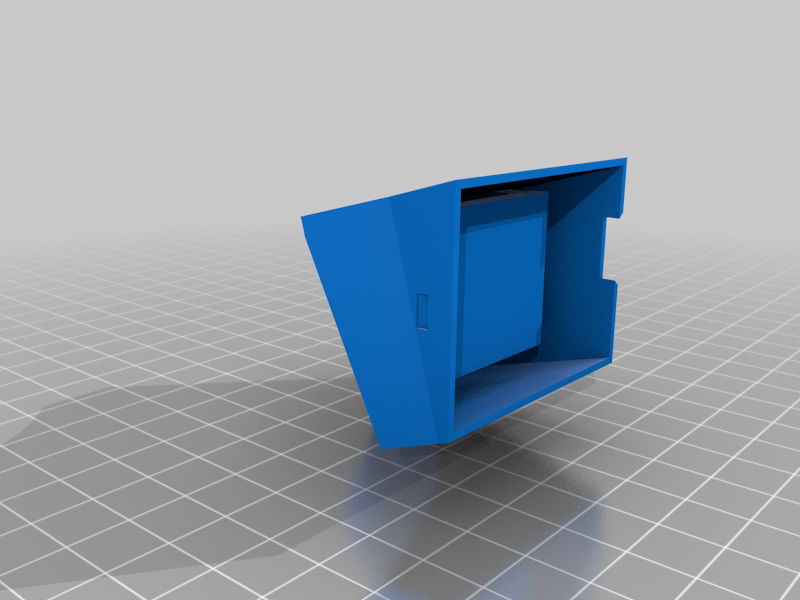

Here's my Eachine Pro58 Receiver Case for the Eachine EV100.
I was inspired to do this because of the mod video of "Drone Mesh", thanks man for the nice mod vid, how to solder in the receiver. Worked great for me.
https://youtu.be/n79b-z6n_Dk
The receiver is upside down but for me it doesn't matter and so you can control it from the right side and the cables can be attached easier.
I fixed the case with Tesa Powerbond Ultra Strong, which seem to do the job.
I only drilled a hole to get the cables from the FPV google into the receiver case.
You have to be sure that your cables are long enough to get connected to the receiver.

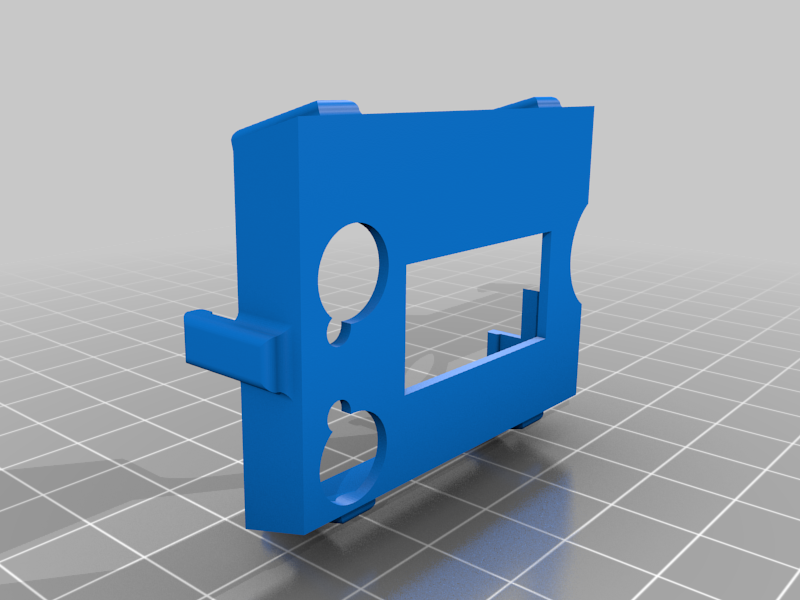

It took me 6 iterations to get the curve of the google good enough and to have the holes at the right position for the antenna and control wheel.
Hope you like it.
