B wing
di Hatsyflatsy
File stampabili (12)
-

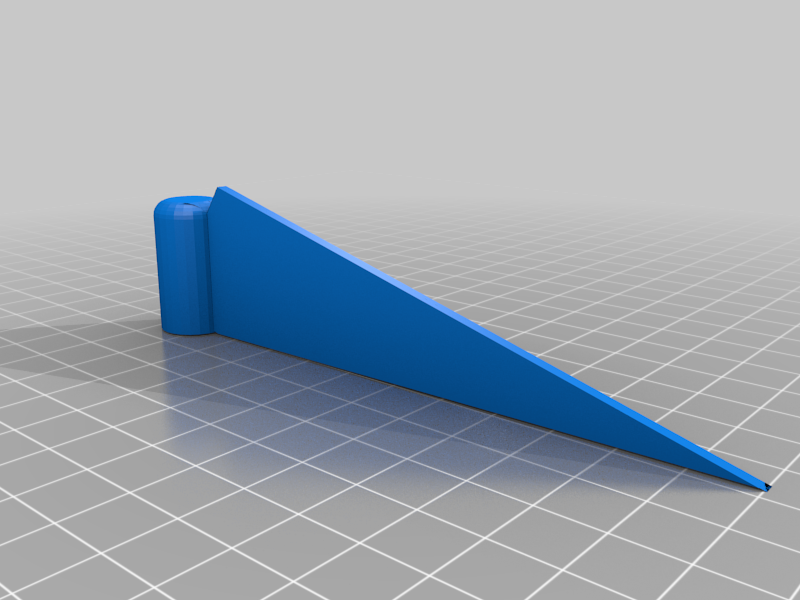

stlb_wing_support.stl
42 Ko · 4 725 download
-

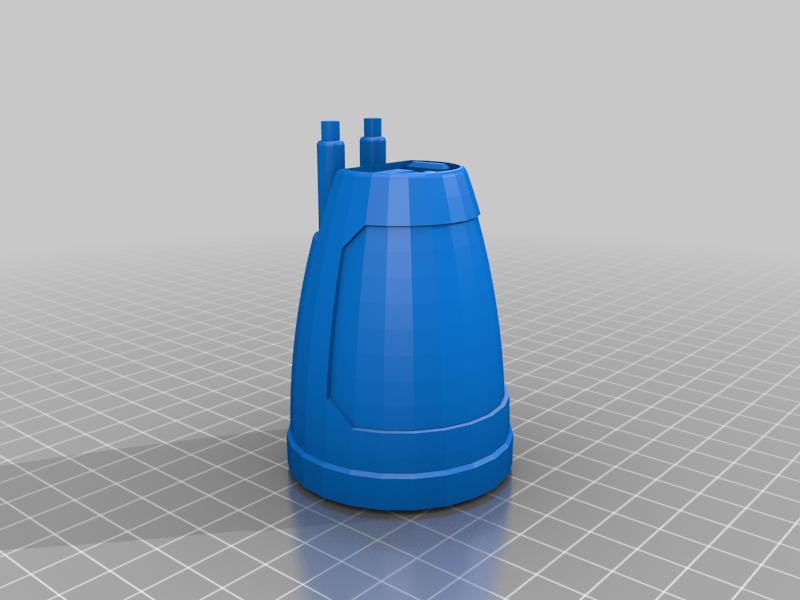

stlb_wing_cockpit_1B.stl
428 Ko · 4 744 download
-

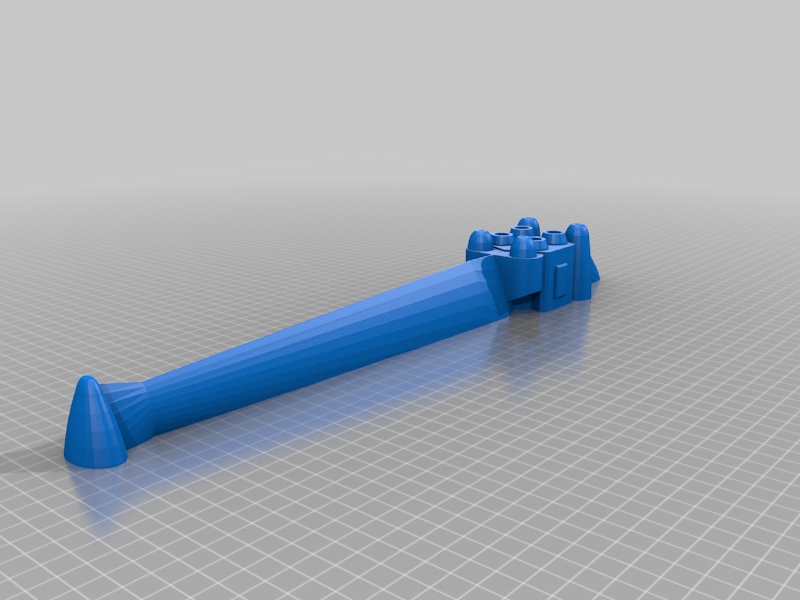

stlb_wing_front.stl
591 Ko · 4 755 download
-
stlb_wing_back.stl
1012 Ko · 4 743 download
-

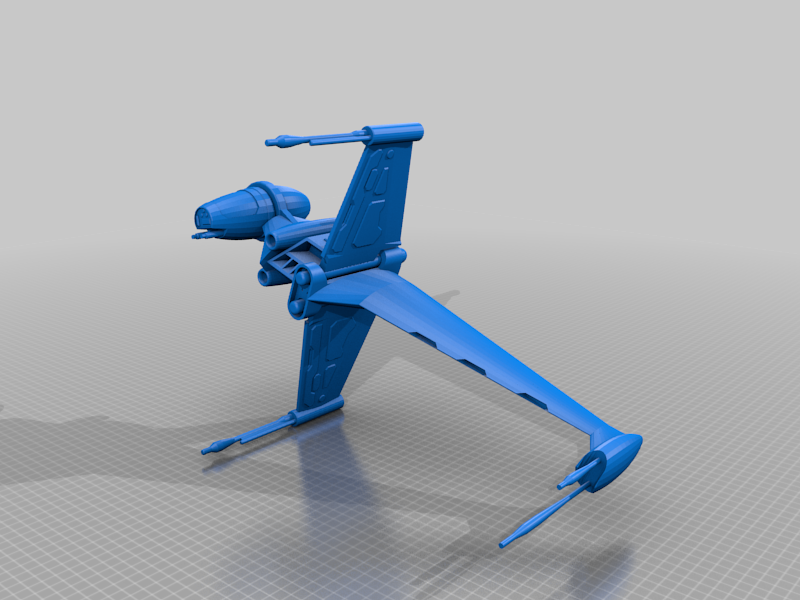

stlb_wing_compleet.stl
2.3 Mo · 4 968 download
-

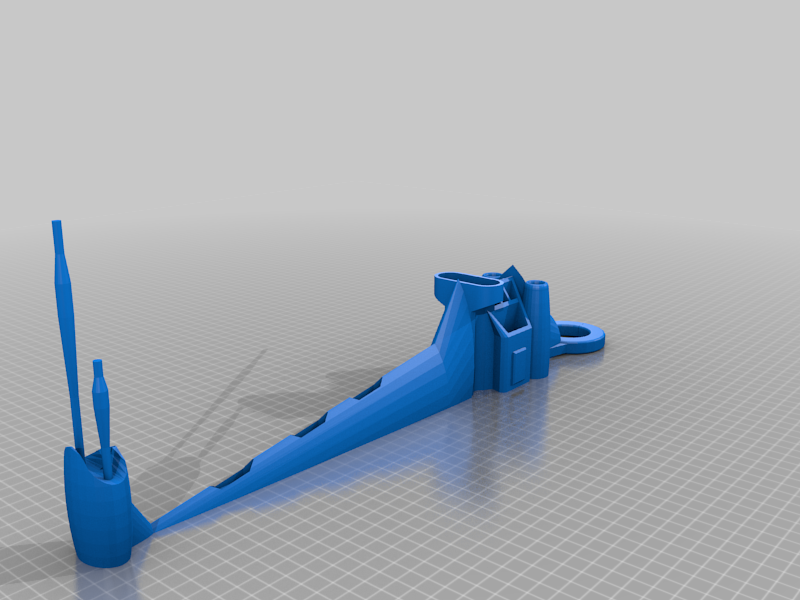

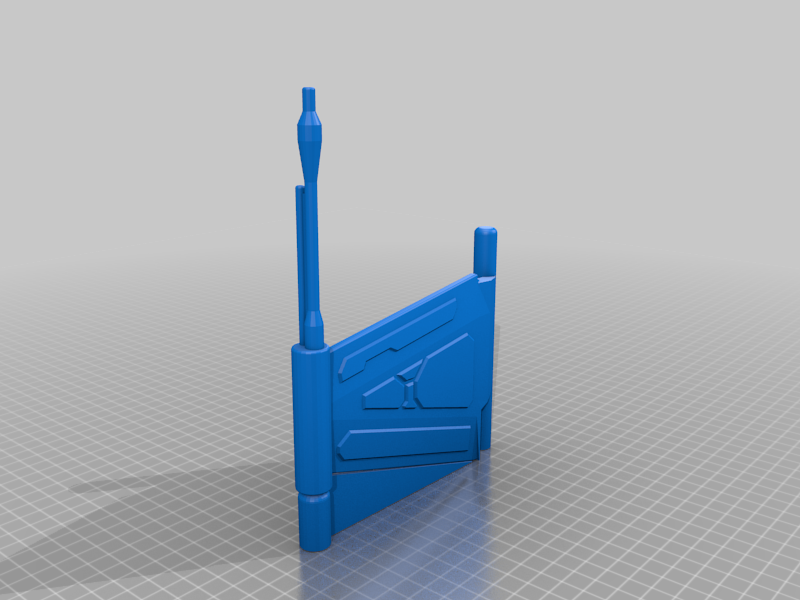

stlb_wing_left_wing_and_support.stl
280 Ko · 4 715 download
-

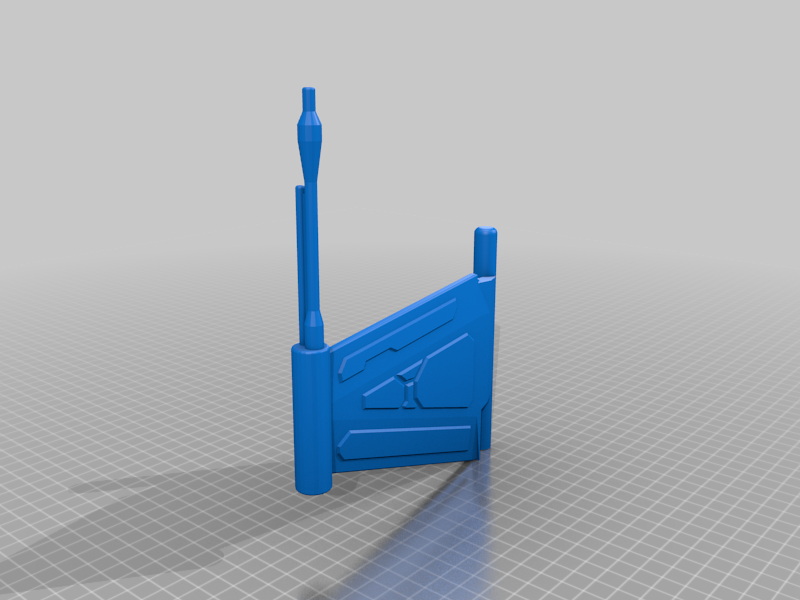

stlb_wing_left_wing.stl
237 Ko · 4 717 download
-

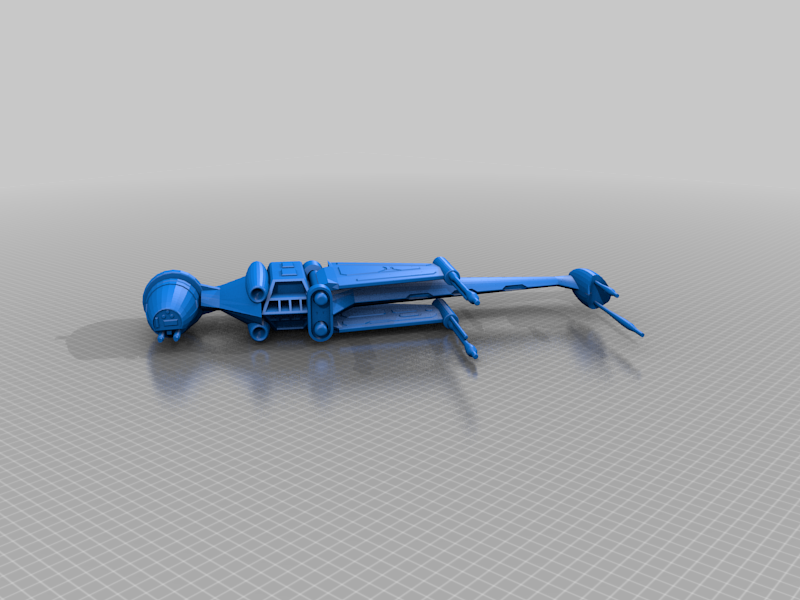

stlb_wing_compleet_closed_wings.stl
2.3 Mo · 4 734 download
-
stlb_wing_cockpit_1A.stl
159 Ko · 4 733 download
-

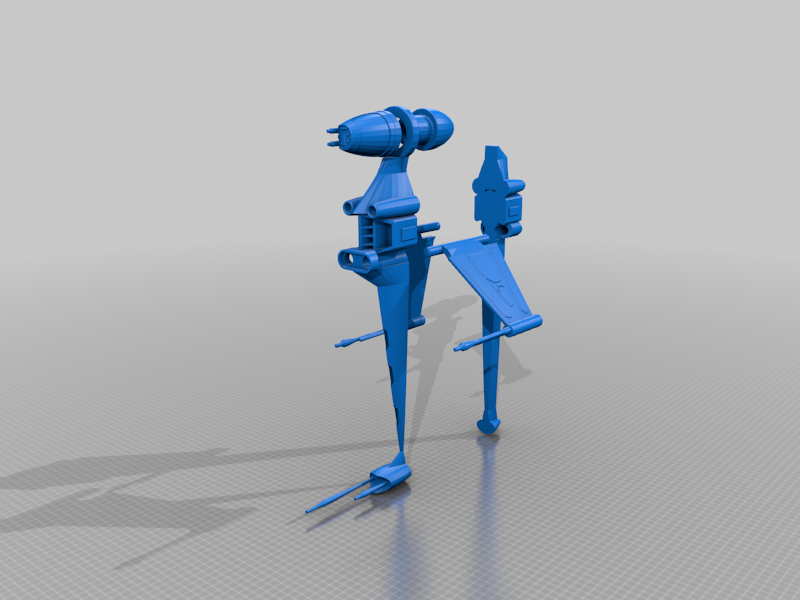

stlbuild_plan.stl
3 Mo · 4 732 download
-

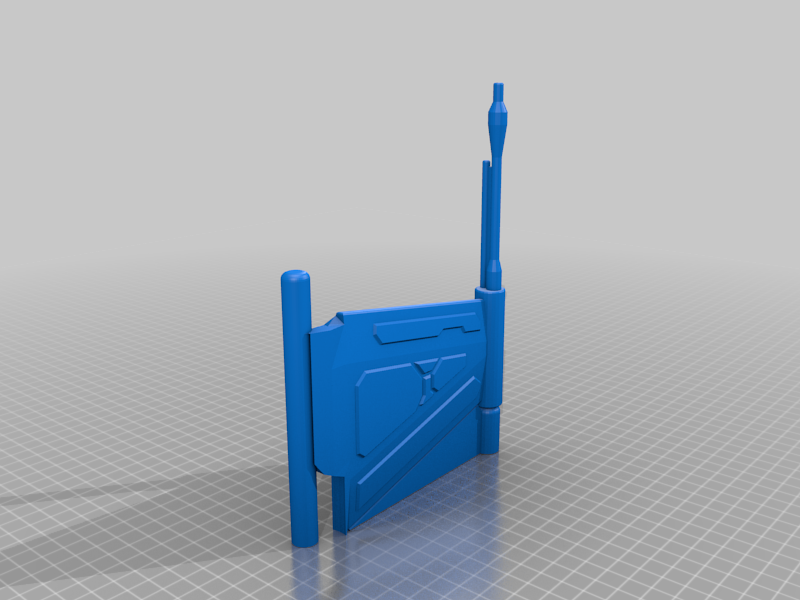

stlb_wing_right_wing_and_support.stl
280 Ko · 4 709 download
-
stlb_wing_right_wing.stl
237 Ko · 1 842 download
Descrizione
B wing model, not screen accurate.
I used the https://www.thingiverse.com/thing:1778438 file uploaded by dantesgift as a starting point for the drawing.
Then remade the model to be more organic. And also used the hinges from the Mars Bars Scuttle wings. What gave me the idea to make this b wing design
https://www.thingiverse.com/thing:872684
The wings can move, and the cockpit will rotate.
Pictures are from a finished model scaled to 0.4 of the uploaded files
No need for support, wings have them build in. Just cut both sides with a utility knife. And snap them of.
I have uploaded a wing without support, if you want to make your own support.
I printed the wings with brim. Both at the same time with the guns near each other. This gives the filament time to cool down.
The complete b wing models and buildplan are just for showing the end result (not for printing).
