Chain Generator

di Sal

File stampabili (5)

  • stl

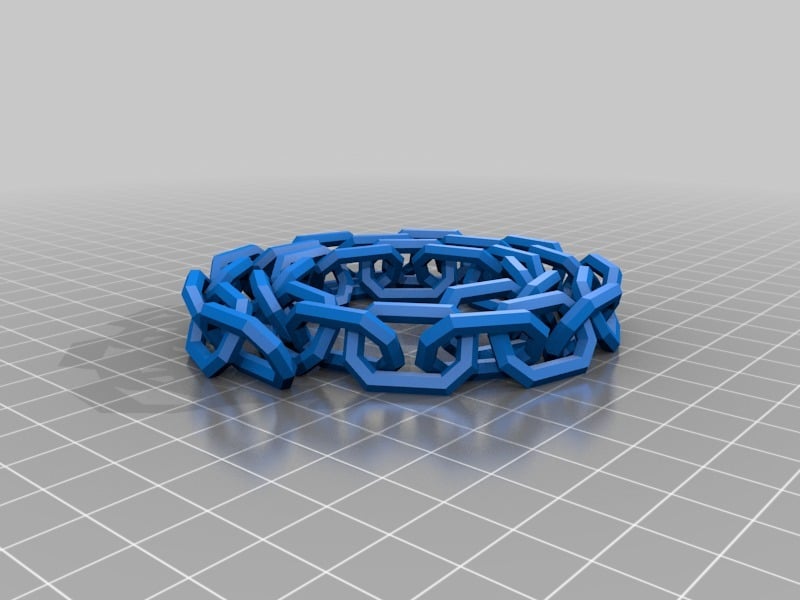

    spiral_chain_30_links_0.5m.stl

    1.5 Mo · 57 189 download

    Scarica
  • stl

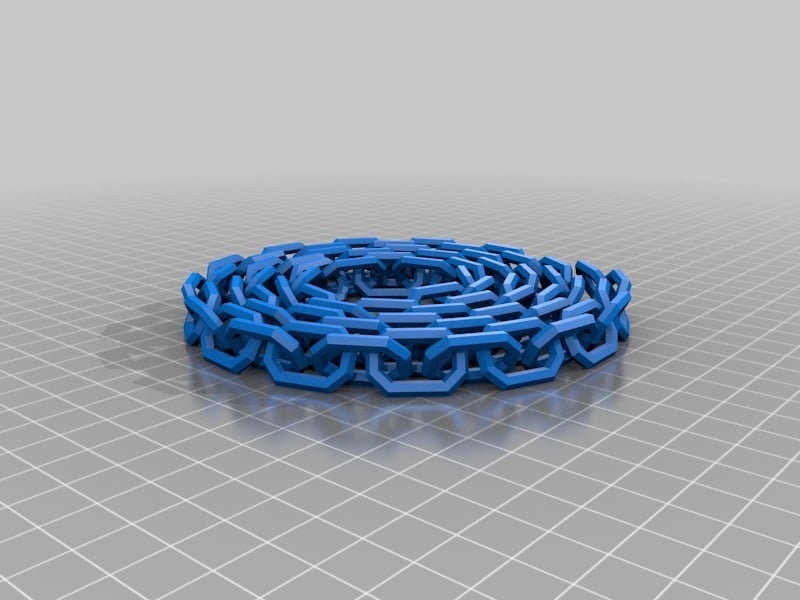

    spiral_chain_67_links_1m.stl

    3.4 Mo · 57 252 download

    Scarica
  • stl

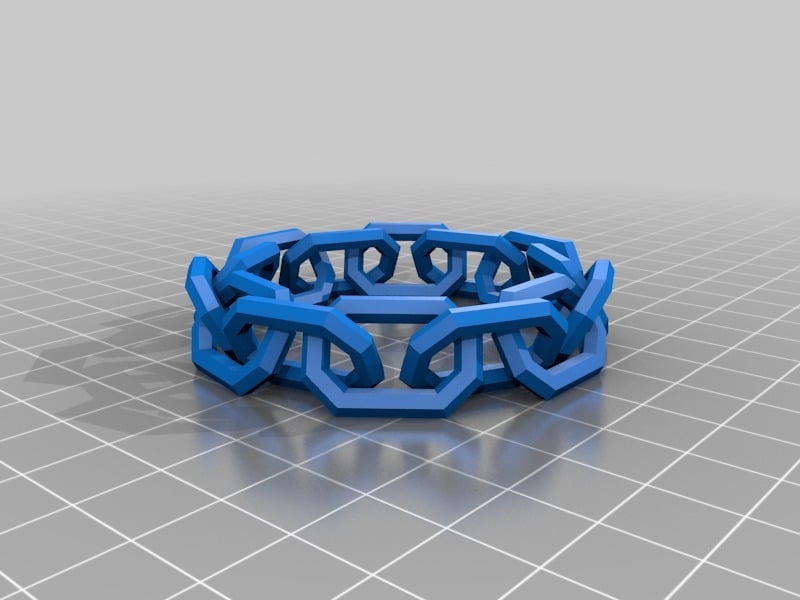

    circular_chain_14_links.stl

    725 Ko · 55 576 download

    Scarica
  • stl

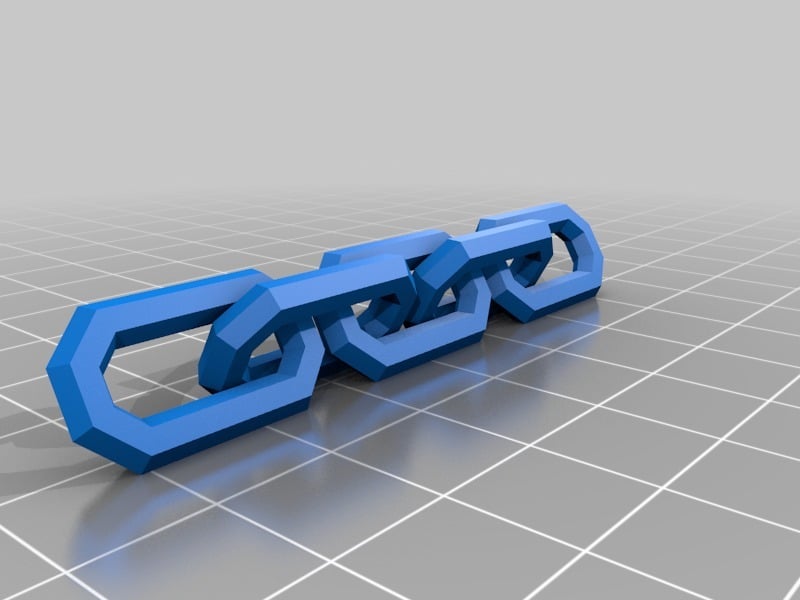

    straight_chain_5_links.stl

    179 Ko · 63 059 download

    Scarica
  • stl

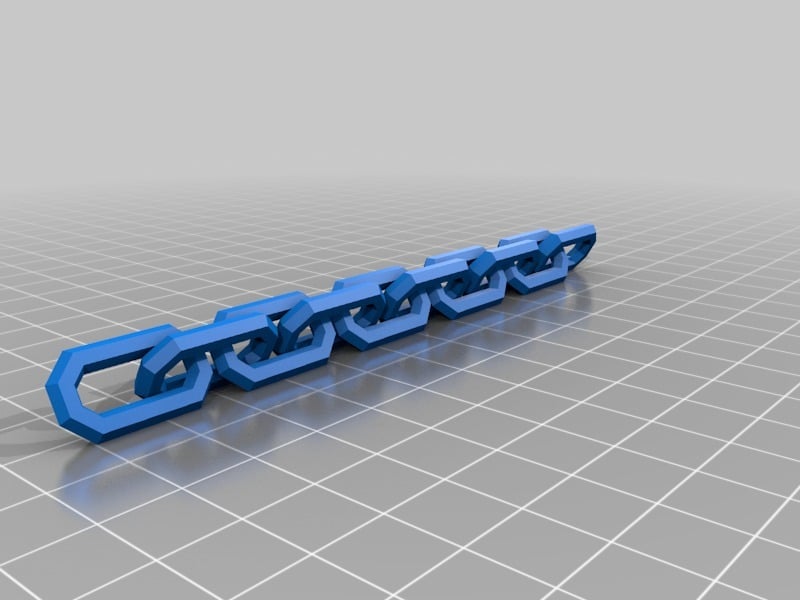

    straight_chain_10_links.stl

    355 Ko · 58 282 download

    Scarica

Descrizione

An OpenSCAD script that generates link chain designed to print without support or post assembly.

Update! New name, cleaned up script. Tossed out all old scad and stls.

Update 2, May 2013. Reworked the script to generate clean link geometry. TODO (low prio): Make the code as clean as the geometry...

Chain links are 22 x 12(15) mm with a 3.5 mm diameter cross-section. (Straight chain is 12 mm wide, others 15 mm) These dimensions are easily modified in the scad file or through customizer, but make sure to check that the links do not intersect!

Tag

#chain #customizer #openscad #parametric #supportless
