3D Digital Clock

di leonvandenbeukel

File stampabili (10)

  • stl

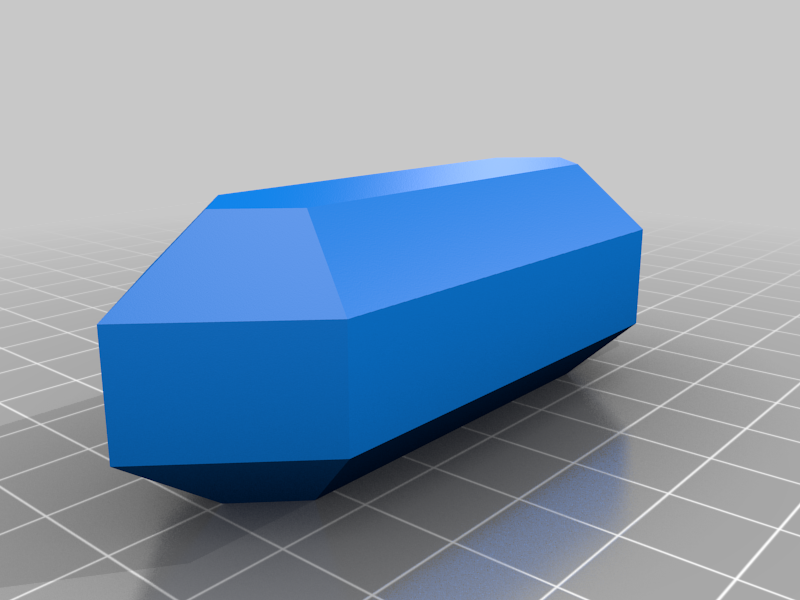

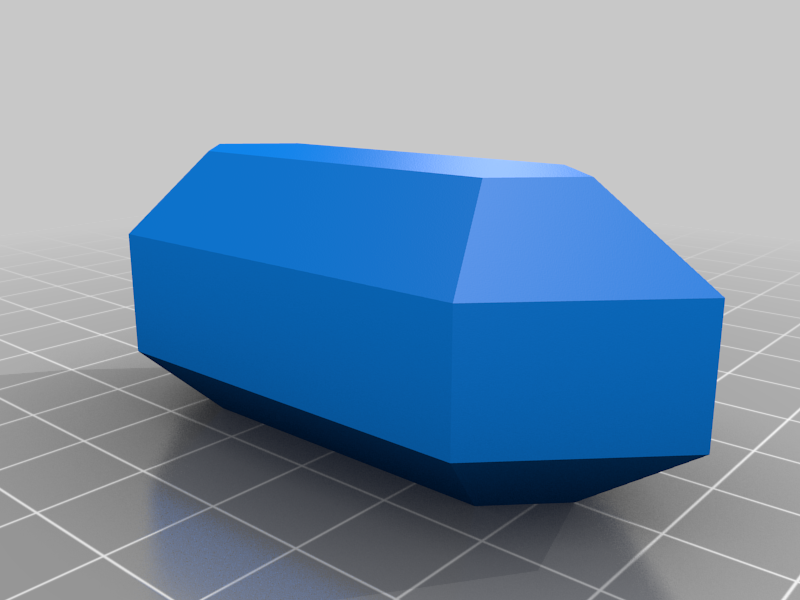

    Horizontal_Segment.stl

    6 Ko · 5 068 download

    Scarica
  • stl

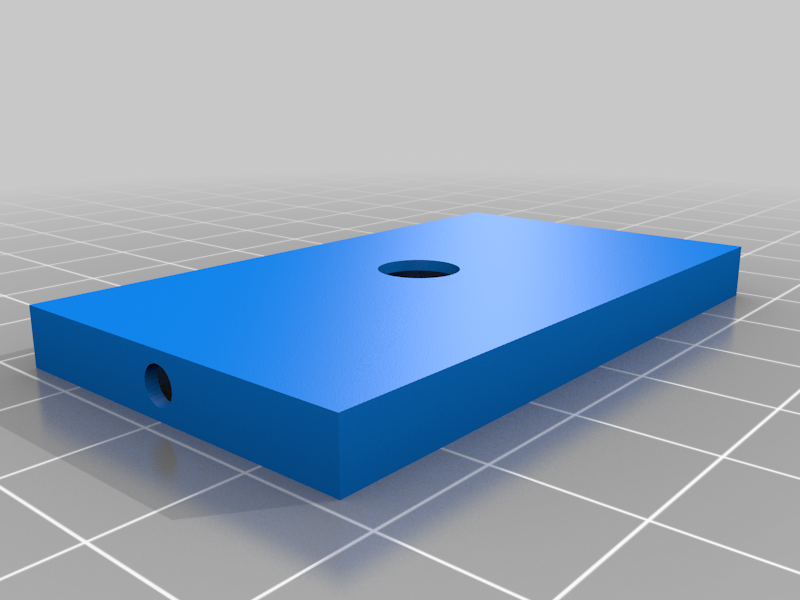

    Dotbottom.stl

    21 Ko · 5 030 download

    Scarica
  • stl

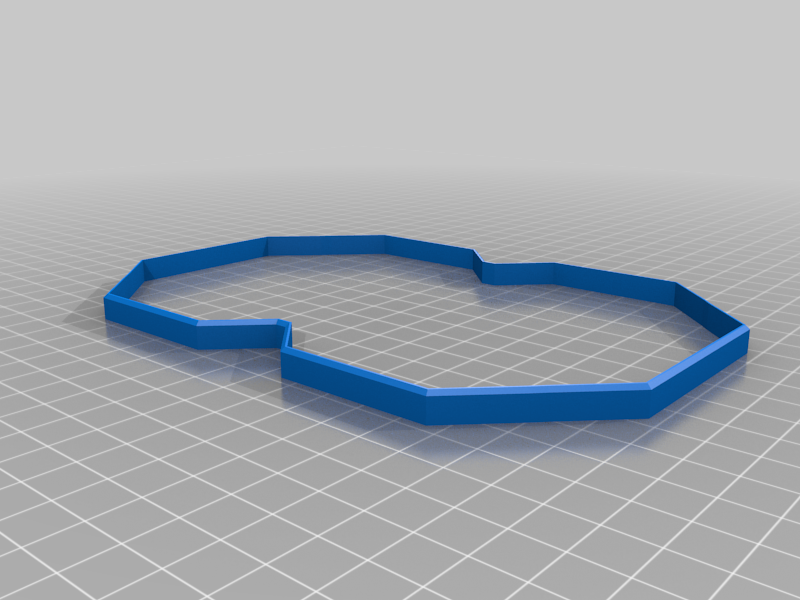

    OuterRingSegments.stl

    12 Ko · 5 029 download

    Scarica
  • stl

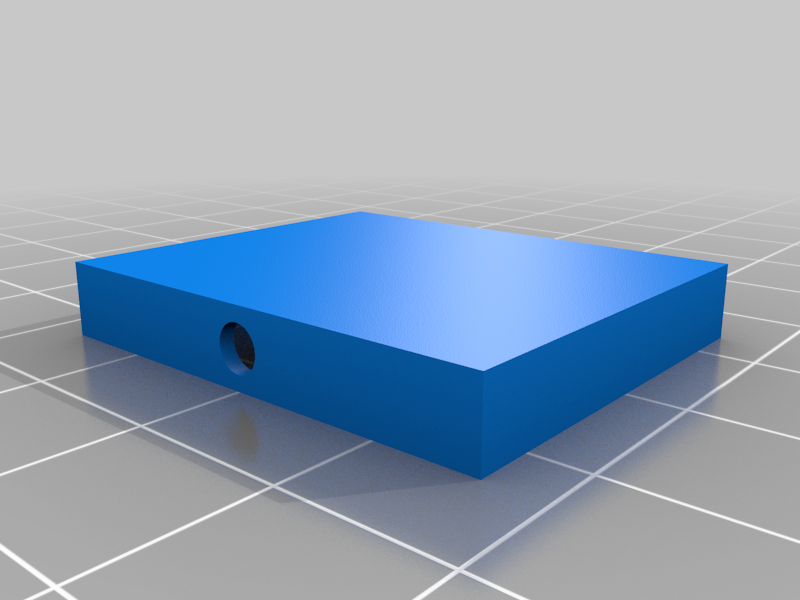

    Betweenblock.stl

    15 Ko · 5 020 download

    Scarica
  • stl

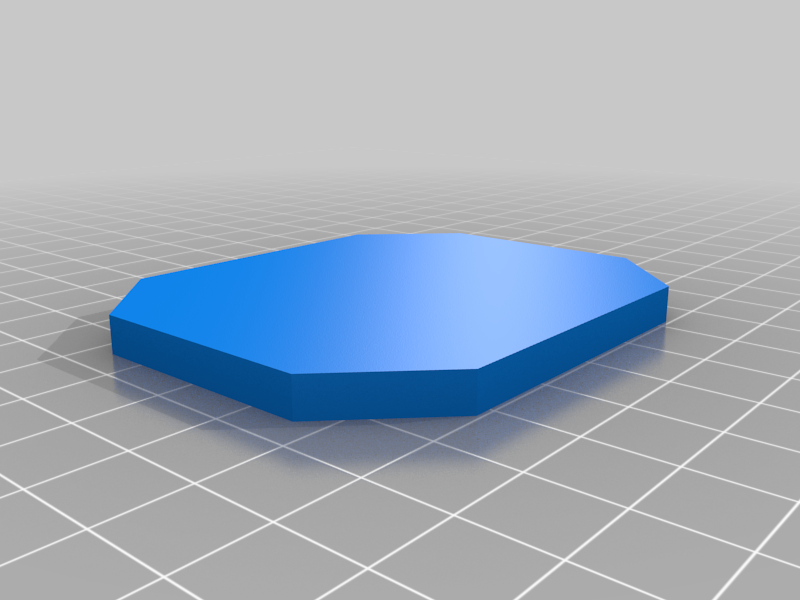

    Middle.stl

    3 Ko · 4 999 download

    Scarica
  • stl

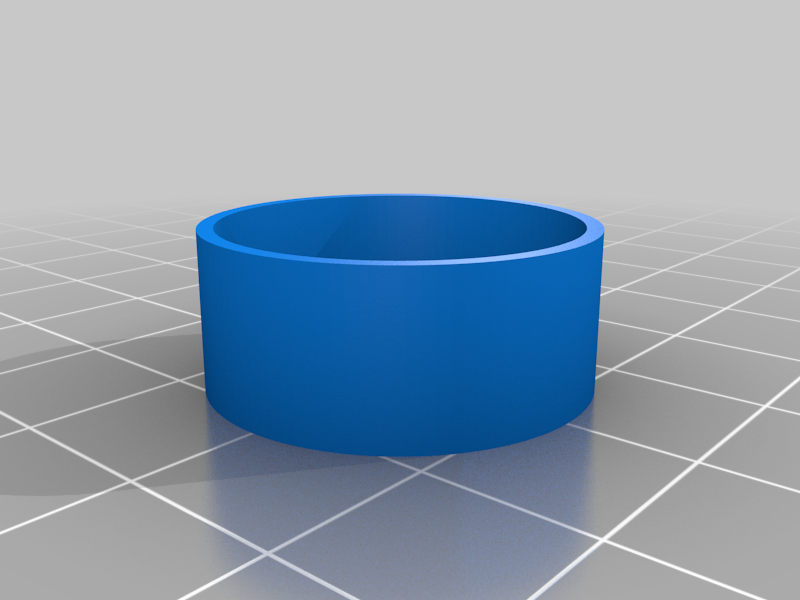

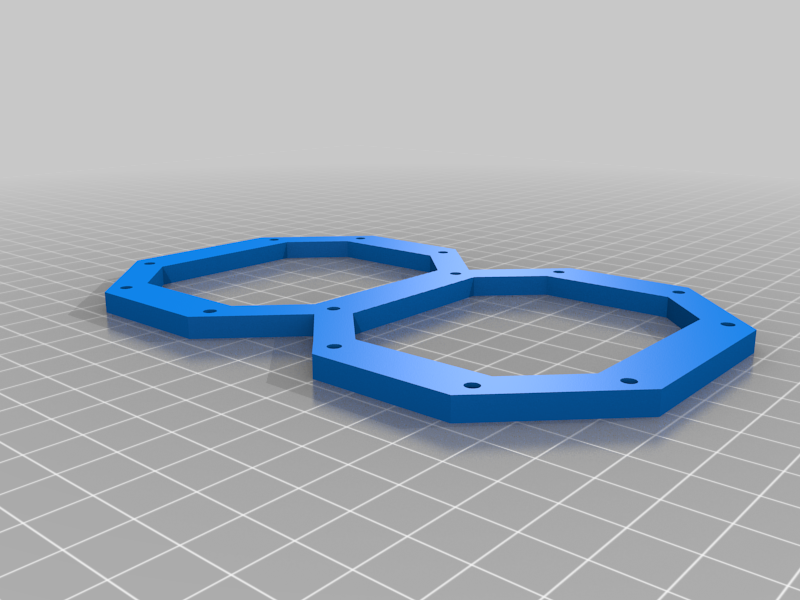

    DotRing.stl

    40 Ko · 5 004 download

    Scarica
  • stl

    Segmentbottom.stl

    85 Ko · 5 025 download

    Scarica
  • stl

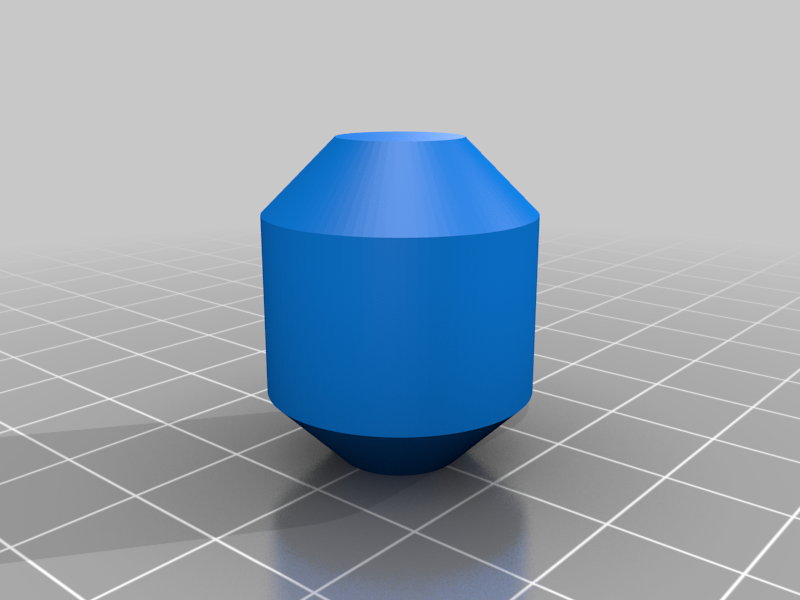

    Dot.stl

    77 Ko · 5 011 download

    Scarica
  • stl

    Vertical_Segment.stl

    6 Ko · 5 012 download

    Scarica
  • stl

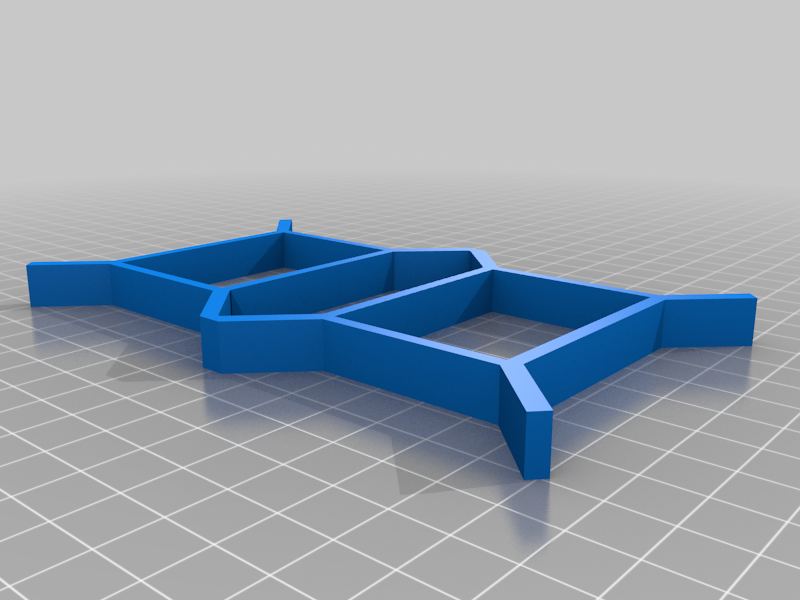

    BewteenSegments.stl

    10 Ko · 4 998 download

    Scarica

Descrizione

These are the parts from my homemade digital clock. YouTube video: https://www.youtube.com/watch?v=QDYH36tWzoY&feature=youtu.be

All parts can be printed with 0.2 resolution. At least the segments must be printed with brims. Also keep in mind that it's not very bright for daylight usage.

To create a better contrast, it's best to print the following parts in black:

  • Betweenblock
  • BewteenSegments
  • DotRing
  • Dotbottom
  • Middle
  • OuterRingSegments

The rest can be printed in white.

Schematics, source and more info on GitHub:
https://github.com/leonvandenbeukel/3D-7-Segment-Digital-Clock

Tag

#7 segment display #arduino #led strip #WS2812b
