Immortal T Stack Mount

di idofpv

File stampabili (3)

  • stl

    ImmortalT_StackMount_New.stl

    195 Ko · 229 download

    Scarica
  • stl

    CustomImmortal_BottomMount.stl

    841 Ko · 257 download

    Scarica
  • stl

    Immortal_T_30.6_Stack_Mount.stl

    39 Ko · 733 download

    Scarica

Descrizione

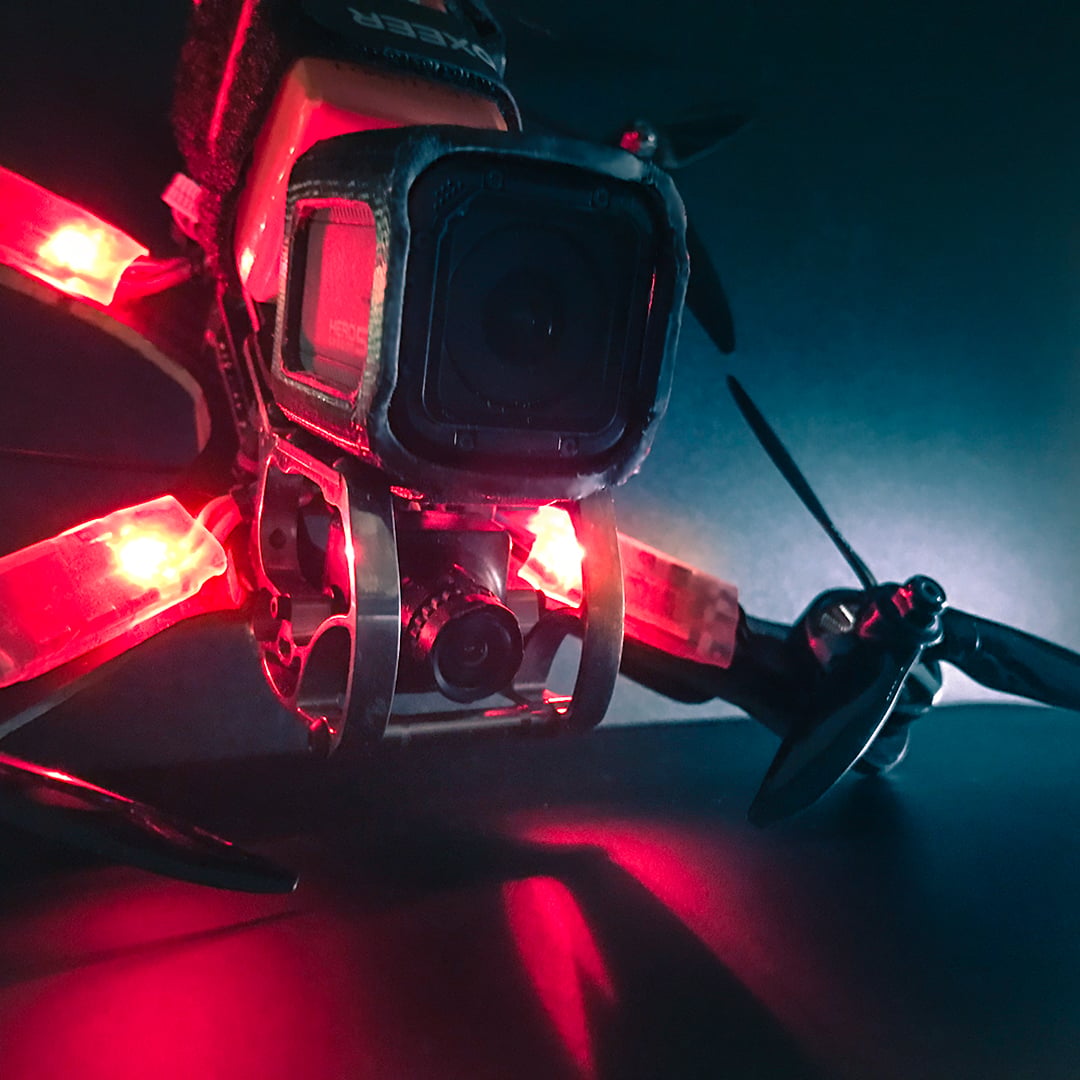

I've made this 30x30 stack mounts while ago and am successfully using it. Despite the fact it might look not protected - this thing works really well in crashes. I've been using first two mounts for two years now and they are really durable even when landing on a solid surface.

There are 3 files for you to choose from. Immortal_T_30.6_Stack_Mount.stl is the first design for stock TBS Immortal T antenna that works really well.

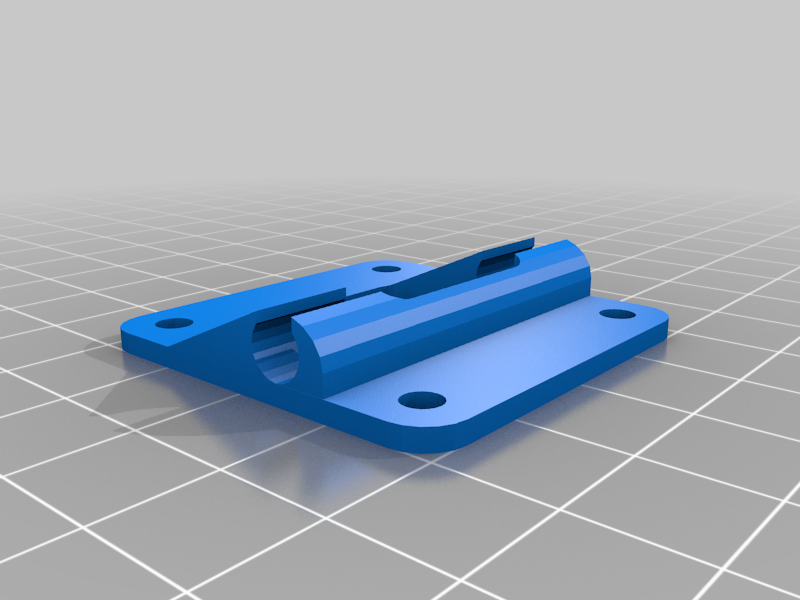

CustomImmortal_BottomMount.stl is for a custom antennas I got (will NOT fit stock Immortal T) with added holes for zip ties.

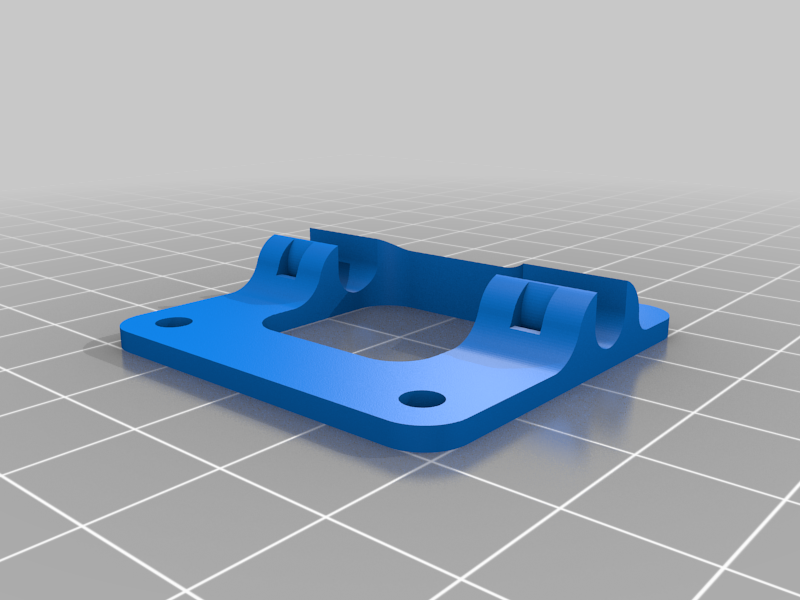

ImmortalT_StackMount_New.stl is an updated original design for stock TBS Immortal with added holes for zip ties.

I've used Elastan (TPU analog) to print the ImmortalT_StackMount_New.stl, all others were printed using ABS and PET.
