LED Matrix Jigs

di mohit

File stampabili (3)

  • stl

    5mm-sqr-template.stl

    364 Ko · 4 392 download

    Scarica
  • stl

    3mm-sqr-template.stl

    364 Ko · 4 335 download

    Scarica
  • stl

    5mm-hexa-template-02.stl

    227 Ko · 4 358 download

    Scarica

Descrizione

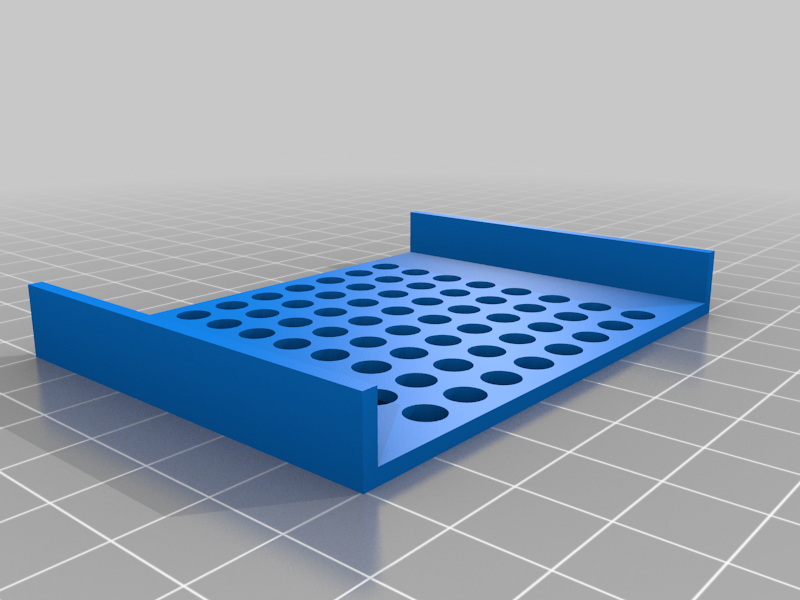

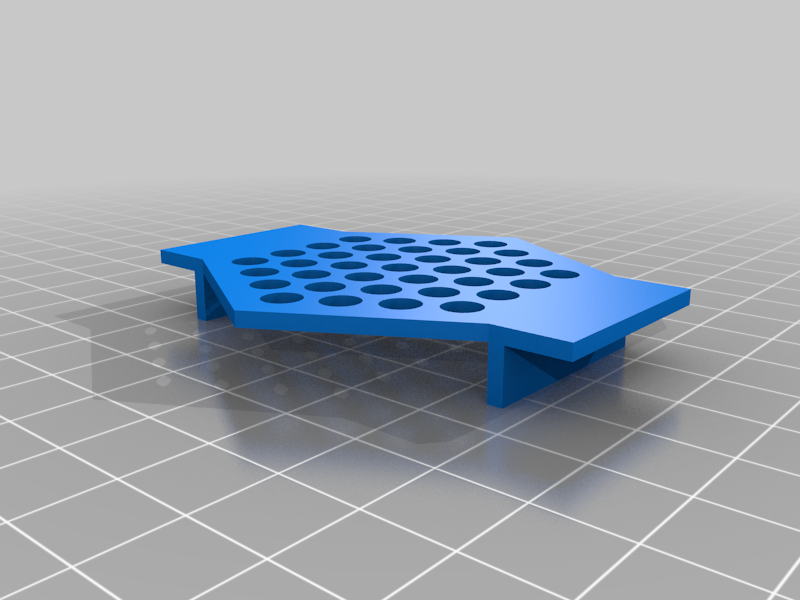

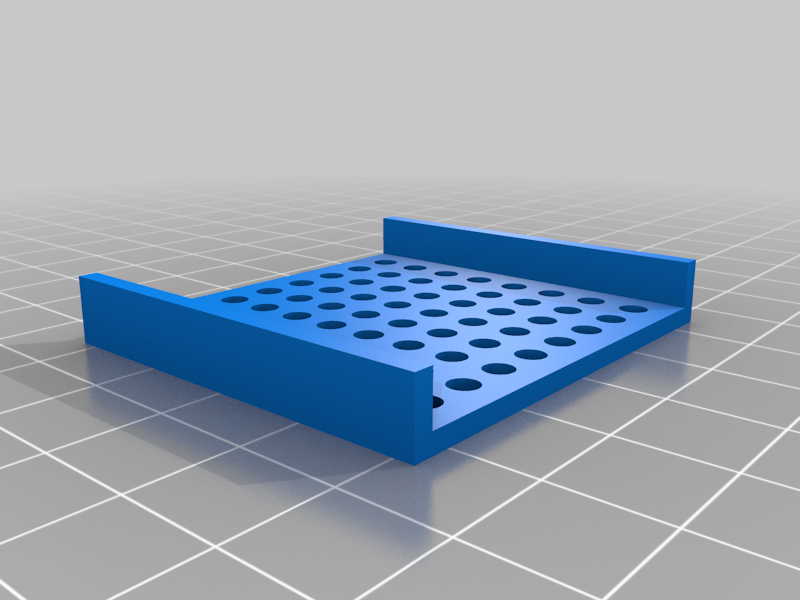

Jigs for freeform soldering together an LED matrix. Currently I have added 8x8 matrix for 5mm and 3mm LEDs. I have also added an experimental 37 LED hexagon for 5mm LEDs.

I also enabled the brim when generating the gcode to make sure that the bottom didn't warp.
