USB tiny ISP box enclosure

di Benn25

File stampabili (2)

  • stl

    tiny_box.stl

    86 Ko · 231 download

    Scarica
  • stl

    tiny_box_+_txt.stl

    842 Ko · 229 download

    Scarica

Descrizione

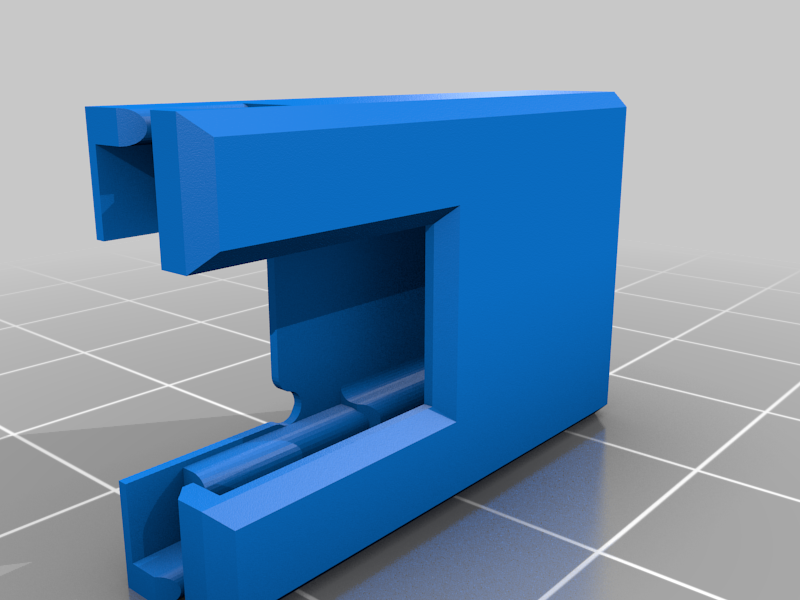

Simple box, no glue, no screw needed, just slide the board inside.
Print it at 45 deg angle (see screenshot), and add support under it (partially or fully) to improve the rigidity. Maybe you can print it with a large brim and no support as well in that position, but the contact area with the building surface will be very small.
No support needed inside.
infill probably not needed, I went 2 perimeters and 100% lines infill though.

2 models : one with, and one without the text (VCC & GND).

PETG worked very well for me.
0.3 Nozzle is good (this is quite small), wall thickness is 1.2 mm.
For a 0.3mm noozle, I recommend external perimeter 0.25mm(for good precision), internal perimeter & infill 0.65mm (for strong layers bonding).
0.4 Noozle should work as well.
