Router lifter

di Aguithie

File stampabili (9)

  • stl

    tune_key.stl

    163 Ko · 935 download

    Scarica
  • stl

    translator_1.stl

    141 Ko · 945 download

    Scarica
  • stl

    platine_8.stl

    118 Ko · 929 download

    Scarica
  • stl

    main_gear_6.stl

    260 Ko · 924 download

    Scarica
  • stl

    box_4.stl

    109 Ko · 926 download

    Scarica
  • stl

    tune_gear_7.stl

    157 Ko · 925 download

    Scarica
  • stl

    overhead_2.stl

    99 Ko · 926 download

    Scarica
  • stl

    rotor_5.stl

    1.6 Mo · 933 download

    Scarica
  • stl

    thread_3.stl

    657 Ko · 927 download

    Scarica

Descrizione

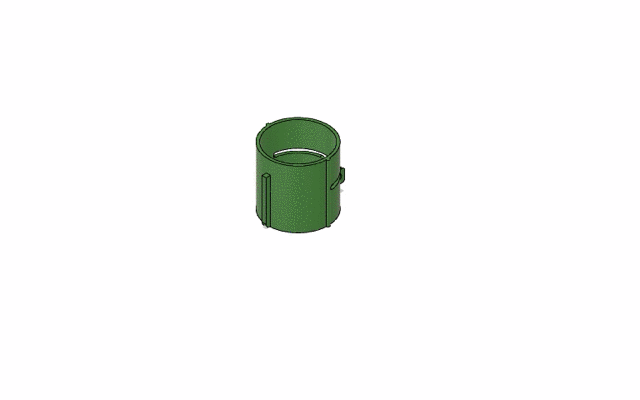

This print is a router lifter dedicated to be screwed under a router table. Thanks to a key you can lift up or down the router (65mm diameter)
Its composed into 8 parts plus a tune key.
The pace of this lifter is 2mm per round.
Some parts must be glued:

  • part 1 and part 3
  • part 2 and part 4
  • part 5 and part 6

part 5 is screwed upon part 3:
tip: put some solide soap on part 3 to lubricate the rotation between these 2 parts

a the end put a M4 screw into part 1 in order to tight the router

Enjoy!
