Sci-Pi NAS
di niik
File stampabili (16)
-

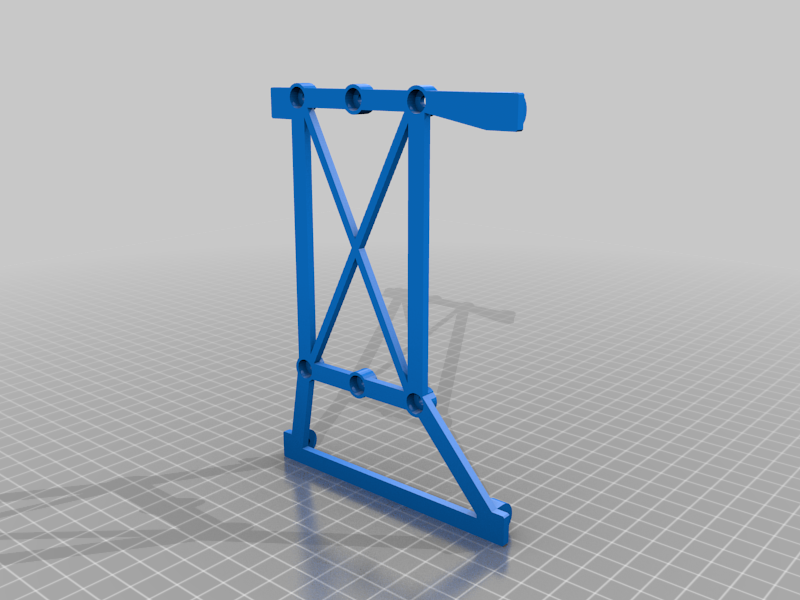

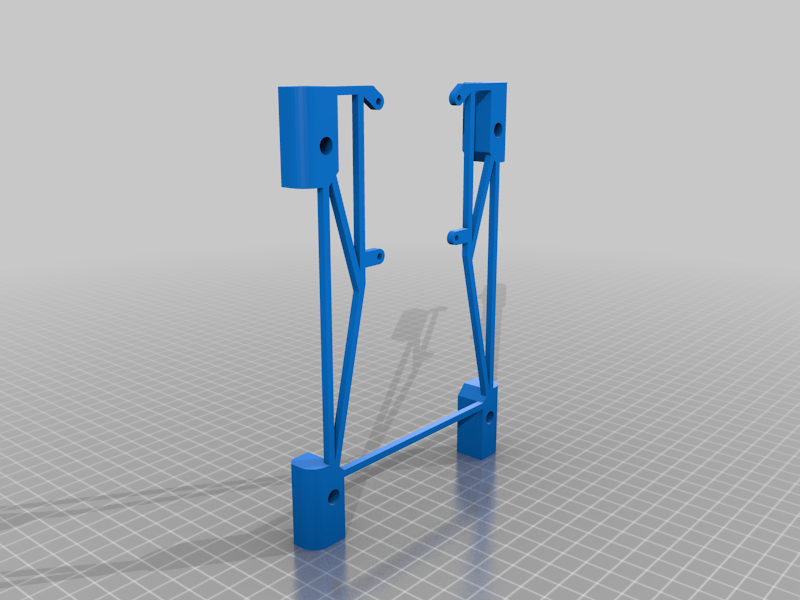

stlB-side_2.stl
142 Ko · 1 685 download
-

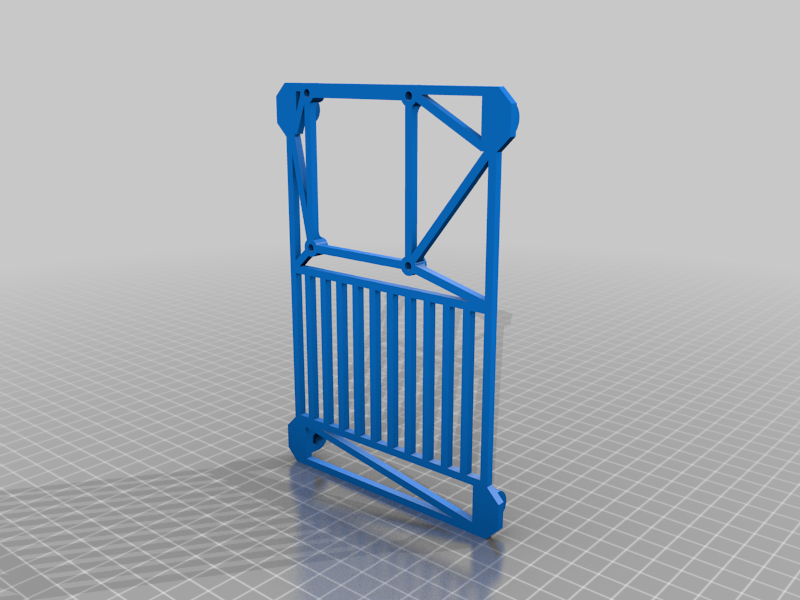

stlA-side_1.stl
157 Ko · 1 701 download
-

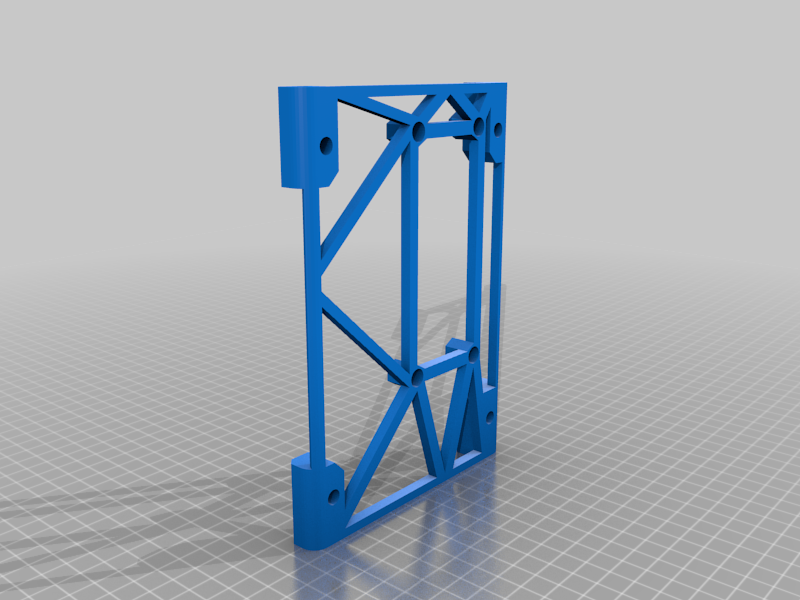

stlA-bottom.stl
151 Ko · 1 690 download
-

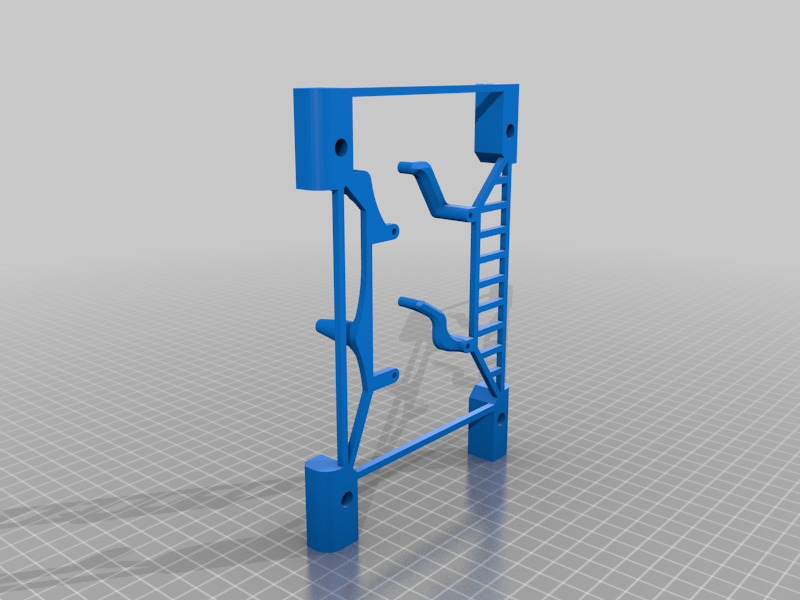

stlB-bottom.stl
346 Ko · 1 674 download
-

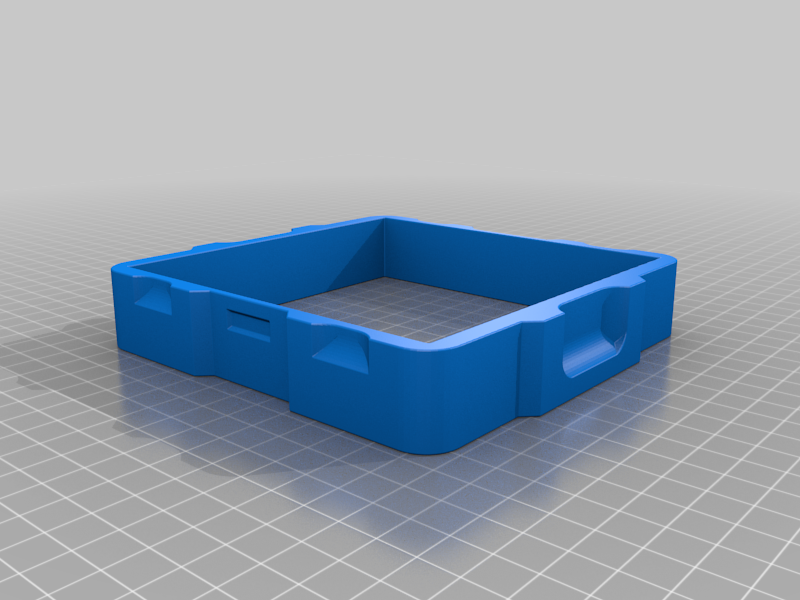

stlFan_spacer.stl
879 Ko · 1 701 download
-

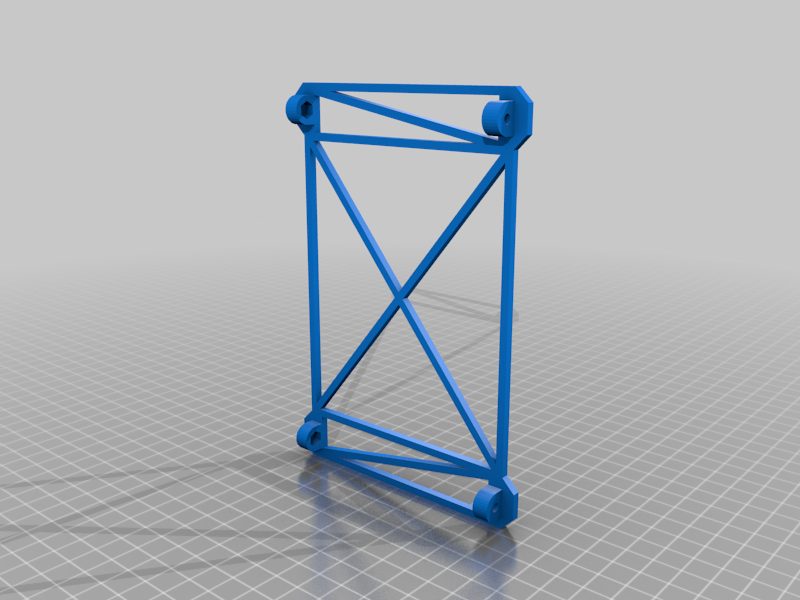

stlA-side_2.stl
48 Ko · 1 691 download
-

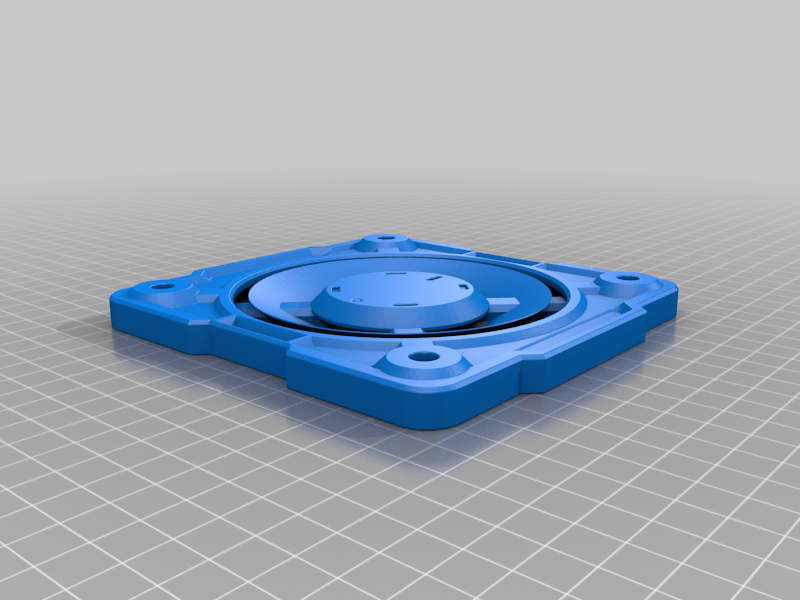

stlB-end_plate.stl
1.3 Mo · 1 698 download
-
stlPlain_end_plate.stl
1.3 Mo · 1 681 download
-

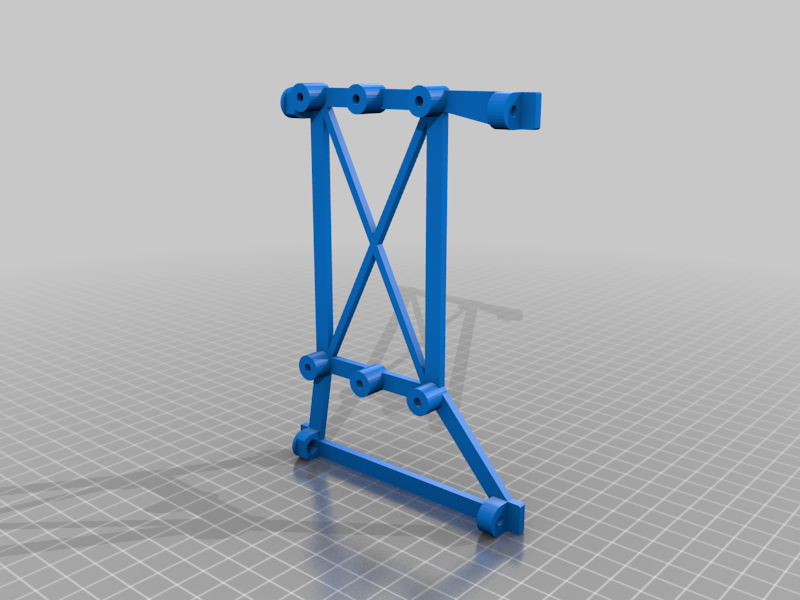

stlB-side_1.stl
145 Ko · 1 664 download
-
stlB-top.stl
135 Ko · 1 666 download
-

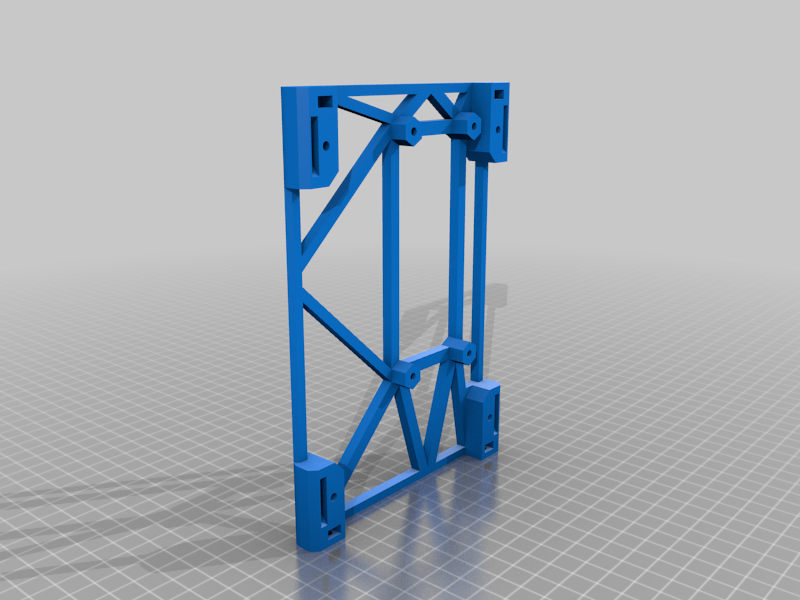

stlA-top.stl
151 Ko · 1 694 download
-

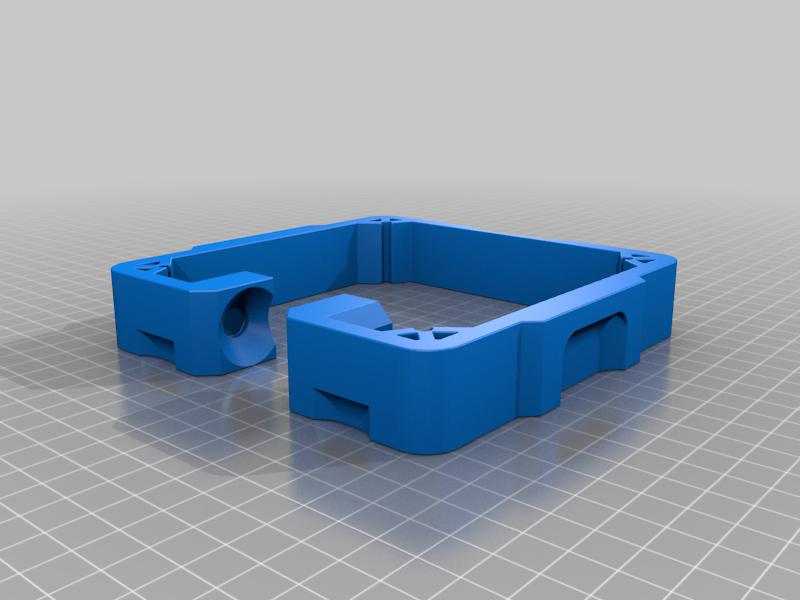

stlA-back_spacer.stl
2.1 Mo · 1 697 download
-

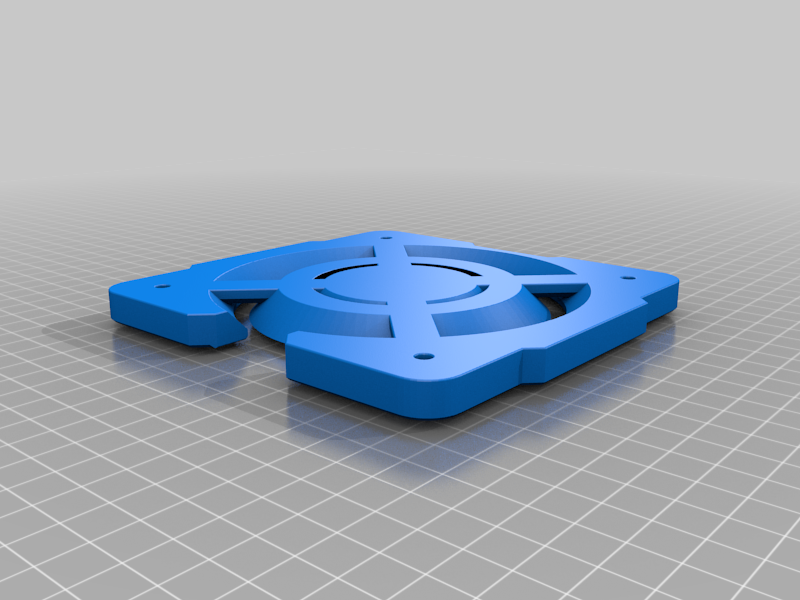

stlA-back_plate.stl
1.3 Mo · 1 710 download
-

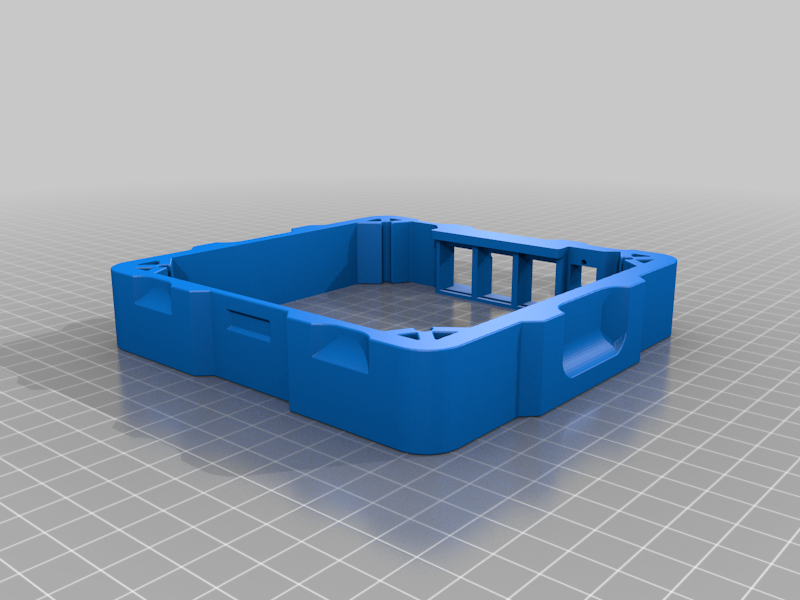

stlB-back_spacer.stl
1.7 Mo · 1 682 download
-

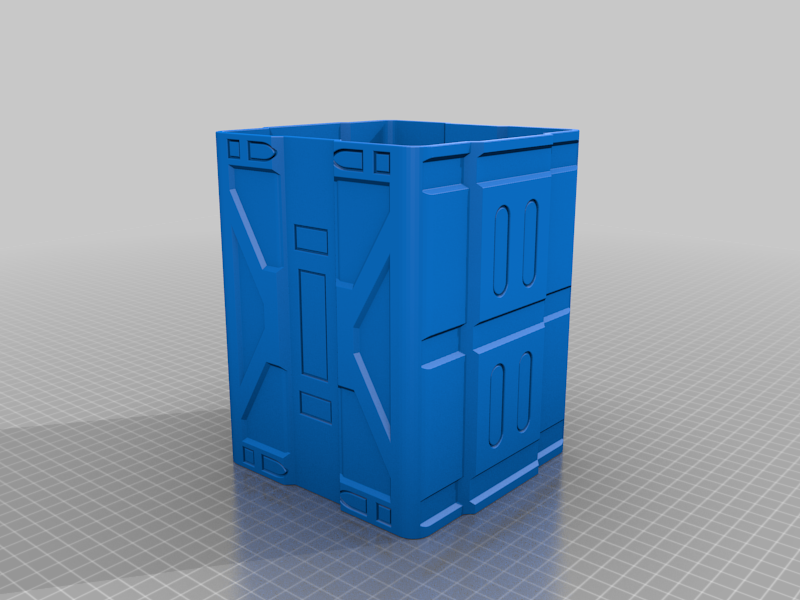

stlCenter.stl
3.2 Mo · 1 747 download
-

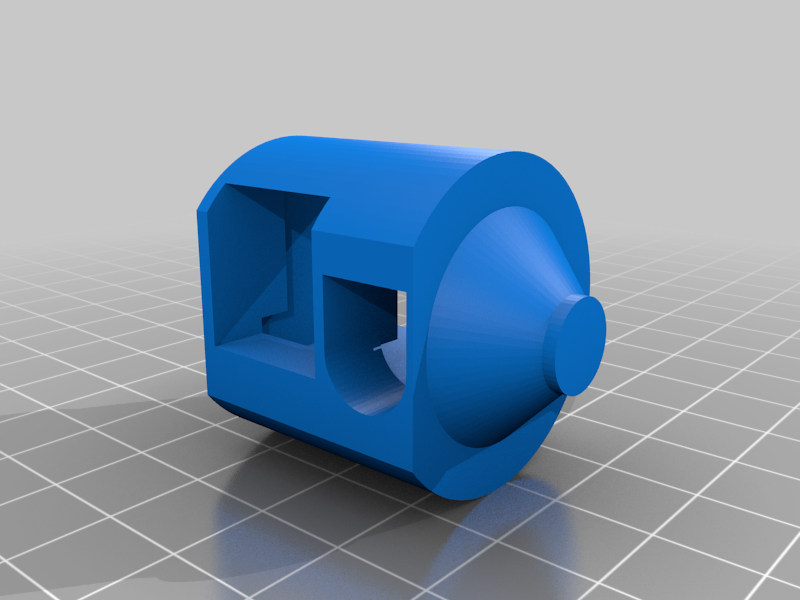

stlA-Cable_Turret.stl
89 Ko · 1 523 download
Descrizione
Sci-Fi inspired Raspberry Pi 4 case.
This case design was based on the 3d art of LoneWolf3d (https://www.artstation.com/artwork/xNnOO)
The case currently has 2 versions.
A) holds one Pi 4, two 3.5 inch hard drives, and one 120mm fan.
B) holds three Pi 4's, three 3.5 inch hard drives, and one 120mm fan
Configuration A could be used to house a NAS
Configuration B could be used to house a PI cluster
Assembly is not too bad but in configuration "B" there is not much extra room.
I tried to remove extra material to reduce print time and plastic usage.
Print all the parts tagged for your configuration (A or B) and all the untagged parts
BOM:
countitemL minL max8M4 Socket Cap40458M4-Nut----------4~12#6-32 UNC464-12M3478M3 Optional10158M3-Nut Optional1-35V/3A dc/dc converter----------1-3Sata to USB3 w/ 12V power1120mm fan?resistors for fan Optional1-3Cat-6 Keystone jack1DC Power Connector FC6814932M247?Cat 5e/6 cableThe only part that needs support is the bottom mount for two RPI's
If you found this useful, please donate what you think it is worth to my paypal.me. Help cover the time of design.
Thanks, Enjoy!
