Sonoff Zigbee Sensor Wall Mounts
di atom6
File stampabili (6)
-
stlSNZB-04_Door_Tape.stl
22 Ko · 701 download
-
stl
SNZB-03_PIR_Tape.stl
22 Ko · 704 download
-
stlSNZB-02_Temperature_Tape.stl
22 Ko · 636 download
-
stlSNZB-03_PIR_Screw.stl
96 Ko · 596 download
-
stl
SNZB-04_Door_Screw.stl
96 Ko · 671 download
-
stl
SNZB-02_Temperature_Screw.stl
96 Ko · 728 download
Descrizione
Sonoff Zigbee Sensor Wall Mounts
As these sensors use batteries, I wanted a mount where I can remove the sensor, replace battery and mount it again without the need to replace the double sided tape.
This collection includes the following mounts for:

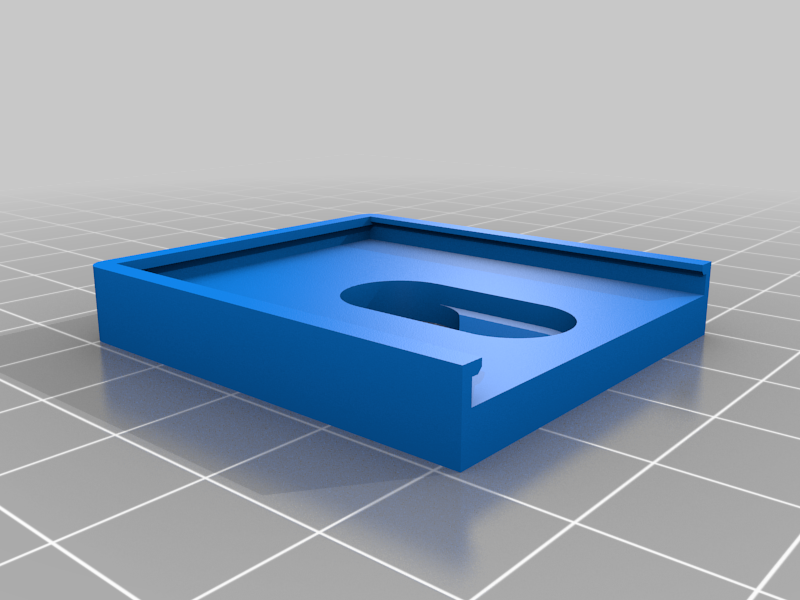

SNZB-03 PIR sensor
SNZB-04 Door sensor (part that contains the battery)

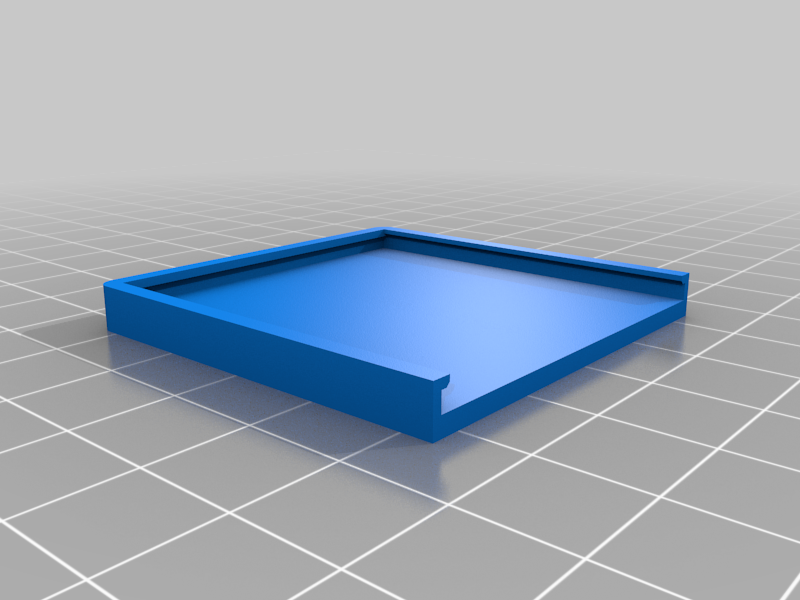

SNZB-02 Temperature/Humidity sensor
Includes 2 versions for each;
one for use with doublesided tape
one for use with a wall screw.
Each object prints within 10-20 minutes.
A properly calibrated printer is recommended as the tolerances are small.
Once printed, you can slide the sensor in place.
Planning to expand the PIR with an angled or adjustable mount.
NOTE: "download all files" does not work, try downloading individual stl's instead
