Broken Heart
di GregFrost
File stampabili (23)
-
stlgear4_outer.stl
343 Ko · 4 813 download
-
stlgear5_outer.stl
383 Ko · 4 754 download
-
stlgear6_outer.stl
369 Ko · 4 740 download
-
stlgear7_outer.stl
357 Ko · 4 687 download
-
stlgear8_outer.stl
416 Ko · 5 002 download
-
stlgear9_outer.stl
858 Ko · 4 750 download
-
stlgear9_inner.stl
140 Ko · 4 764 download
-
stlgear10_outer.stl
469 Ko · 4 741 download
-
stlgear11_outer.stl
504 Ko · 4 705 download
-
stlgear12_outer.stl
384 Ko · 4 676 download
-
stlheart_centre_top.stl
337 Ko · 4 698 download
-
stlheart_centre_middle.stl
398 Ko · 4 717 download
-
stlheart_drive_gear1.stl
295 Ko · 4 720 download
-
stlheart_drive_gear2.stl
116 Ko · 4 685 download
-
stlheart_drive_gear3.stl
396 Ko · 4 662 download
-
stlwalls.stl
1.4 Mo · 4 711 download
-
stlcrossmount.stl
95 Ko · 4 689 download
-
stlheart_gears_handle_knob.stl
59 Ko · 4 669 download
-
stl10tooth_inner.stl
346 Ko · 4 688 download
-
stl15tooth_inner.stl
483 Ko · 4 690 download
-
stlgear1_outer.stl
640 Ko · 4 730 download
-
stlgear2_outer.stl
617 Ko · 4 676 download
-
stlgear3_outer.stl
677 Ko · 4 687 download
Descrizione

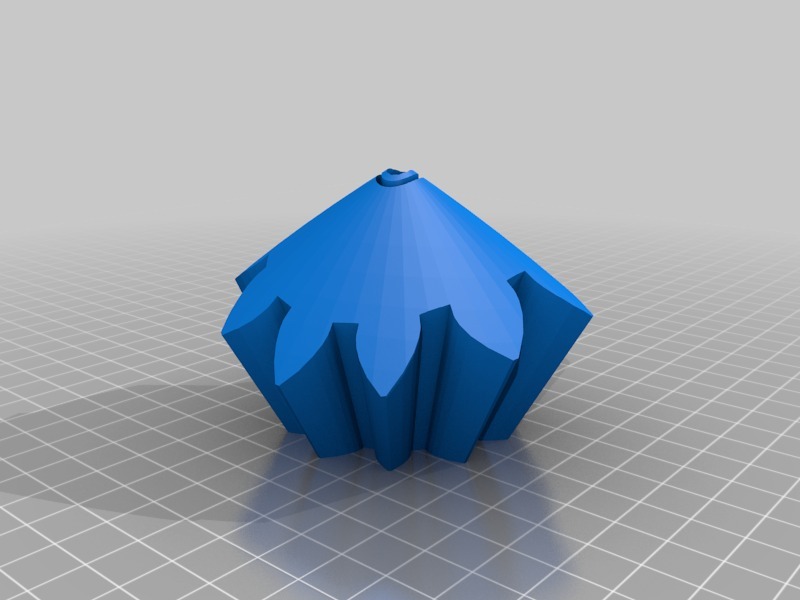

A kinetic sculpture made using my parametric bevel gear script inspired by this: http://www.brainblog.to/item/2008/11/herz-aus-zahnraedern
I modeled the entire thing from scratch in OpenSCAD, starting with the Parametric Involute Bevel and Spur Gear script I posted some time ago. I have added an additional complexity to the movement because not only do the gears spin, but the axes of the gears rotate too.
Being a kinetic sculpture, you really need to see it in motion:
http://www.youtube.com/watch?v=Zx28cHA4_KI
Be warned that before you attempt to print this, an improved technique for attaching the gears to the central mount is really needed.
I have the openscad files for everything, although there are so many parts that it is a bit of a process generating the STLs from them.
If someone wants to collaborate on a better way to mount the gears, let me know.
