Functional Mechanical Differential

di kubat

File stampabili (10)

  • stl

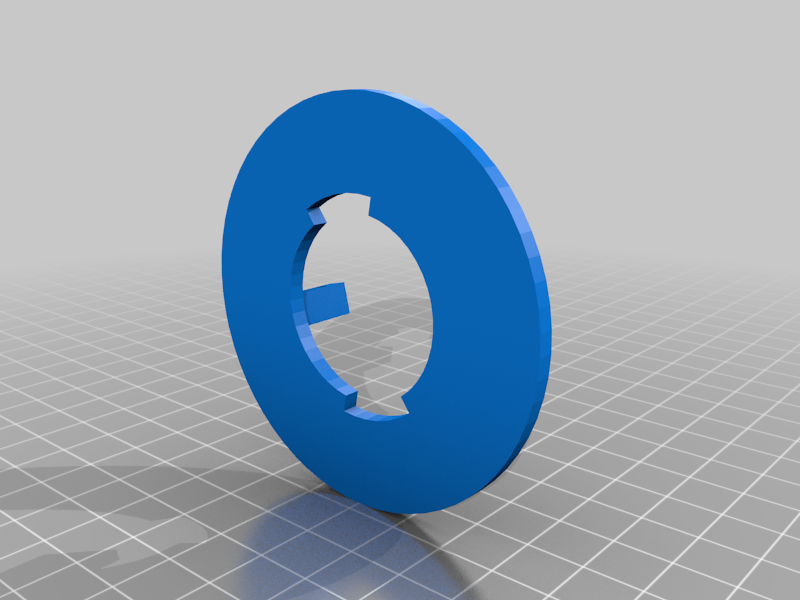

    DF_-_Carcaza_P.2.STL

    38 Ko · 1 407 download

    Scarica
  • stl

    DF_-_Tapa_Entrada.STL

    31 Ko · 1 388 download

    Scarica
  • stl

    DF_-_Carcaza.STL

    166 Ko · 1 376 download

    Scarica
  • stl

    DF_-_straight_bevel_gear_iso.STL

    245 Ko · 1 402 download

    Scarica
  • stl

    DF_-_straight_bevel_pinion_iso.STL

    252 Ko · 1 402 download

    Scarica
  • stl

    DF_-_Arandela.STL

    21 Ko · 1 381 download

    Scarica
  • stl

    DF_-_Carcaza_Exterior_P.2.STL

    273 Ko · 1 392 download

    Scarica
  • stl

    DF_-_Corona_Principal.STL

    573 Ko · 1 391 download

    Scarica
  • stl

    DF_-_Piñon_Principal.STL

    242 Ko · 1 474 download

    Scarica
  • stl

    DF_-_Carcaza_Exterior.STL

    311 Ko · 1 376 download

    Scarica

Descrizione

Is a mini mechanical differential, has 10cm long
This proyect will need, besides all the parts in the file:

-10 ball bearing with the following dimensions:
Exterior diameter: 22mm
Interio diameter: 8mm
thickness: 7mm

-8 screws M4x25mm

-8 nuts M4

-7 packing ring (can be printed or buyed) (named "Arandela" in the files)

-2 screws M1.6x12mm

-2 nuts M1.6

Tag

#diferencial #differential #engeneering #functional #mecanico #mechanical
