A Better Protractor/Angle Meter
di Creator2750
1 / 4
File stampabili (2)
Descrizione
Snap-fit assembly, no hardware required. Printed in 2 pieces.

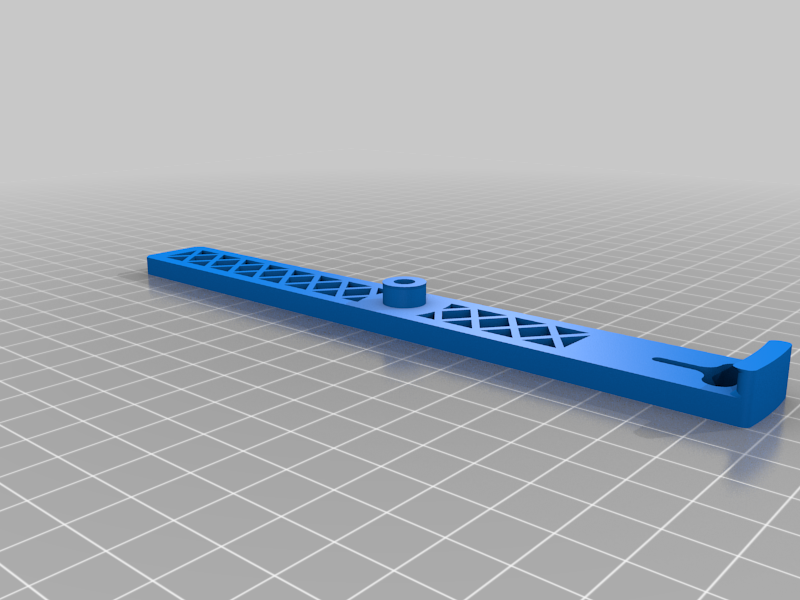

I included the f3d file, in case some tweaks need to be made to the lever due to printer tolerances.
I did a color change during printing to contrast the numbers on the gauge.
Gauge is 160mm diameter as included, but should be scalable along with the lever. Total thickness is 10mm as is.
