Paint carousel

di Legufix

File stampabili (9)

  • stl

    carousel_lid.stl

    288 Ko · 1 949 download

    Scarica
  • stl

    carousel_spacer_sleeve.stl

    161 Ko · 1 806 download

    Scarica
  • stl

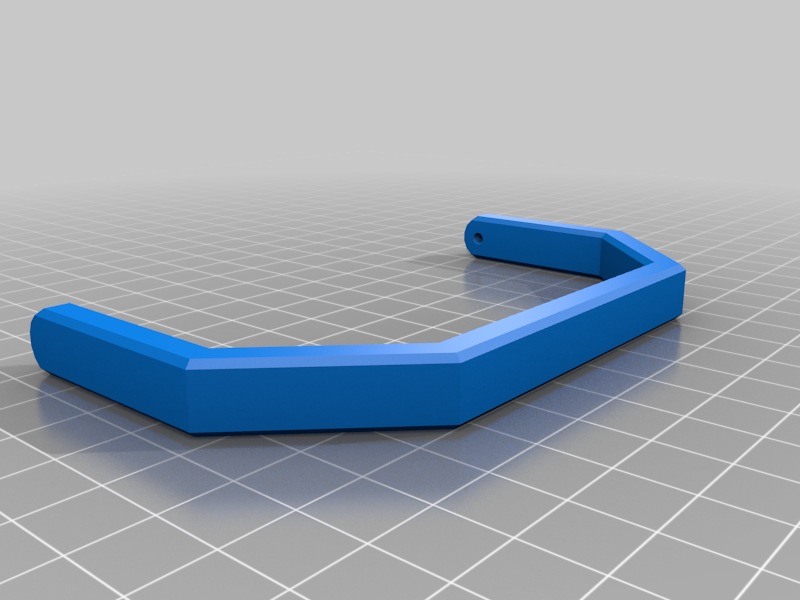

    carousel_handle.stl

    423 Ko · 1 795 download

    Scarica
  • stl

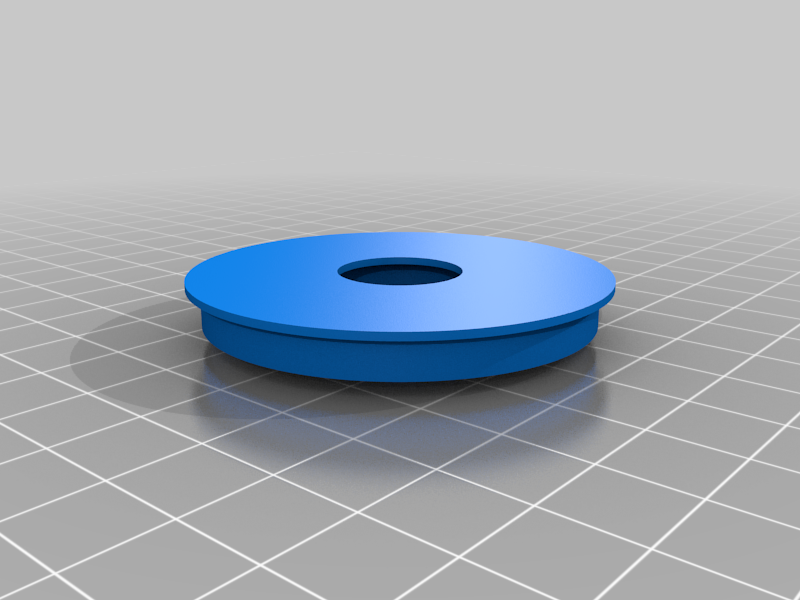

    carousel_spool_adapter.stl

    174 Ko · 1 802 download

    Scarica
  • stl

    carousel_bottle_holder.stl

    549 Ko · 1 845 download

    Scarica
  • stl

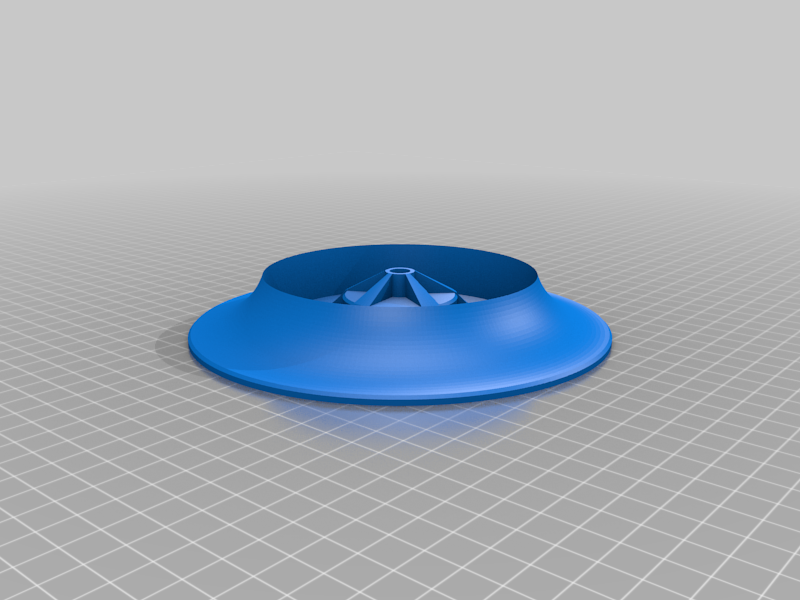

    carousel_base.stl

    686 Ko · 1 821 download

    Scarica
  • stl

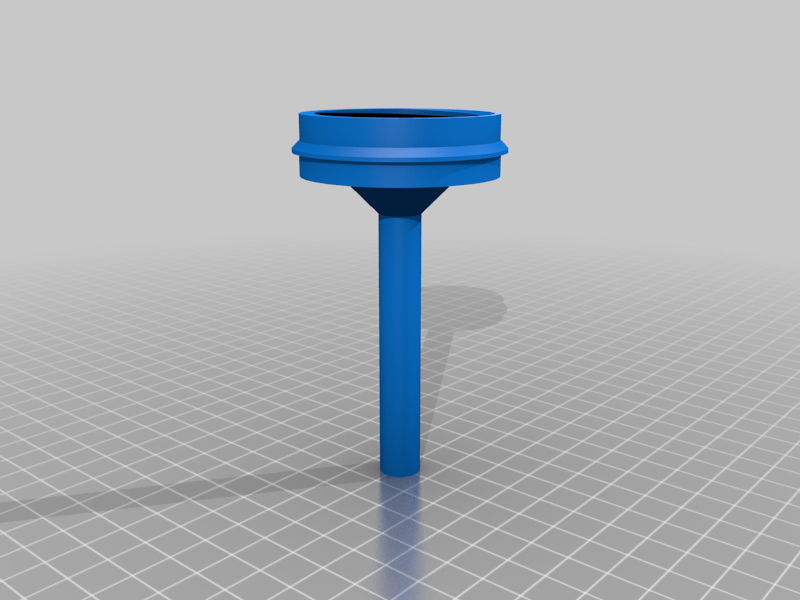

    carousel_upper_part.stl

    454 Ko · 1 805 download

    Scarica
  • stl

    carousel_no_prusament_spool.stl

    399 Ko · 1 264 download

    Scarica
  • stl

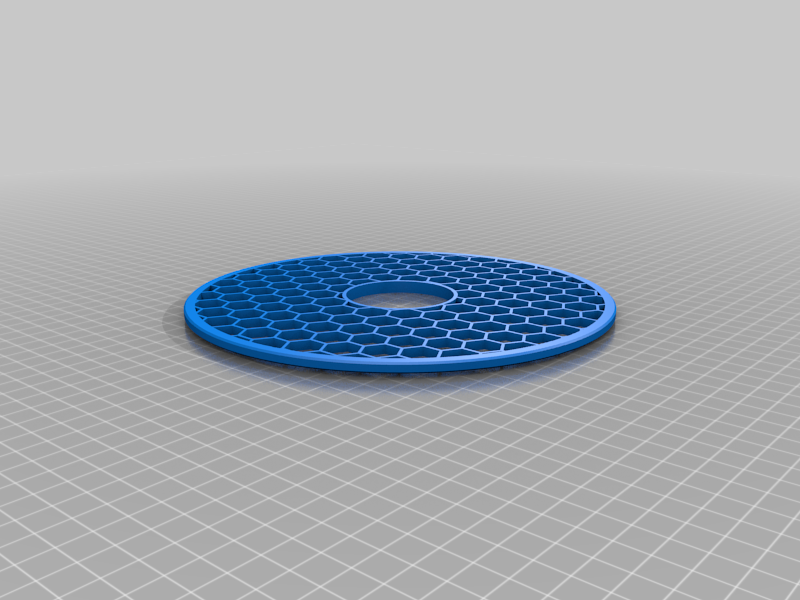

    carousel_no_prusament_spool_upper.stl

    376 Ko · 768 download

    Scarica

Descrizione

To make it easier for me to find my paints, I have developed a rotating paint carousel. The carousel fits the Vallejo 17ml colors.

Besides the Prusament spools and the 3D printed parts, the following components are needed:

4 pcs. Ball bearing 608RS 8x22x7mm
1 pc. M8 threaded rod, 385mm long
2 pcs. M8 nut
2 pcs. screw M3x9mm

Update 30.03.2021: I noticed the not everybody uses Prusament and has the appropriate spools available. Therefore I added a extra parts you can use instead.

Update 17.12.2021: Detailed information can also be found at https://www.instructables.com/Paint-Carousel-Made-From-Empty-Prusament-Spools/
