Mac Raspberry PI4B case
di Bfonseca
1 / 8
File stampabili (4)
Descrizione
This was inspired from The_Craft_Dude.
His design is great but i was looking for something simpler to put my raspberry PI so i design this.

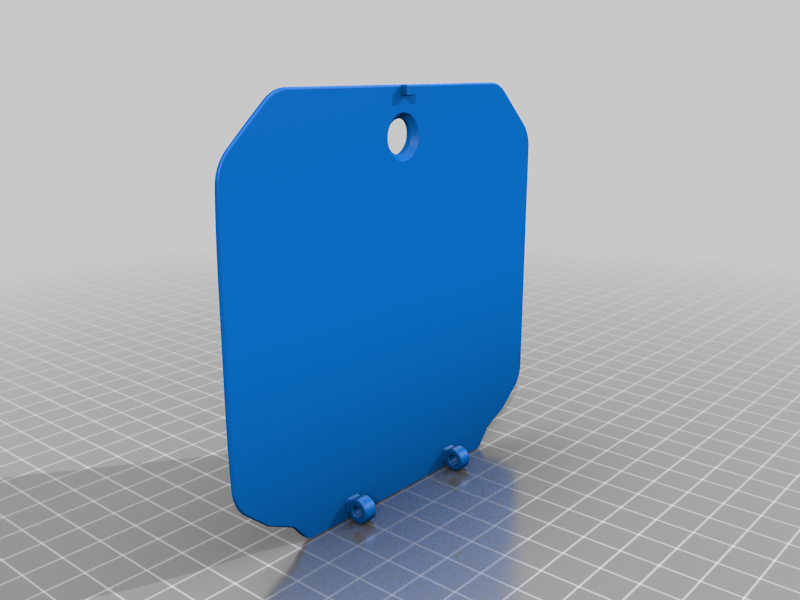

My design is not so good as his but it will do the job, the main limitation is that the cover only opens about 60º, i'll improve it later.
Revision-01

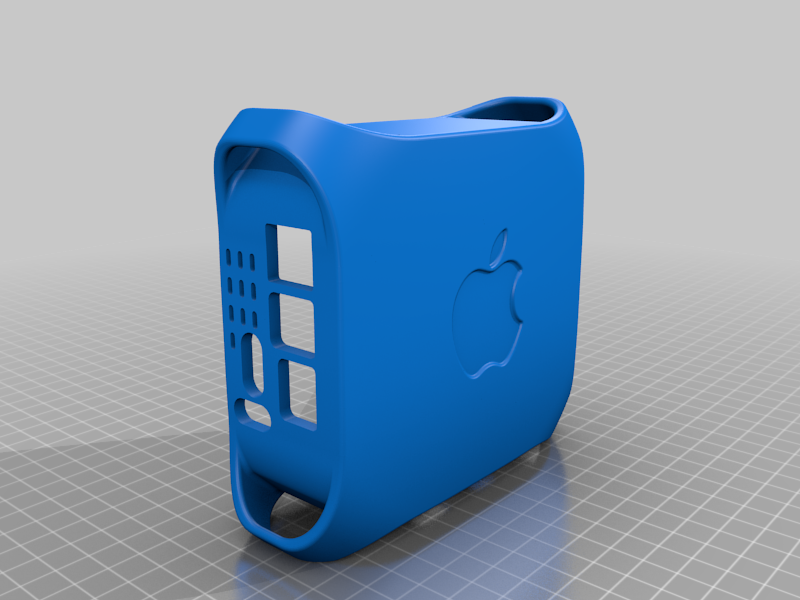

- Added a second main body for the Raspberry PI 3B
Revision-02
- Improved the overall stability by centering the board on the case.
- Improved the hinges strength
Revision-03
- Changed the hinge, the other was too fragile and didn't allow the 90 degrees opening
- Moved the board upwards 5mm to get a little more space for the cables
- Added two more holes for cables
If you have any issues please, feel free to comment.
