SMARS Mini robot
di techademics-dot-xyz
File stampabili (4)
Descrizione
Hi from France!
This little guy was originally designed by Kevin McAleer from https://www.smarsfan.com/
I had the chance to work with Kevin to bring this cute robot to life!
A special thanks to my students who worked on this project!
It's a shrunk version of the popular SMARS robot: https://www.thingiverse.com/thing:2662828
SMARS Mini fits in the palm of your hand and is quick & easy to print. No external fasteners needed.
BILL OF MATERIAL:
1 x Tiny2040 board from Pimoroni: https://shop.pimoroni.com/products/tiny-2040
2 x N20 geared motors. I used 3V, 145 RPM from here: https://tinyurl.com/4bwcem8h
1 x Mini motor driver, Mini-L298N: https://tinyurl.com/5zbc63ae
1 x Time-of-Flight (ToF) laser-ranging sensor, VL53L0X: https://tinyurl.com/5ezxp4sd
1 x Lipo battery model 502535, 3.7V 400mAh: https://tinyurl.com/3225facd
ABOUT PRINTING:

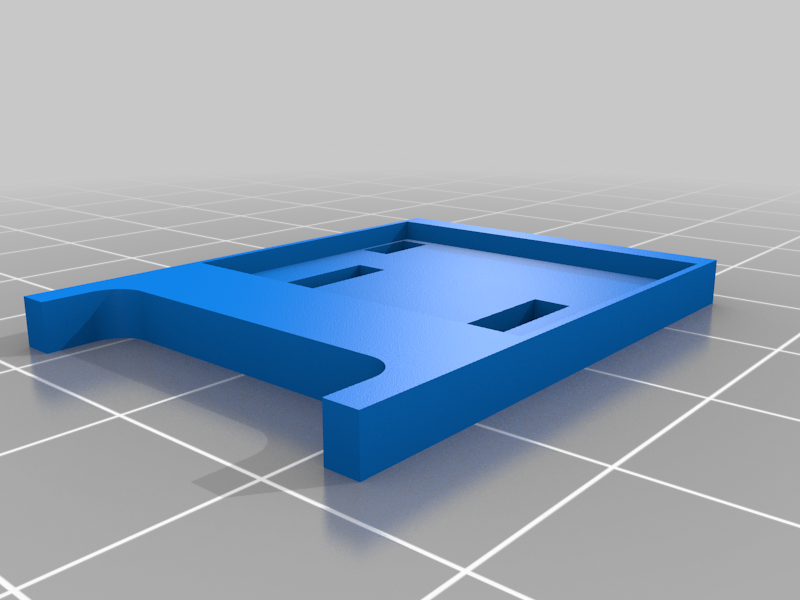

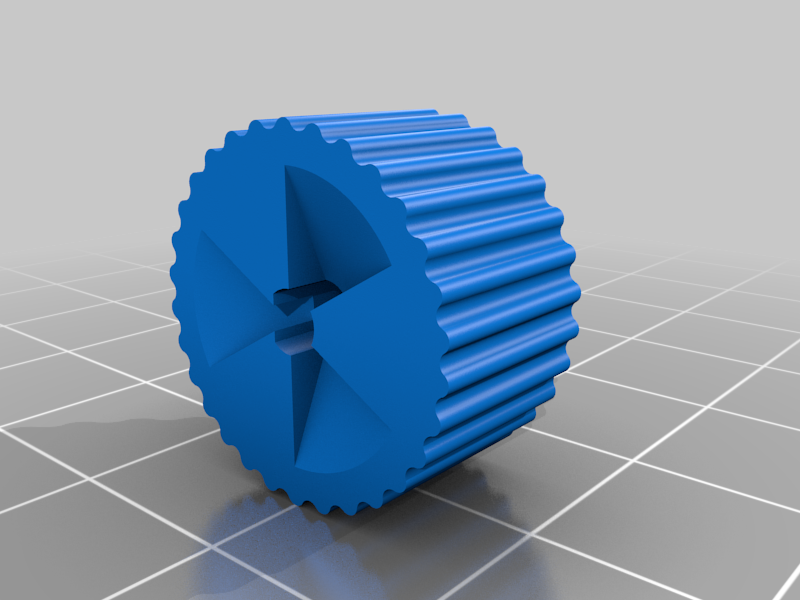

Wheel and Driver plate: support NO

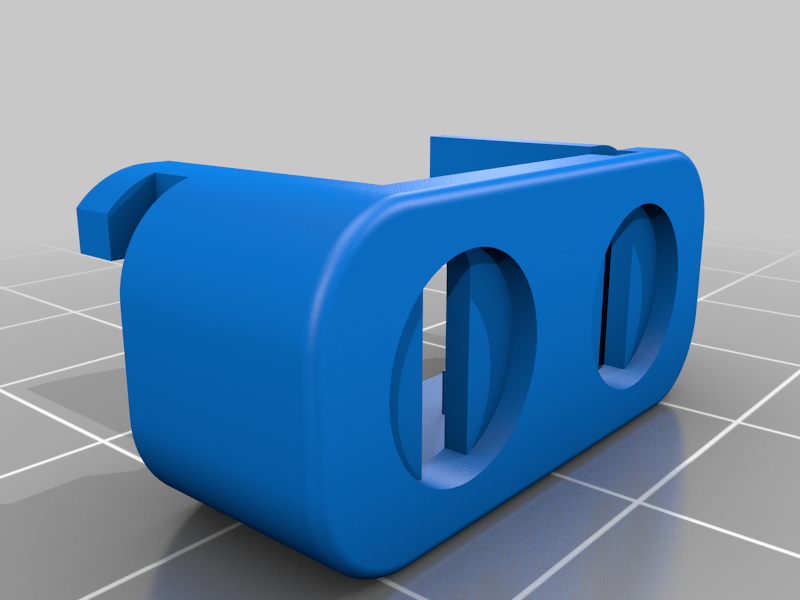

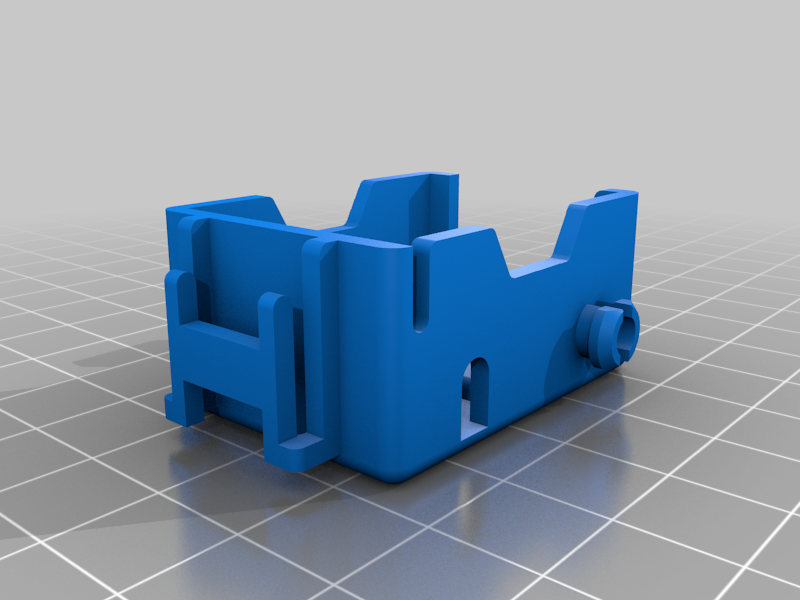

Chassis and Face: support YES
Hope you'll enjoy playing/teaching/learning with this robot. Don't hesitate to give us feedback/comments/ideas.
