Infinity Mirror

Full mirror is a work in progress will update with full construction details.

These are the .stl files for the frame of an infinity mirror. The mirror itself is made from 200 mm x 200 mm acrylic (one mirror and one 1-way mirror) sheets. The frame was designed based on print results using the ERYONE Gold Silk PLA (which has significantly lower mechanical strength than the Creality PLA I have used to date.

Because of the size of the frame I designed it to be printed in 4 parts that then snap together.

The electronics were designed on Eagle CAD and produced via next PCB in China.

Print Instructions

You will need to print:

• 2 of each of the im_v5_final_1.stl and im_v5_final_2.stl files above.
• 1 each of the electronics housing (Coming Soon)

NOTE - in order to get a good finish the parts should be printed flat to the print bed with the mirror front facing upwards.

Use tree supports rather than normal supports as they are much easier to remove.

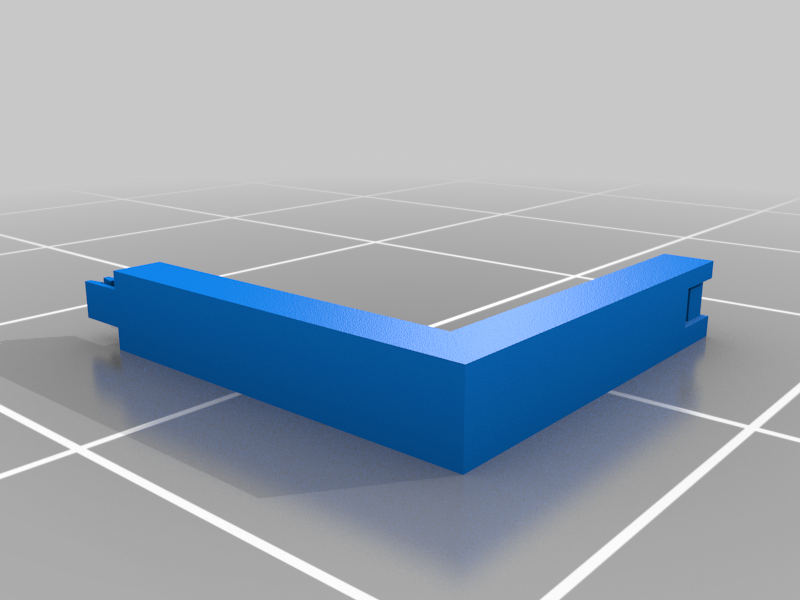

2 x im_v5_final_1.stl

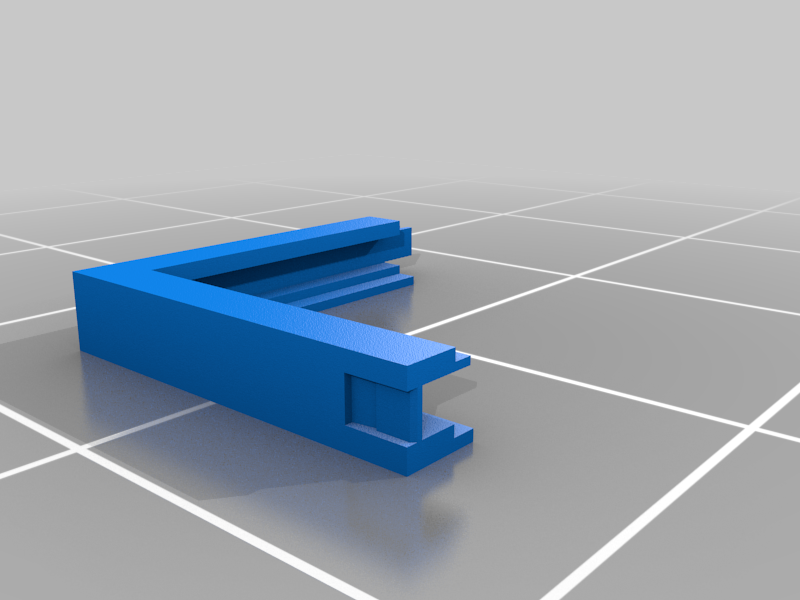

2 x im_v5_final_2.stl
1 x 5v 2A power supply
1 x 5v Arduino pro mini
1 x 220 - 470 Ohm resistor
1 x 1000 micro farad capacitor
1 x length 5v addressable led strip

Print settings for ERYONE gold Silk

• Supports - Yes - Tree - Everywhere
• Temperatures - 60ºC Bed - 210ºC Hot End
• Print speed - 40mm/s

Filament Link

https://www.amazon.co.uk/gp/product/B082QQJPNW/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

Code Link (Arduino and Electronics)

Coming Soon

PCB fab link

https://www.nextpcb.com/

5V LED Strip Link

https://www.amazon.co.uk/gp/product/B088BRY2SH/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

PSU link

https://www.amazon.co.uk/gp/product/B08CZ9VTSH/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

Arduino Link

https://proto-pic.co.uk/product/pro-mini-5v-atmega328-arduino-compatible/

Acrylic Mirror Links

https://www.amazon.co.uk/gp/product/B01MSJQIU4/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

https://www.amazon.co.uk/gp/product/B0733MSR8J/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1
