Raspberry Pi High Quality Camera Microscope Mount
di windchine
File stampabili (2)
Descrizione

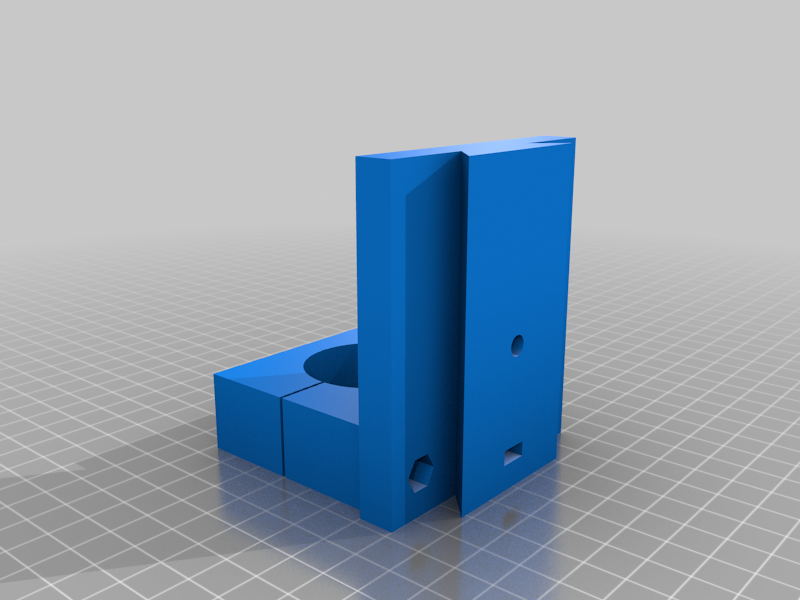

Mount for Raspberry Pi high quality camera with microscope lens. Dovetail focus slide with thumb bolts for focus adjust and focus lock.
Requires clamp bolts M5x50 (two) with plain washer under head, focus adjust thumb bolt M5x40, focus lock thumb bolt M5x25, plain washer under head of both thumb bolts, and plain washer with nylock nut retaining focus thumb bolt in base end plate. Captive M5 hex nuts for focus adjust and focus lock.

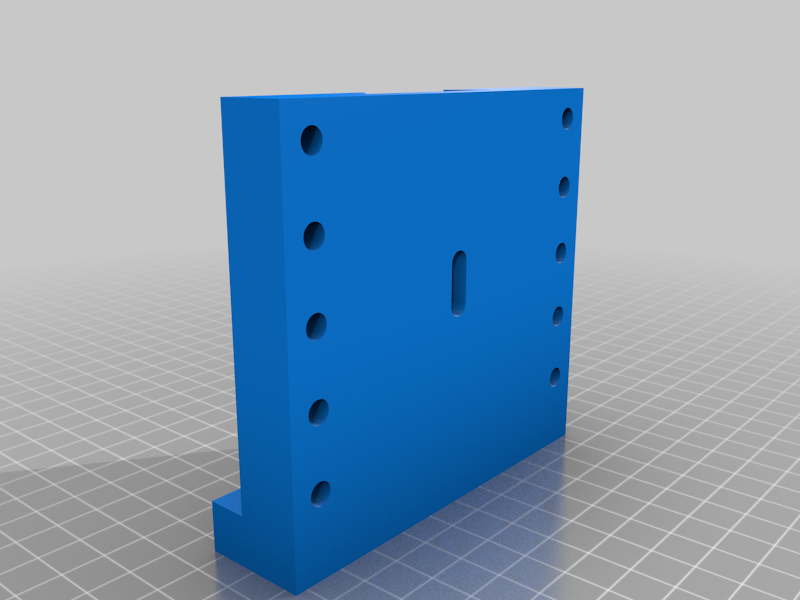

M5x16 cap screws with plain washer under head will mount base to T nuts in 2525 aluminium extrusion frame.
Microscope lens is: https://shop.pimoroni.com/products/microscope-lens-0-12-1-8x
May require a little surface dressing during assembly for smooth but snug operation of dovetail slide.
Fully parametric design in OpenSCAD easy to customise.
