Automatic Solder Feeder
di Perinski
File stampabili (17)
-

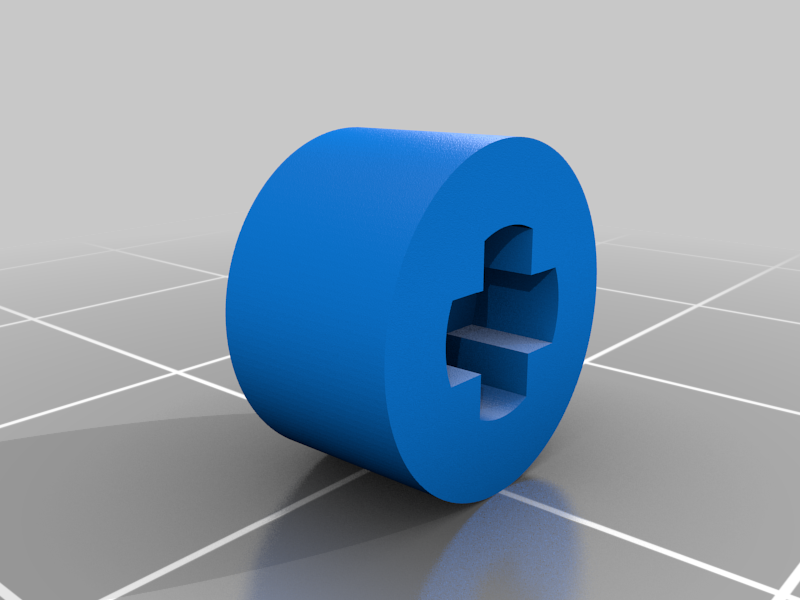

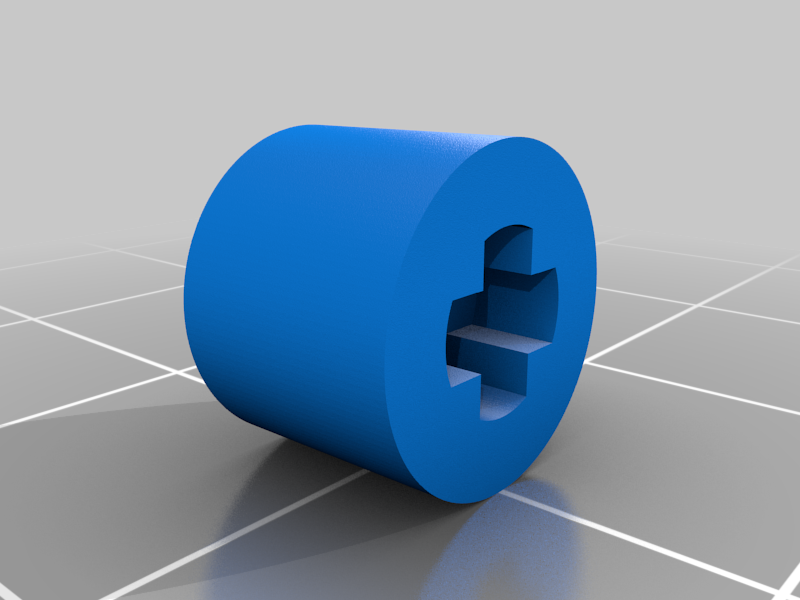

stllutch_for_lathe.STL
55 Ko · 1 705 download
-
stllutch.STL
110 Ko · 1 693 download
-

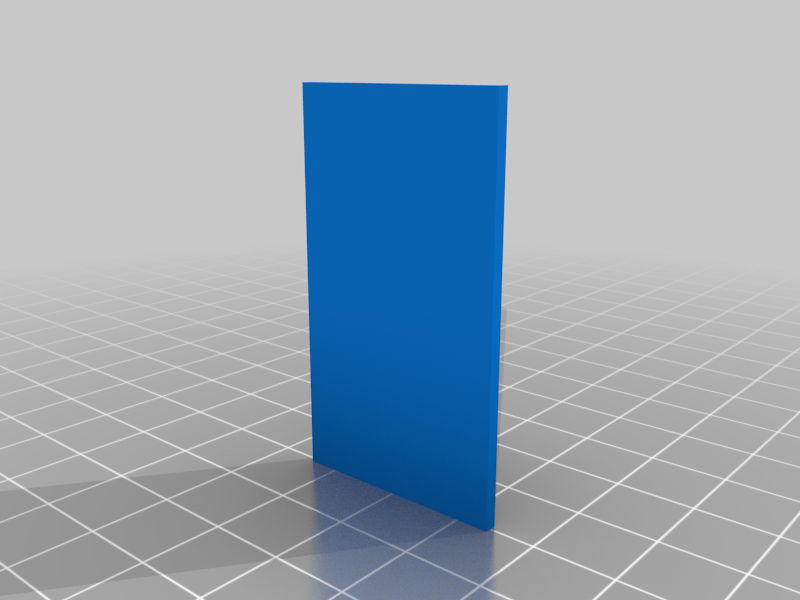

stlCase-A-Back.STL
684 o · 1 697 download
-

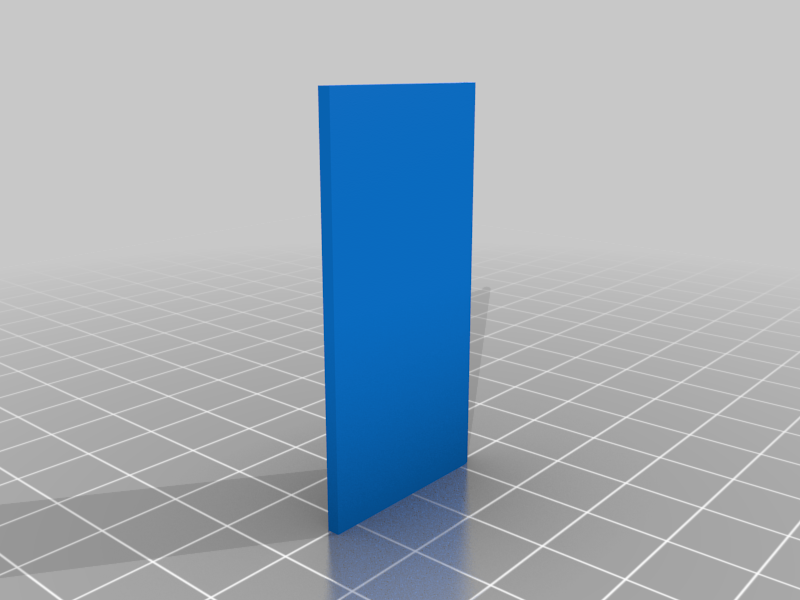

stlCase-B-Bottom.STL
17 Ko · 1 697 download
-

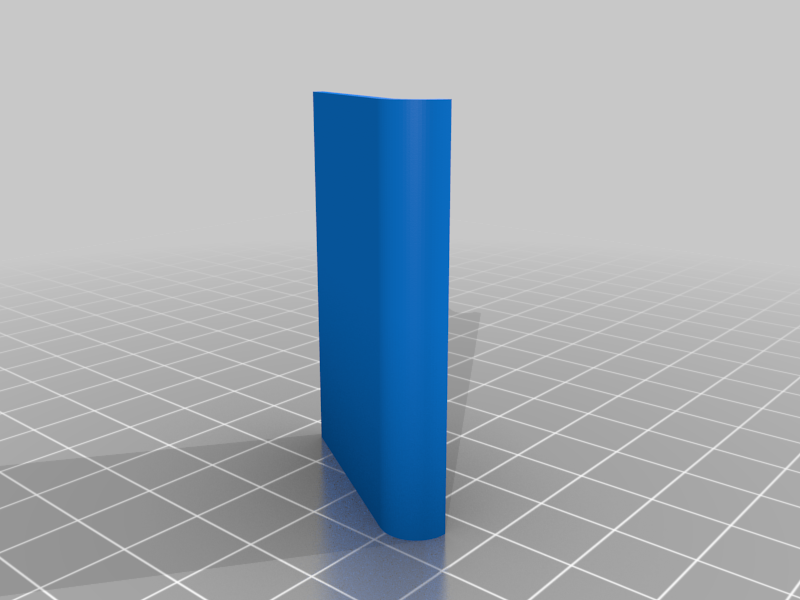

stlCase-C-Front.STL
9 Ko · 1 700 download
-

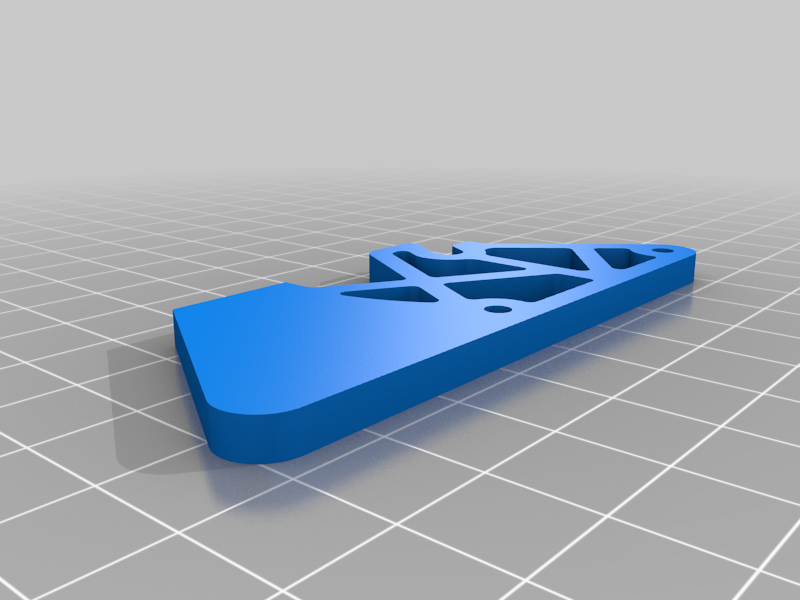

stlFrame-Left_.STL
135 Ko · 1 701 download
-

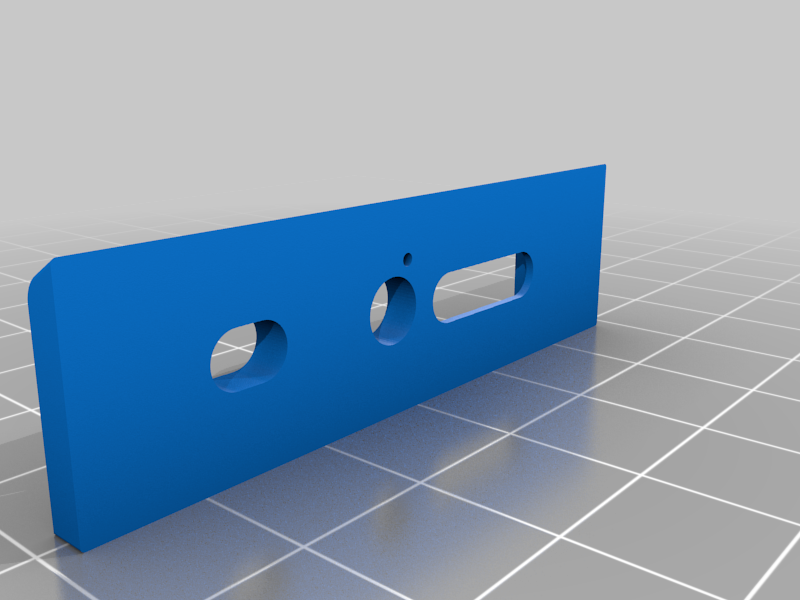

stlFrame-Top_.STL
110 Ko · 1 706 download
-

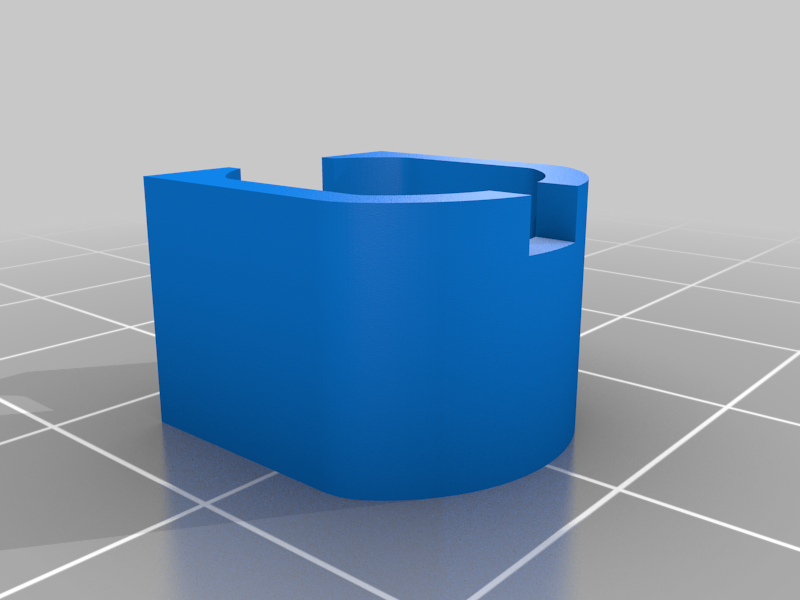

stlMotor_Support.STL
33 Ko · 1 696 download
-

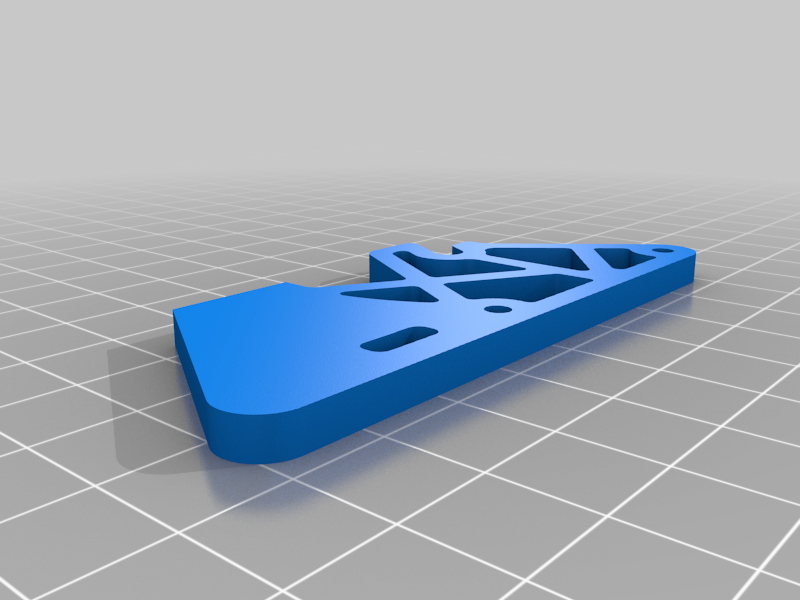

stlFrame-Right_.STL
152 Ko · 1 703 download
-

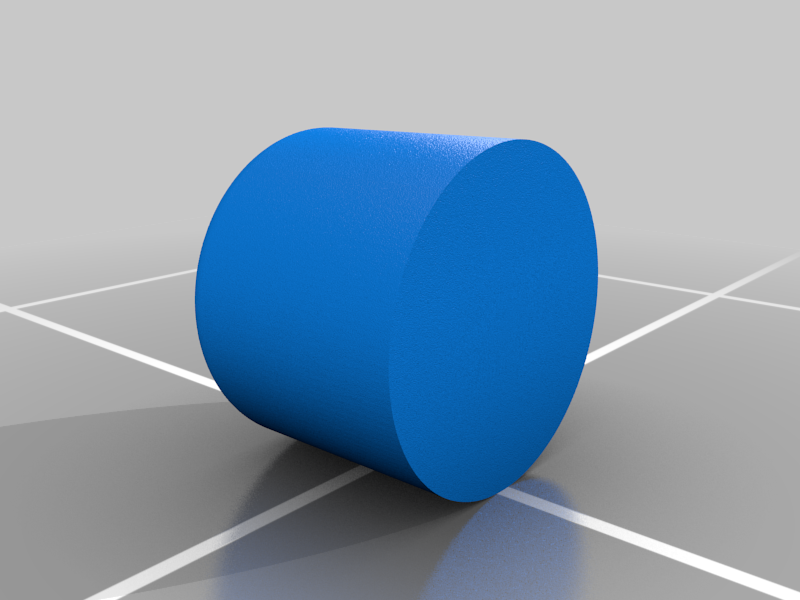

stlPresser_cap.STL
439 Ko · 1 701 download
-

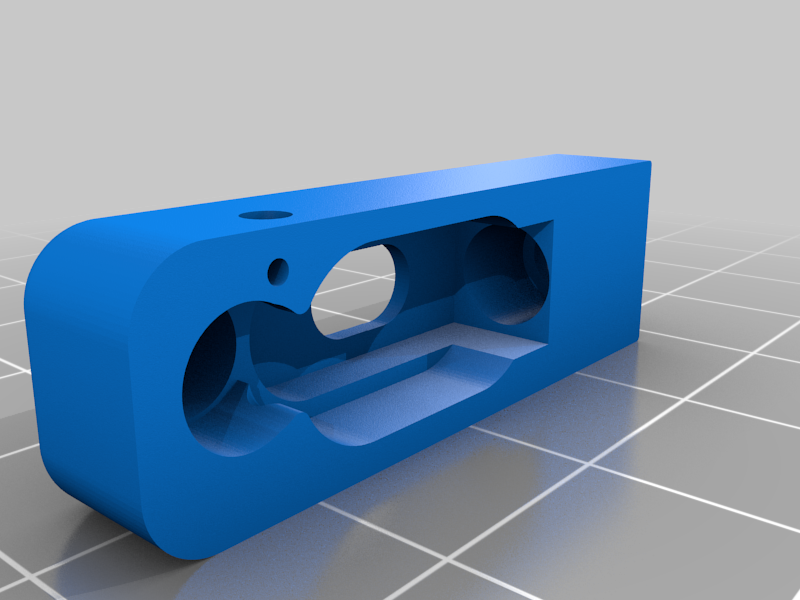

stlPressure_Header.STL
366 Ko · 1 706 download
-

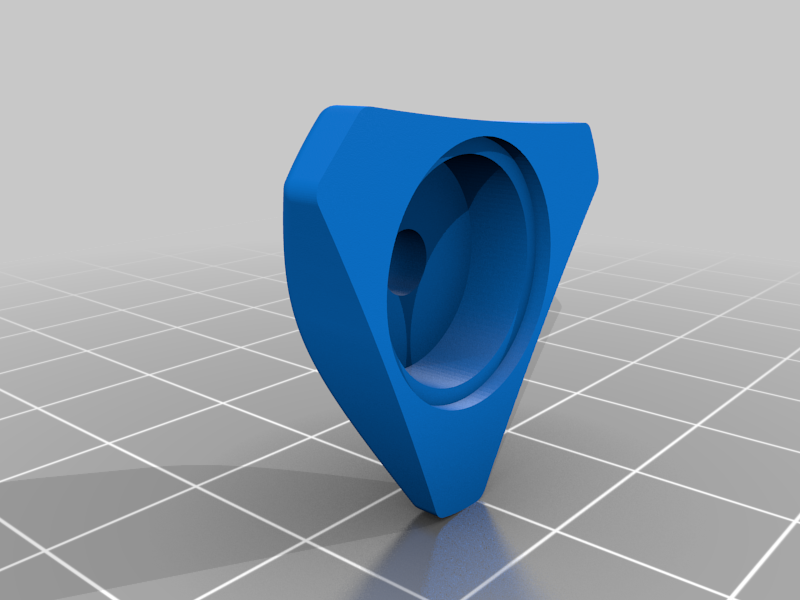

stlPressure_Spool.STL
469 Ko · 1 697 download
-

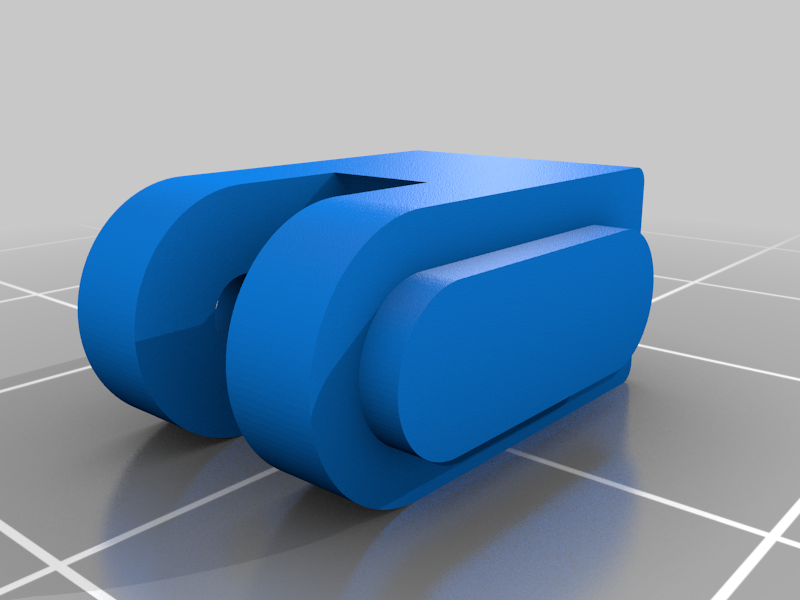

stlPressure_support.STL
113 Ko · 1 707 download
-

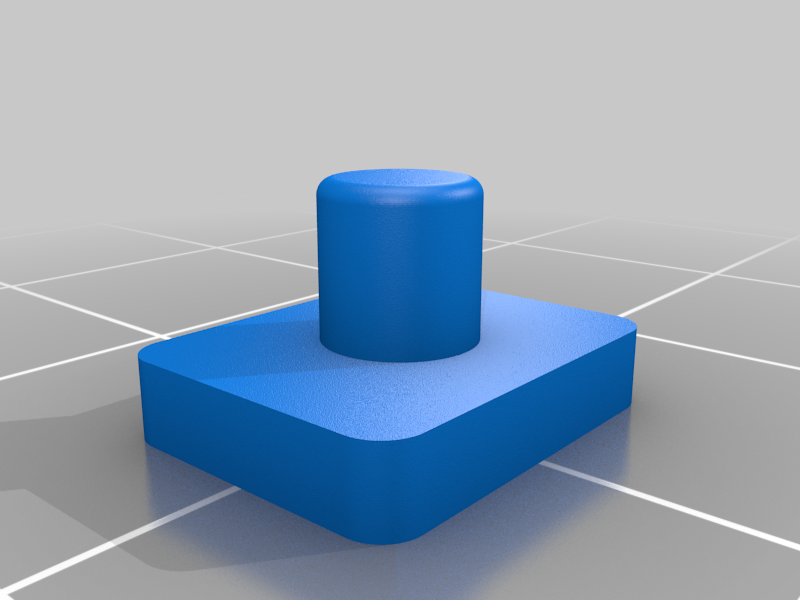

stlSwitch_SK12D07_Toggle_Cap.STL
270 Ko · 1 697 download
-

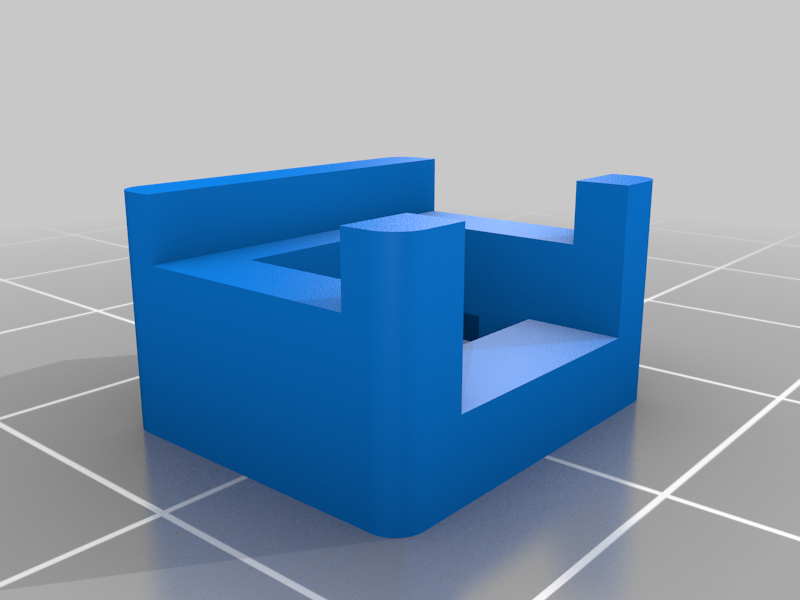

stlSwitch_SK12D07_Toggle_Support.STL
15 Ko · 1 714 download
-
stlType-C_Fix_mount.STL
39 Ko · 1 694 download
-

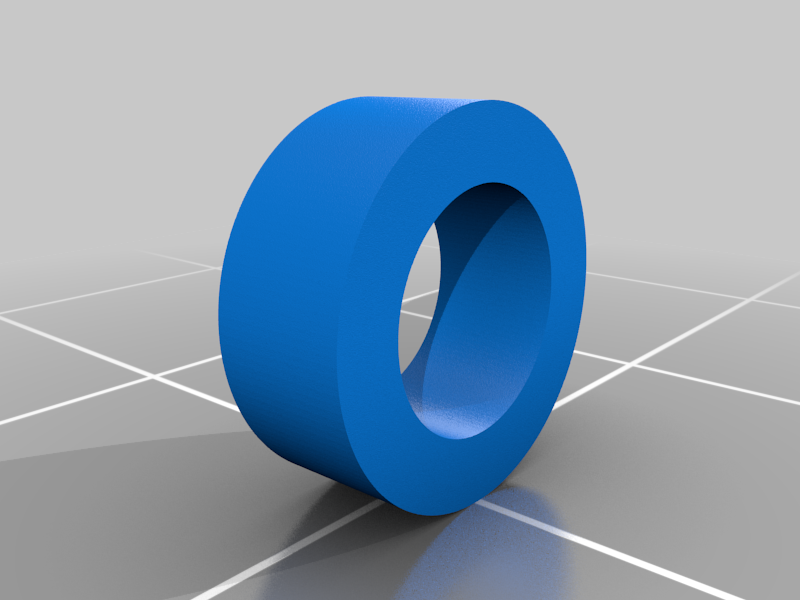

stlPressure_roller.STL
53 Ko · 1 701 download
Descrizione
Automatic Solder Feeder
Several years ago I already made a similar tool that I use for small batch production of electronic components. It is convenient for this, but it turned out to be cumbersome for everyday use. It has a controller that can be configured for fast and batch feeding of solder. It also has a built-in vacuum tweezers and a solder paste or flux dispenser.But for everyday work, you need a tool that does not take up much space. In addition, in work it often happens that the tweezers are in one hand, the soldering iron in the other, but the solder does not unwind from the coil, and you have to interrupt the soldering process, prepare the solder, etc. The device turned out to be a little larger than the coil holder, but still small ...
The broaching mechanism itself is made on a micro motor with a planetary gear, this mechanism allows you to rotate with incredible power despite its small size.
Electronics is simple here, although it would be much better with a controller. Perhaps in the future I will make a new version and write a program, but for now I will try to work with this device. In general, time will tell ...
If you liked this thing - let me know by putting like!
See the video for details:
Parts links below:
- Planetary Gear Motor D12mm
- Touch button Module TTP223
- Lipo Battery Charger (green)
- LiPo Battery 3.7V 420 mAH 402050 (47mm)
- Type-C Connector 14 Pin Female Socket
- Mosfet IRFR024N
- Resistor Set 1/4W 5% (100 ohm,10k)
- LEDs 0805
- Toggle Switch 3Pin SK12D07
- Threaded Rod Brass (M4)
- Butterfly nut Nylon (M4)
- Bearings MR52Z (2x5x2.5mm)
- Bearings (F604ZZ)
- Brass Tubes (D 2mm)
- Round Magnet 5x5mm
- Stainless Steel Cylindrical Pins (D 2 x 8; 12 mm)
- Linear Shaft (D 3mm)
- Insert Knurled Nuts (M3)
- AB Glue Epoxy
- UV Glue
- Foam Adhesive Tape
- PET Double Sided Adhesive Tape
