Stack-Oh-Schiit - Schiit Stack Mount / Bracket

Was looking for a way to stack my Schiit neatly on my desk, without having to tie them together or create a lot of extra bulk around them.

There were a few options on here, but none of them really met my needs, or didn't fit quite as well as I would have liked. So I designed my own.

The idea was to make something that was fairly subtle, so the devices were still the attention grabbers that they are, while also being secure so a bump, or pulling of the cable wouldn't topple the tower of schiit all over the place.

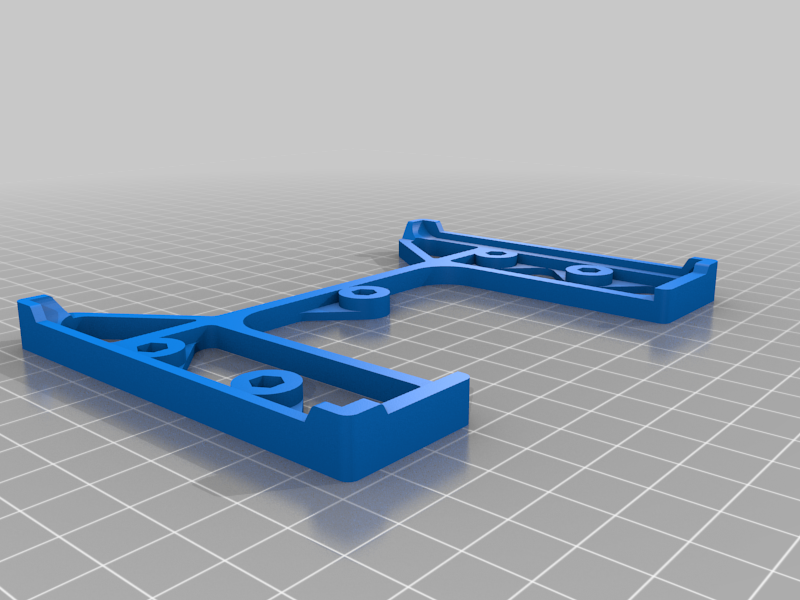

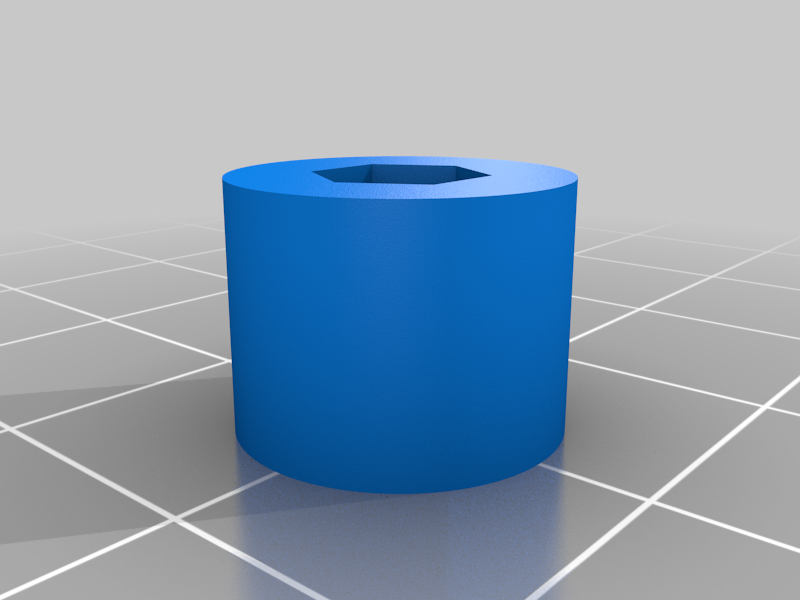

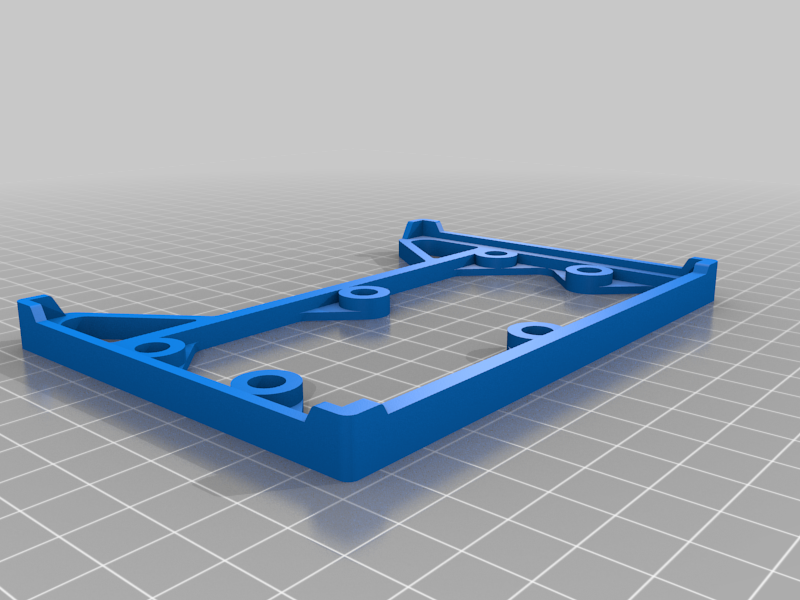

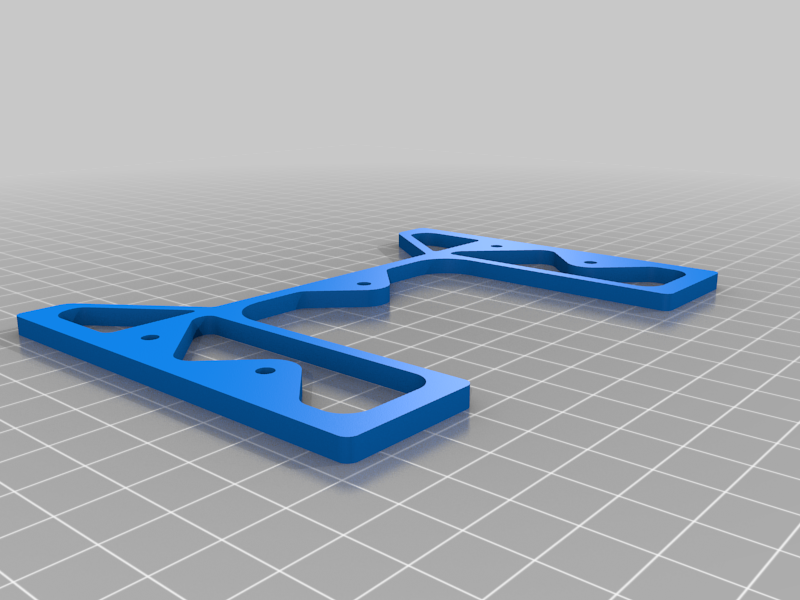

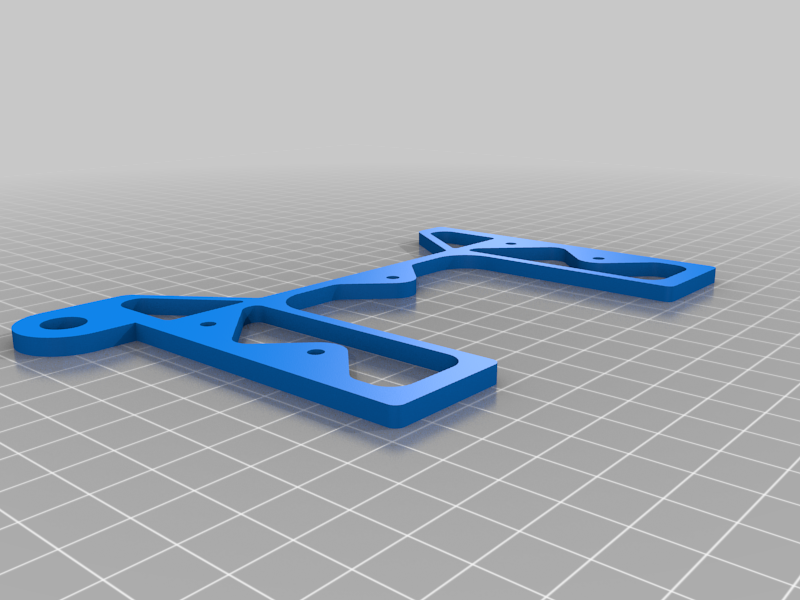

I settled for a 3 layer design (With an optional rear standoff for extra support) that allows ample space between devices, for hot air to vent out the back, the center piece can also be used to add holders / mounts for any adaptors etc you might have (I have included an example, with a 3.5mm to 6.3mm adaptor (1/8th to 1/4 inch), but its an easy part to import and modify if you want to add anything else.

Tested with:
Schiit Magni Heresy
Schiit Modi 3+

But in theory, it should fit any of the following Shiit items:
Magni
Modi
Sys
Loki
Mani
and the Vali, if its the top (Obviously)

Assembly:
I designed these to go together using 5x M3 Hex bolts, 6-7mm of thread length, plus an extra for the standoff if you want that support, you could get away with glue if you prefer, I just like to keep things easy to tear down.

Printing:
Print flat, no supports needed on any of the parts, they should come together nicely once finished.

Walls, infill etc, whatever you feel is best for you, I went with 3 walls, 15-20% infill, and just used PLA.
