Pixel LED Mini Tree
di Elliott2705
1 / 6
File stampabili (5)
Descrizione
Mini tree for Christams lights using 12mm pixels.

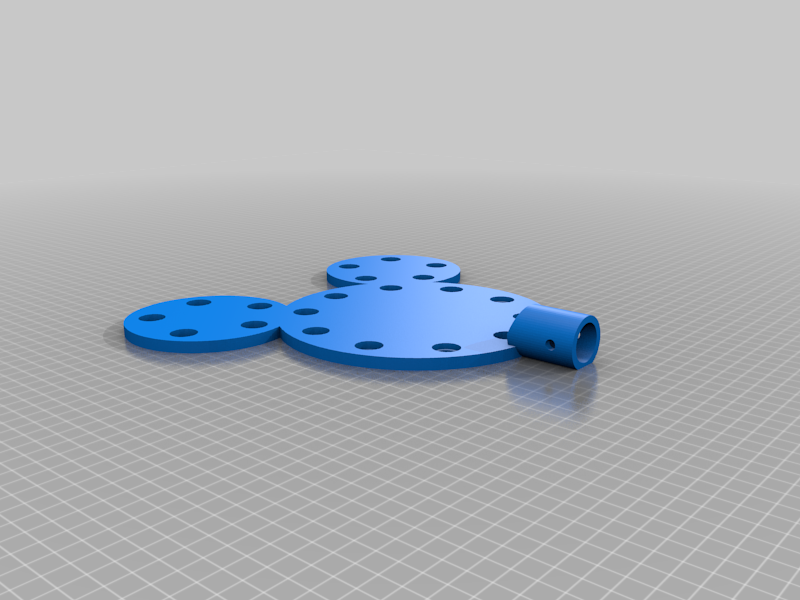

The Mickey topper uses 20 pixels, if you use 5x boscoyo strips of 16 LEDs you should be able to use a 100 led strand with 1x splice up to the topper. I used 17/strip and bought the custom 105 pixel strands for the Boscoyo mini trees.
Mickey topper fits 1/2" PVC if desired, otherwise attach to the tree top using the pin.

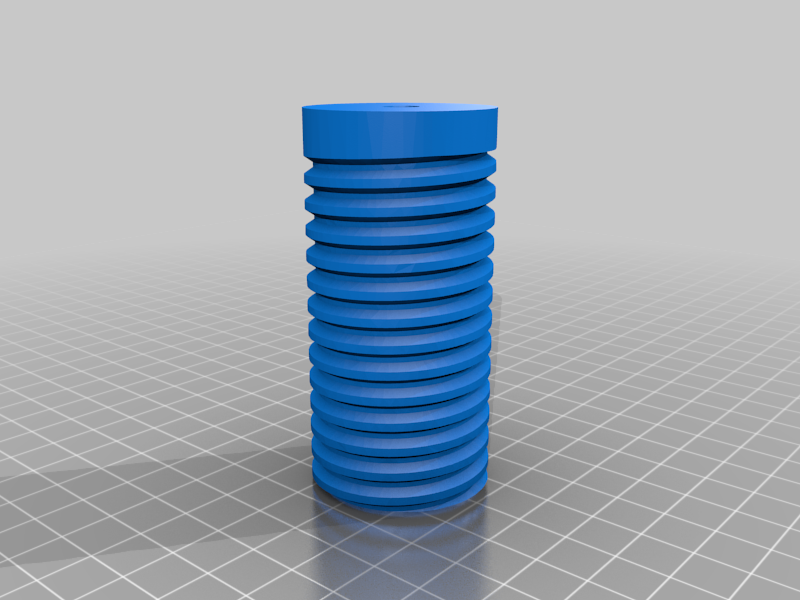

Threaded insert and base fit 3/4" PVC and will allow you to tension your strands.
No supports required.

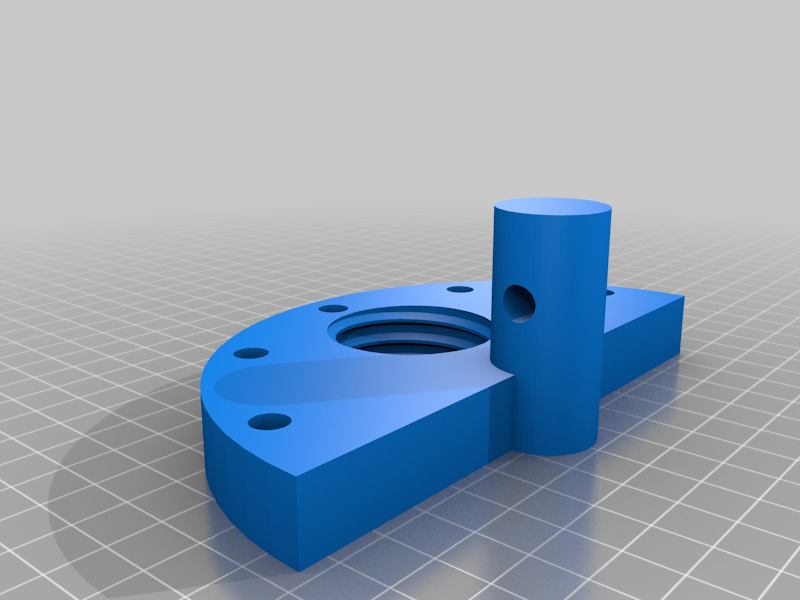

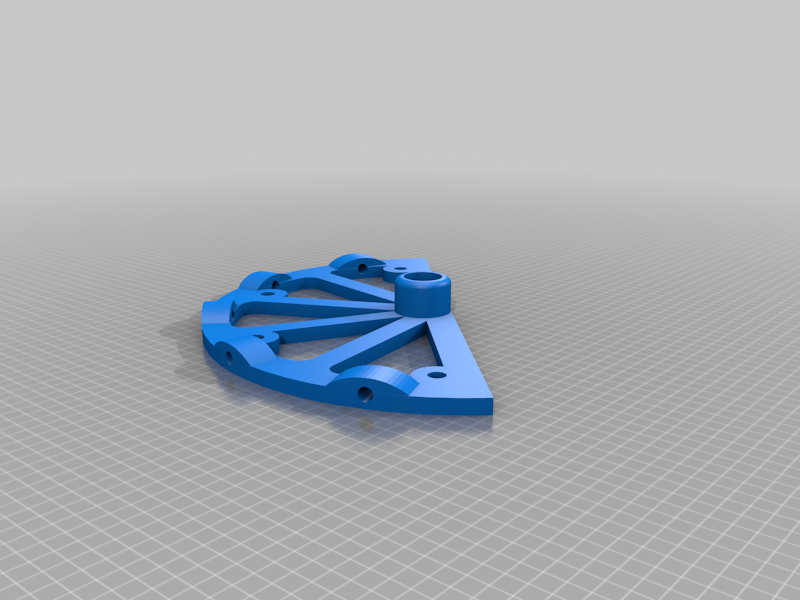

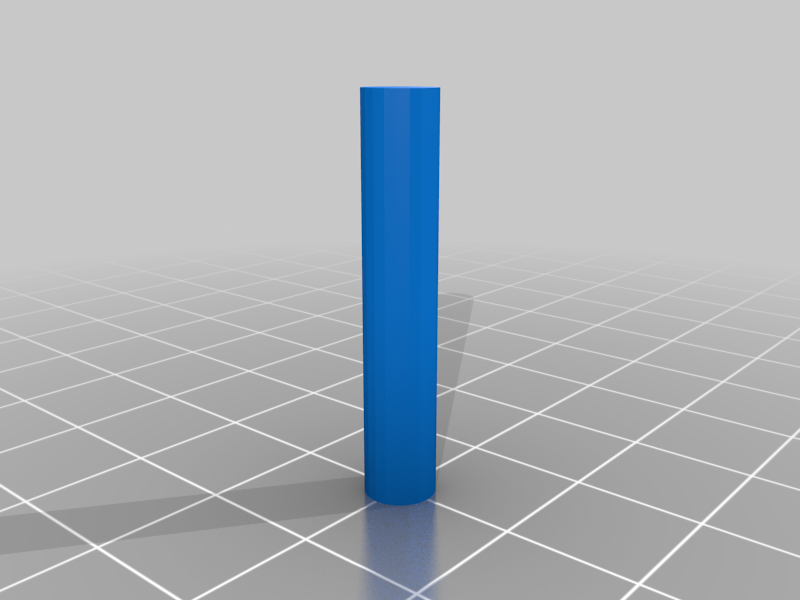

Print 1x base, 1x top, 1x threaded insert, 1x Mickey and 1x pin for each tree.
1/4" J bolts will fit in the top and 8mm bolts with washers in the bottom to secure Boscoyo strip
