Heltec Meshtastic case
di jameslee522
File stampabili (10)
-
3mfbutton.3mf
2 Ko · 923 download
-
3mf
Spacer.3mf
2 Ko · 922 download
-
3mf
lid1.3mf
29 Ko · 923 download
-
3mf
Body1.3mf
117 Ko · 924 download
-

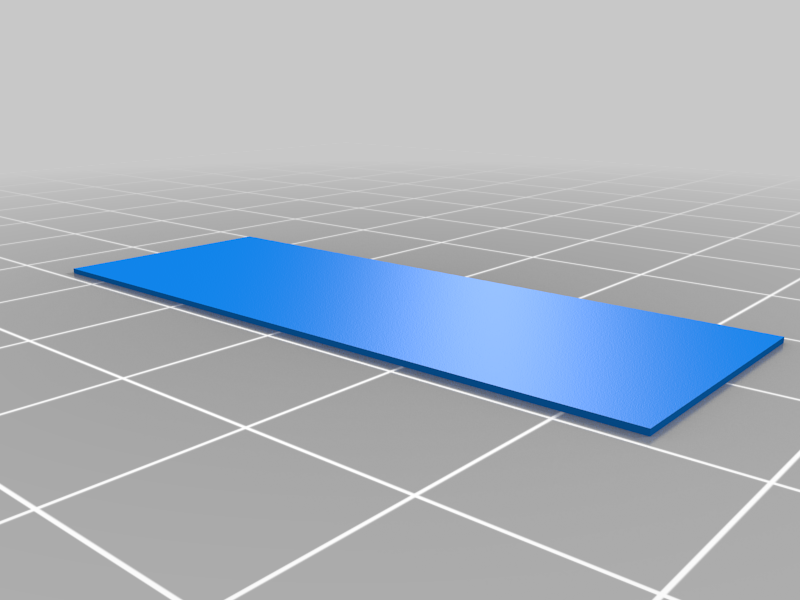

stlSpacer.stl
684 o · 1 020 download
-

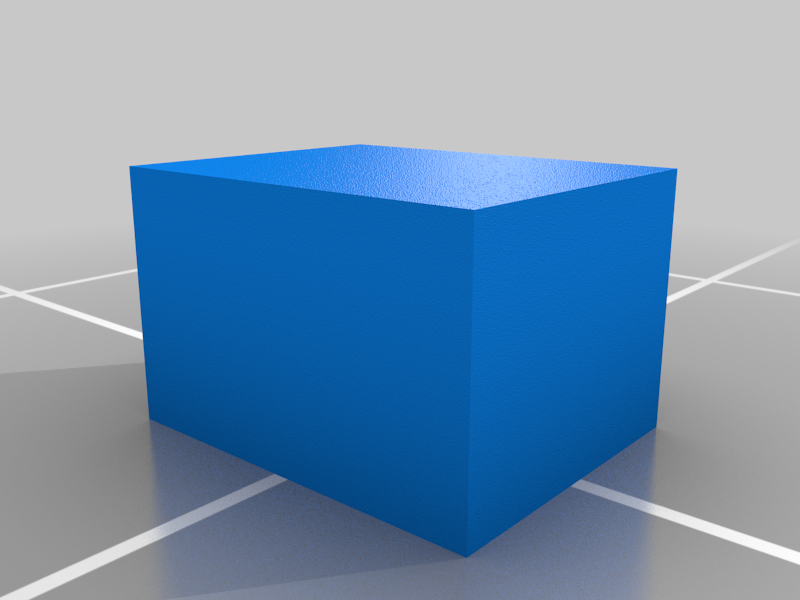

stlButton.stl
684 o · 1 001 download
-

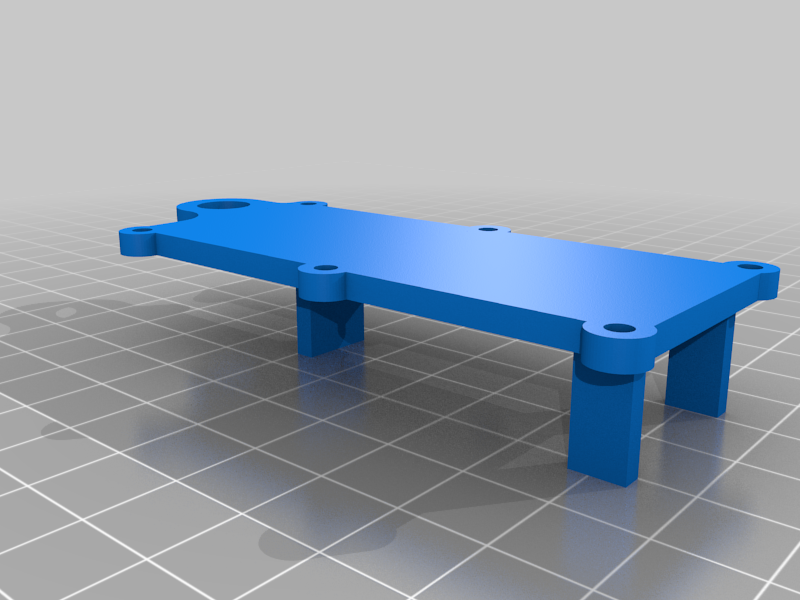

stlLid.stl
114 Ko · 1 046 download
-
stlBody1.stl
489 Ko · 1 038 download
-

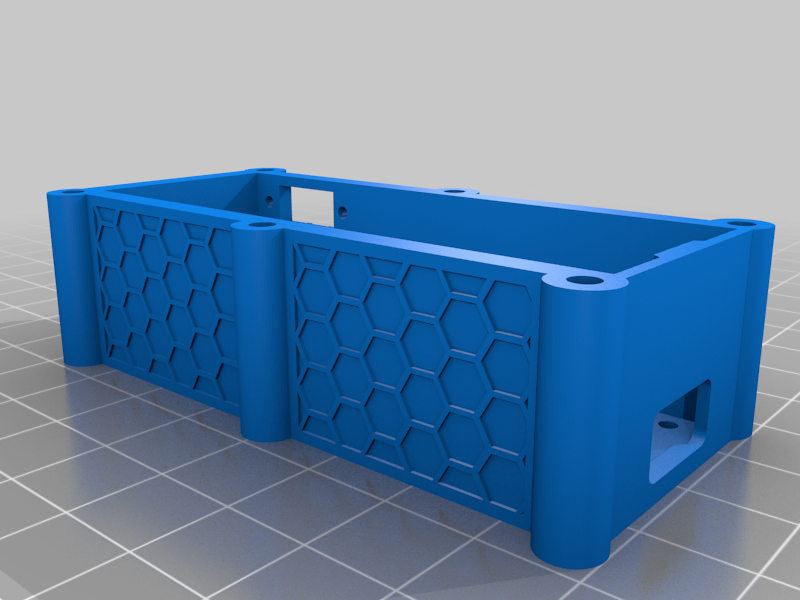

stlBodyV2.stl
496 Ko · 585 download
-

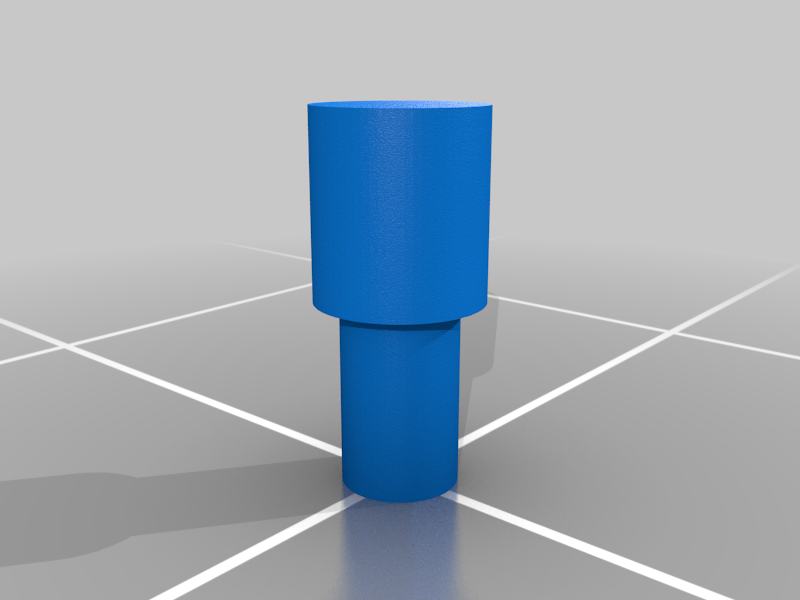

stlButtonV2.stl
38 Ko · 517 download
Descrizione
Update 11/27/21 - Added a V2 body and buttons. Made the buttons separate from the body. Better for durability. Also leaves you with the option of discarding the reset button if needed.
I got these cheap Heltec boards to play around with meshtastic. Don't know what meshtastic is? Check it out at https://meshtastic.org/
I wanted to make these as compact as possible. I designed this case. It has just enough room for the board and a 1000mAh battery while not pinching the antenna. Also a spot for a switch. I ground the switch down on a grinder so its almost flush with the case to keep from turning it on/off by accident.
The switch I used can be found here.
https://www.amazon.com/gp/product/B07Y88C1Q6/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
I also used m3x22mm bolts.
