Digital USB Microscope Stand

di craftcadet

File stampabili (8)

  • stl

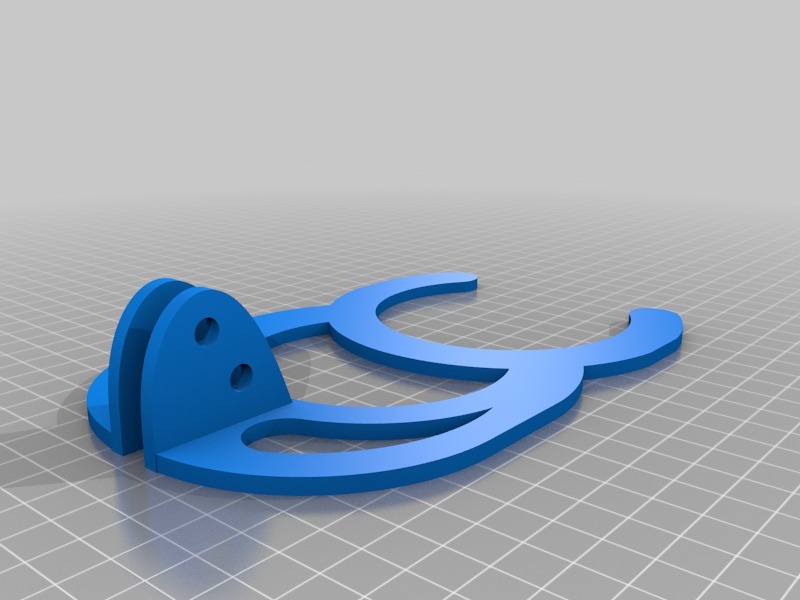

    base.stl

    2.2 Mo · 5 700 download

    Scarica
  • stl

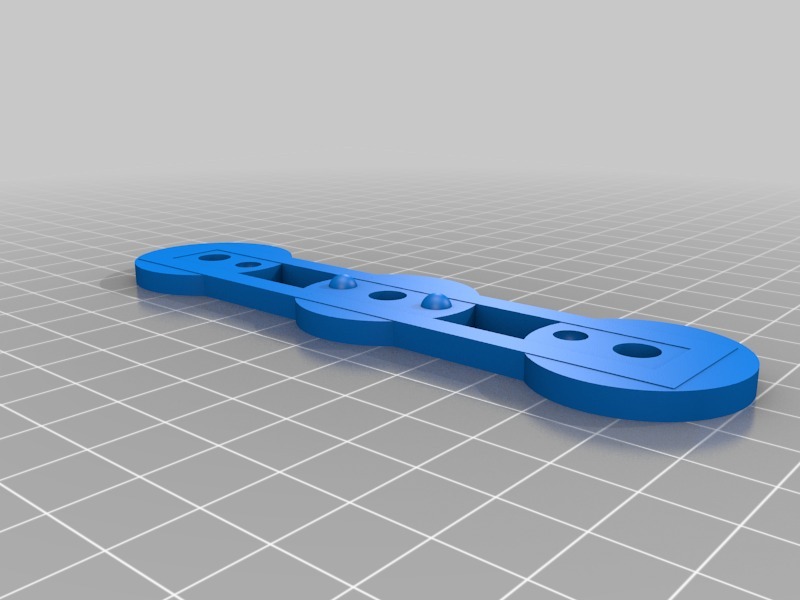

    back_spine.stl

    3.1 Mo · 5 698 download

    Scarica
  • stl

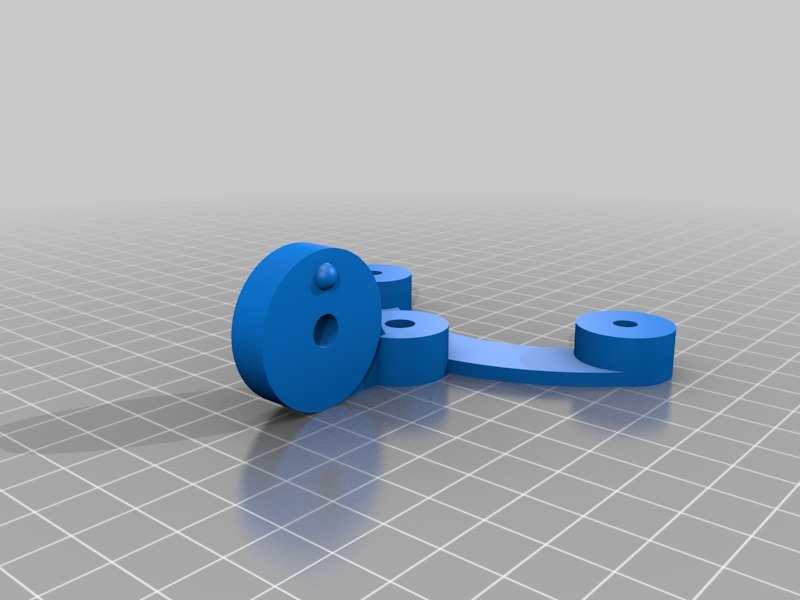

    top_bottom_guides.stl

    2.1 Mo · 5 704 download

    Scarica
  • stl

    scope_holder.stl

    2.5 Mo · 5 744 download

    Scarica
  • stl

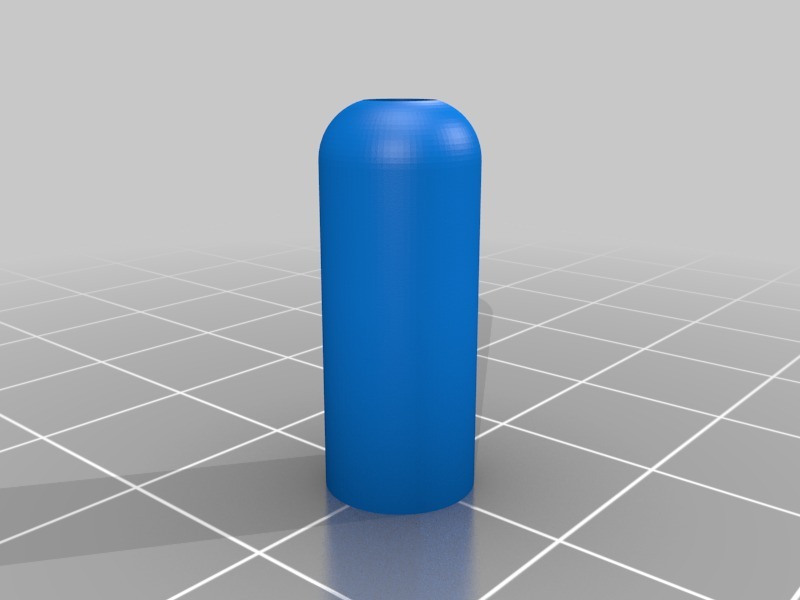

    knob_spindle.stl

    1001 Ko · 5 661 download

    Scarica
  • stl

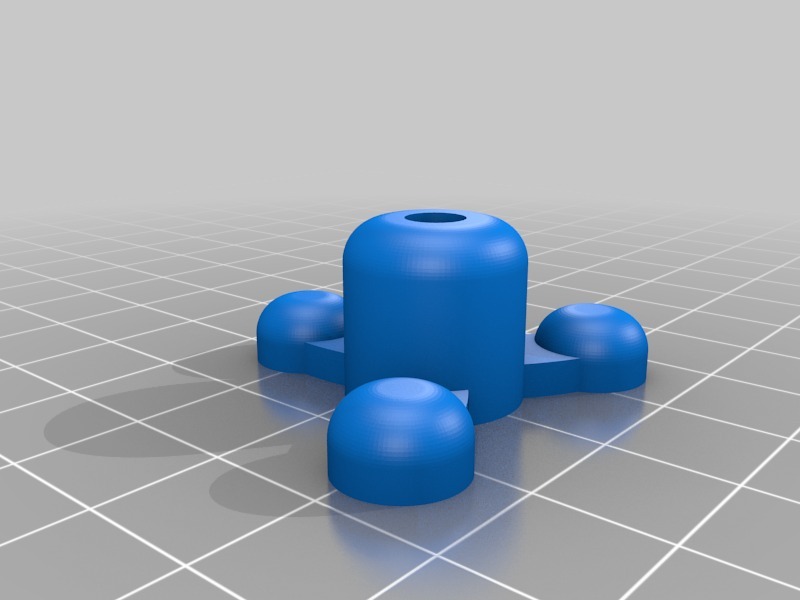

    adjusting_knob.stl

    4.8 Mo · 5 667 download

    Scarica
  • stl

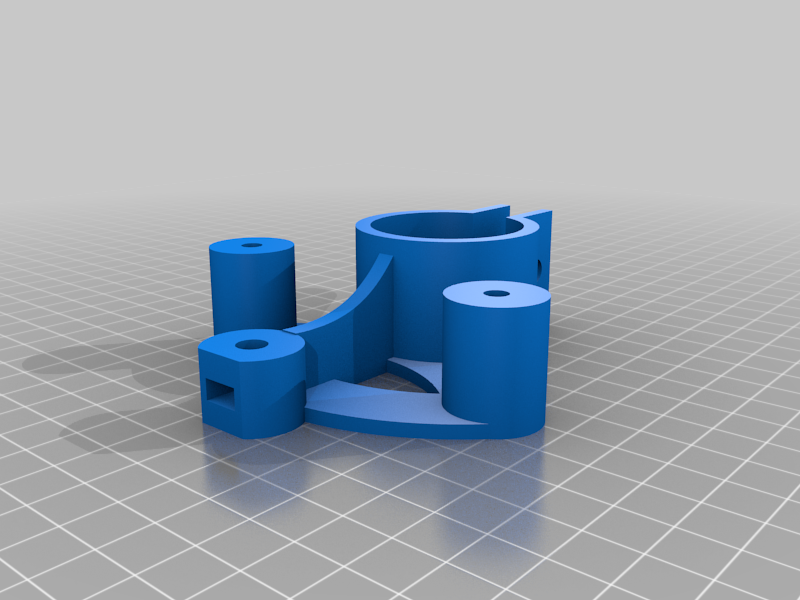

    scope_holder2.stl

    2.5 Mo · 5 380 download

    Scarica
  • stl

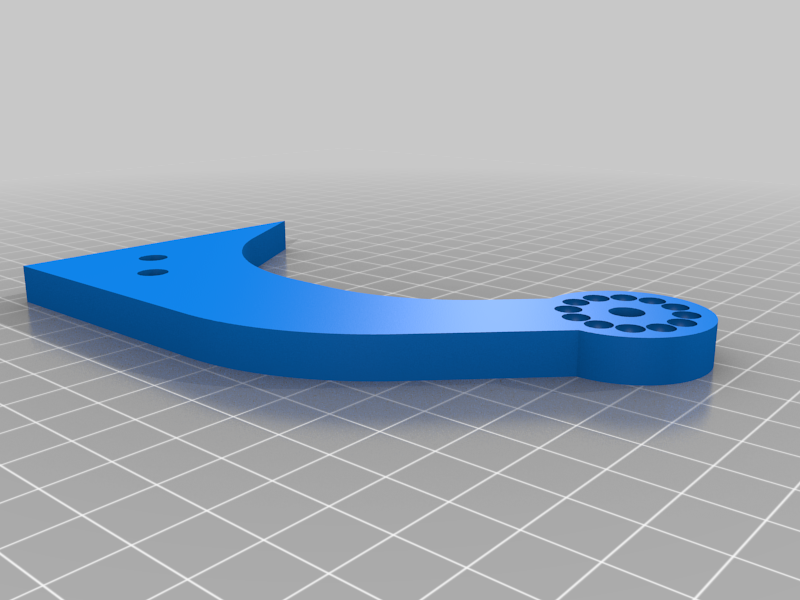

    upright.stl

    19.1 Mo · 5 212 download

    Scarica

Descrizione

A stand for USB Microscope to provide accurate fine focal adjustments
.
There many brand names attached this scope, I got mine from Maplin in the UK. I have seen many other versions with the exact same design.. The stand that comes with the microscope is serviceable but is frustrating when trying to focus on really tiny things. So I designed this version.
I thought it would useful if you could point the microscope at a wall so I designed it so you can change the angle of sight.

EDIT

A new scope holder has been added it is a corrected stl. thank you to Planet_Earth for pointing out the error.

Tag

#Microscope #stand #usb microscope
