mATX / ITX PC CASE
di themakerunit
File stampabili (21)
-

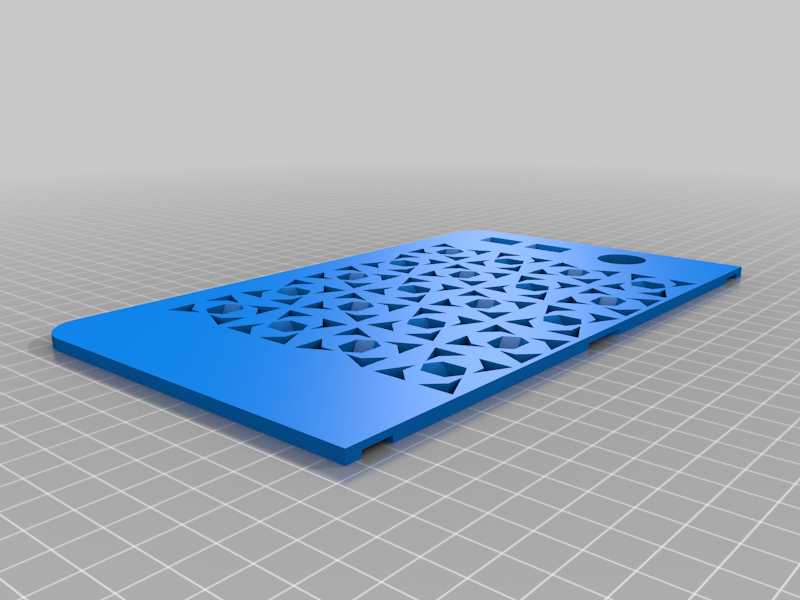

stlmATX_lower_front_intake_WITH_USB.stl
888 Ko · 3 917 download
-

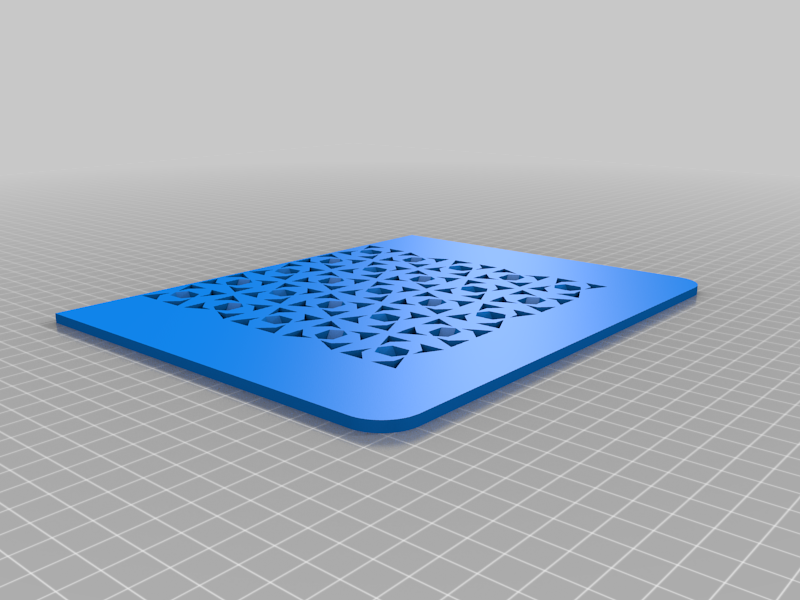

stlmATX_upper_front_intake.stl
943 Ko · 3 785 download
-
stlmATX_frame_brace.stl
201 Ko · 3 779 download
-
stlmATX_psu_bracket_sfx.stl
380 Ko · 3 776 download
-
stlmATX_lower_front_chassis.stl
1.8 Mo · 3 866 download
-
stlmATX_storage_side_cover.stl
14 Ko · 3 744 download
-
stlmATX_upper_rear_chassis.stl
416 Ko · 3 745 download
-
stlmATX_lower_middle_main_chassis.stl
894 Ko · 3 769 download
-
stlmATX_motherboard_plate.stl
1.3 Mo · 4 032 download
-
stlmATX_bottom_feet_intake.stl
876 Ko · 3 771 download
-

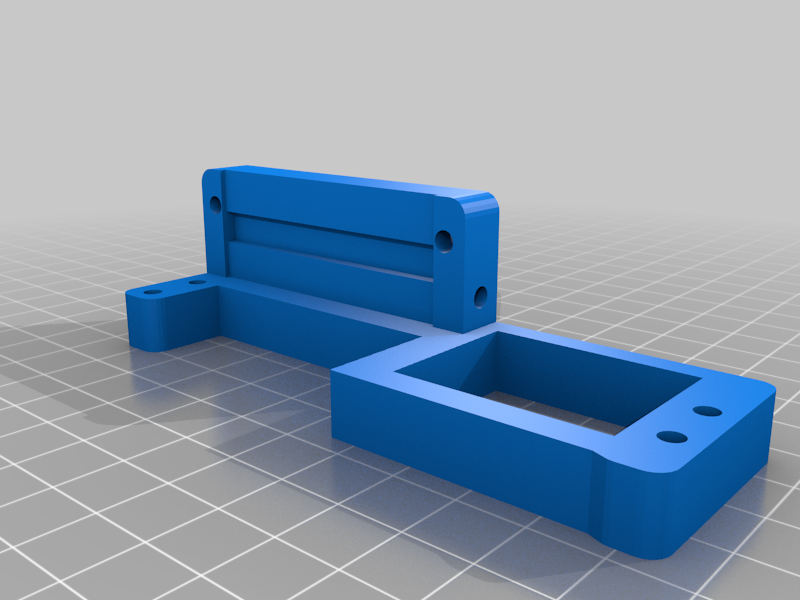

stlmATX_usb_bracket.stl
300 Ko · 3 732 download
-
stlmATX_bottom_intake_mesh.stl
2.6 Mo · 3 766 download
-
stlmATX_lower_rear_chassis.stl
1.8 Mo · 3 903 download
-
stlmATX_2.5_hdd_brackets.stl
362 Ko · 3 727 download
-
stlmATX_upper_front_chassis.stl
951 Ko · 3 771 download
-
stlmATX_upper_middle_main_chassis.stl
860 Ko · 3 770 download
-

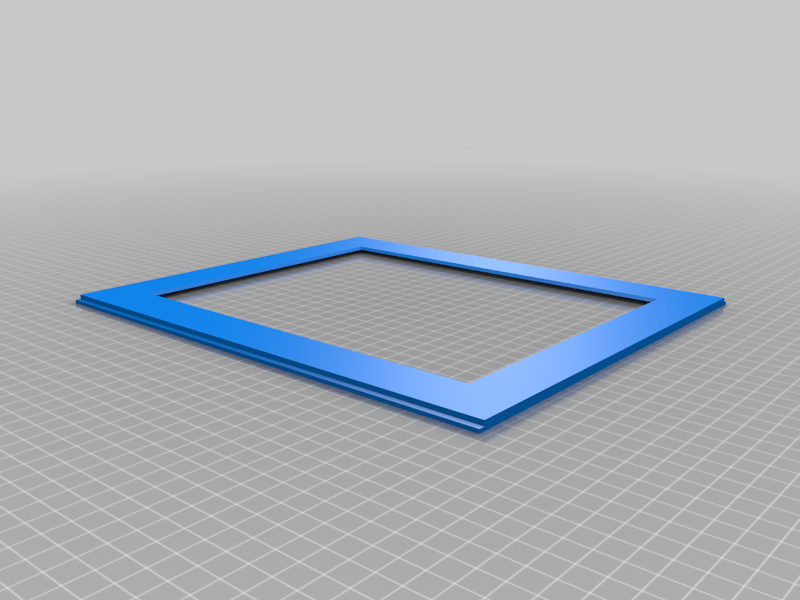

stlmATX_window_frame.stl
19 Ko · 3 722 download
-

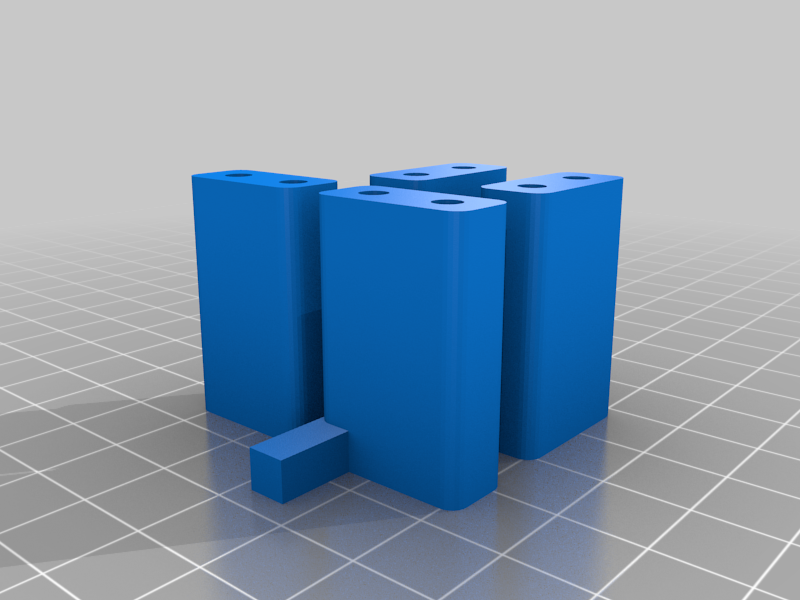

stlmATX_front_magnet_holders.stl
489 Ko · 3 732 download
-
stlmATX_lower_front_intake_NO_USB.stl
883 Ko · 3 729 download
-
stlmATX_top_exhaust_panel.stl
1.6 Mo · 3 789 download
-
stlmATX_3.5_hdd_brackets.stl
717 Ko · 3 712 download
Descrizione
ERROR 404 APPEARS WHEN TRYING TO "DOWNLOAD ALL" THE FILES.
SOLUTION: Click where it says "Thing files" below the pictures, from there you can manually download all the required files one by one.
Watch the full build video here: https://youtu.be/yp67qvfYZVM
Please make sure your printer is properly calibrated before even attempting to print this. I recommend a 100x100x100mm calibration to get most accurate results. Proper calibration is key to a nice looking case.
Required printbed: 300x300x300mm.
KEY FEATURES:
- Support for both mATX and ITX motherboards
- GPU up to 320mm
- Support for one 240mm AIO cooler
- SFX Psu
- 4x 2.5 HDD or 2x 3.5 HDD
- 3 intake fans and 3 exhaust fans
Do you enjoy my work and want to support me? Buy me a coffee!
https://www.buymeacoffee.com/makerunit
SCREWS AND OTHER REQUIRED TO BUILD CASE:
8 • 5x30mm wood screw (for attaching main chassis both sides)
14 • 3.5x16mm wood screw (for magnet mounts, usb bracket, upper front chassis)
13 • M4x12 machine screw (for motherboard, frame brace, gpu)
11 • M4 nut (for motherboard, frame brace, gpu)
12 • 8x3mm Neodymium magnets (for magnetic front panels)
TO MOUNT HARD DRIVES:
4 • "6-32" computer screw (mounting brackets to motherboard plate) (found in screw kit)
4 • M3-0.50 screw (mounting bracket to HDD) (found in screw kit)
