Caliper case
di Jimbo70
File stampabili (10)
-
stlcaliper_box_bottom.stl
1002 Ko · 2 330 download
-
3mfcaliper_box_bottom_PROFLE.3mf
62 Ko · 3 692 download
-
stlcaliper_case_top.stl
589 Ko · 2 190 download
-
3mf
CALIPER_CASE_BOTTOM__v1.6.3mf
314 Ko · 1 732 download
-
stlCALIPER_CASE_BOTTOM__v1.6.stl
1.4 Mo · 2 337 download
-
3mf
CALIPER_CASE_TOP_v1.6_label.3mf
194 Ko · 1 697 download
-
stlCALIPER_CASE_TOP_v1.6_label.stl
850 Ko · 1 929 download
-
3mf
CALIPER_CASE_TOP_v1.6.3mf
157 Ko · 1 723 download
-
stlCALIPER_CASE_TOP_v1.6.stl
661 Ko · 2 012 download
-
stlCALIPER_CASE_TOP_loose_fit.stl
850 Ko · 1 560 download
Descrizione
4-23-2023
I have added an addition stl file for the case top that has a looser fit. It is labeled 'CALIPER CASE TOP loose fit'
7-11-2022

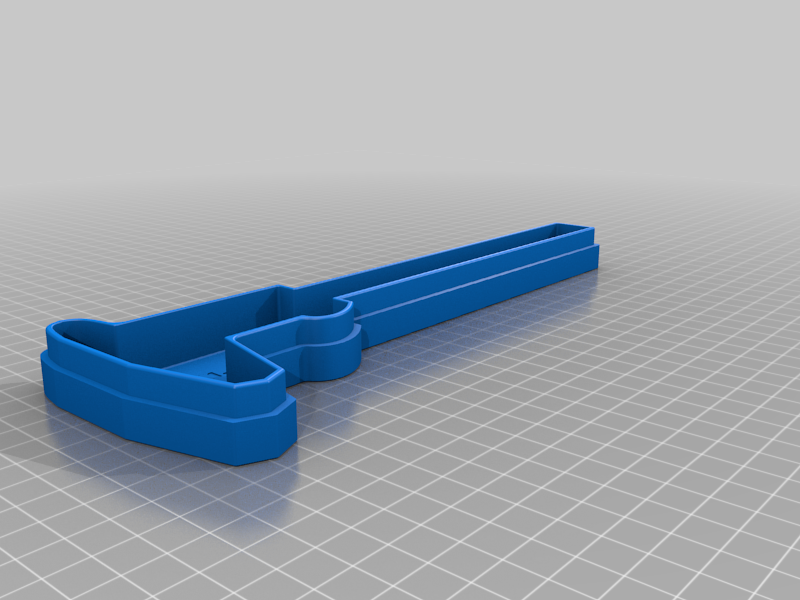

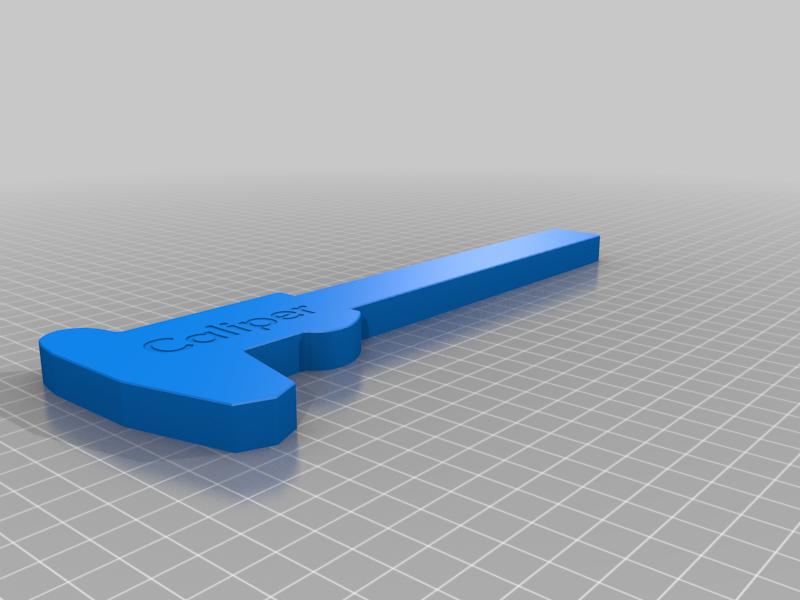

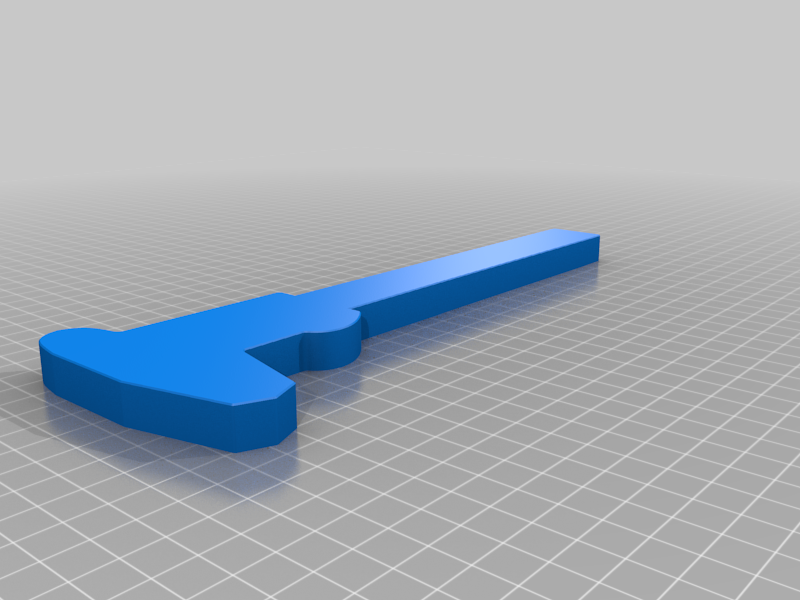

Because of the potential problem with the caliper turning on while in the case I have made some internal design changes. The size and dimensions are the same. Just some internal changes to allow less movement of the caliper while in the case and prevent the control buttons from being activated. The updated version is labelled v1.6. I have also included a new top with a label (the label adds about 1 hour to the print time). The new top will fit on the older version bottom if you just want to print part.

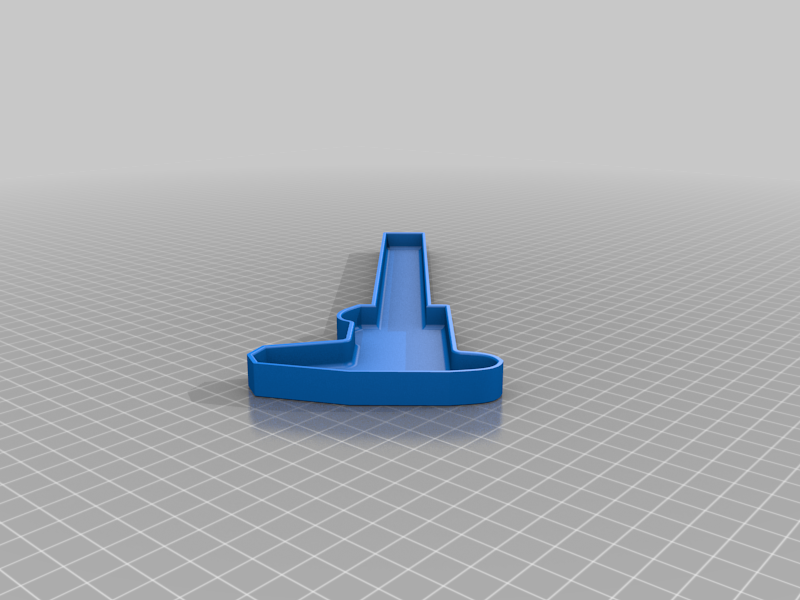

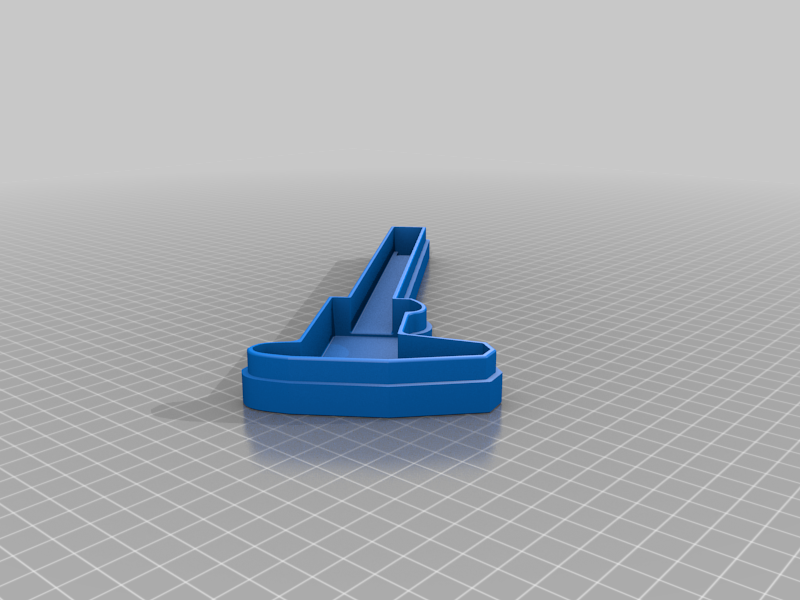

This is a case to hold an electronic digital caliper. This caliper may have several similar brothers so I have included a profile you can print to see if your caliper will fit.
If you like this thing, you may like my many other practical things for 3D printing, travel, wood working and around the house.
If you have a metal caliper, this case will not work. See in the comments for the link to the metal caliper.
You need to print this on the diagonal when using a Prusa printer because of the limited bed size.
