Levitron I

di jinhj

File stampabili (5)

  • stl

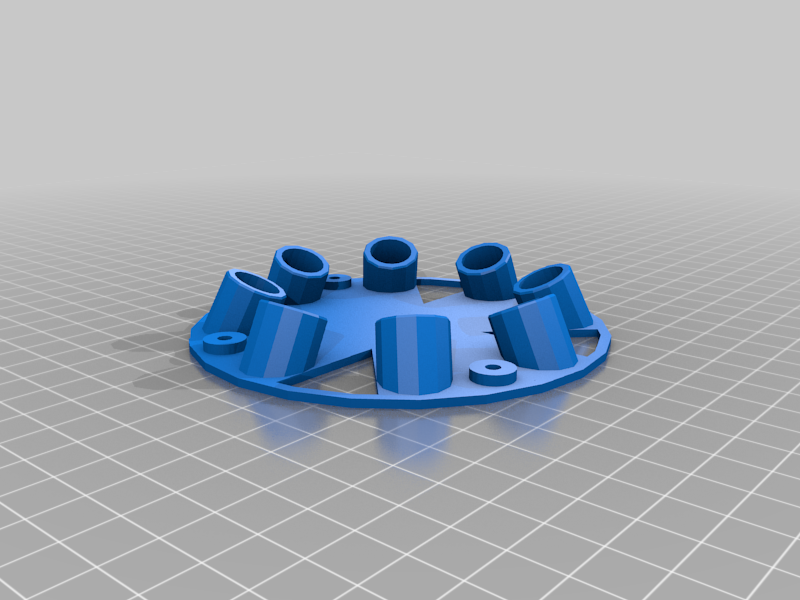

    levitator_base8-v1_25degree.stl

    331 Ko · 58 download

    Scarica
  • stl

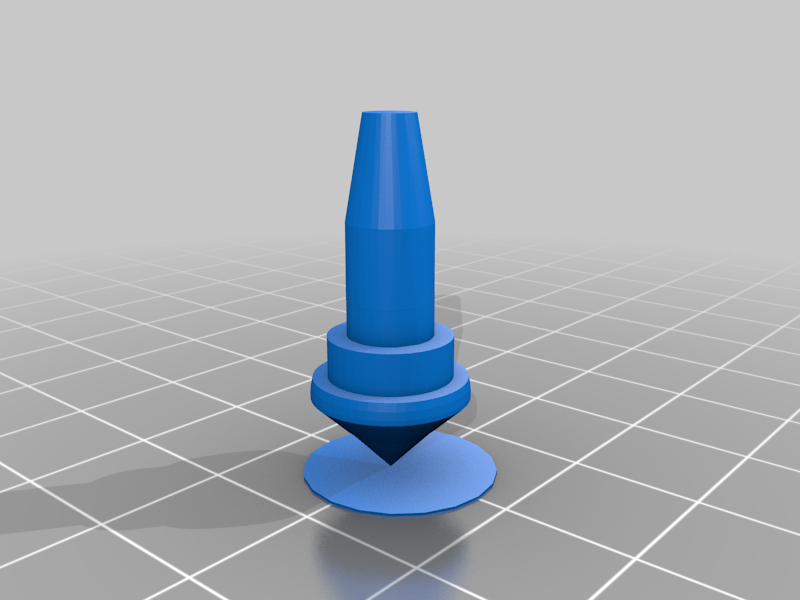

    LevitatingTop_v2.3.stl

    80 Ko · 81 download

    Scarica
  • stl

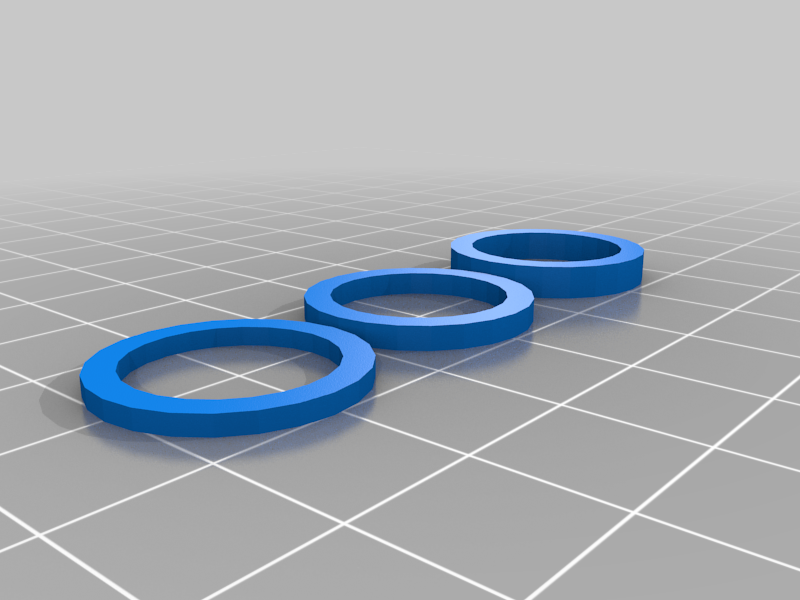

    adjustable_weight_ring_large.stl

    28 Ko · 77 download

    Scarica
  • stl

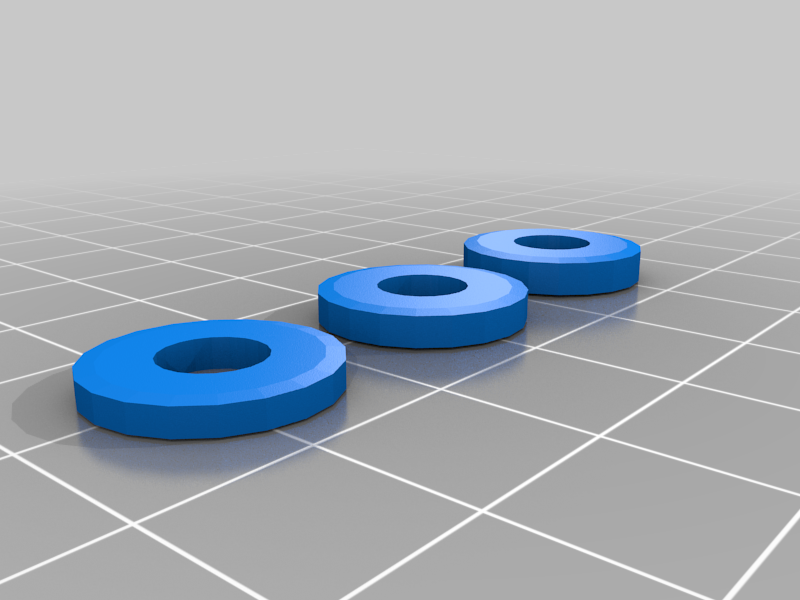

    adjustable_weight_ring_small.stl

    56 Ko · 78 download

    Scarica
  • stl

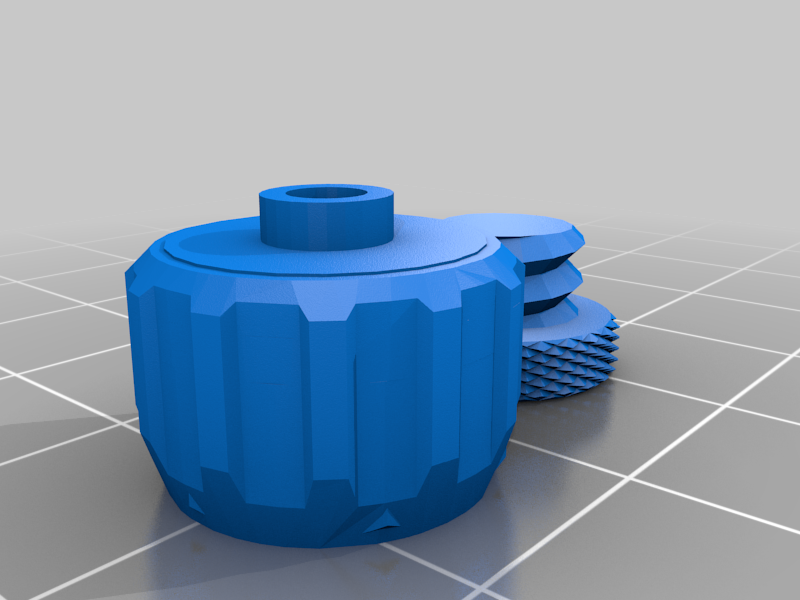

    M3_leveling_leg_knob.stl

    354 Ko · 76 download

    Scarica

Descrizione

Very challenging project. If you are inpatient, don’t try it. You will be extremely frustrated.
It could take hours or even days to tune various parameters.

  1. Need to print M3_leveling_leg_knob (x4). Need M3x10mm screw (x4).
  2. Magnets are from Amazon ( mainly 12mm x 3 mm, and a few other sizes)
  3. Ring magnet ( outer diameter 20mm , thickness 3mm, inner diameter 6.5 mm)

More details to be added later.

Tag

#levitation
