LED Light Bar
di Korrupt3dazn
File stampabili (5)
-
stlLED_Light_Bar_Extender.stl
18 Ko · 8 385 download
-
stlLED_Light_Bar_Leg_.stl
14 Ko · 8 469 download
-
stlLED_Light_Bar_Head.stl
19 Ko · 8 693 download
-
stlLED_Light_Bar_Extender_v2.stl
33 Ko · 8 357 download
-
stlLED_Light_Bar_Leg_v2.stl
86 Ko · 8 409 download
Descrizione

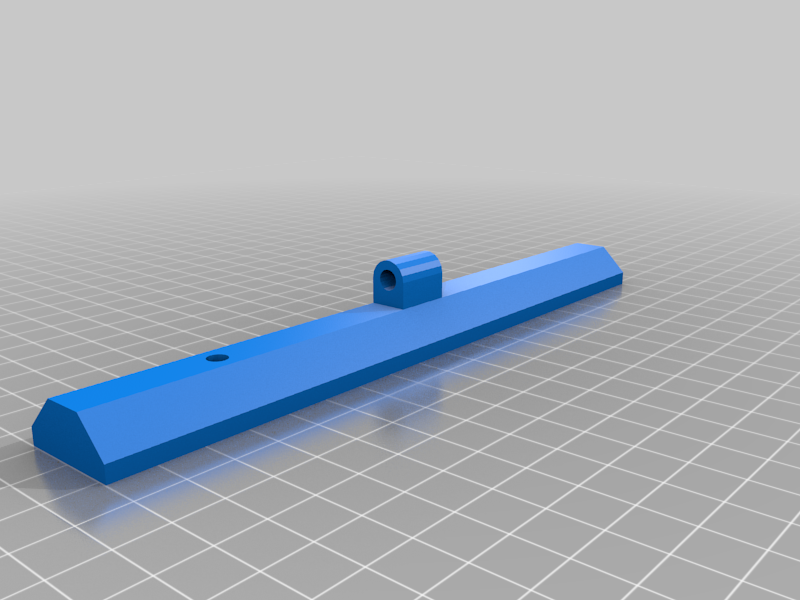

I printed the head face down with no support. There is some filament that will hang loose. I just peeled it away. The fitment was perfect for me. I plan using 3M tape and mounting this light all over.

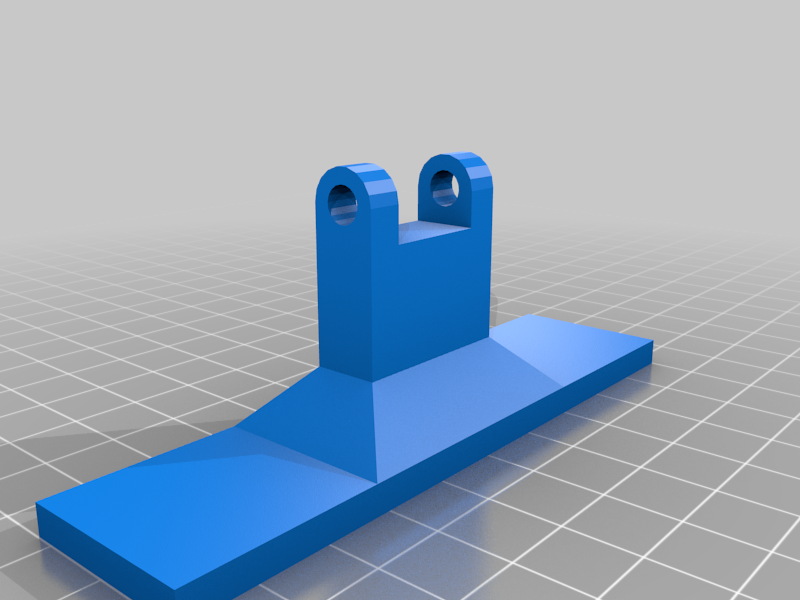

I made the base of the leg wide enough to use the 3M tape I listed below ( 1" wide )

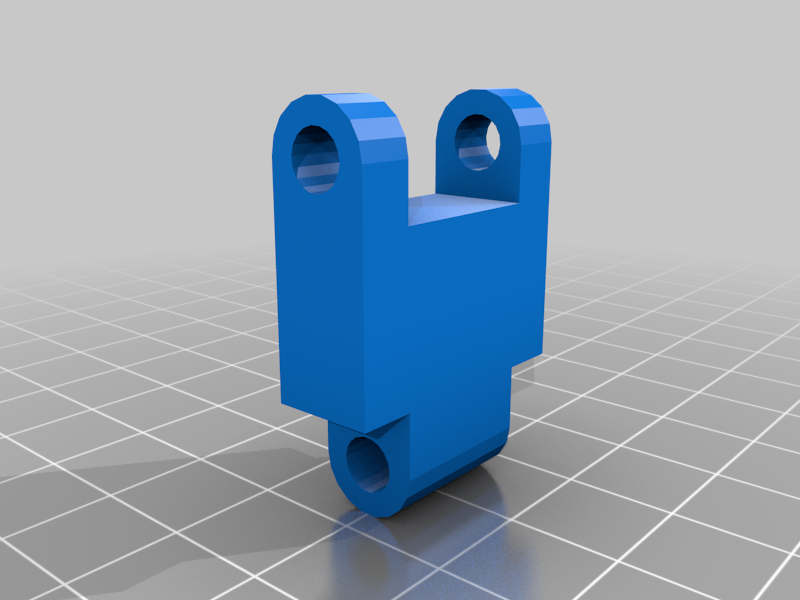

I made the "extender" part to allow for the head be able to bend more
LED Light from amazon:
http://www.amazon.com/Waterproof-Aluminum-Daylight-Driving-Daytime/dp/B00C1YI2XA/ref=sr_1_1?ie=UTF8&qid=1417320225&sr=8-1&keywords=drl+led
Double side Tape:
http://www.amazon.com/Scotch-Exterior-Mounting-1-Inch-60-Inch/dp/B00004Z4BV/ref=sr_1_2?ie=UTF8&qid=1418010346&sr=8-2&keywords=3m+double+sided+tape
12/1/2014: Added an Alternative LED light head.

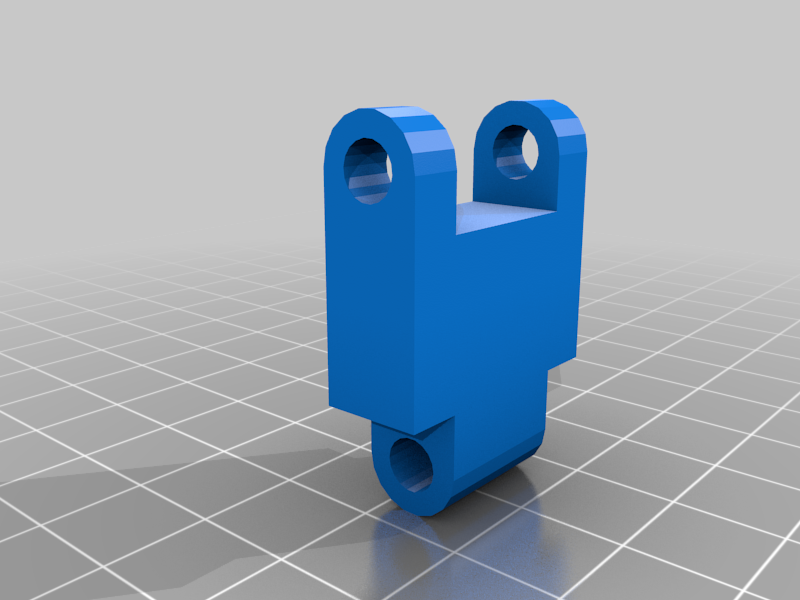

12/1/2014: Added Alternative Leg and Extender. The new parts now has a location to route the wire though.
1/18/2014: I realized I didn't publish the v2 stl files but sdoc. I uploaded the proper files now. The version 2 legs and extender works with the v1 head.
