Radius Multi-tool

di kylevanhorn

File stampabili (13)

  • stl

    5mm_radius.stl

    1 Mo · 4 958 download

    Scarica
  • stl

    8mm_radius.stl

    1.4 Mo · 4 863 download

    Scarica
  • stl

    4mm_radius.stl

    1.1 Mo · 4 863 download

    Scarica
  • stl

    1mm_radius.stl

    798 Ko · 4 885 download

    Scarica
  • stl

    Case.stl

    2.8 Mo · 4 921 download

    Scarica
  • stl

    6mm_radius.stl

    1.4 Mo · 4 865 download

    Scarica
  • stl

    3mm_radius.stl

    1.1 Mo · 4 859 download

    Scarica
  • stl

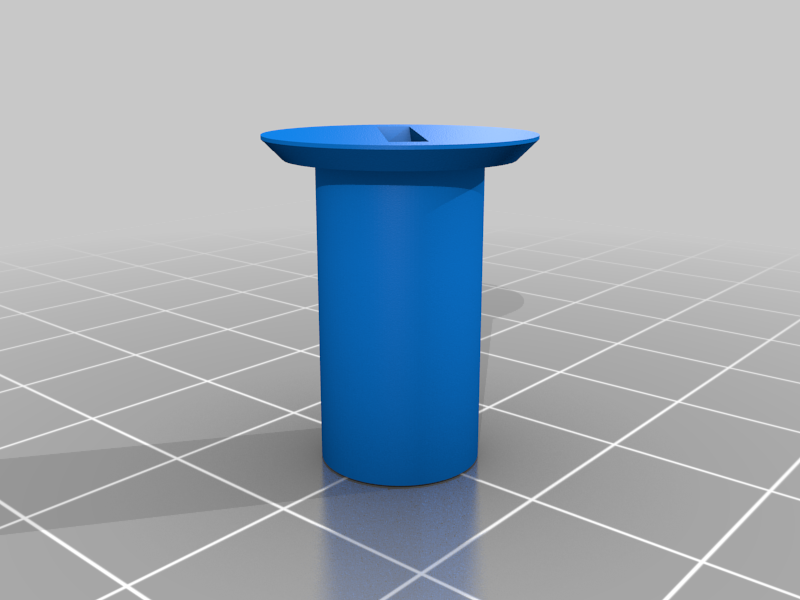

    Round_Screw.stl

    2.3 Mo · 4 883 download

    Scarica
  • stl

    7mm_radius.stl

    930 Ko · 4 851 download

    Scarica
  • stl

    9mm_radius.stl

    1.4 Mo · 4 848 download

    Scarica
  • stl

    10mm_radius.stl

    1.4 Mo · 4 870 download

    Scarica
  • stl

    2mm_radius.stl

    962 Ko · 4 873 download

    Scarica
  • stl

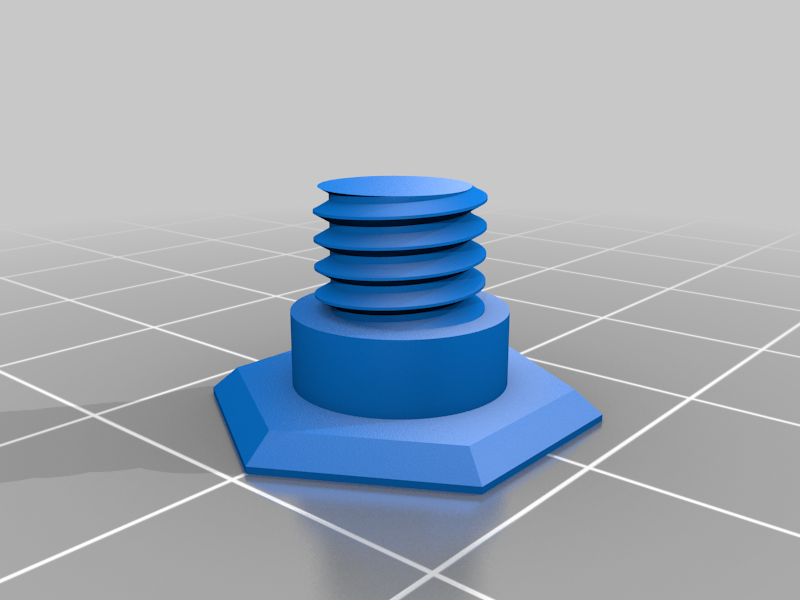

    Hex_Screw.stl

    3.7 Mo · 4 883 download

    Scarica

Descrizione

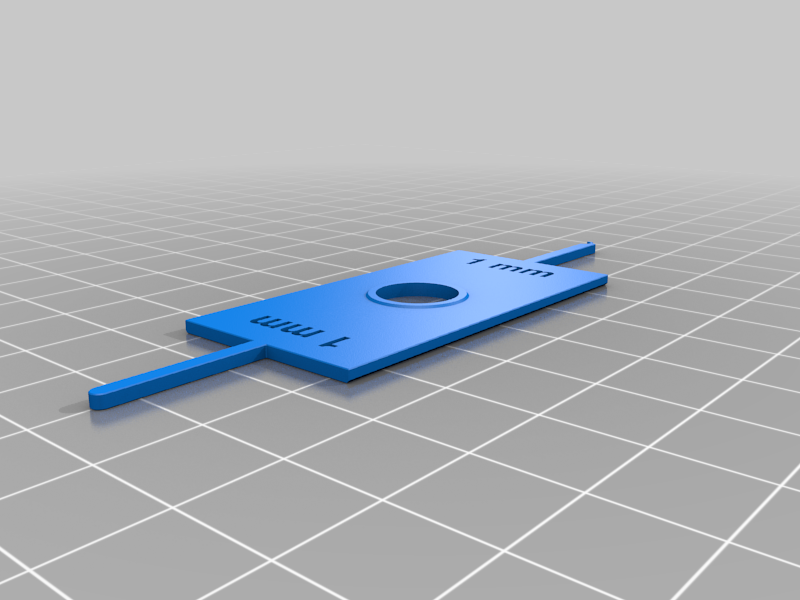

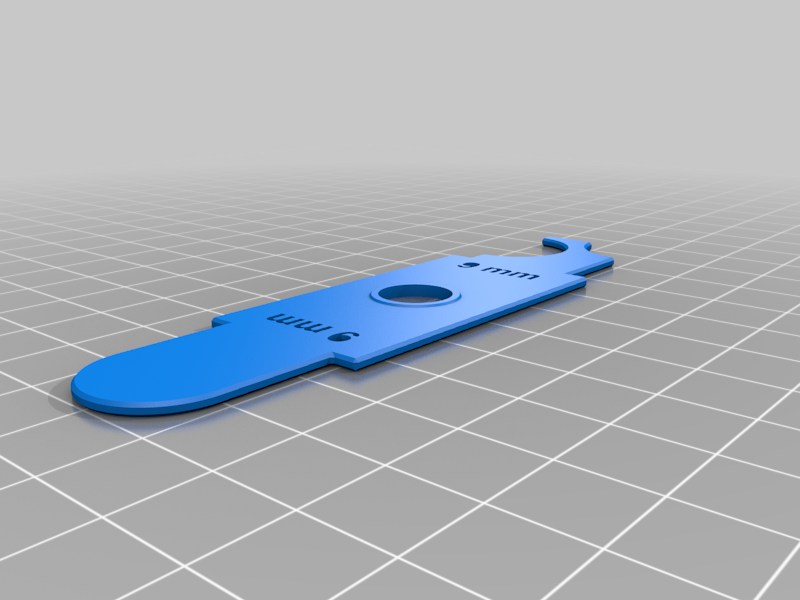

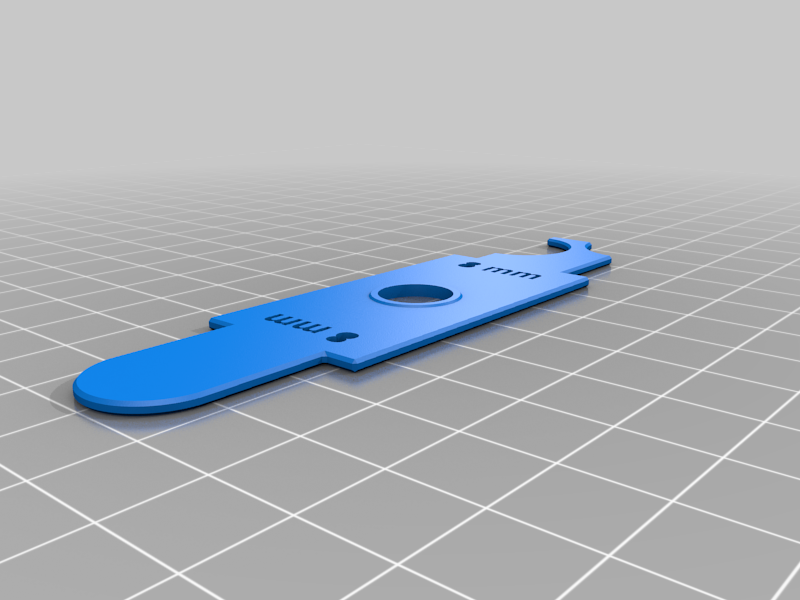

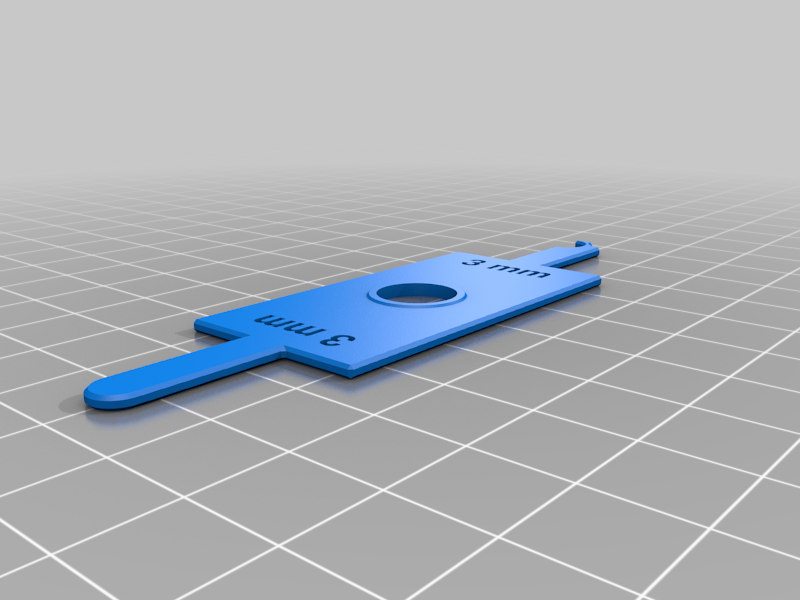

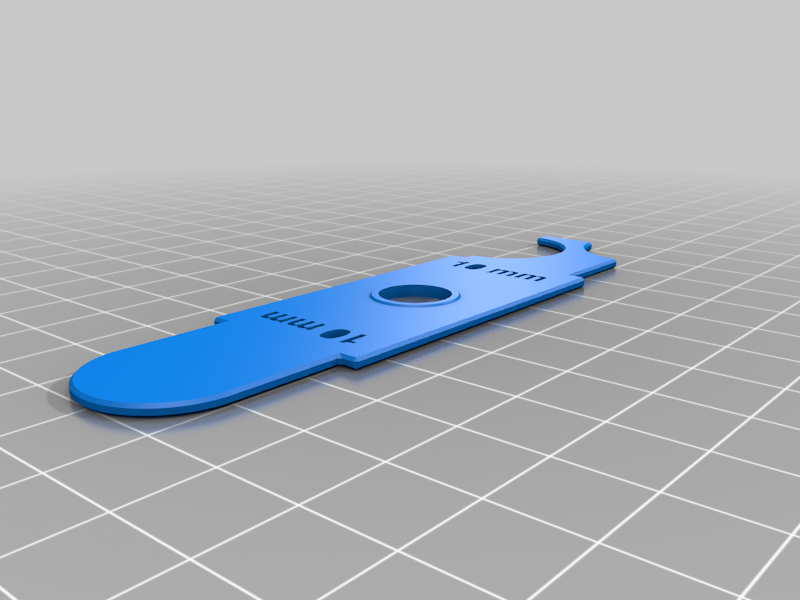

This tool is the little brother of my first radius tool. It measures 1-10mm sizes, concave and convex, and fits into a convenient fold-up carrier for designing on the go. This radius sizes all print fine, though it was helpful with the smallest 1mm size to put a help disc at the very tip of the tool when printing to preserve the point.

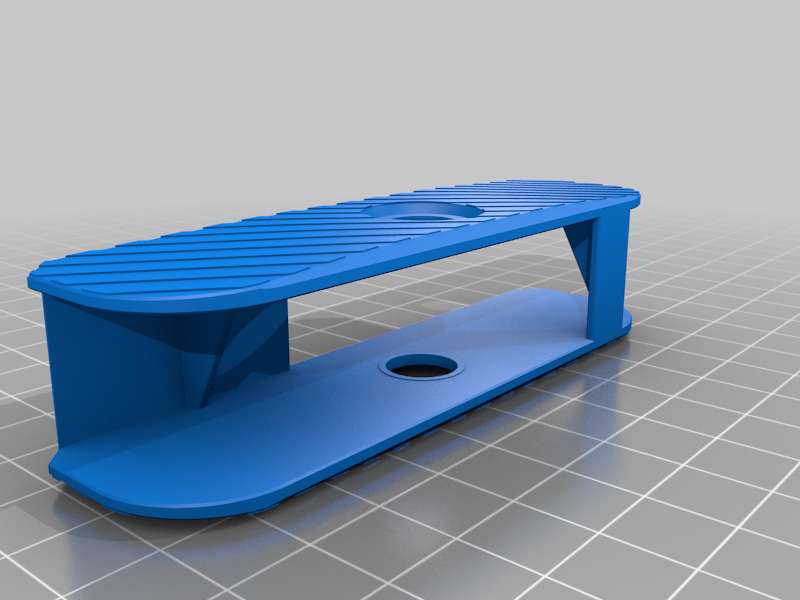

Additionally, the case must print with supports. Print with the text side facing down, and add supports on the bed to hold up the top cross support.

Interior angles will dictate the order of installation for the tool sizes.

Please note This tool measures the radius size, but many cad programs use diameter sizes when drawing circles.

Tag

#radius #radiusgauge #radius gauge #radius tool
