Bidirectional Mechanical Binary Counter (Modular)
di outlawsMakaveli
File stampabili (12)
-

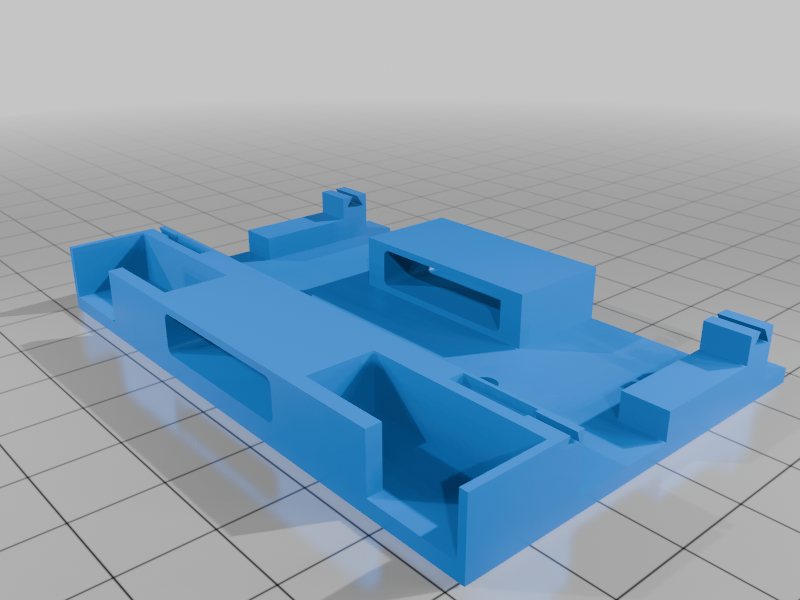

stlleft_base.stl
19 Ko · 8 download
-
stlmid_base.stl
2 Ko · 8 download
-
stlzero_side.stl
58 Ko · 9 download
-
stlzero.stl
48 Ko · 8 download
-

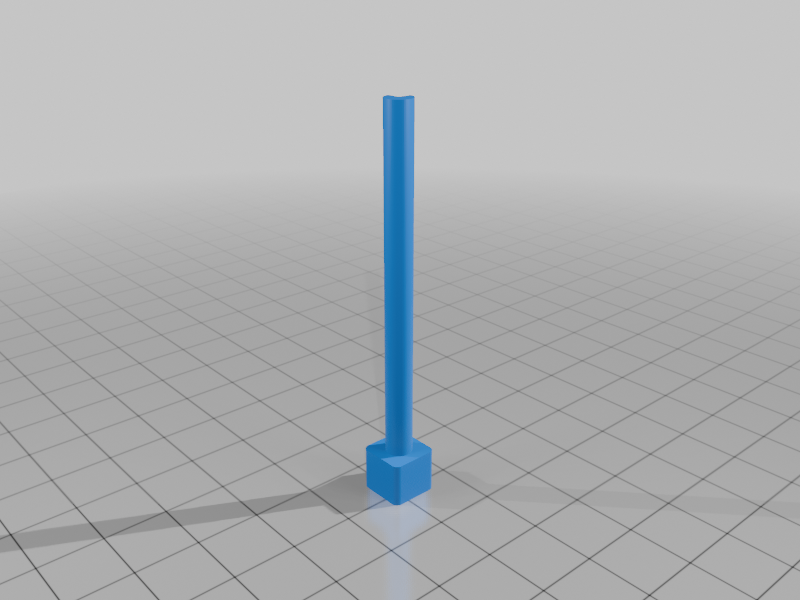

stlone.stl
24 Ko · 8 download
-

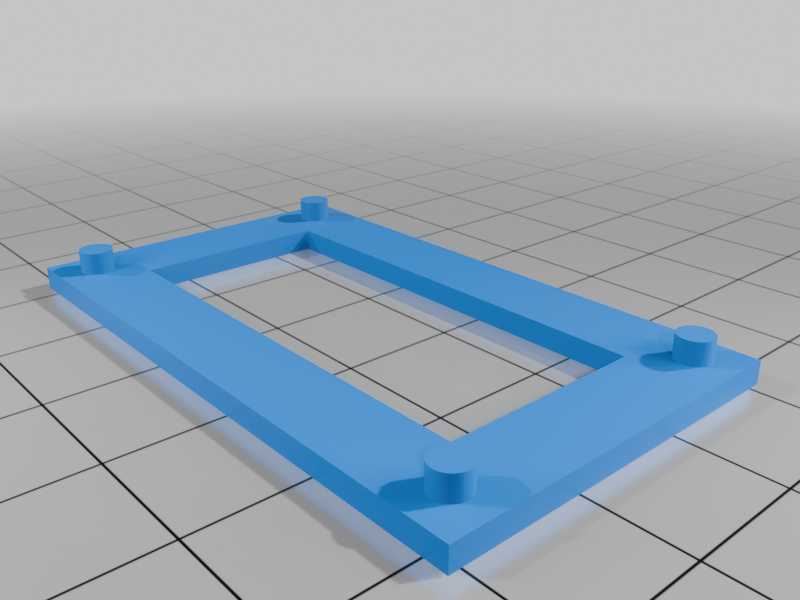

stlconnector.stl
87 Ko · 8 download
-
stlone_side.stl
52 Ko · 10 download
-

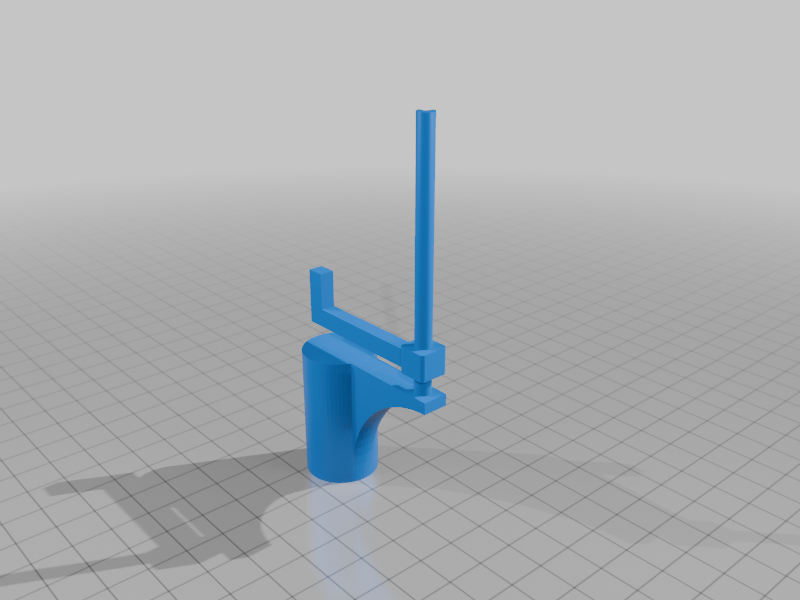

stlhandle.stl
68 Ko · 8 download
-
stlright_base.stl
19 Ko · 8 download
-

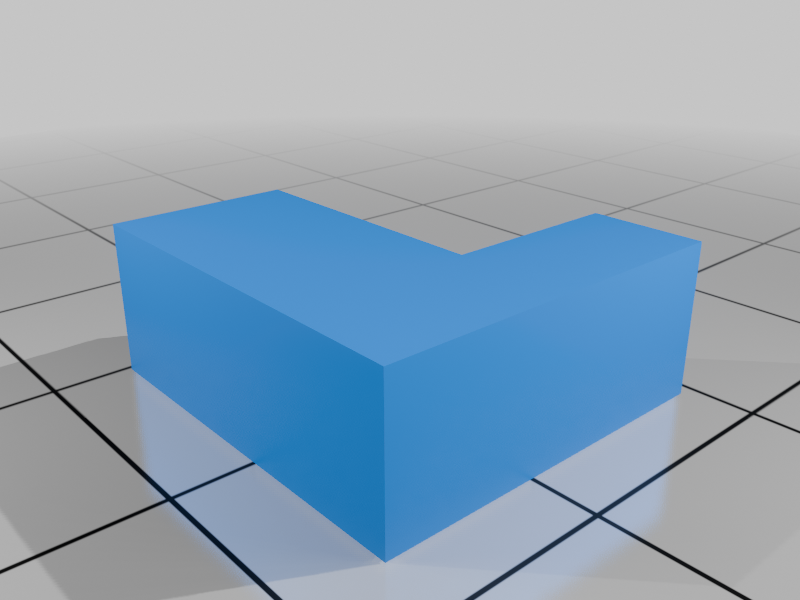

stlcarry_piece.stl
1 Ko · 8 download
-
stllock.stl
35 Ko · 8 download
-
stlPREVIEW_DO_NOT_PRINT.stl
1.1 Mo · 10 download
Descrizione
Demo video on (Consider downloading here):
https://www.printables.com/model/595782-mechanical-binary-counter-moduler

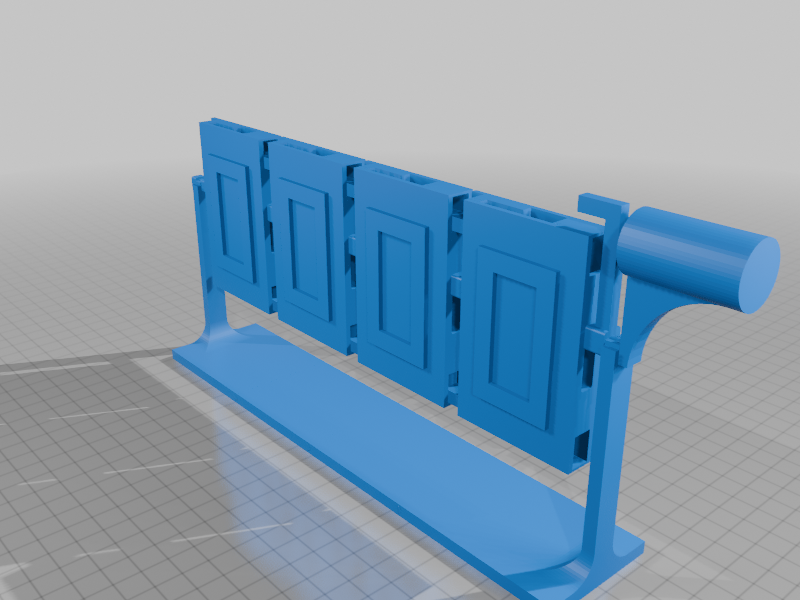

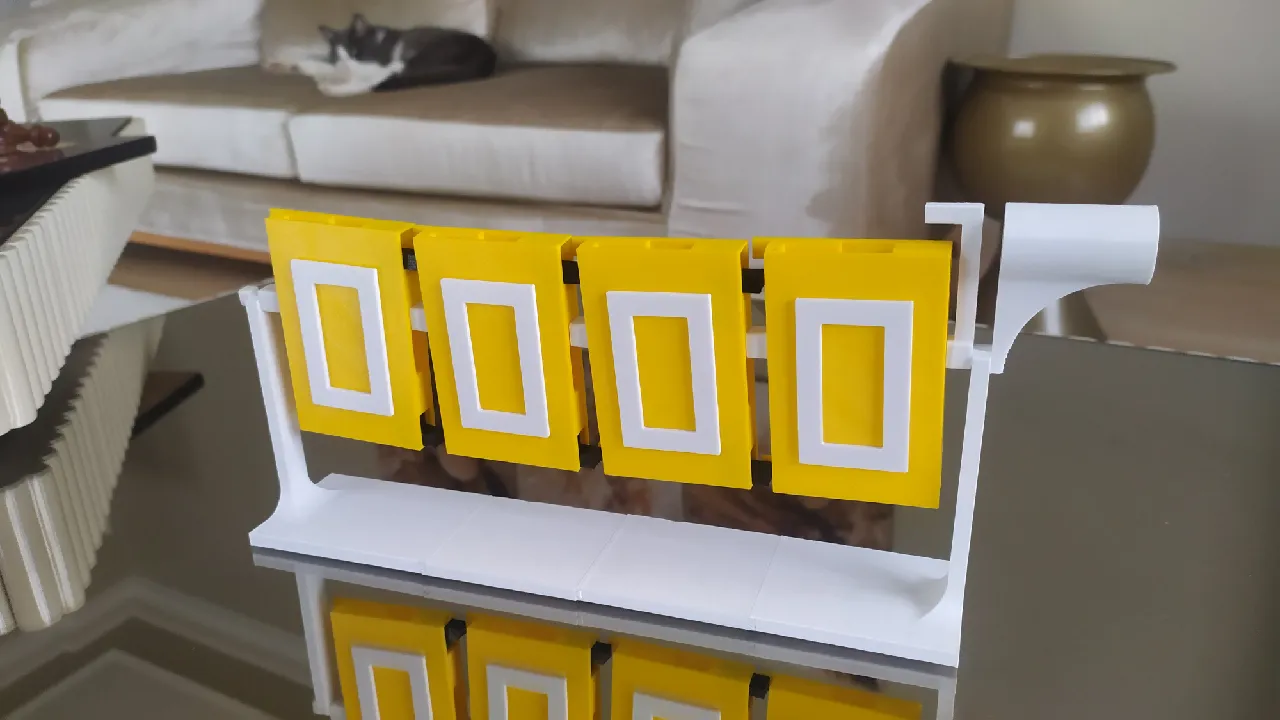

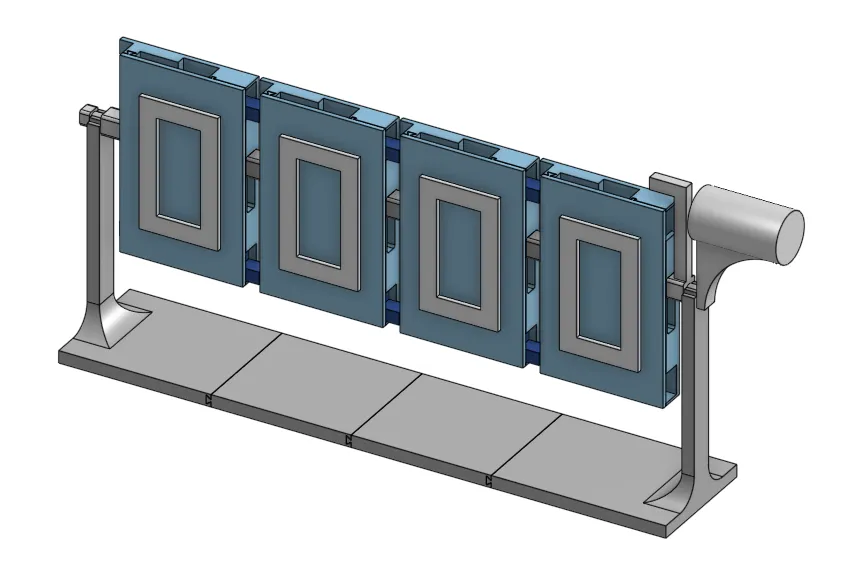

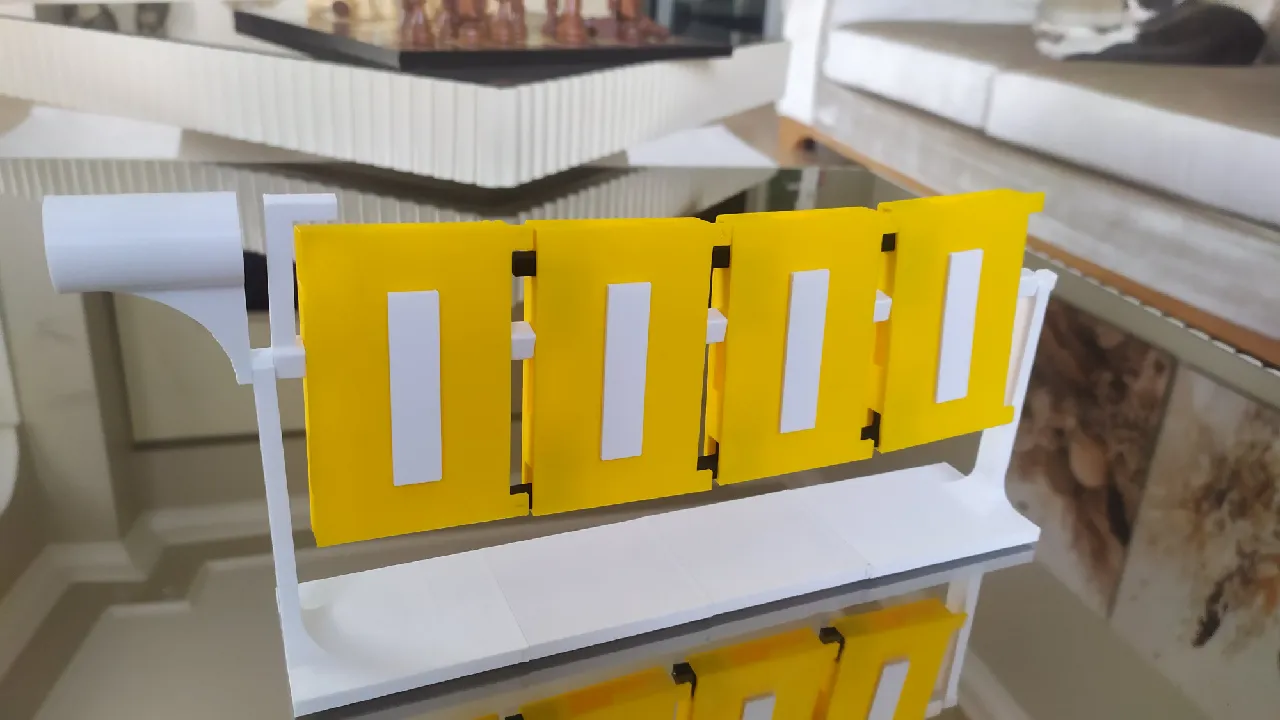

Fully mechanical binary counter that can count up and down. It's modular so you can extend to whatever digit you want.
Update 04.07.2024
I modified the bases, connectors, handles and added a lock to the left side to enhance the design durability.
I modified the one_side part to support bidirectional functionality.
In order to make a one “component”, you need

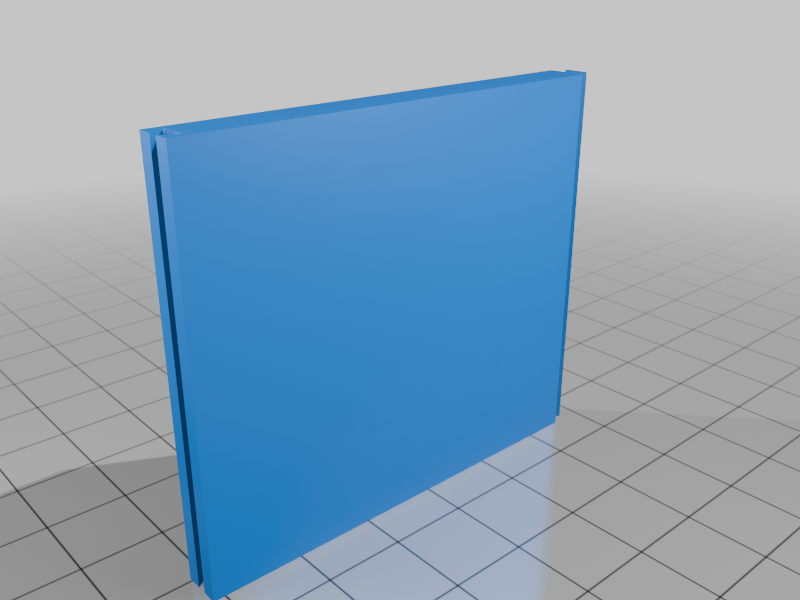

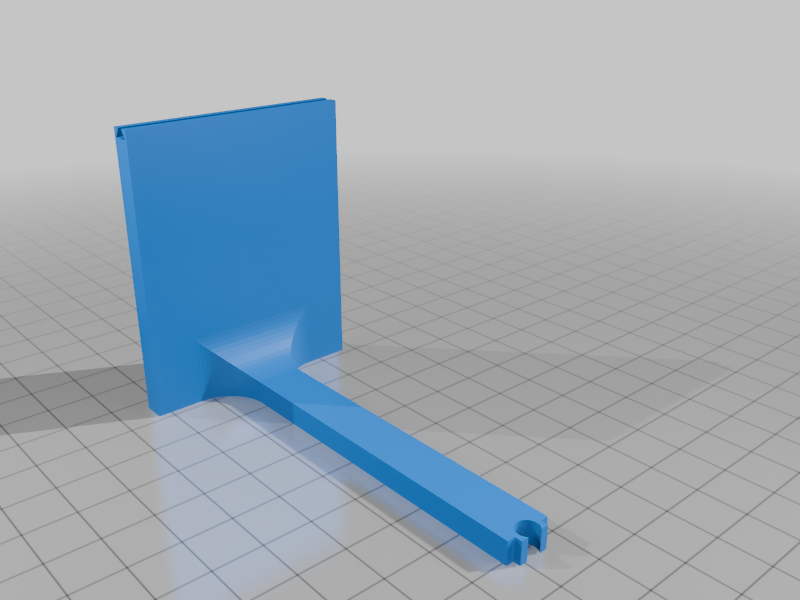

zero_side x1

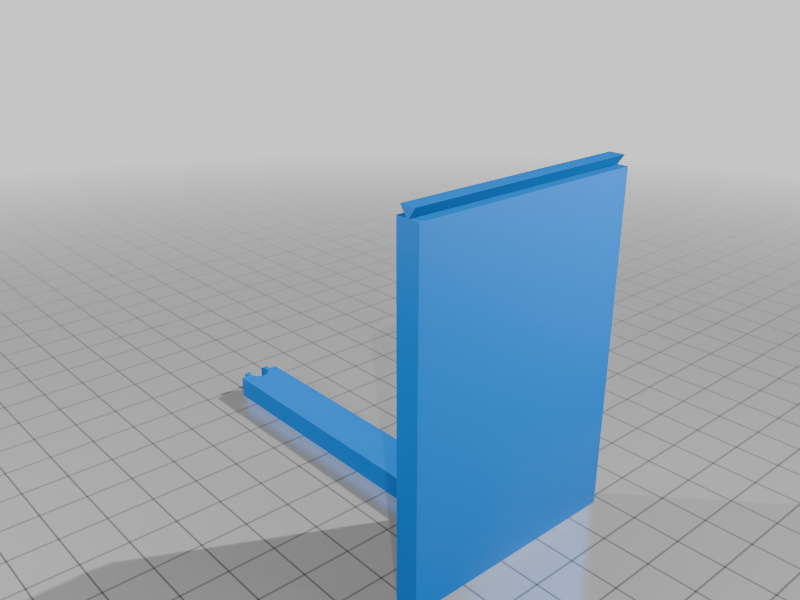

one_side x1
zero x1
one x1

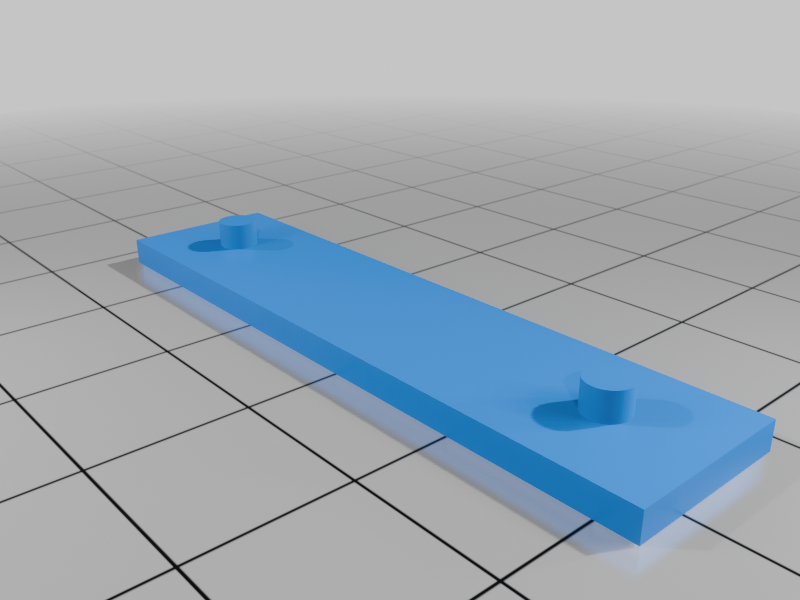

carry_piece x2

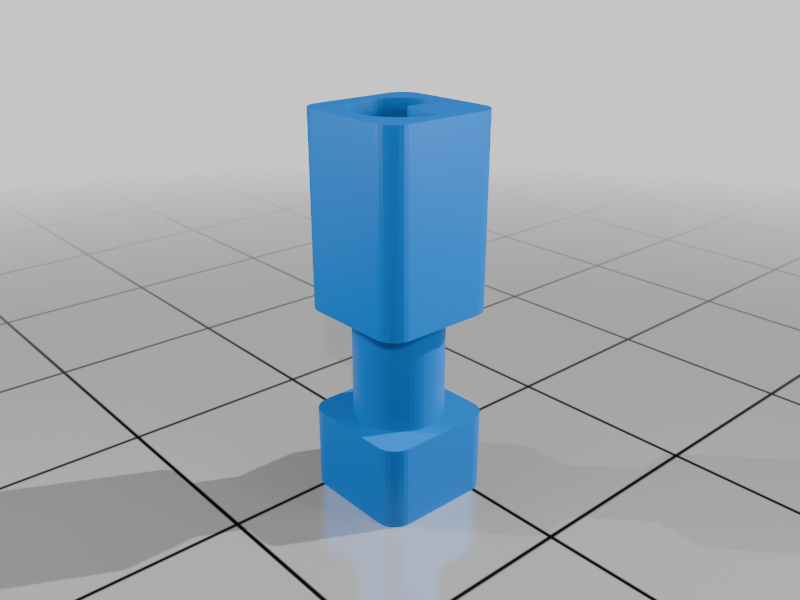

connector x1
For Base:

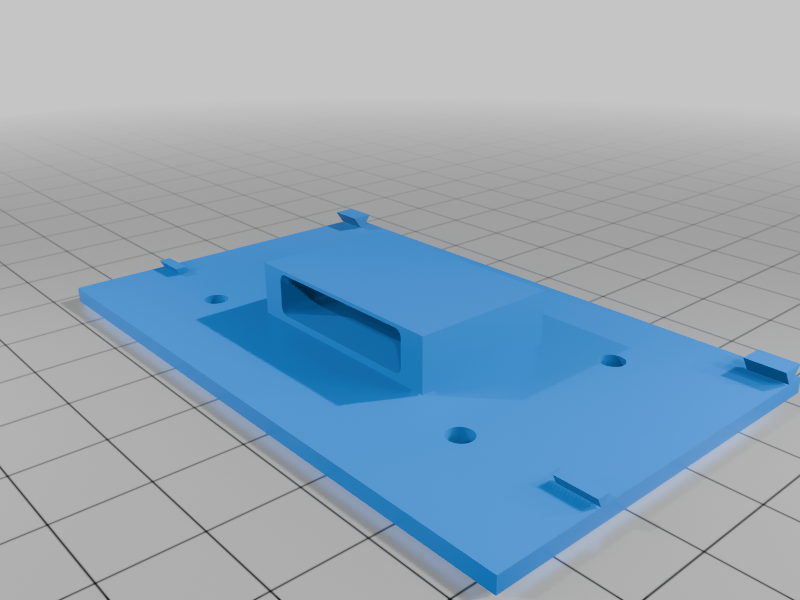

mid_base x(# of components - 2)
left_base x1
right base x1
handle_connector (print with support) x1
lock (print with support) x1
Then you can add them together and finish the build with handle. I'm leaving this assemble so everybody can play around with.
V2
Print Instructions
Only handle_connector and lock needs support.
Print with the current orientations.
