Utility Knife Locking
di JohnLW
File stampabili (6)
-

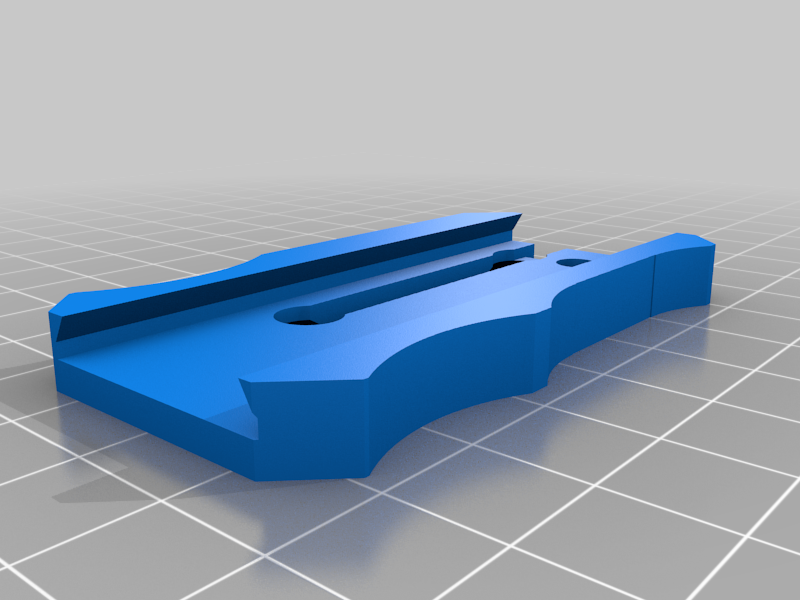

stlKnifeBody.stl
140 Ko · 1 048 download
-
stlKnifeSlide.stl
322 Ko · 1 047 download
-
stepKnifeSlide.step
596 Ko · 742 download
-
step
KnifeBody.step
183 Ko · 738 download
-

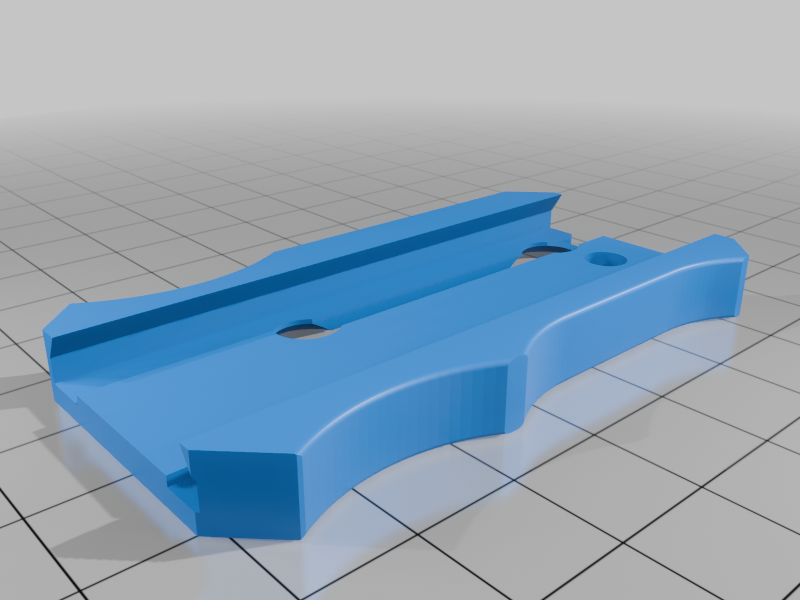

stlKnifeII-Stiff-Base.stl
922 Ko · 22 download
-

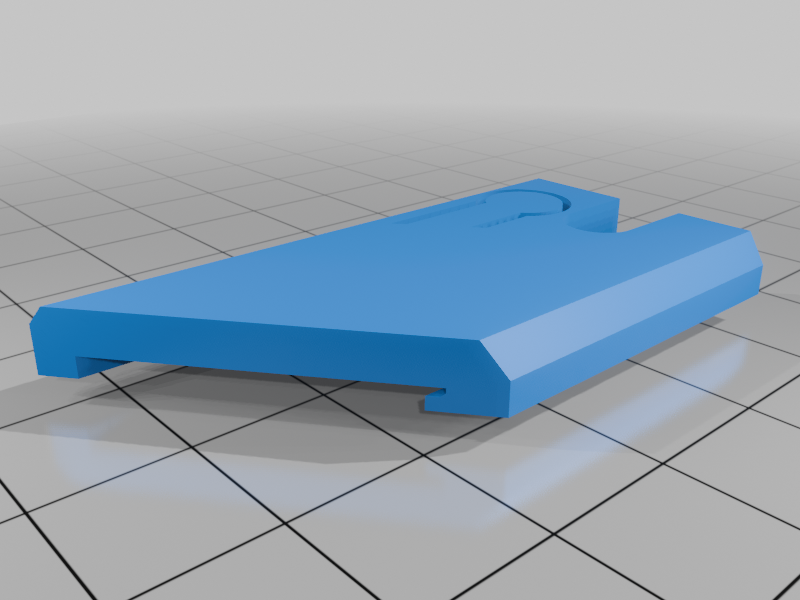

stlKnifeII-Stiff-Slide.stl
582 Ko · 22 download
Descrizione
** Just added a "stiff" version. No change to external dimensions, but increases the amount of material holding the blade in place - much stronger. The tradeoff is that there will be more friction in opening and closing the blade.
A couple of changes based off of Talon's Utility Knife.
Slightly longer to incorporate 60mm blades as I found they stuck out a bit.
Catch system is simplified, but now locks in both the open and closed positions.
Blade changes are a bit easier.
This design is in metric.
Changed the angle for the blade carrier as it was a bit off for 60mm blades.
Warning: This is a plastic knife to which you will be adding a very sharp blade. Be careful! I expect the locking mechanism will be good for a while, but it will definitely wear loose over time. So don't trust it and be willing to junk it if it wears out.
