5 string multiscale bass
di stenc55
File stampabili (23)
-

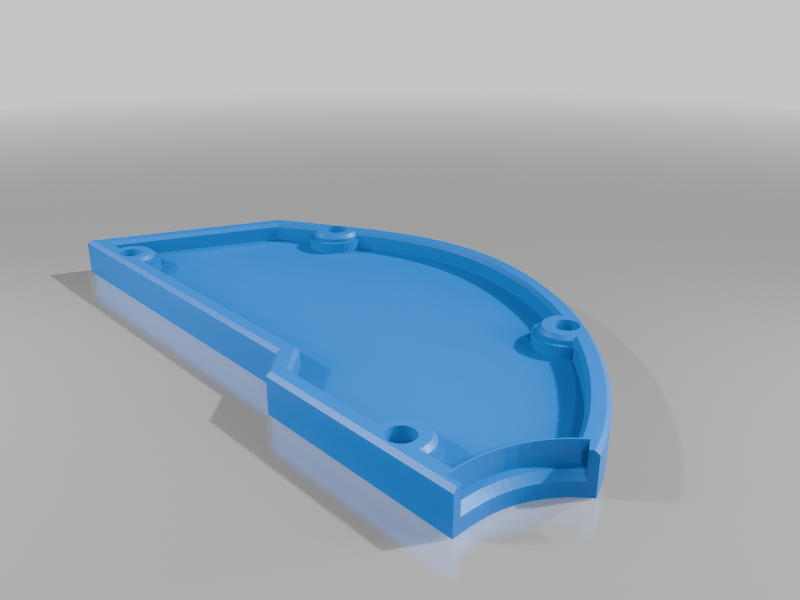

3mfElectronic_cover.3mf
35 Ko · 41 download
-
3mf2.3mf
22 Ko · 35 download
-

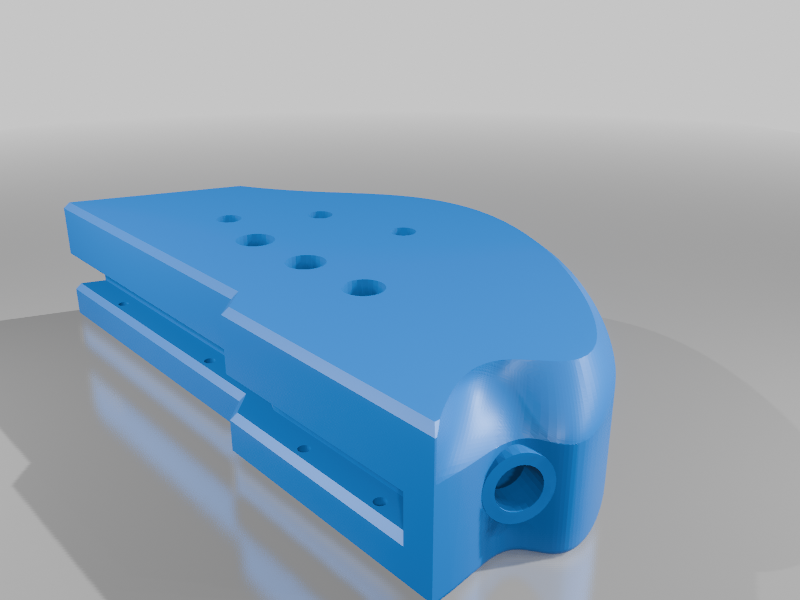

3mfBottom_right.3mf
311 Ko · 37 download
-

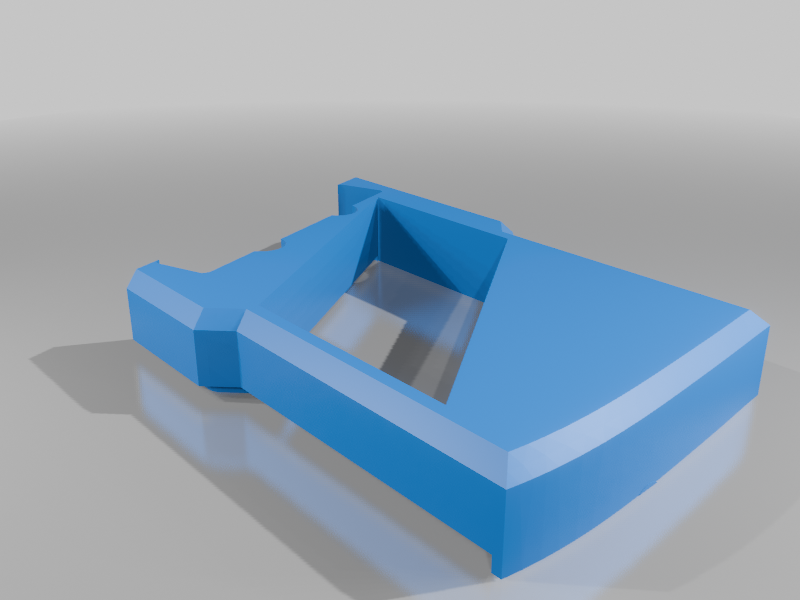

3mfMiddle_top_1.3mf
24 Ko · 39 download
-

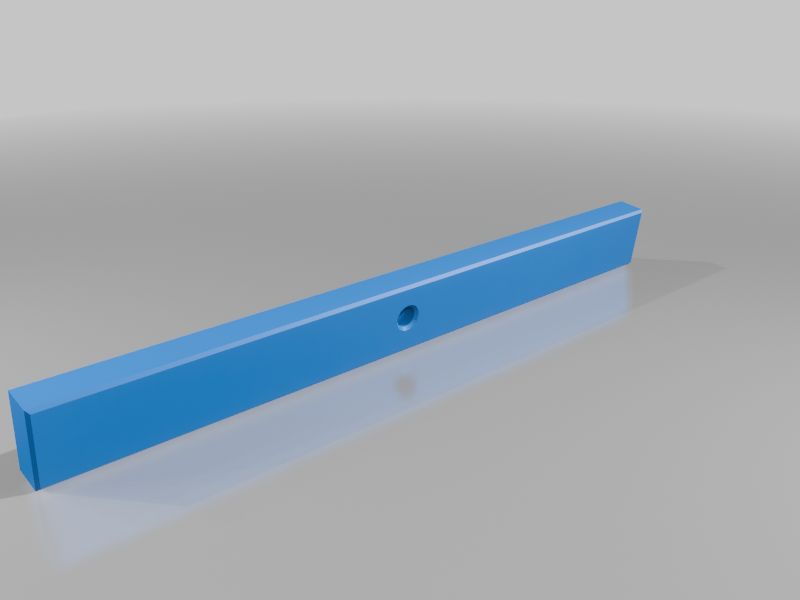

3mfStandBrace.3mf
6 Ko · 36 download
-
3mf4.3mf
26 Ko · 31 download
-
3mfBattery_cover.3mf
33 Ko · 34 download
-
3mfStandL.3mf
38 Ko · 35 download
-

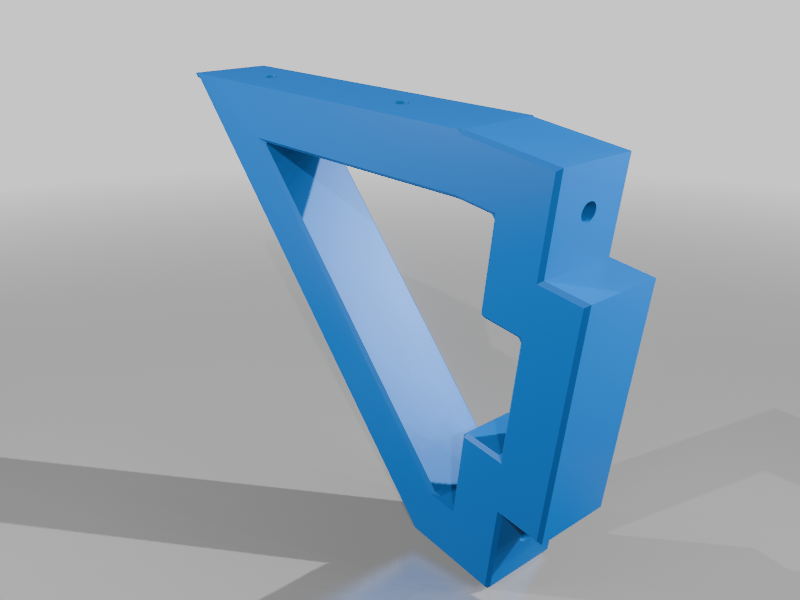

3mfStandM_1.3mf
9 Ko · 34 download
-

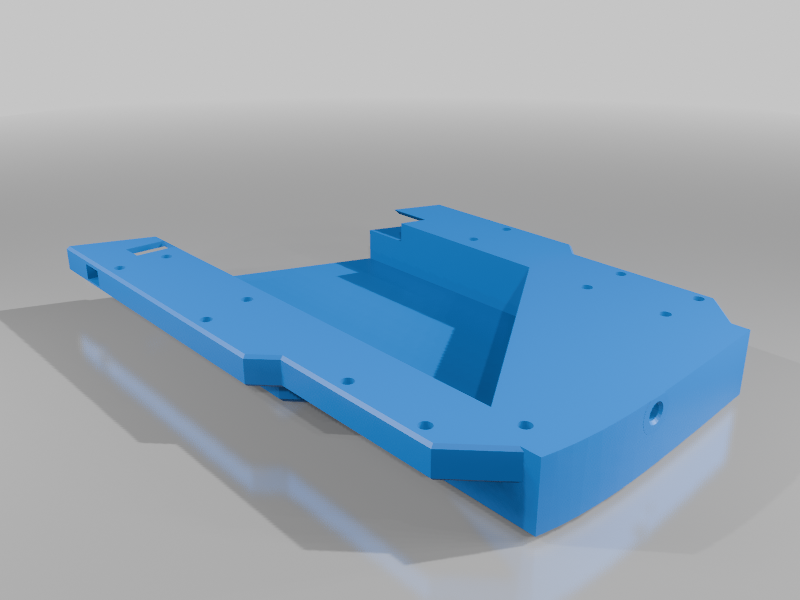

3mfMiddle_bottom.3mf
48 Ko · 34 download
-
3mf3.3mf
32 Ko · 31 download
-

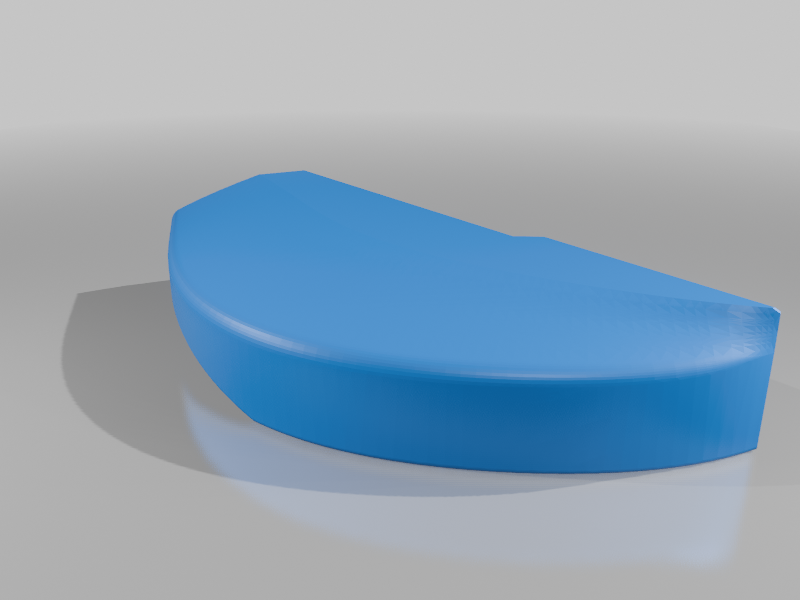

3mfTop_right.3mf
106 Ko · 34 download
-

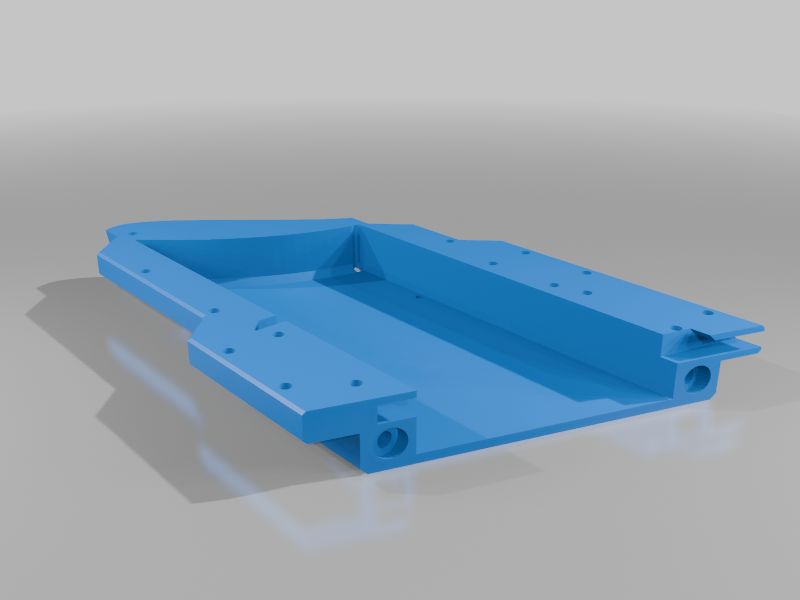

3mfMiddle_bottom_1.3mf
136 Ko · 35 download
-

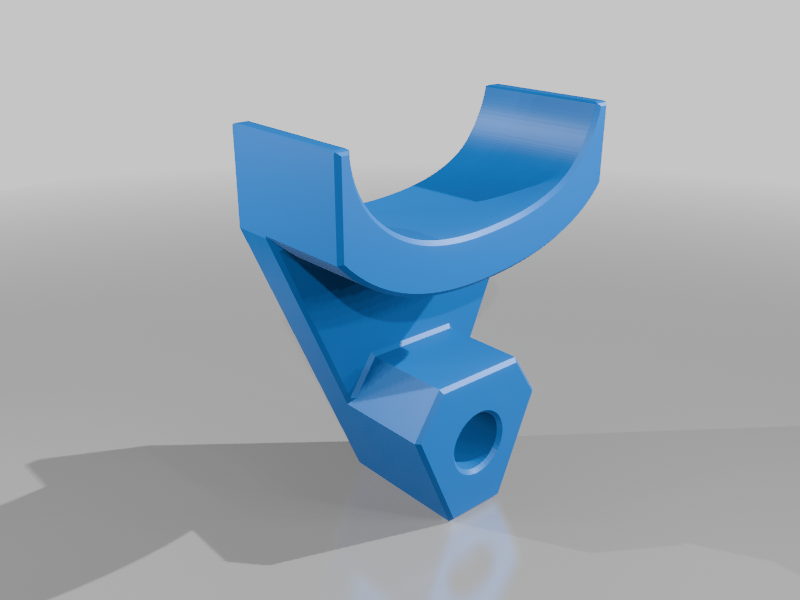

3mfStand_top.3mf
428 Ko · 35 download
-

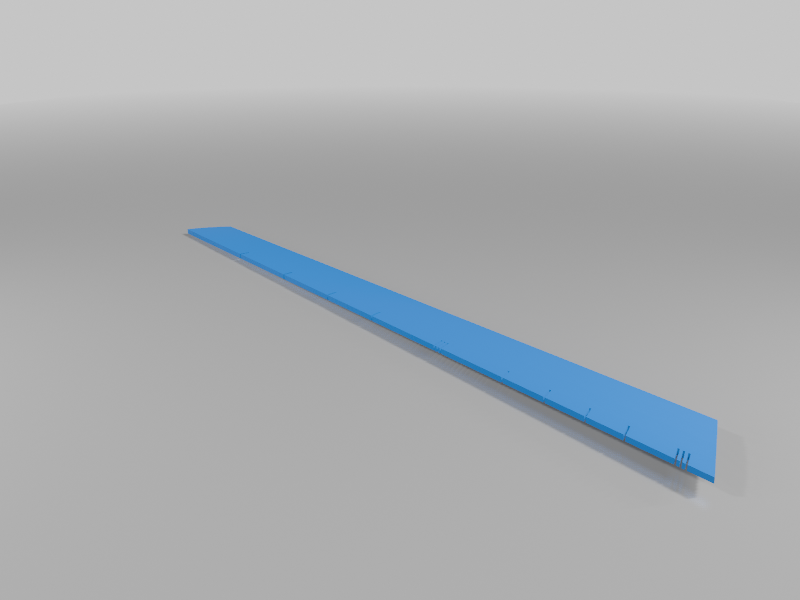

3mfFretboard.3mf
15 Ko · 41 download
-

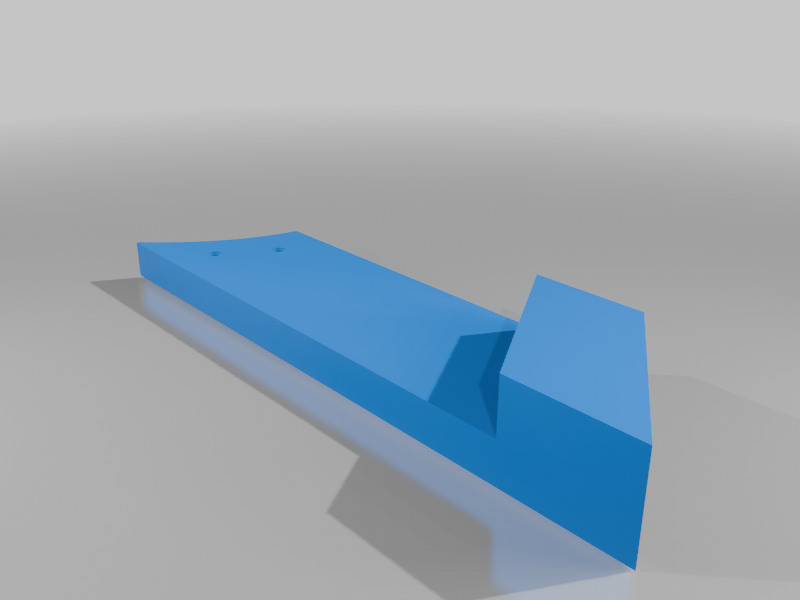

3mfCore1.3mf
85 Ko · 37 download
-

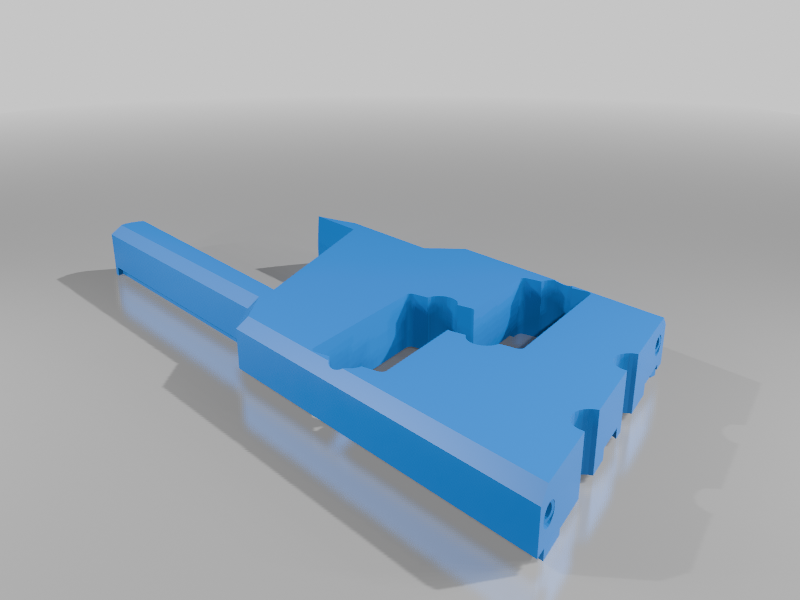

3mfMiddle_top.3mf
49 Ko · 30 download
-
3mf1.3mf
20 Ko · 31 download
-

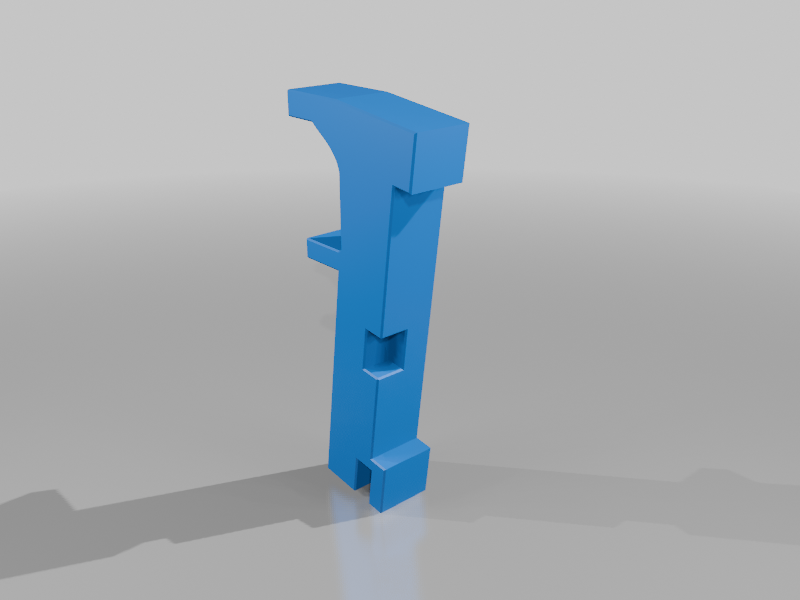

3mfStandR.3mf
29 Ko · 35 download
-

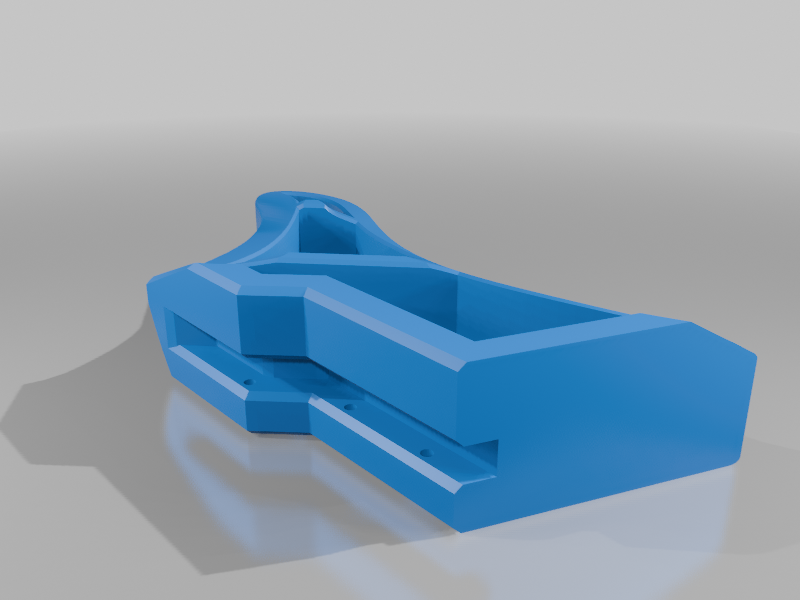

3mfBottom_left_hollow.3mf
184 Ko · 36 download
-

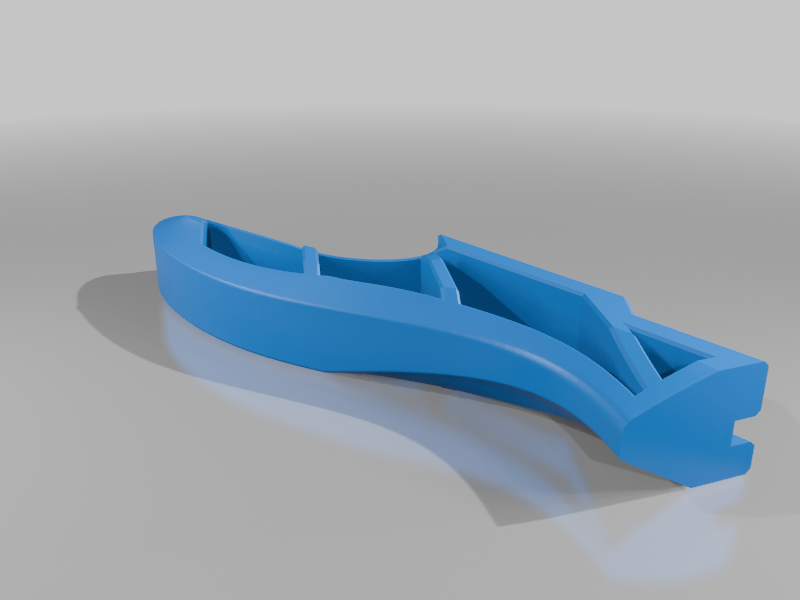

3mfTop_left_hollow.3mf
273 Ko · 36 download
-
3mfNeck.3mf
1.3 Mo · 40 download
-

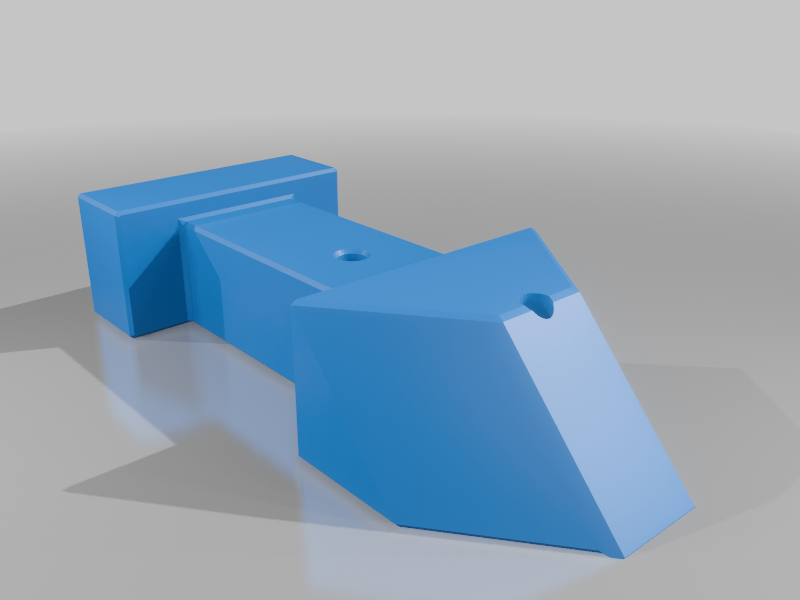

3mfStandM.3mf
16 Ko · 30 download
Descrizione
5 string multiscale bass.
Scale 36.5-35"

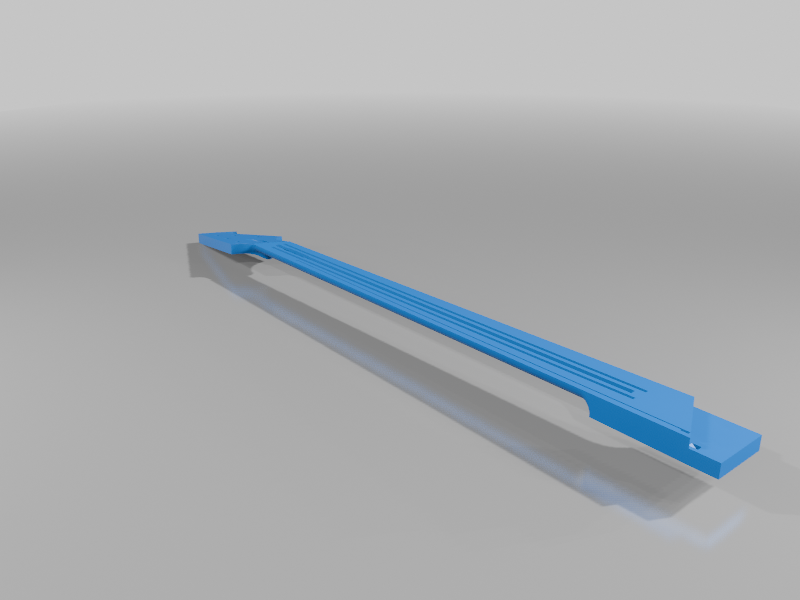

Neck and core are made of wood and glued together. Neck is asymmetric. Side channel in neck is for installation of COB LED strip. Cutouts for LEDs to shine are filled with clear UV curable acrylic.
Body is PETG, purple parts are PLA. Use any filament you prefer.

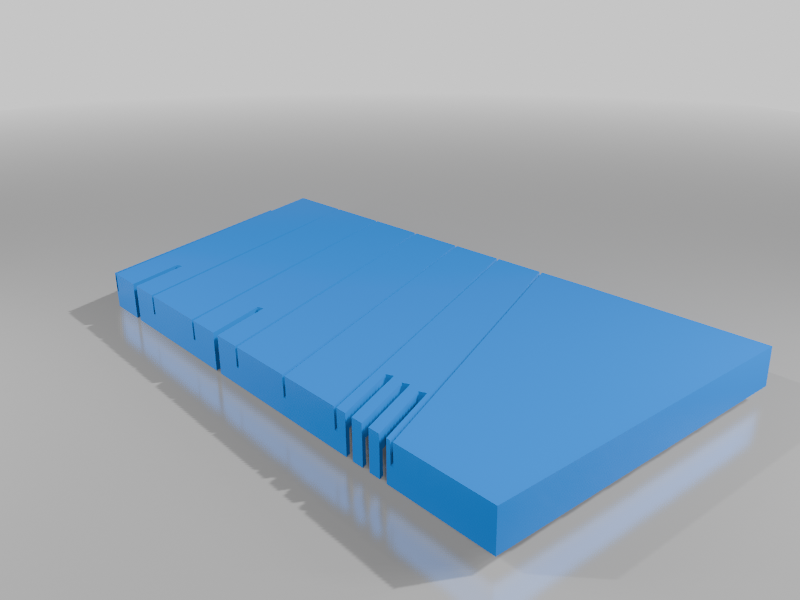

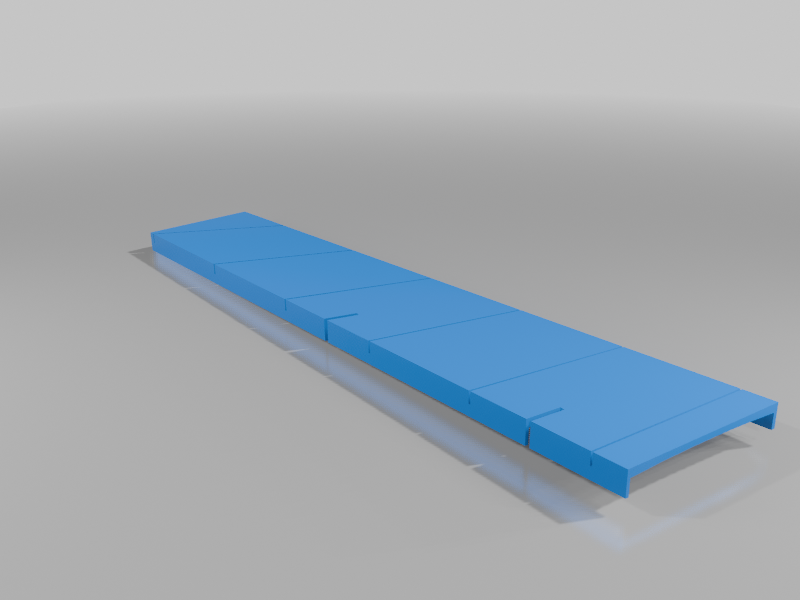

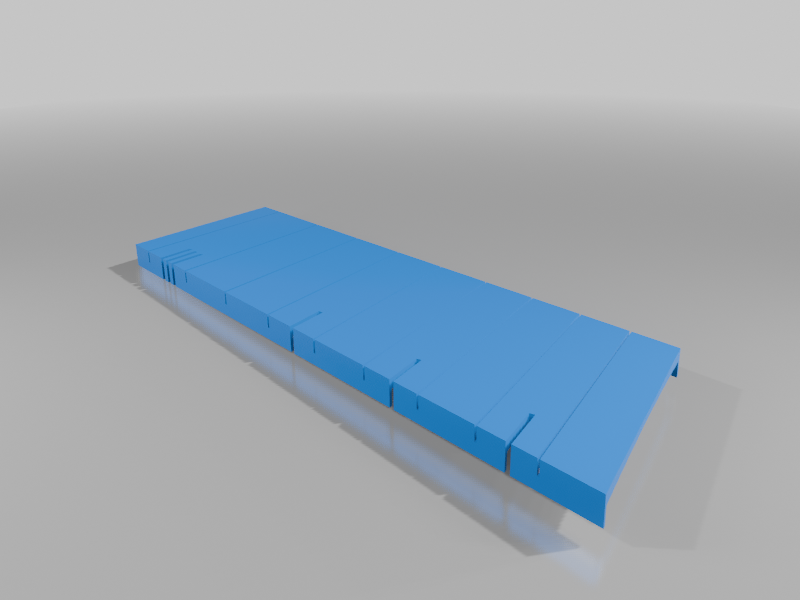

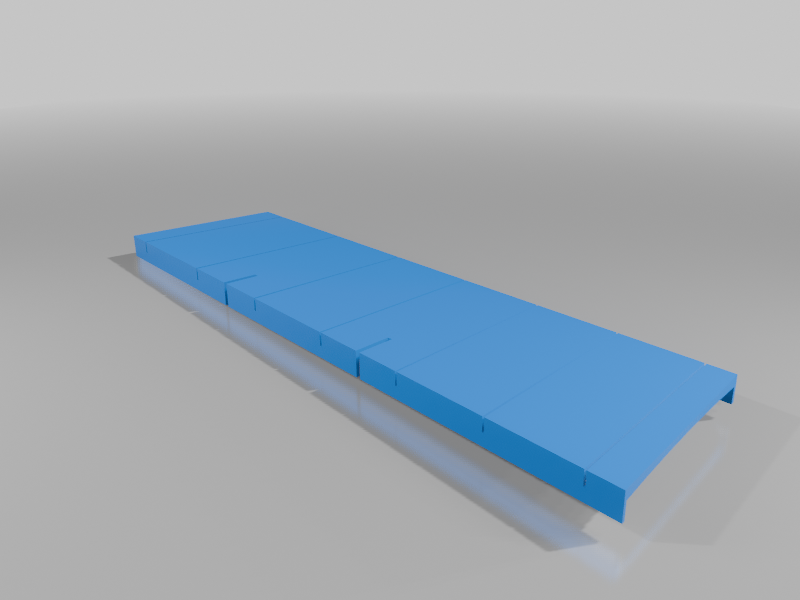

Parts 1-4 are for cutting fretboard. Grooves overlap for easy aliment.
LEDs in body are glued by the side of channel.
LEDs are powered by 3x 18650 battery. There is converter for adjusting voltage from 3.6V to 8-9V. Adjust to your own preference. One switch for neck and second for body. Pickups are powered by 9V battery.

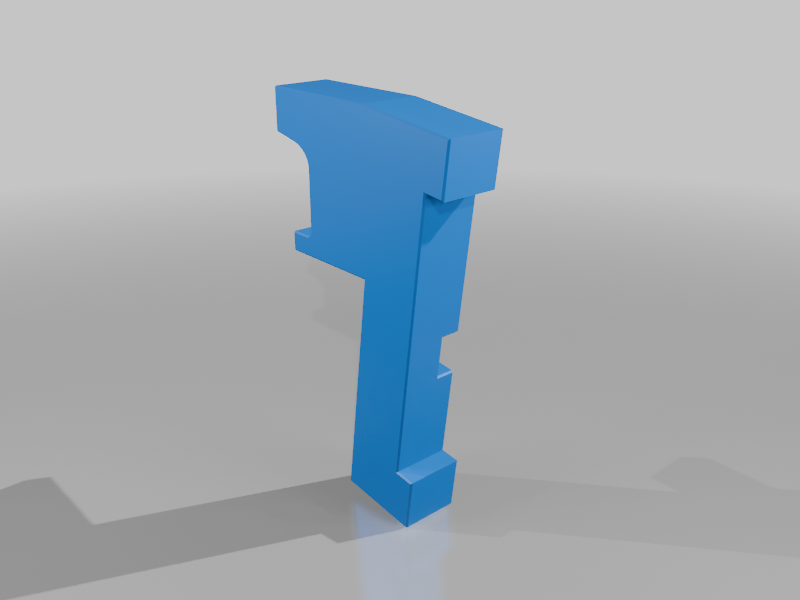

Fi12mm aluminium rod 650mm lenght for Stand.

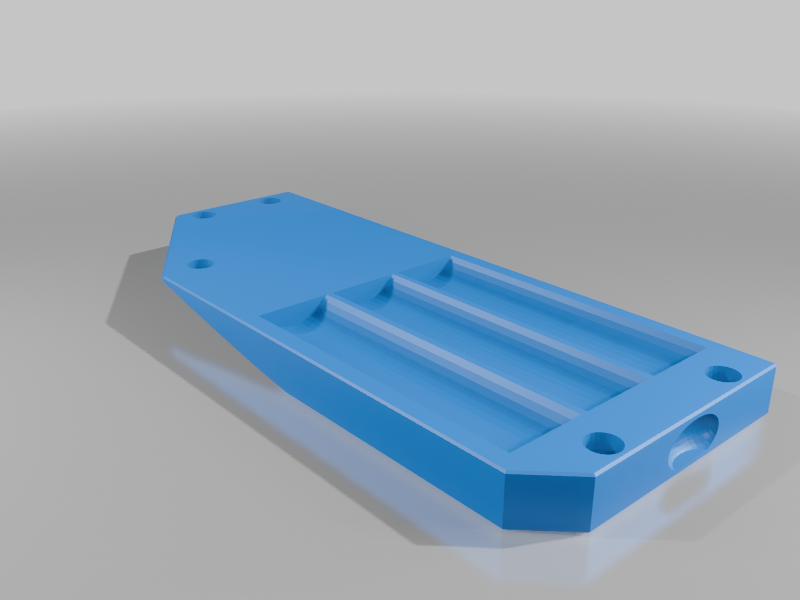

Battery and electronic covers are fixed with fi6x3 magnets.
Body is screwed together with M3 screws with M3 brass inserts
Sound sample :https://youtu.be/NQzYoyHGqTo
