Printer Calibration / Tolerance Testing

di Grantt

File stampabili (3)

  • stl

    1_Inch_Cube.stl

    32 Ko · 53 download

    Scarica
  • stl

    ID_Hole_Test.stl

    66 Ko · 43 download

    Scarica
  • stl

    OD_Circle_Test.stl

    64 Ko · 45 download

    Scarica

Descrizione

3 parts I use to test the dimensional tolerances from slicer settings.

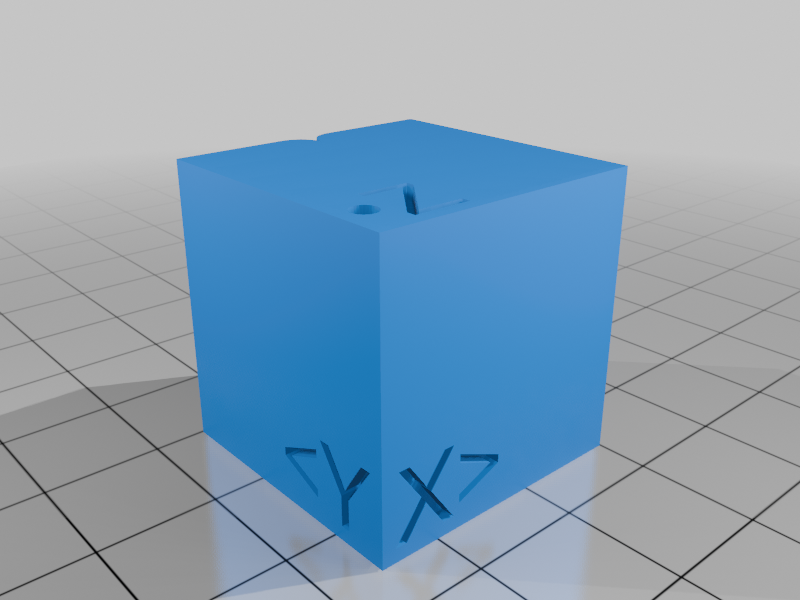

Cube: 1"x1"x1" cube, with directional labels

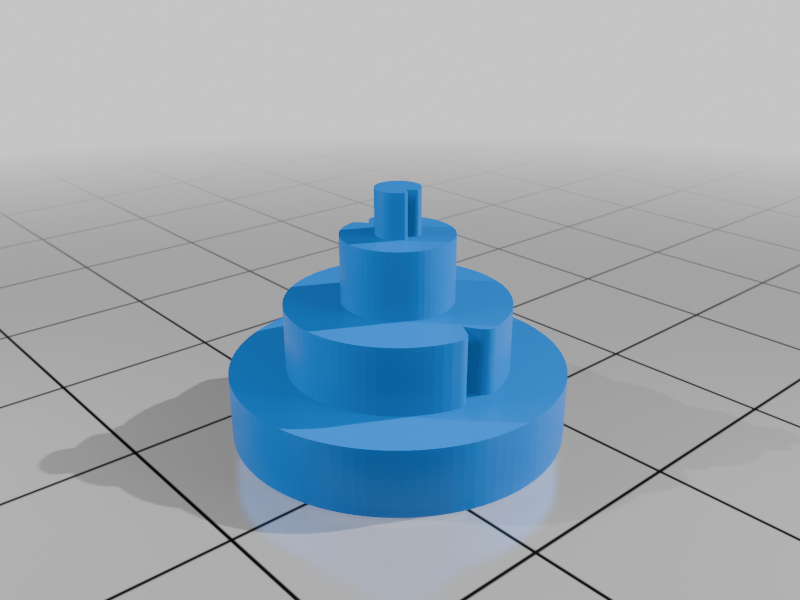

OD Test: Piece to test outer diameters of circles: .750", .500", .100"

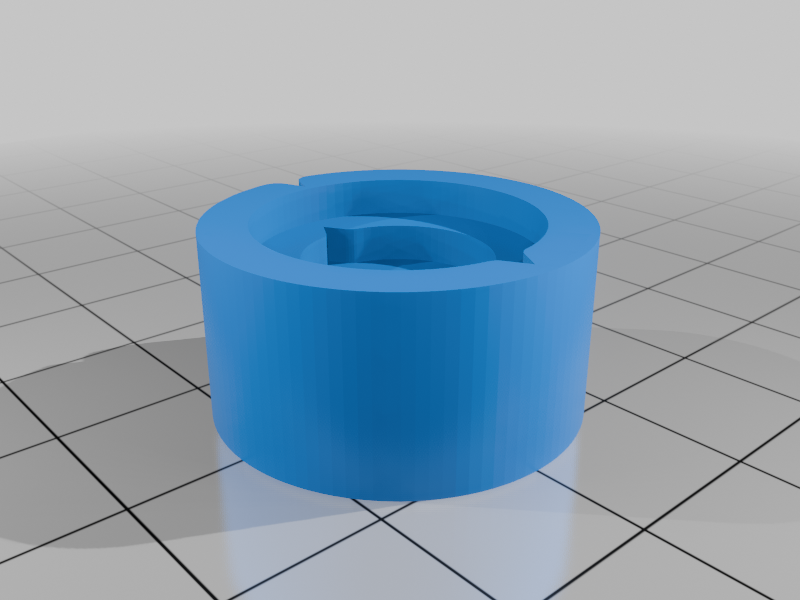

ID Test: Piece to test inside diameter of holes: .750", .500", .100". Also has 1" OD

Print Info:
Set Z-Seam to sharpest corner. Otherwise, these are to test your own settings.

Tag

#calibration test #test
