Gear Basics Learning Tool
di GCV3D
File stampabili (13)
-

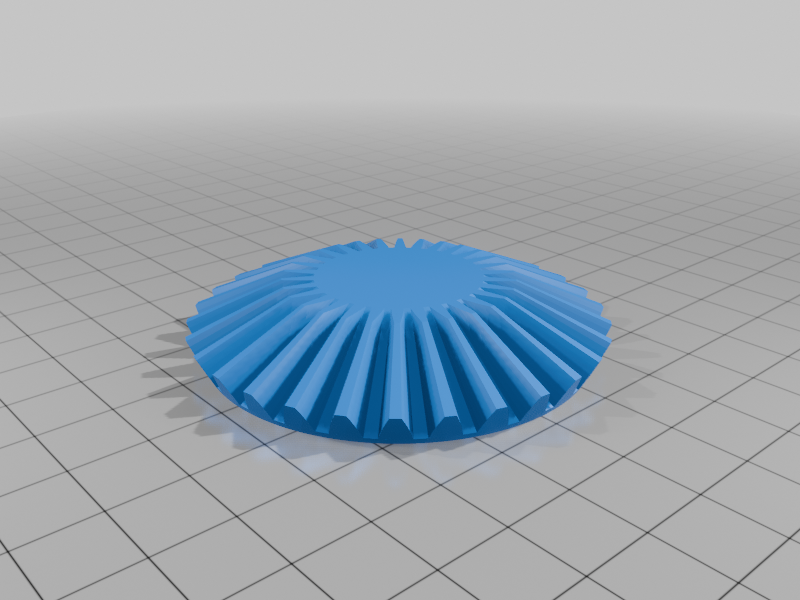

stlLarge_Bevel_Gear_gear_assembly.stl
608 Ko · 705 download
-

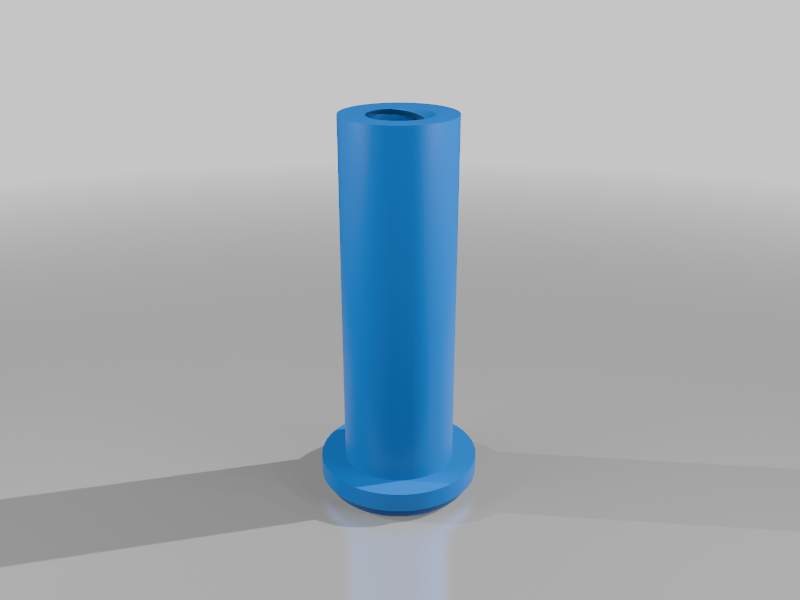

3mfLarge_Spur_Gear_Axle_gear_assembly.3mf
285 Ko · 660 download
-

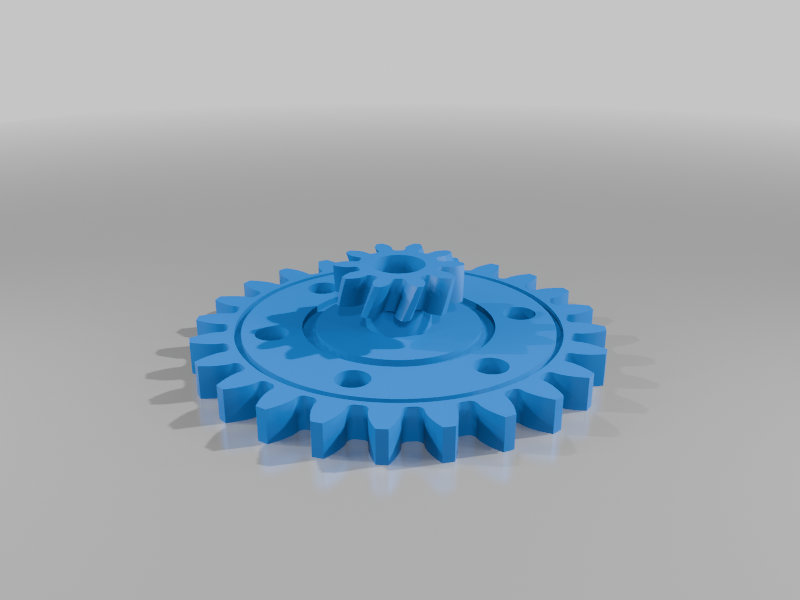

3mfLarge_Spur_Gear_gear_assembly.3mf
436 Ko · 684 download
-

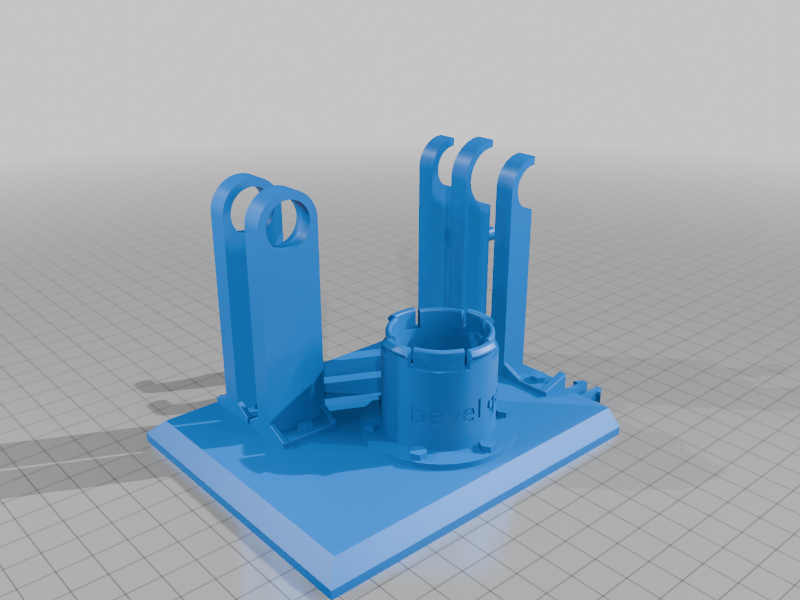

stlLeft_Base_gear_assembly.stl
5.7 Mo · 702 download
-

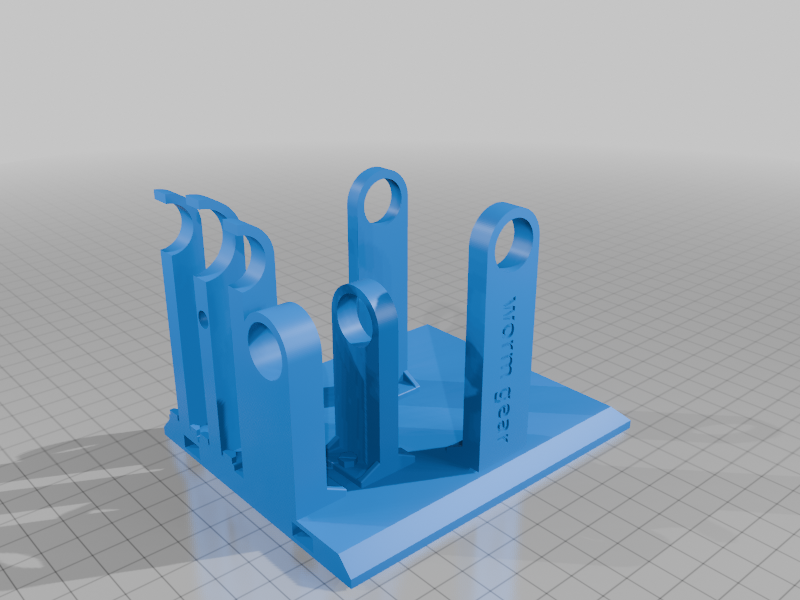

stlRight_Base_gear_assembly.stl
4.5 Mo · 674 download
-

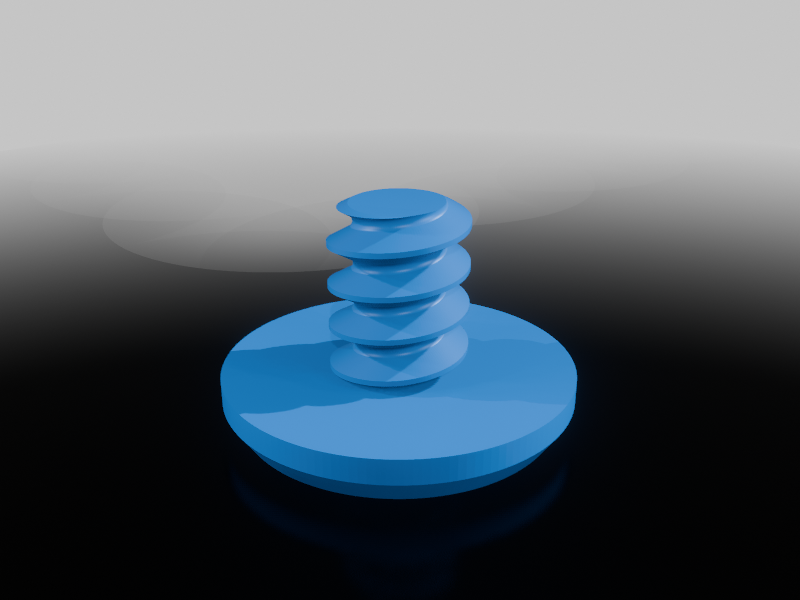

3mfScrew_Cap_gear_assembly.3mf
817 Ko · 645 download
-

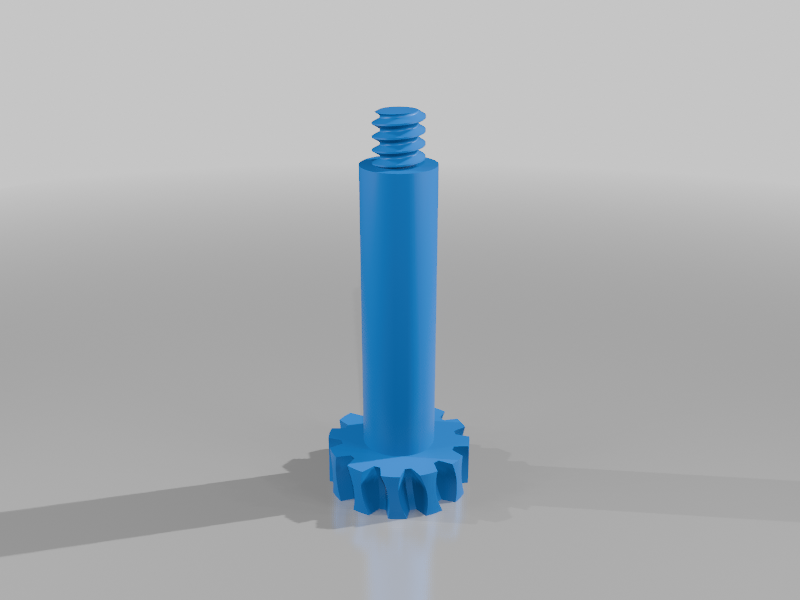

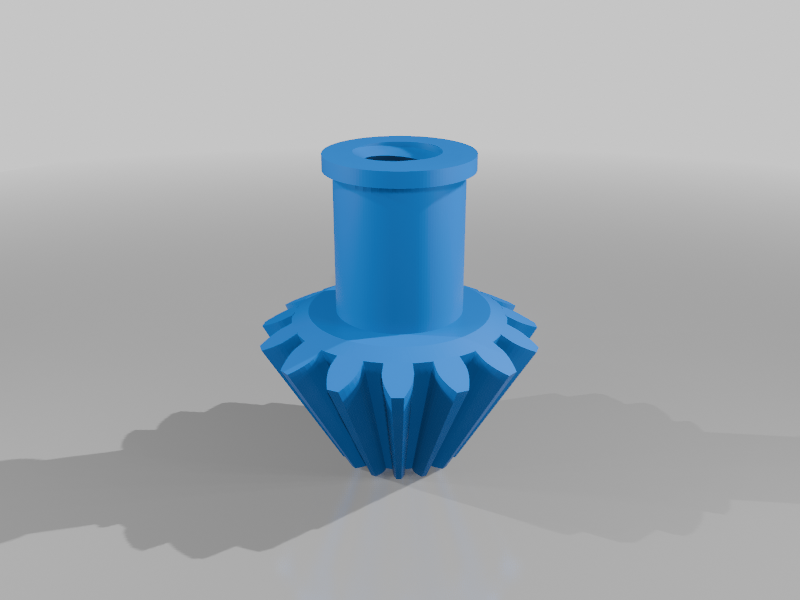

3mfSmall_Bevel_Gear_Axle_gear_assembly.3mf
924 Ko · 643 download
-
3mfSmall_Bevel_Gear_gear_assembly.3mf
294 Ko · 665 download
-

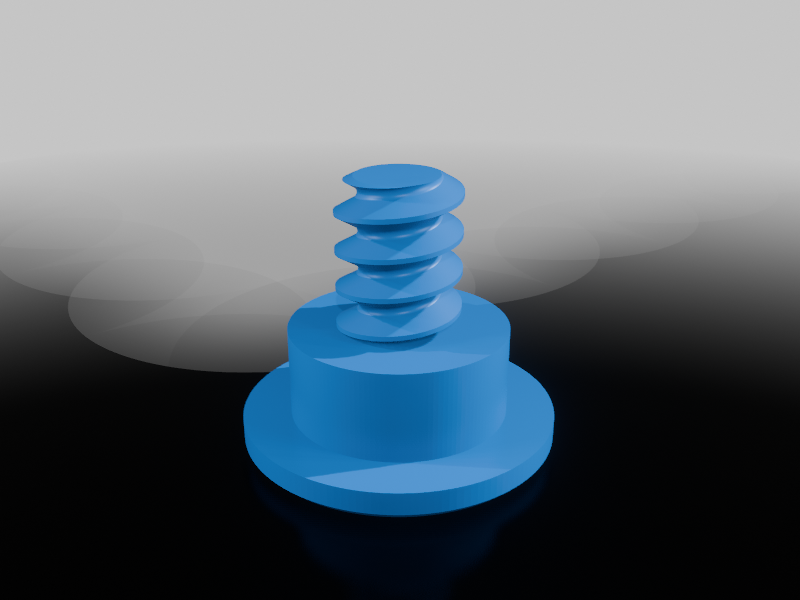

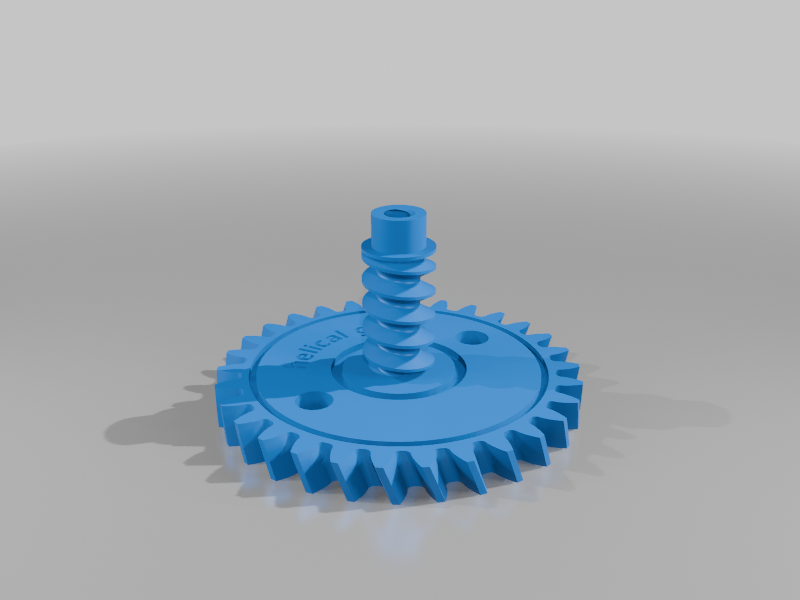

3mfHelical_Gear_Axle_gear_assembly.3mf
822 Ko · 644 download
-
3mfHelical_Gear_gear_assembly.3mf
2.5 Mo · 641 download
-

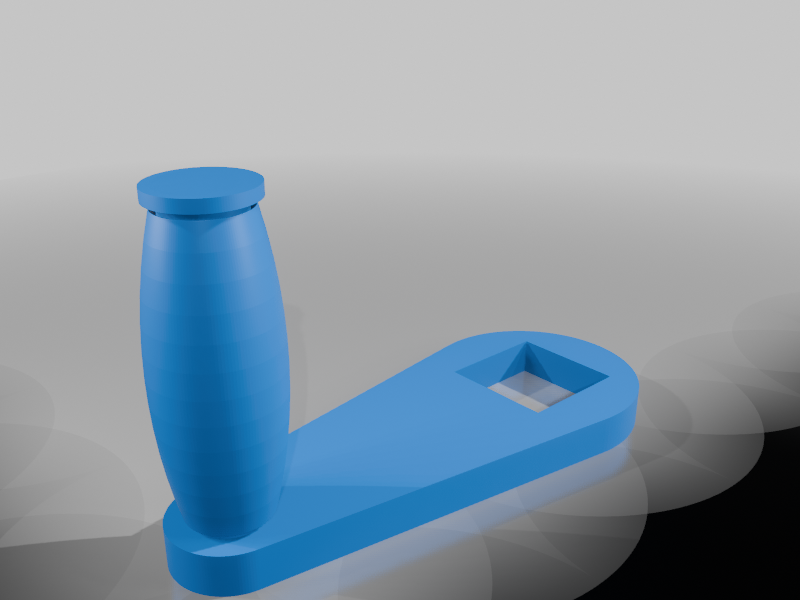

3mfCrank_gear_assembly.3mf
119 Ko · 616 download
-

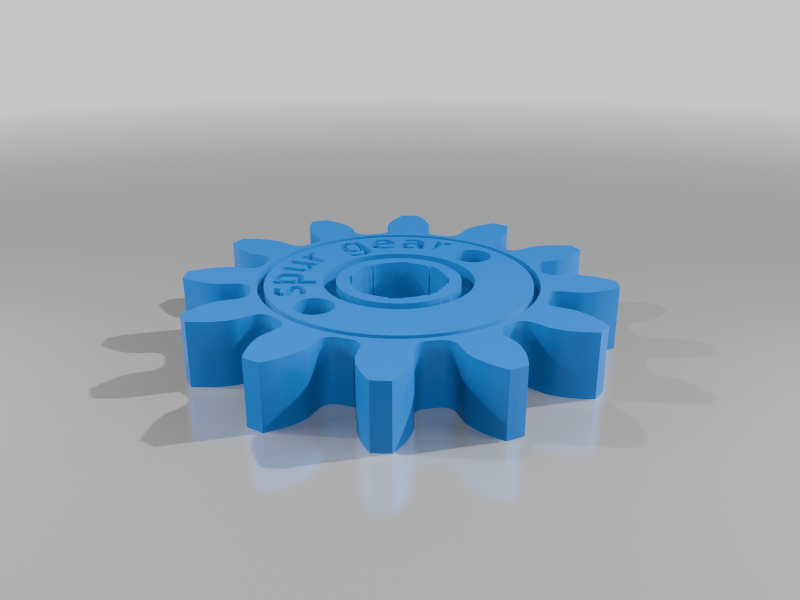

3mfSmall_Spur_Gear_gear_assembly_v2.3mf
233 Ko · 416 download
-

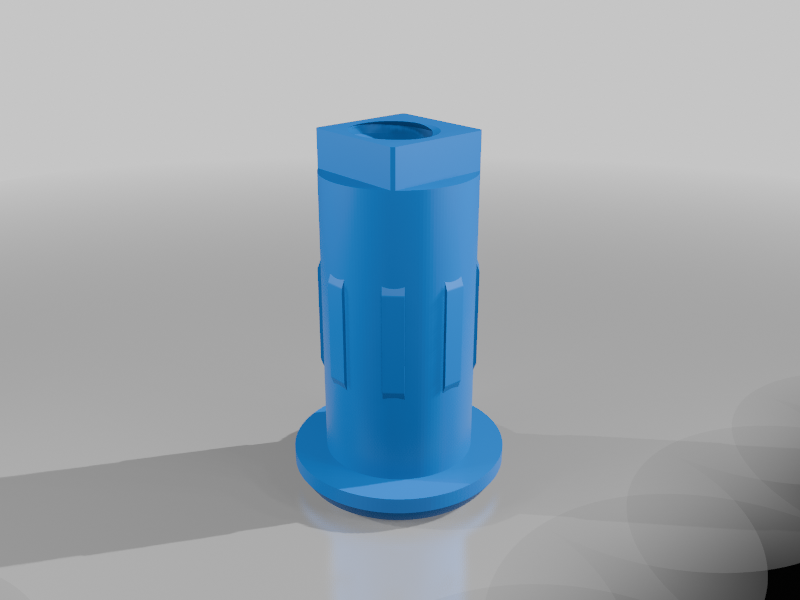

3mfSmall_Spur_Gear_Axle_gear_assembly_v2.3mf
280 Ko · 410 download
Descrizione
Watch a video of the print here!
I created this colorful contraption specifically as an education tool that can be used in classrooms and with younger children to help teach the basics of gear mechanics. It features several common types of gears, including spur, helical, worm, and bevel, making it a fun and interesting way to demonstrate how different types of gears interact. For more advanced learners, it can also be used to teach about gear ratios, and has an overall input to output gear ratio of 144:1.
3/28/2025 Update: Added keyed version of small spur gear and small spur gear axle to prevent gear slipping.
Printing & Assembly Tips
The print profile I created shows where supports are needed, without using too many. I also recommend using brims for most of these parts, especially those that have a large contact surface with the print bed, to avoid any part of the print lifting off the bed.
Assembly instructions are attached.
