Flight Case
di Royden99
File stampabili (6)
-

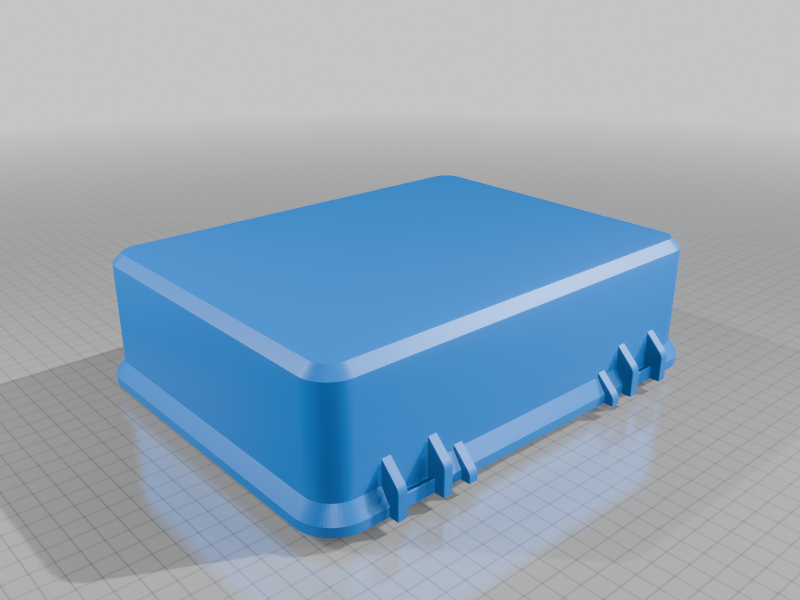

stlFlightCase_Top_Adjusted.stl
267 Ko · 61 download
-

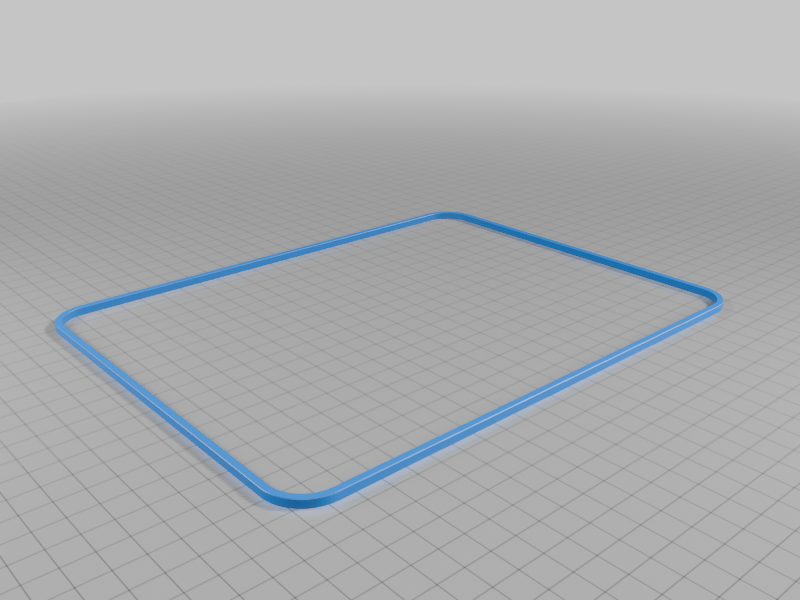

stlFlightCase_Seal_Adjusted.stl
58 Ko · 50 download
-

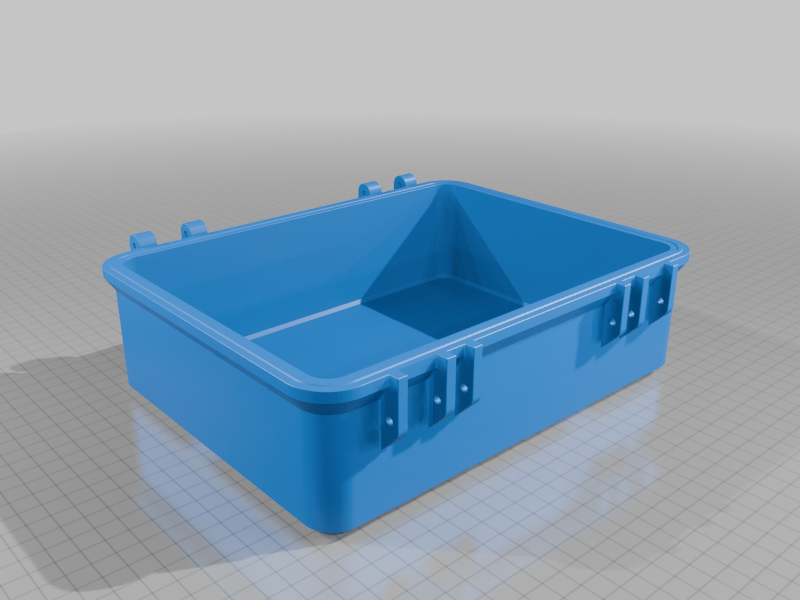

stlFlightCase_Base_Adjusted.stl
292 Ko · 64 download
-

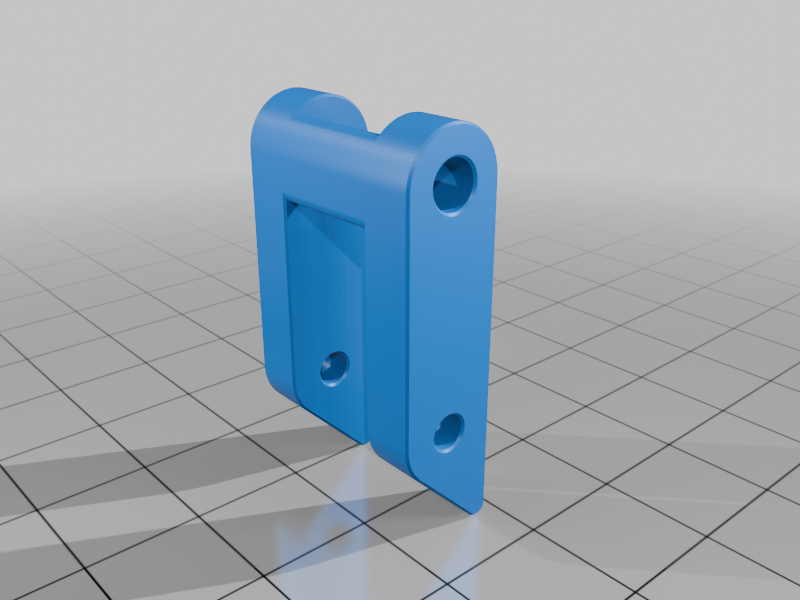

stlFlight_Case_Catch_Arm.stl
230 Ko · 51 download
-

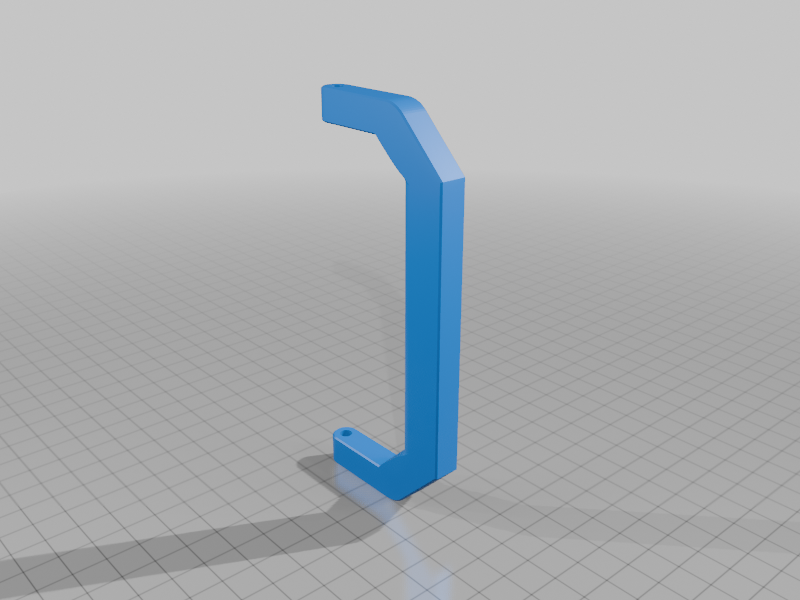

stlFlight_Case_Handle.stl
134 Ko · 50 download
-

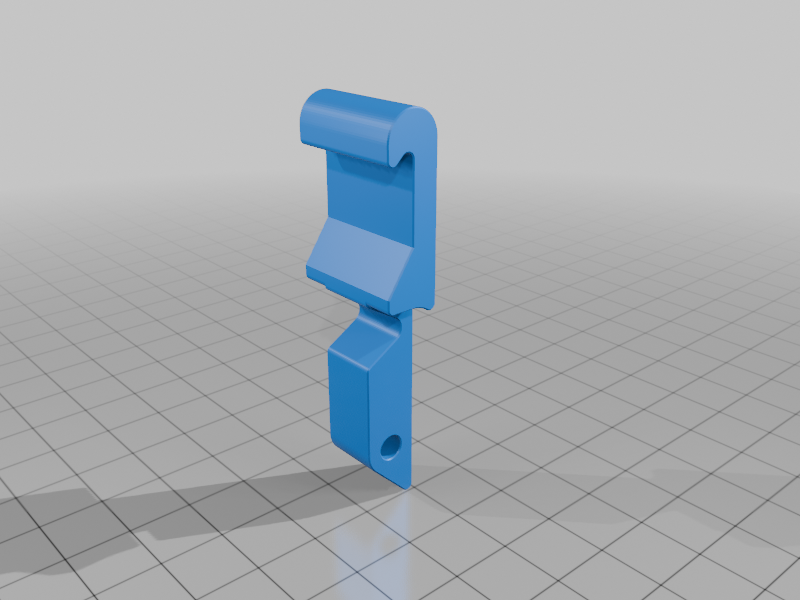

stlFlight_Case_Catch.stl
137 Ko · 49 download
Descrizione
I modified this awesome flight case/lunchbox thing by Greg_The_Maker to fit on a Prusa MK4S print bed (210x250mm).
In my case it's barely big enough to hold my 3.5" FPV drone, goggles, controller, and a couple batteries.
Summary:
- "Flight_Case_Top" is deepened so it's the same height as the bottom piece.
- "Flight_Case_Top," "Flight_Case_Base," and "Flight_Case_Seal" are squished on the X-axis and stretched on the Y-axis to be the maximum footprint allowed by my printer.
- All divider notches removed from "Flight_Case_Base" and "Flight_Case_Top."
- Printed in PETG, but not sure I would recommend doing that without an enclosure as I got a lot of warping.
- I used button-head M4 machine screws, nuts, and washers instead of grub screws. I did have to reem out a few holes with a drill to allow them to fit.
- The original handle, catch, and catch arm still fit properly.
