Debur box

di Jumbleo

File stampabili (6)

  • stl

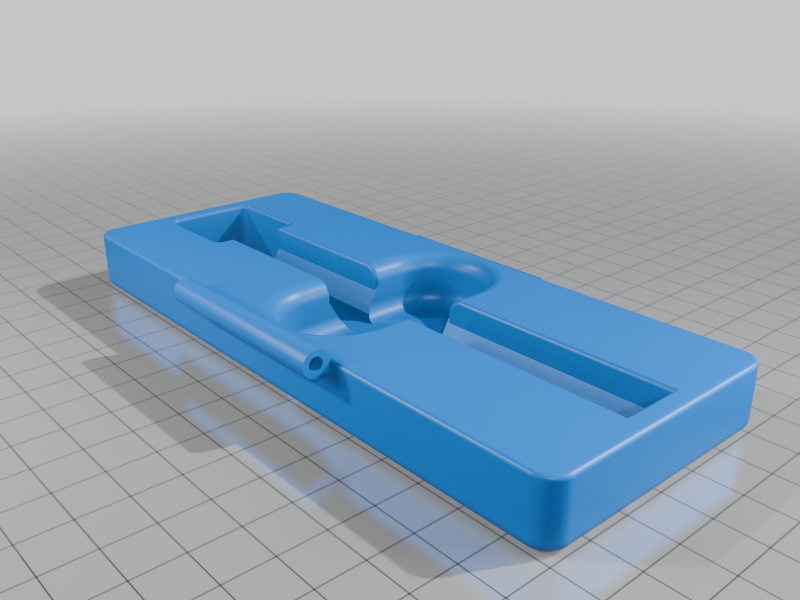

    deburrer_box_Body.stl

    2.6 Mo · 819 download

    Scarica
  • stl

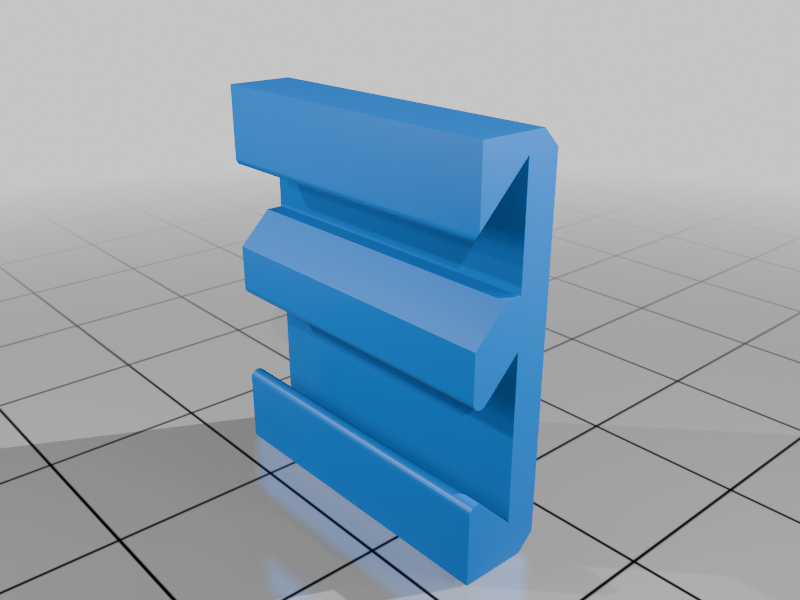

    deburrer_box_clip-Body.stl

    16 Ko · 816 download

    Scarica
  • stl

    deburrer_box_klingen_Body.stl

    3.2 Mo · 787 download

    Scarica
  • stl

    deburrer_box_mehr_klingen_seite-Body.stl

    3.9 Mo · 591 download

    Scarica
  • stl

    deburrer_box_klingen_side_1-8_mm_hinge_Body.stl

    3.9 Mo · 649 download

    Scarica
  • stl

    derburrer_side_1-8_mm_hinge-PartBody.stl

    2.6 Mo · 654 download

    Scarica

Descrizione

Box for holding common deburrer and extra blades. For the 145mm long version of the deburring tool (see picture with measuring stick). Has a 3.2mm Hinge hole, which has to be opened up with a drill to fit (or a sharpend version of the rod used for the hinge). The dovetails for the clip, used for holding the box closed, also needs a little work to function. Holds an additional 20 Blades in the lid. Also made one for 30 blades (see "deburrer box mehr klingen seite-Body.stl"), although it's untested. Printed in PLA+ on the centauri carbon.

Update:
Added a version with 1,8 mm hinge holes, so that you can use filament for the hinge (See the "1-8mm hinge" files).
