Multimeter sturdy case
di Cascao
File stampabili (8)
-
stlbox_multmeter_latch.stl
34 Ko · 3 117 download
-
stlbox_multmeter_pin.stl
17 Ko · 3 073 download
-
stlbox_multmeter_seal.stl
30 Ko · 3 070 download
-
stlbox_multmeter_bottom.stl
322 Ko · 3 357 download
-
stlbox_multmeter_top.stl
305 Ko · 3 188 download
-
3mfbox_multmeter_top.3mf
105 Ko · 2 886 download
-
stlbox_multmeter_handle.stl
166 Ko · 237 download
-
stlbox_multmeter_handle_blank.stl
136 Ko · 239 download
Descrizione
Case for multimeter.
Max multimeter dimension is 180x100x60mm.
Space for wires, probe, temp sensor, fuses...

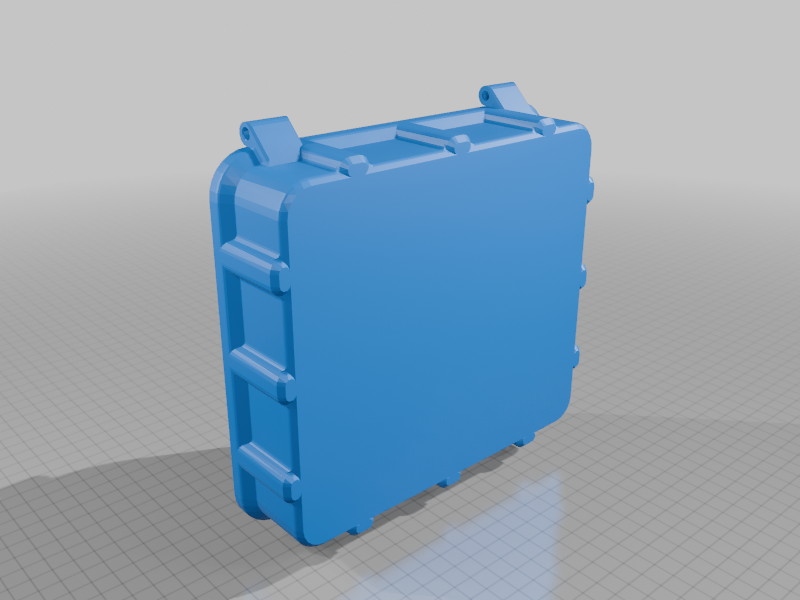

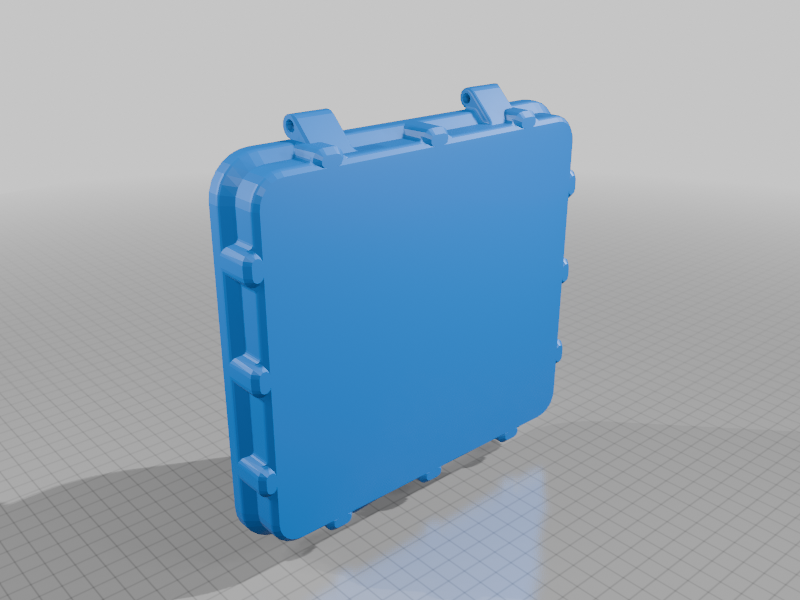

Cases: print with minimum supports (only on latch area)

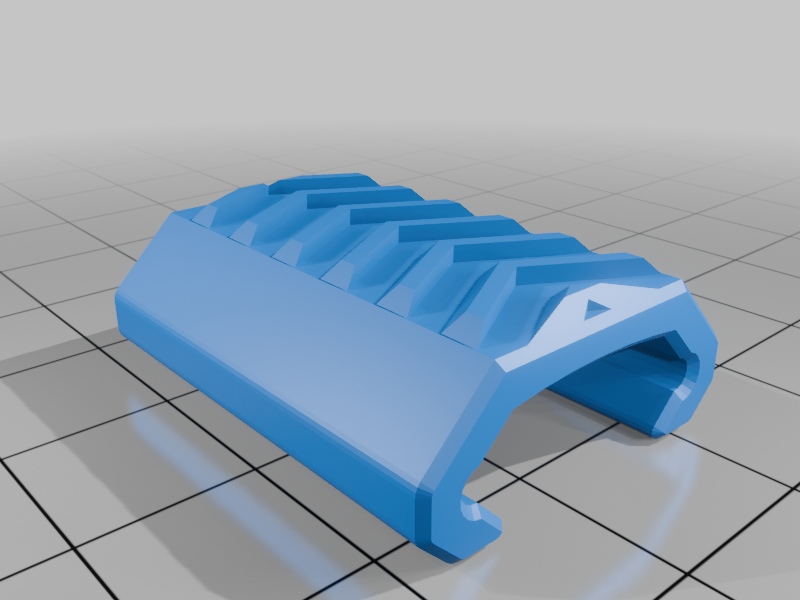

Latch: slide in place on top shell when open. (maybe will need some sanding to slide smoothly. I choose to do it with tight tolerances to have a firm movement without any sloopy feeling. If you is not much into sanding, you should print it at 101 or 102% size)

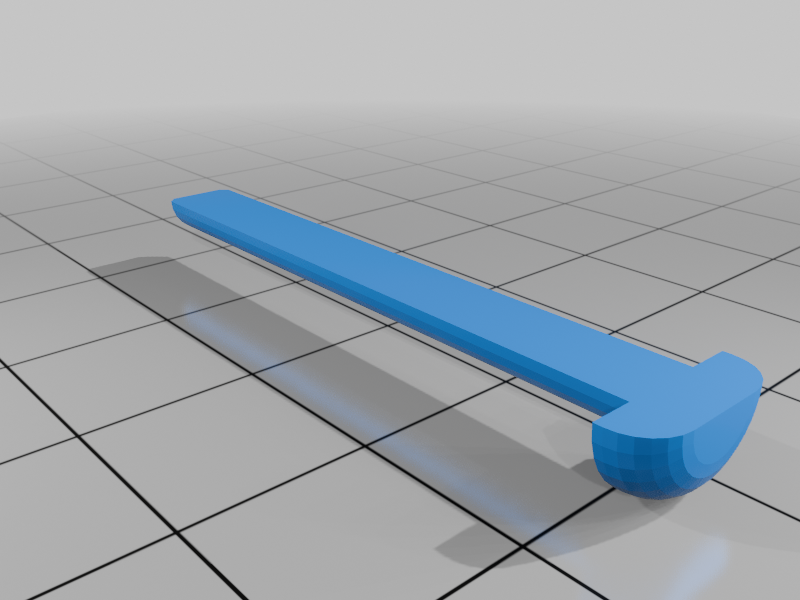

Pin hinge: they are split in a half for better printability and strenght. You need four of these. Maybe you will need to clean case holes with a 5mm drill before mounting.

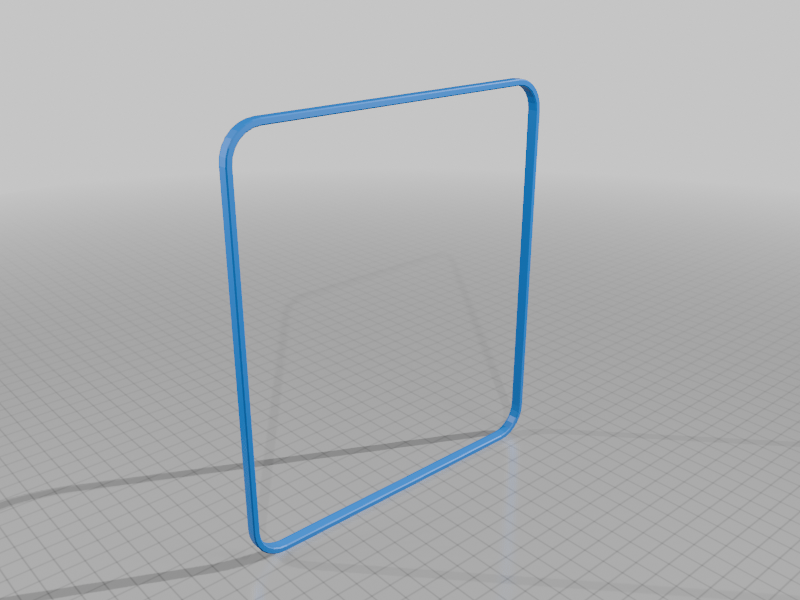

Seal: to be printed in TPU 30% infill. [optional]

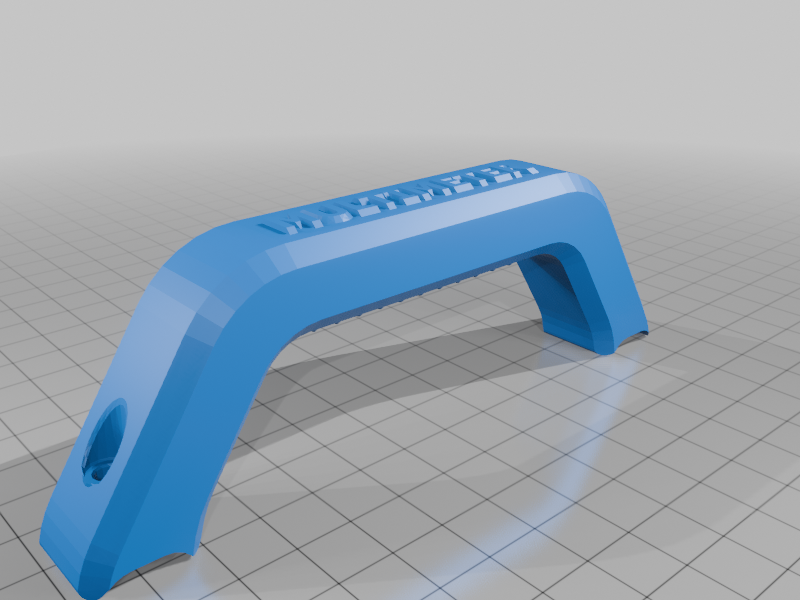

Handle is optional to be screwed, if you want
