Marblatron

di jpod

File stampabili (12)

  • stl

    gears.stl

    2.1 Mo · 2 770 download

    Scarica
  • stl

    riser.stl

    1.4 Mo · 2 784 download

    Scarica
  • stl

    screw_hex_connector.stl

    64 Ko · 2 760 download

    Scarica
  • stl

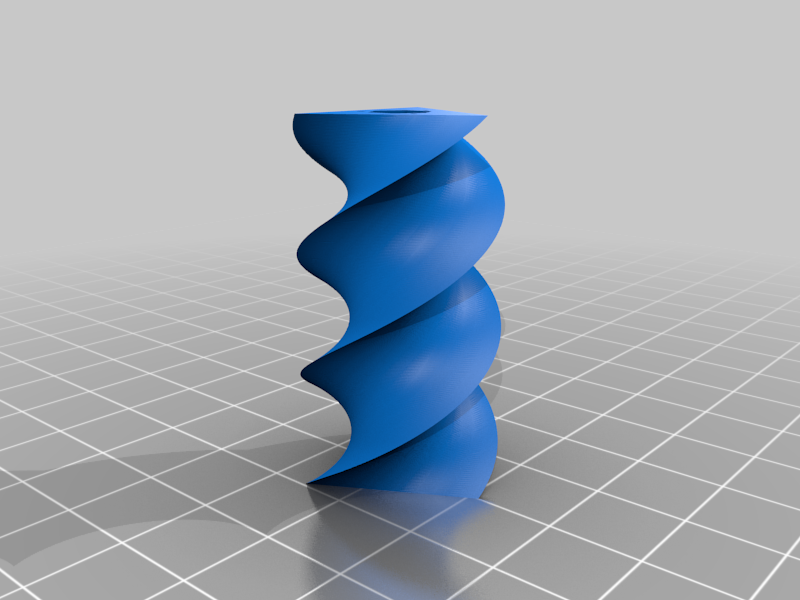

    screw_section.stl

    1.7 Mo · 2 801 download

    Scarica
  • stl

    screw_bearing_shaft.stl

    548 Ko · 2 784 download

    Scarica
  • stl

    riser_top.stl

    1.4 Mo · 2 771 download

    Scarica
  • stl

    gearbox.stl

    3.6 Mo · 2 778 download

    Scarica
  • stl

    rails.stl

    4.5 Mo · 2 796 download

    Scarica
  • stl

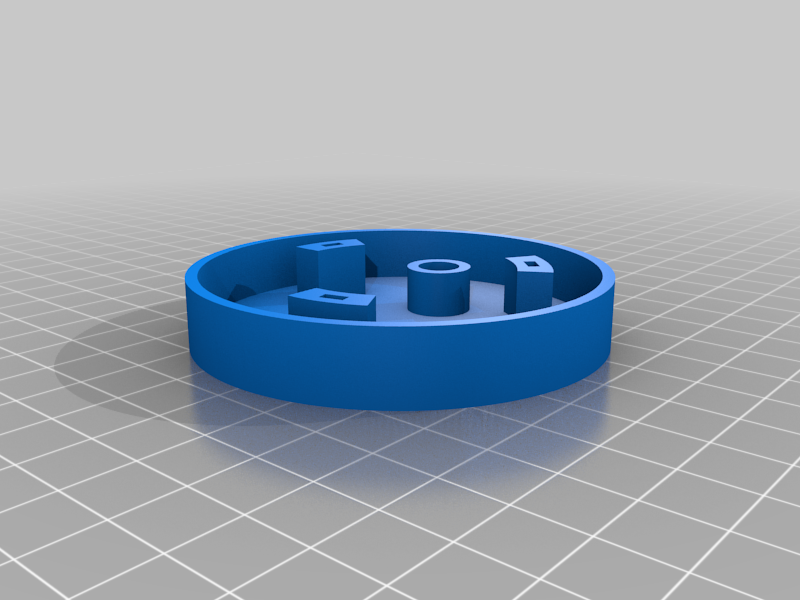

    cap.stl

    532 Ko · 2 771 download

    Scarica
  • stl

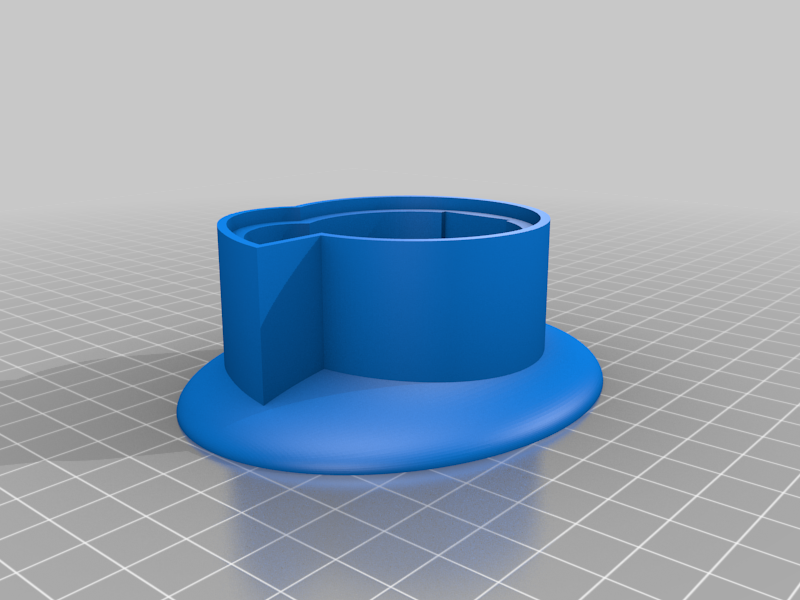

    base.stl

    2.1 Mo · 2 754 download

    Scarica
  • stl

    gear2.stl

    121 Ko · 2 695 download

    Scarica
  • stl

    gear1.stl

    1.1 Mo · 2 680 download

    Scarica

Descrizione

The Marblatron produces a brilliant pulse of light, signaling the arrival of a metallic ball from the Luminiferous Ether. This ball spirals downward. Mainly this is due to the effects of gravity, amongst other things. Until finally it disappears from whence it came.

https://www.youtube.com/watch?v=5Zvh_fvajl0

The light is generated from a 24 LED Adafruit Neopixel ring. This ring fits neatly in the cap piece, and a ribbon cable runs down through access holes in the riser sections to the base. In the base there is a location for an Arduino Nano that runs the Neopixels and ball sensor. The ball sensor is simply two wires that are at the top of the screw section. These sense when a ball is about to be ejected onto the track as it comes in contact with them. The Arduino then produces a bright pulse of light just before the ball pops out. At other times, the Marblatron simply generates a rotating pulse of yellow light to help gravity do it's work.

Tag

#arduino #lightitup #marble #Marblevator #marble machine #neopixel #toys
