Inkbird Temperature Controller Case

door frederikkemner

Printbare bestanden (2)

  • stl

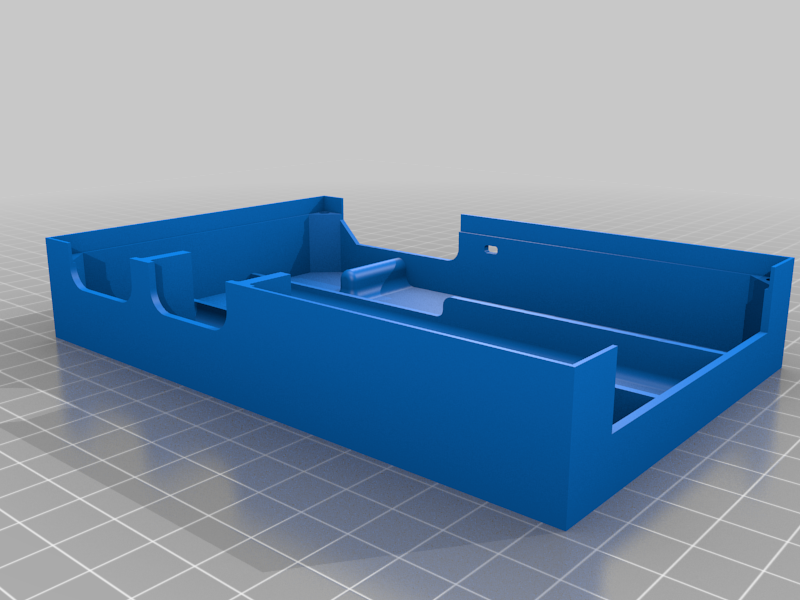

    Lower_half.stl

    1.5 Mo · 1 664 downloads

    Downloaden
  • stl

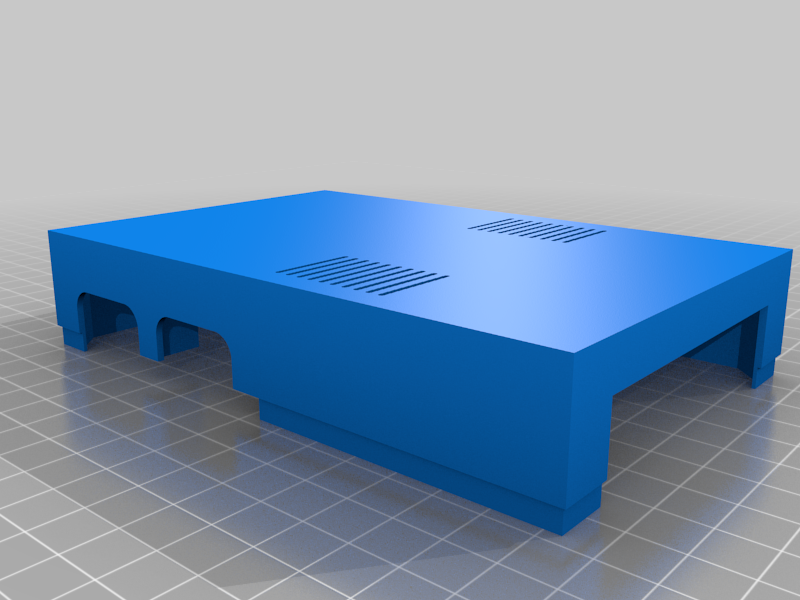

    Upper_half.stl

    1.4 Mo · 1 635 downloads

    Downloaden

Beschrijving

This is a two part case of an Inkbird temperature controller. It's compatible with the ITC-2000 and the ITC-1000, although the former only controls one relay. You can use the second hole to wire up a straight outlet that's not controlled by the thermostat if you have an ITC-2000.

Measurements are for:

  • this input power socket and switch and
  • these output power sockets

You also need four wood screws or self-tapping sheet metal screws (about 40mm and 3mm diameter) - I used #4 wood screws 1.5 inches long.
