Mini Arcade Machine

door iClint

1 / 23

831

Likes

5 806

Downl.

25 088

Views

Downloaden

Licentie: Creative Commons - Attribution
Bron: Bekijken op Thingiverse ↗

Printbare bestanden (11)

stl

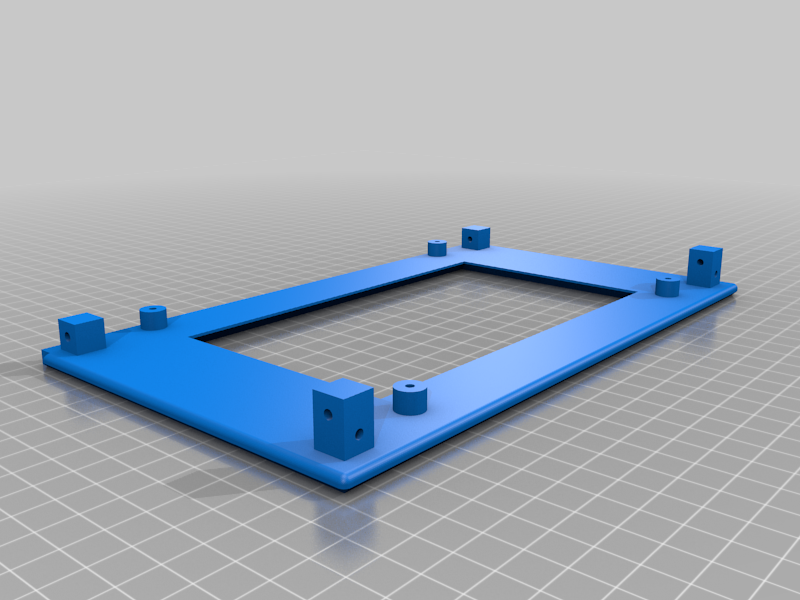

Bezel.stl

228 Ko · 10 822 downloads

Downloaden
stl

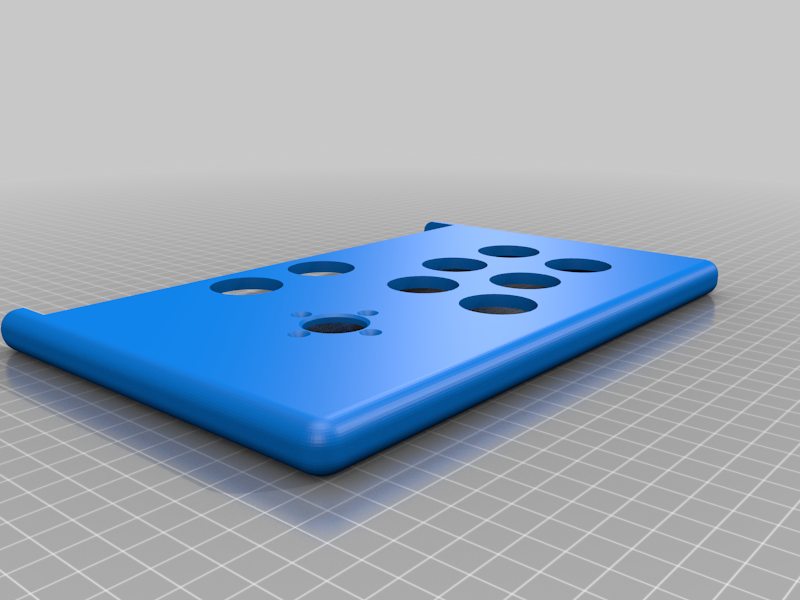

control_panel.stl

372 Ko · 10 893 downloads

Downloaden
stl

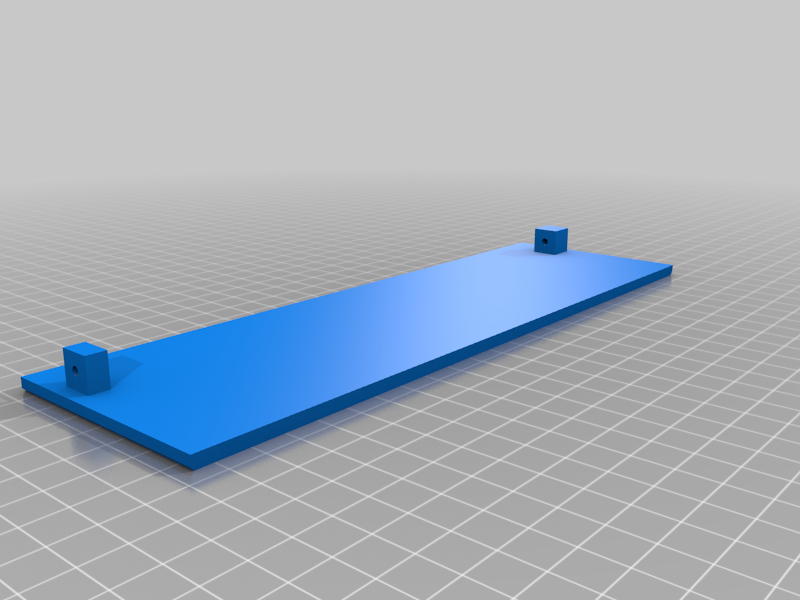

Front_Panel.stl

28 Ko · 10 733 downloads

Downloaden
stl

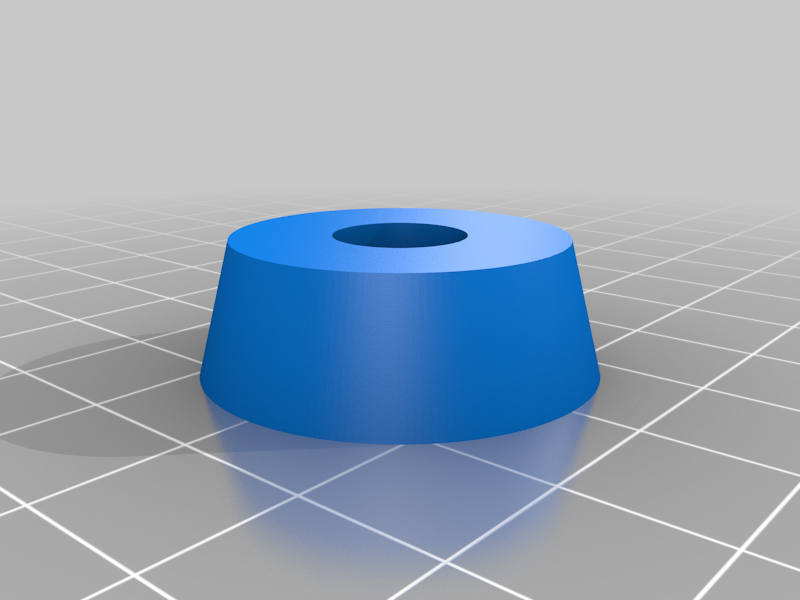

Rubber_foot.stl

72 Ko · 10 701 downloads

Downloaden
stl

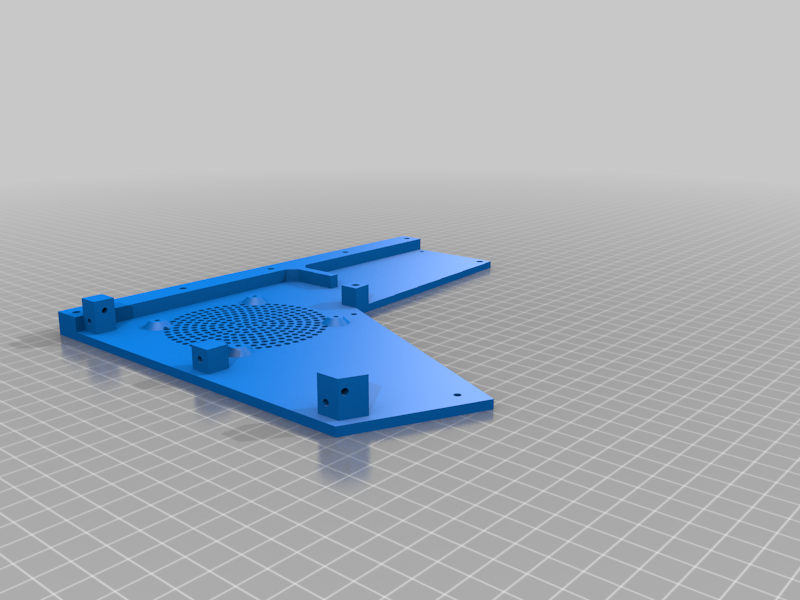

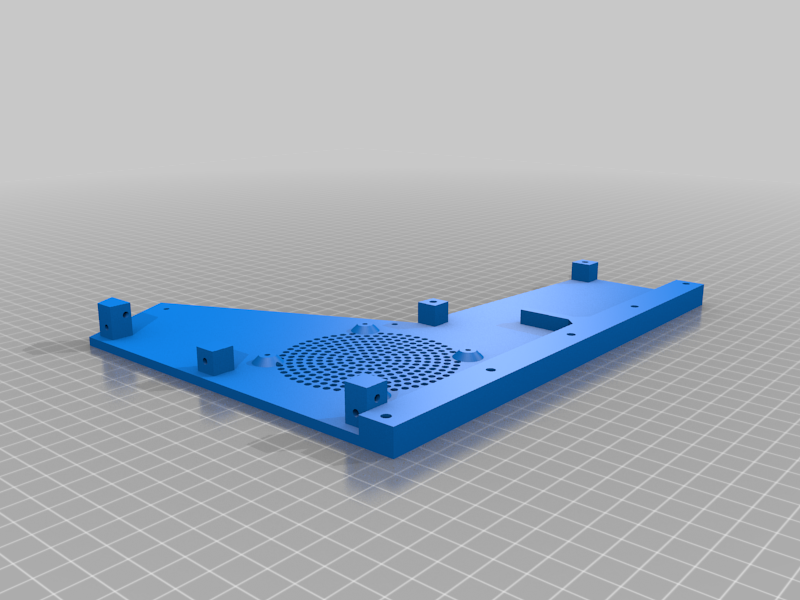

left_Panel.stl

2.2 Mo · 10 732 downloads

Downloaden
stl
right_panel.stl

2.2 Mo · 10 750 downloads

Downloaden
stl
Back_Panel.stl

253 Ko · 10 718 downloads

Downloaden
stl
Do-Not-Print.stl

26.5 Mo · 10 805 downloads

Downloaden
stl

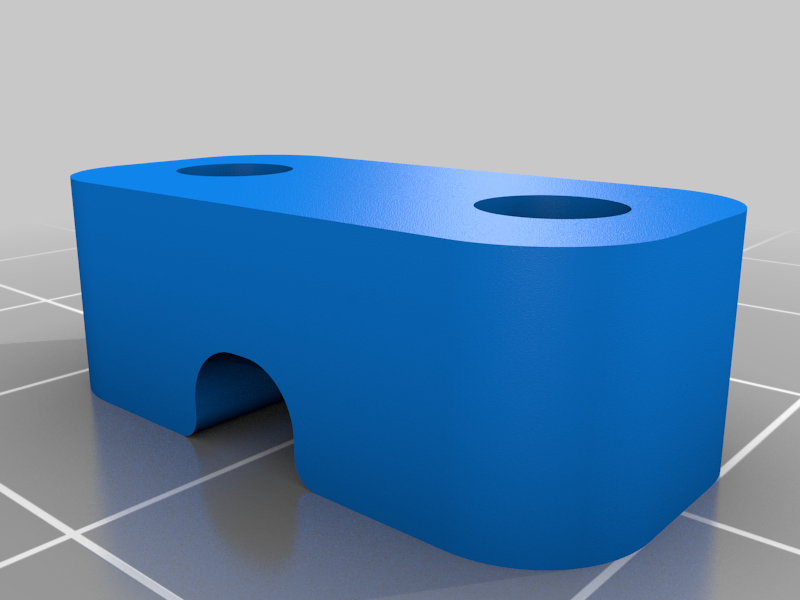

Cable_Clamp.stl

159 Ko · 10 672 downloads

Downloaden
stl

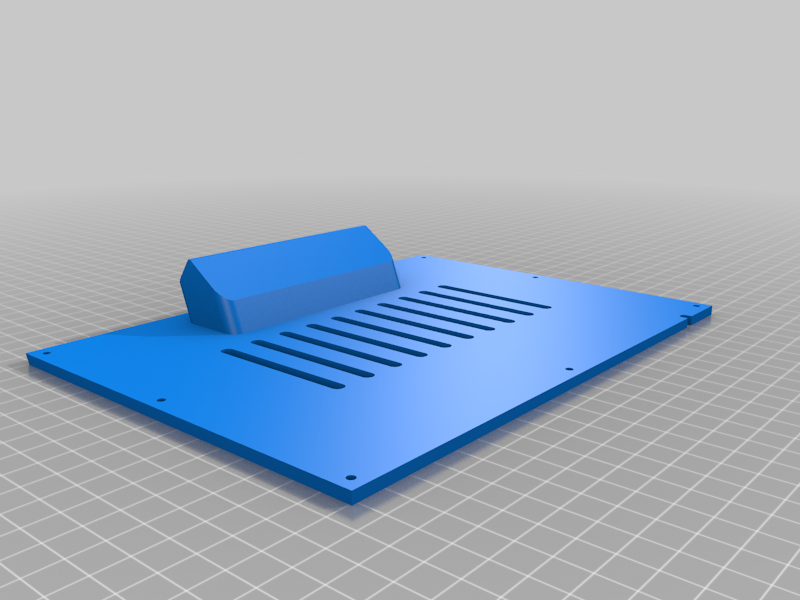

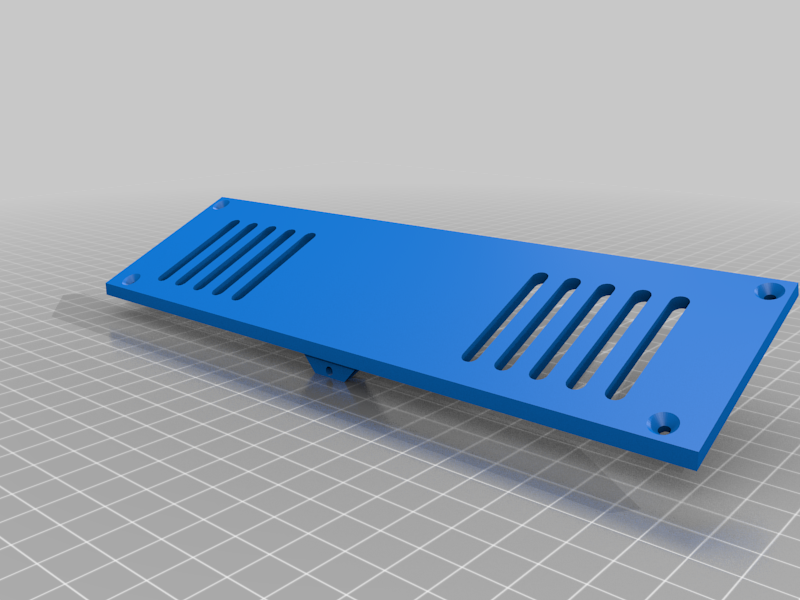

Top_panel.stl

159 Ko · 10 579 downloads

Downloaden
stl

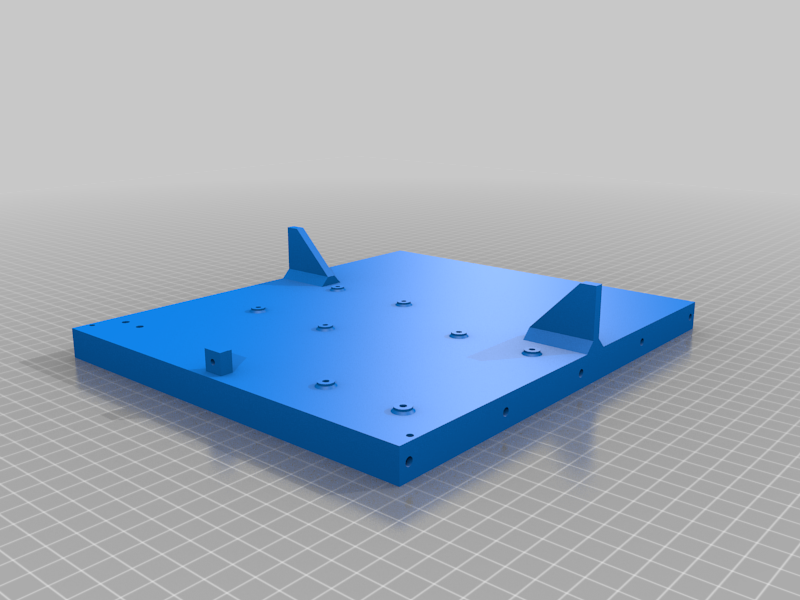

Base_panel.stl

472 Ko · 10 591 downloads

Downloaden

Beschrijving

This is no longer a work in progress!!! I have printed and assembled my one and everything is perfect

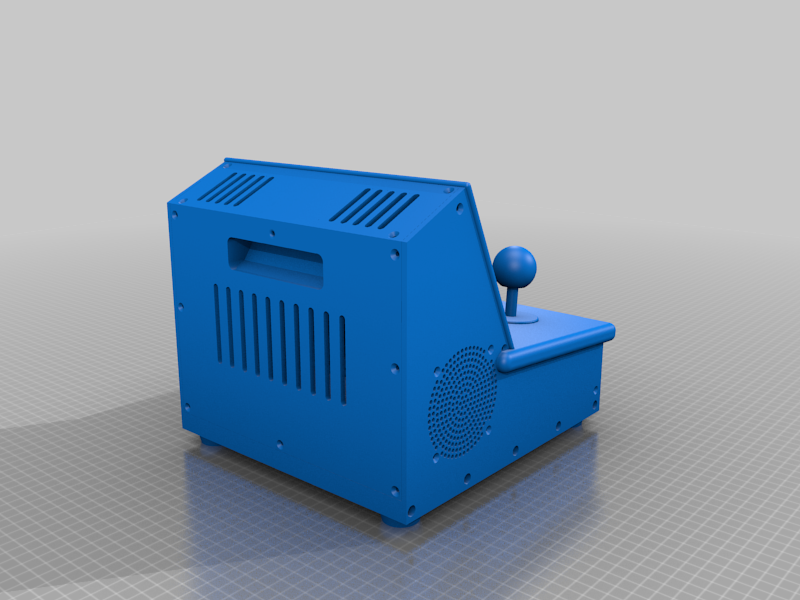

This is a mini or bar-top Arcade cabinet designed to house a Raspberry Pi 2/3, i-Pac Keyboard emulator, and 7" LED Display along with 8 buttons and a Joystick. The i-Pac module allows for shifting buttons giving you up to 20 button inputs more than enough to control all functions of RetroPIE for which I have based the design around.

You will need a medium to largish printer I have designed this to be printed on a Prusa i3 mk2 210x250 bed size

no supports are required with the exception of the Control panel which will benefit from supports (optional).

Some electronics and soldering skills may be required.

Shop around you will be able to get these parts from all over the web local to you I have provided links only as a general guide

List of Materials

1x Sanwa or Sanwa Clone joystick
8x Arcade push buttons
https://goo.gl/fL81K2 you could purchase a kit with all the hook up wire and terminals already crimped.
Hook up wire in various colours (at least 12)
Female spade terminalshttps://goo.gl/8Il1GN
Molex style plugs https://goo.gl/e75svy and https://goo.gl/KoLUpz
2x 3"(75mm) 4ohm 3w speakers https://goo.gl/KOmDaO
1 x 2x3w audio amplifier https://goo.gl/ZUmMzv
1 x 3.5mm audio jack https://goo.gl/3yqrjJ
1 x Raspberry Pi 2 or 3 https://goo.gl/XBFuha
1 x i-Pac keyboard encoder https://goo.gl/hWCHcr
1 x 7" display https://goo.gl/B482xT
1 x 270degree HDMI adaptor https://goo.gl/Deps5I
1x Short right angled micro to type A USB cable https://goo.gl/Ha02wr
1x short Type A to type B USB cable https://goo.gl/HLF4S8
1x VERY GOOD QUALITY long (1m) Micro USB to type A USB cable
1x Micro SD card configured with a RetroPie Setup

Screws:

30x Conter-sunk hex M3x12mm
15x Socket-head M4x20mm
12x M3x4mm machine screws
8x M3 hex nuts

Tools:

Cordless drill and 4mm drill bit
Philips head screw driver
2mm and 3mm hex keys
Wire stripers
Terminal crimping tool (optional you could just use pliers)
Soldering iron and solder

Misc.

cable ties
Heat shrink
