ESP8266 Programmer Case

door otinex

Printbare bestanden (4)

  • stl

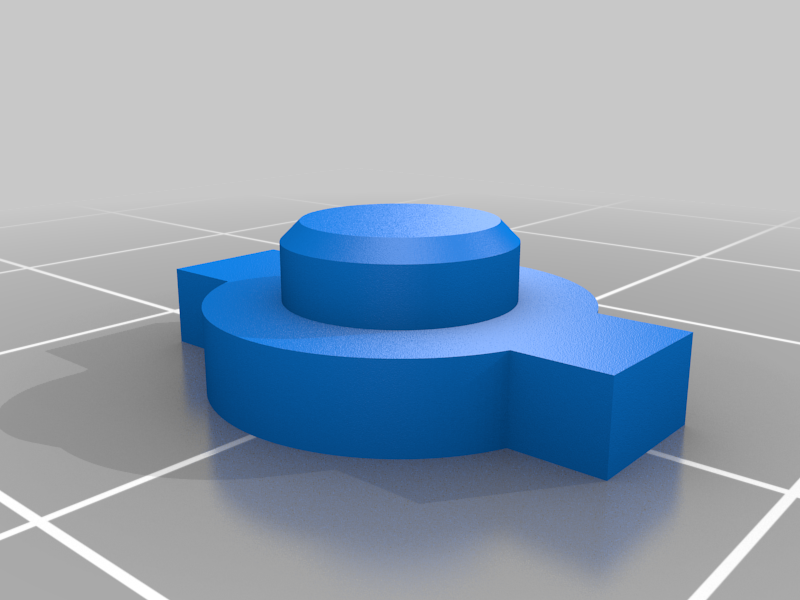

    Button.stl

    63 Ko · 426 downloads

    Downloaden
  • stl

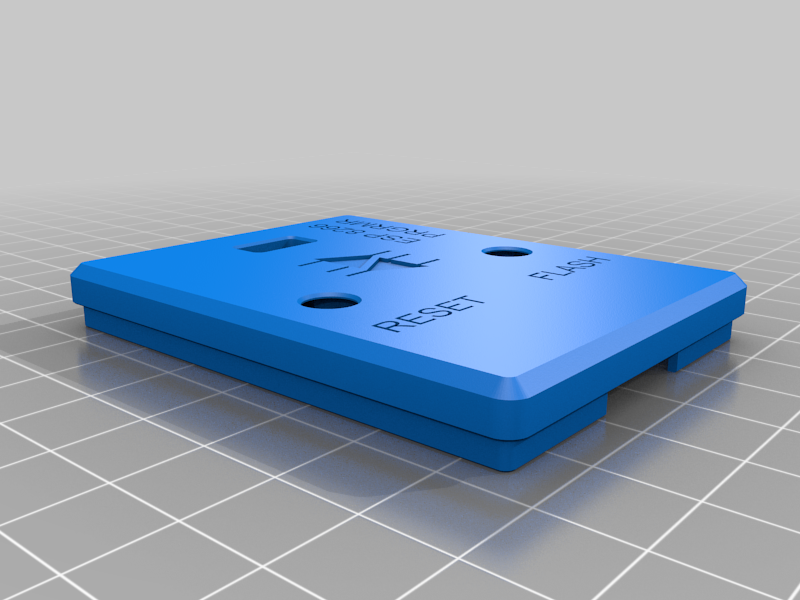

    Top_Cover.stl

    543 Ko · 433 downloads

    Downloaden
  • stl

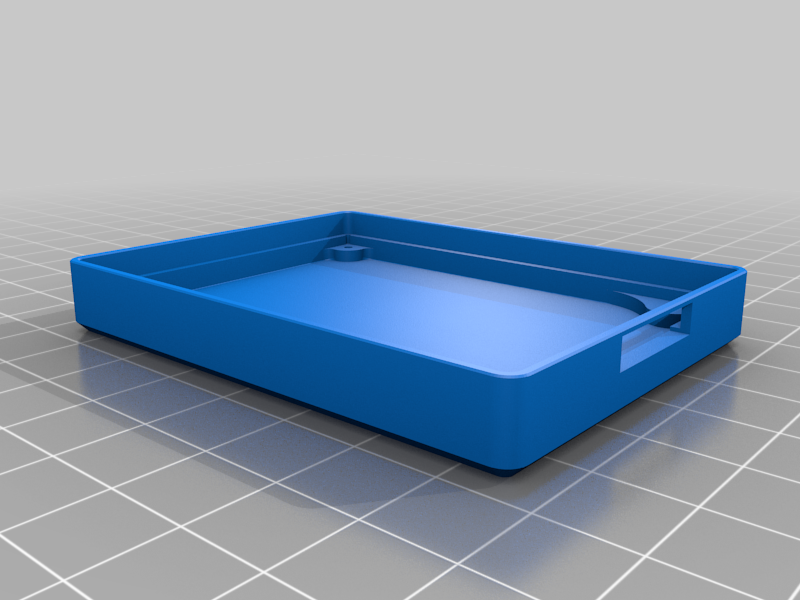

    Bottom_Cover.stl

    152 Ko · 426 downloads

    Downloaden
  • stl

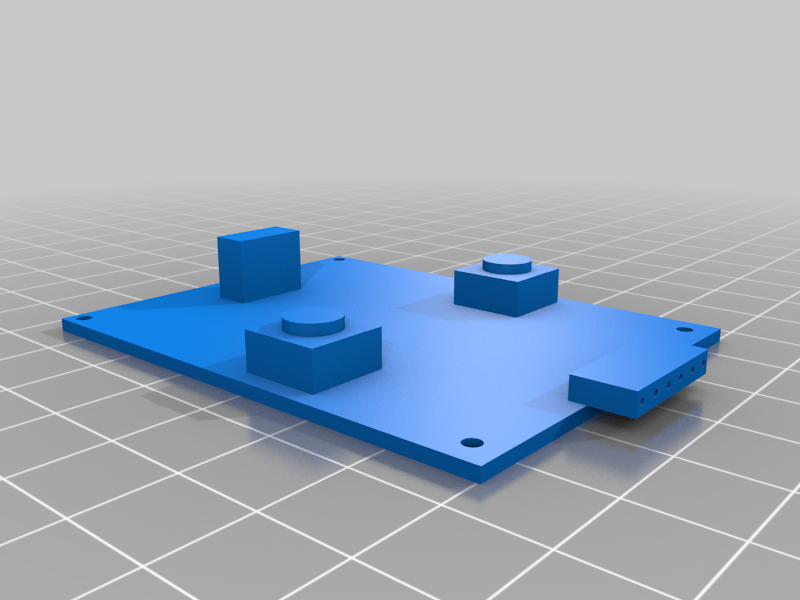

    Board_Dummy.stl

    189 Ko · 437 downloads

    Downloaden

Beschrijving

This week we’re having a go at building up a circuit to simplify interfacing the ESP8266 to a programming environment and designing and making a 3D-Printed case for it.

The models were made using Fusion 360 and the case was printed with a Prusa i3 Mk2.

Bottom part: Prusa Grey PLA
Top Part: Fillamentum white PLA
Buttons: Fillamentum Extrafill Traffic Red PLA

I have also uploaded an STL File of the populated dummy Circuit board and a picture with a ruler for scale to help with dimensions.

Tags

#case #diy #ESP8266 #fusion 360 #programmer
