Evolutionary spool Holder

door Steph220

Printbare bestanden (7)

  • stl

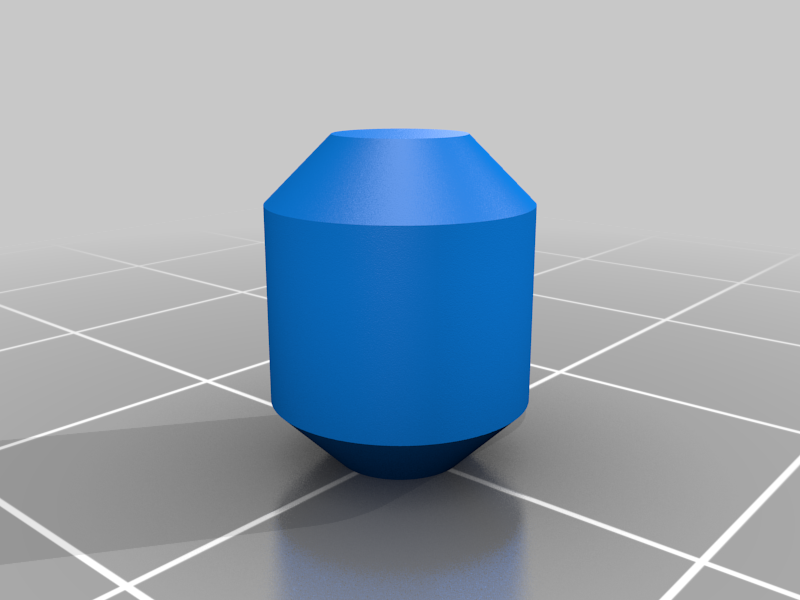

    Rouleau_D8x10.STL

    141 Ko · 572 downloads

    Downloaden
  • stl

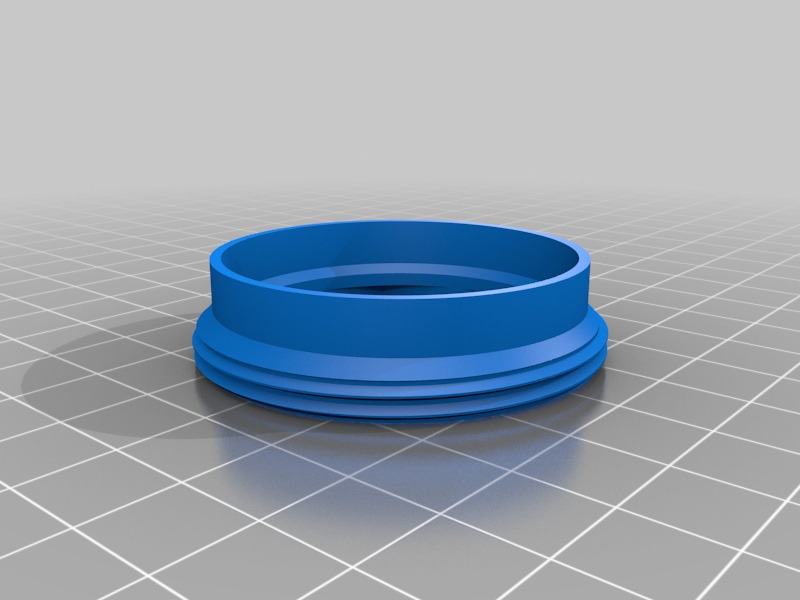

    Tape_D45x5.STL

    1.3 Mo · 571 downloads

    Downloaden
  • stl

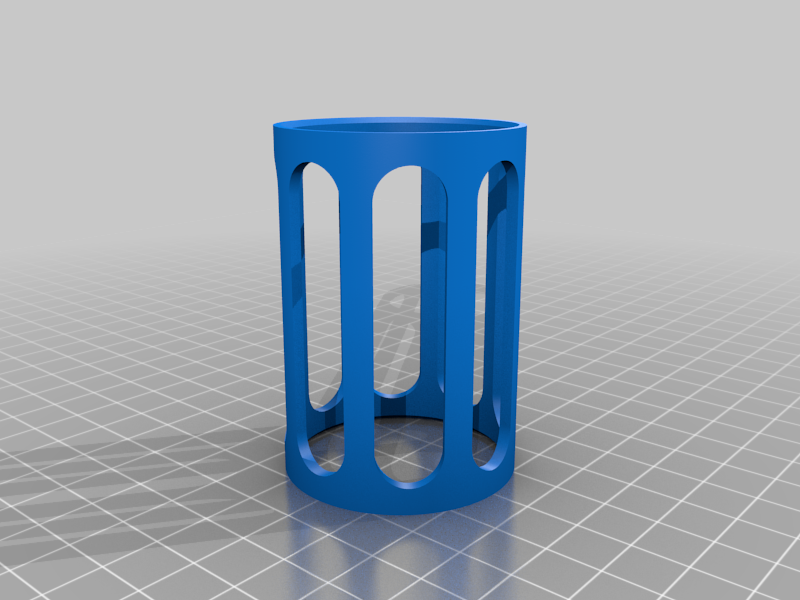

    Entretoise_D45x65.STL

    1.2 Mo · 567 downloads

    Downloaden
  • stl

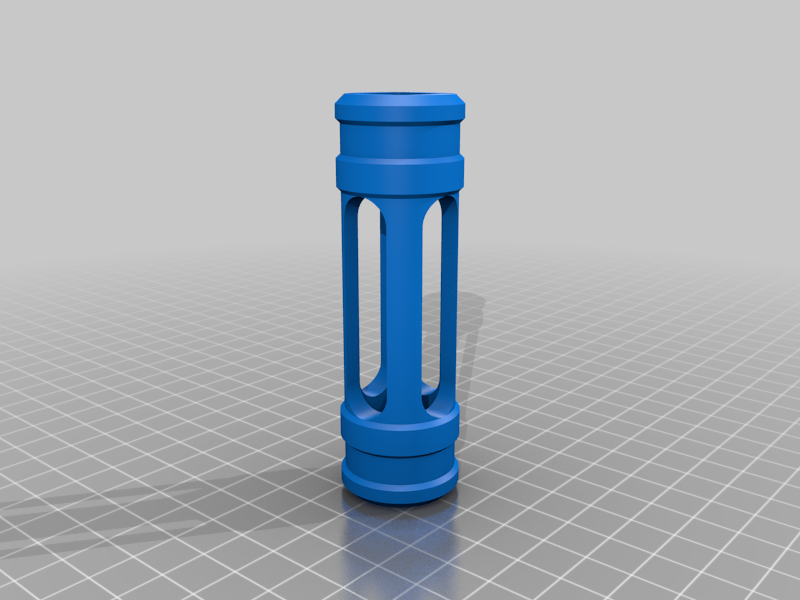

    Axe.STL

    1.1 Mo · 571 downloads

    Downloaden
  • stl

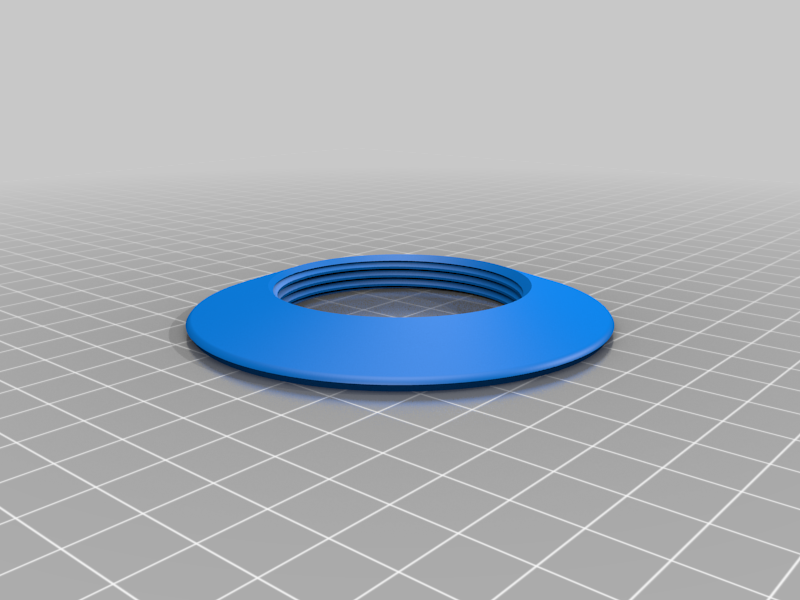

    Flasque.STL

    3.2 Mo · 566 downloads

    Downloaden
  • stl

    Spacer_8x8x10.STL

    6.4 Mo · 570 downloads

    Downloaden
  • stl

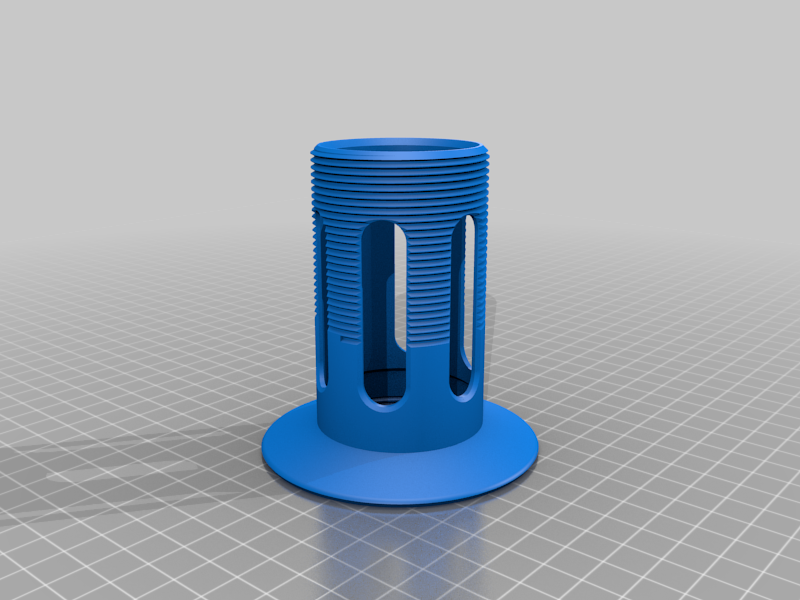

    Moyeu_démontable.STL

    12.2 Mo · 571 downloads

    Downloaden

Beschrijving

A spool holder that can be used with differents supports. It works with 2 roller-bearing for a smooth rotation of the spool.
To be mounted with the replacement support for the Creality's printers (see at https://www.thingiverse.com/thing:3717077), or with the simple support (see at https://www.thingiverse.com/thing:3720610).
You could also design your own support : all that you need is a 14mm square axis !

I suggest to print all the parts separately with 0,10 mm layer height. You will need to print 2 spacers and 16 rollers.

Assembly tip : Use a little grease on the axis to help the rollers to hold in place.

Tags

#evolution #spool holder
