Electronics Project Box

por The_ID_of_Ed

Ficheiros imprimíveis (3)

  • stl

    Control_Box_Back_Panel_-_Strobe_Plugs.stl

    87 Ko · 163 descargas

    Descarregar
  • stl

    Control_Box_Front_Flat_Panel_-_Blank.stl

    39 Ko · 162 descargas

    Descarregar
  • stl

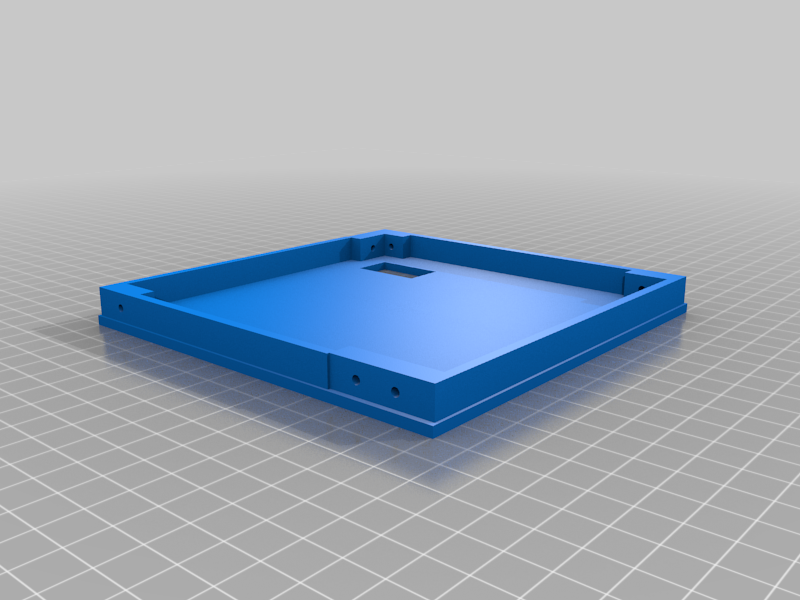

    Control_Box_Front_Flat_Panel_-_Power_Switch.stl

    38 Ko · 163 descargas

    Descarregar

Descrição

Electronics Project Box.

This is a simple Electronics Enclosure. This a follow on design based on my thing file 3800795.

https://www.thingiverse.com/thing:3800795

The project was initially created for enclosing some hacked and salvaged Strobe Light electronics.

Check out my YouTube video on the box and see it being used doing some slow motion
studies on a 1938 6 volt battery powered farm radio's mechanical vibrator.

The box demo video is at https://youtu.be/GeCukqJ1Gas

The switch that fits the front panel is a NTE 57-517 from Micro Center
