USB microscope stand
por iceekb
Ficheiros imprimíveis (6)
-
stlrack.stl
30 Ko · 915 descargas
-
stlcentering_washers.stl
134 Ko · 867 descargas
-
stlbase.stl
206 Ko · 877 descargas
-
stlright_knob.stl
1.4 Mo · 878 descargas
-
stlleft_knob.stl
1.5 Mo · 874 descargas
-
stlmount.stl
285 Ko · 913 descargas
Descrição
This is a remix of this model: https://www.thingiverse.com/thing:2525155
Differences:

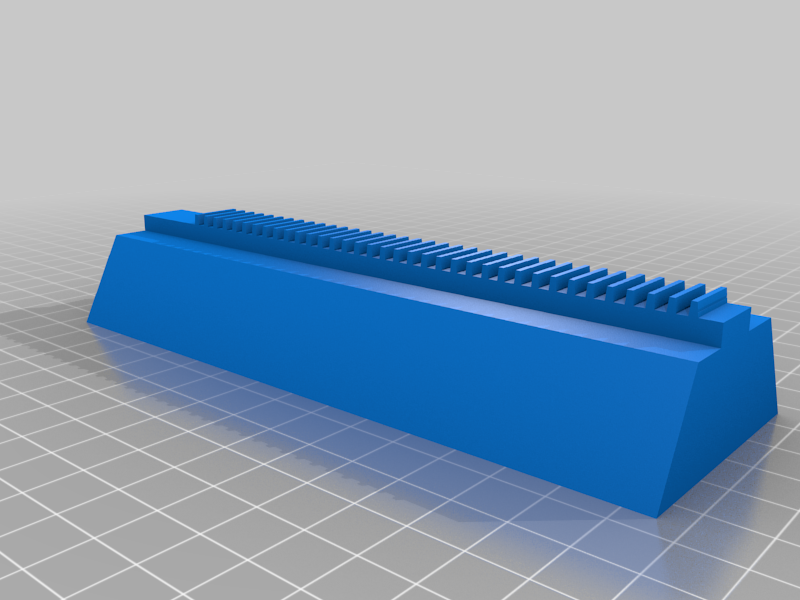

- The rack is increased in height (by a third).
- 6 upper teeth were removed.

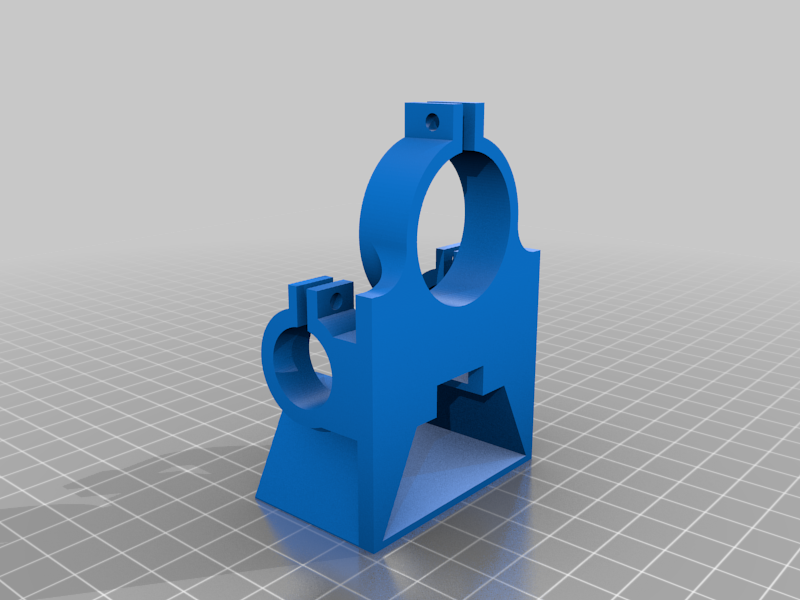

- The holder reinforced in the walls and fixing points.

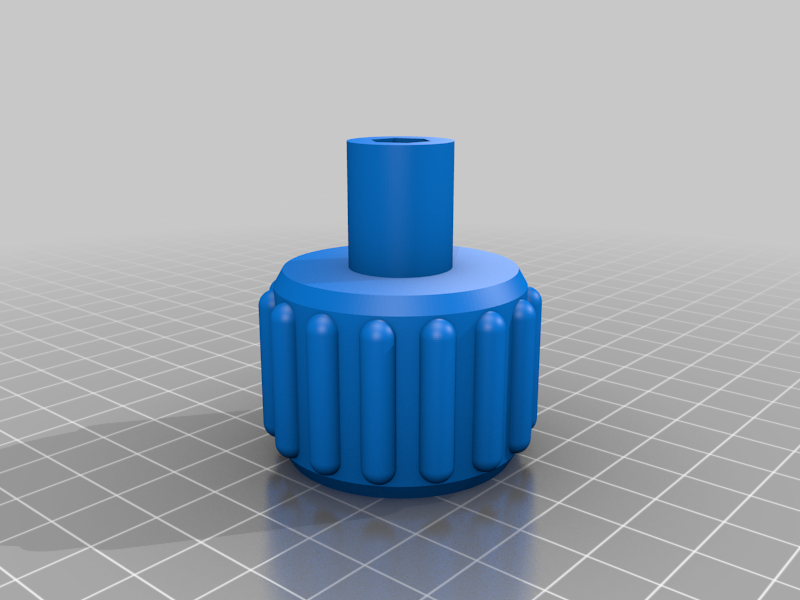

- The shape of the knobs has been changed.

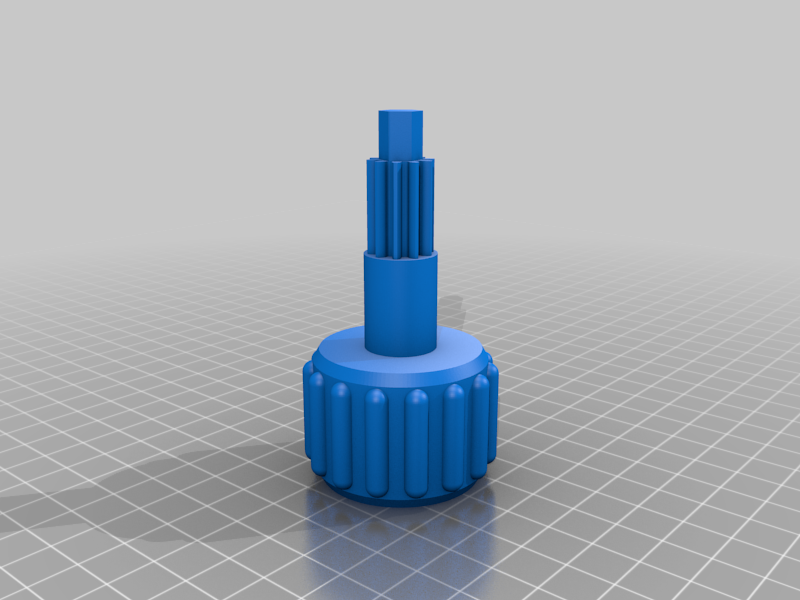

- The gear is integrated into the left knob.

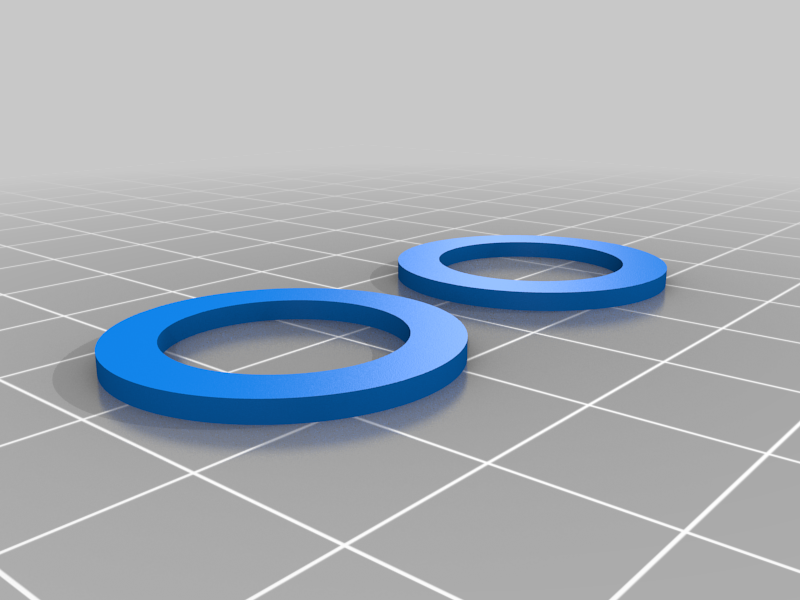

- Washers have been added to remove the transverse backlash of the axis

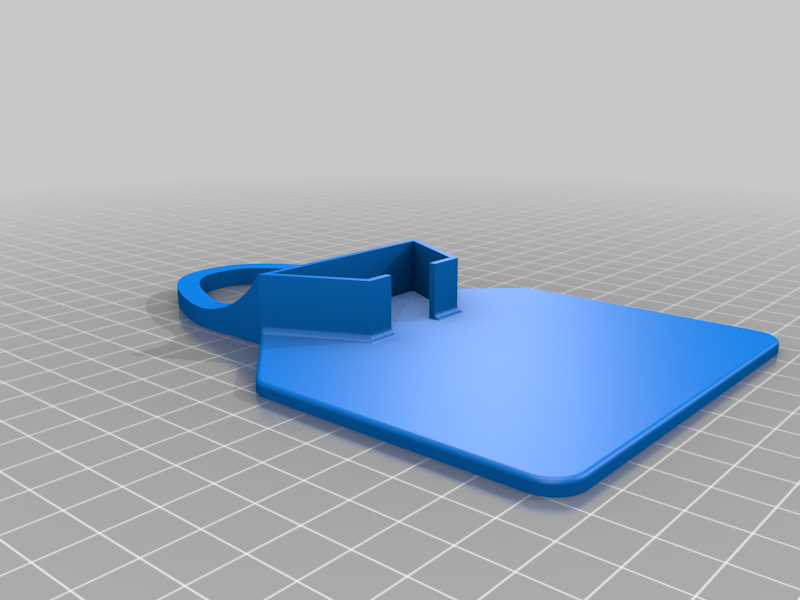

- The shape of the base has been changed.
Otherwise, the model is printed and assembled in the same way as the original...
